Yealink VCH51 Video Conferencing Hub Sharing Box HDMI USB-C BYOD (NEW In Box)

The Yealink VCH51 is a wired content sharing box, sold by Yealink as the VCH51 Sharing Box and labelled on the carton as the VCH51 Package. A laptop connects to the VCH51 by HDMI or USB-C, and the VCH51 connects back to the room system over a single network cable that also carries its power. It places the sharing connection on the meeting table rather than at the display, so presenters plug in once at their seat.

Beyond one way content sharing the VCH51 also enables BYOD mode, in which the room system camera, microphone and speaker are presented to the connected laptop as USB peripherals so the laptop can host the meeting in its own conferencing application. Yealink states content sharing at up to 4K at 15 frames per second on MeetingEye 400 and 600, and up to 1080p at 30 frames per second on MeetingBar A20 and A30. Host operating systems are Windows 7, 8.1 and 10, and macOS 10.6 or higher.

Specifications

Brand: Yealink

Model: VCH51 Sharing Box

Part Number: VCH51

Alternate Part Number: 1303106

Product Type: Wired content sharing and BYOD box

Network Port: 1 x RJ45 100Mbps, full duplex, IEEE 802.3af PoE

Video Inputs: 1 x HDMI, 1 x USB 2.0 Type-C with DisplayPort Alt Mode

USB Port: 1 x USB 2.0 Type-A

Maximum Sharing Resolution: Up to 4K at 15fps on MeetingEye 400/600, up to 1080p at 30fps on MeetingBar A20/A30

Power: PoE IEEE 802.3af over the RJ45 port, no separate power supply required

Dimensions: 123 mm W x 49 mm D x 16.8 mm H

Net Weight: 76 g

Compatibility: Yealink MeetingBar A20 and A30, MeetingEye 400 and 600, MeetingBoard 65 and 86

Host OS: Windows 7, 8.1, 10, macOS 10.6 or higher

Barcode: 841885106414

Country of Origin: China

Condition: New, in the original box

Key Features

• Single cable run to the room system, carrying video, data and PoE power
• HDMI and USB-C video inputs so both older and current laptops connect without a dongle
• BYOD mode presents the room camera, microphone and speaker to the laptop as USB devices
• Powered entirely over PoE, no local power outlet needed at the table
• 7.5 m Ethernet cable supplied for the run from table to system

Typical Applications

• Table top content sharing in meeting and huddle rooms
• Enabling guest laptops to host a meeting using the room audio and video hardware
• Retrofitting a wired sharing point to an existing MeetingBar or MeetingEye room
• Boardrooms where a tidy single cable to the table is required

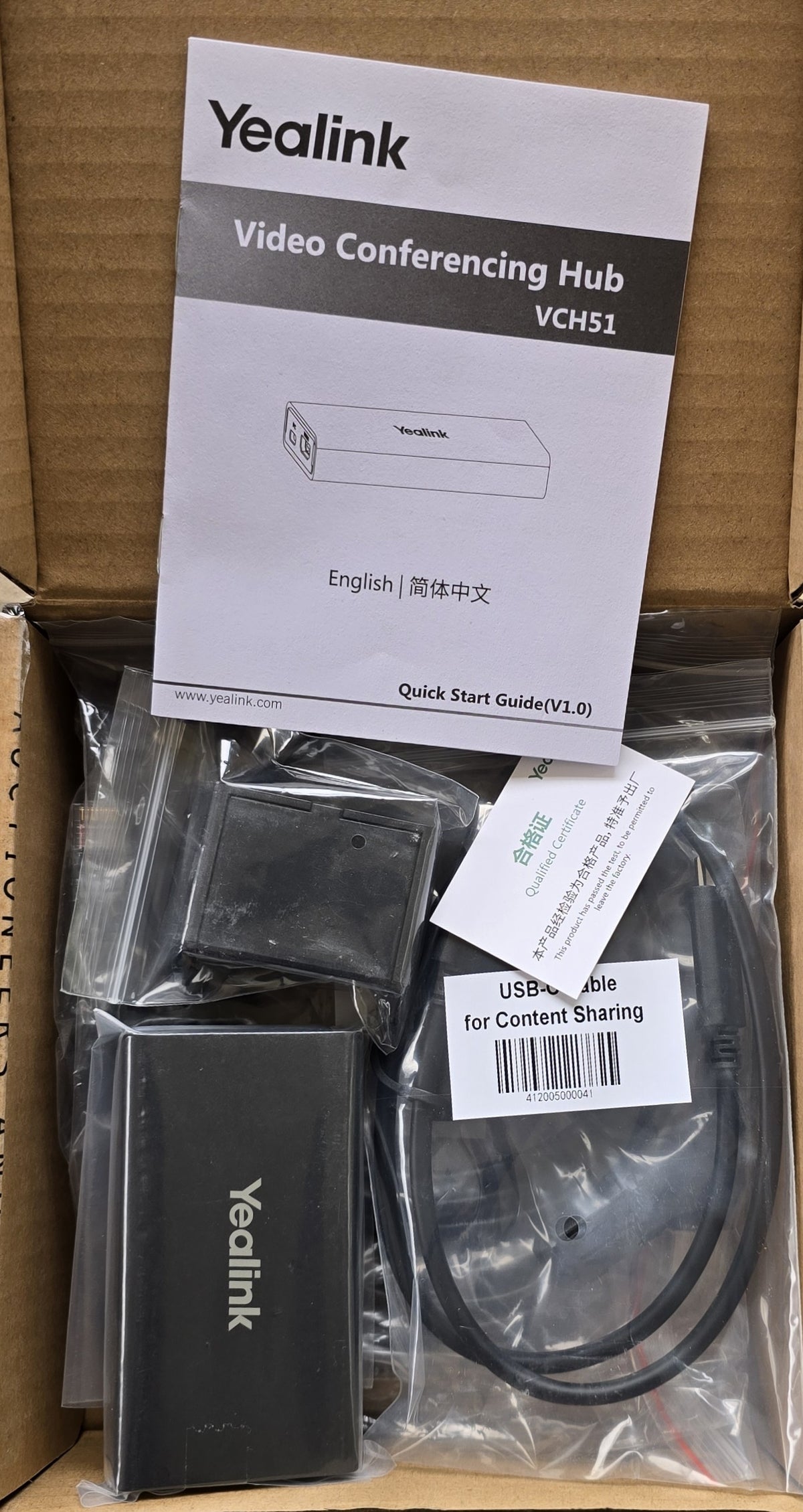

Package Includes

• 1 x Yealink VCH51 sharing box
• 1 x 0.6 m HDMI cable
• 1 x 0.6 m USB Type-C cable
• 1 x 7.5 m Ethernet cable
• 1 x interface protective cover
• 1 x Quick Start Guide
• No room system, display or PoE injector is included

Additional Information

The VCH51 is an accessory and does not function on its own. It requires a compatible Yealink room system and an IEEE 802.3af PoE source. Please refer to the listing photographs for the exact items supplied.

Yealink does not publish an operating temperature range or LED behaviour table for this model, so those figures are not stated here.

The item is new in the manufacturer's original packaging. The box has been opened to photograph and verify the contents.

Shipping from Sydney, Australia.
