Yealink EXP40 LCD Expansion Module 40 Key for SIP-T46 T48 Phones (NEW In Box)

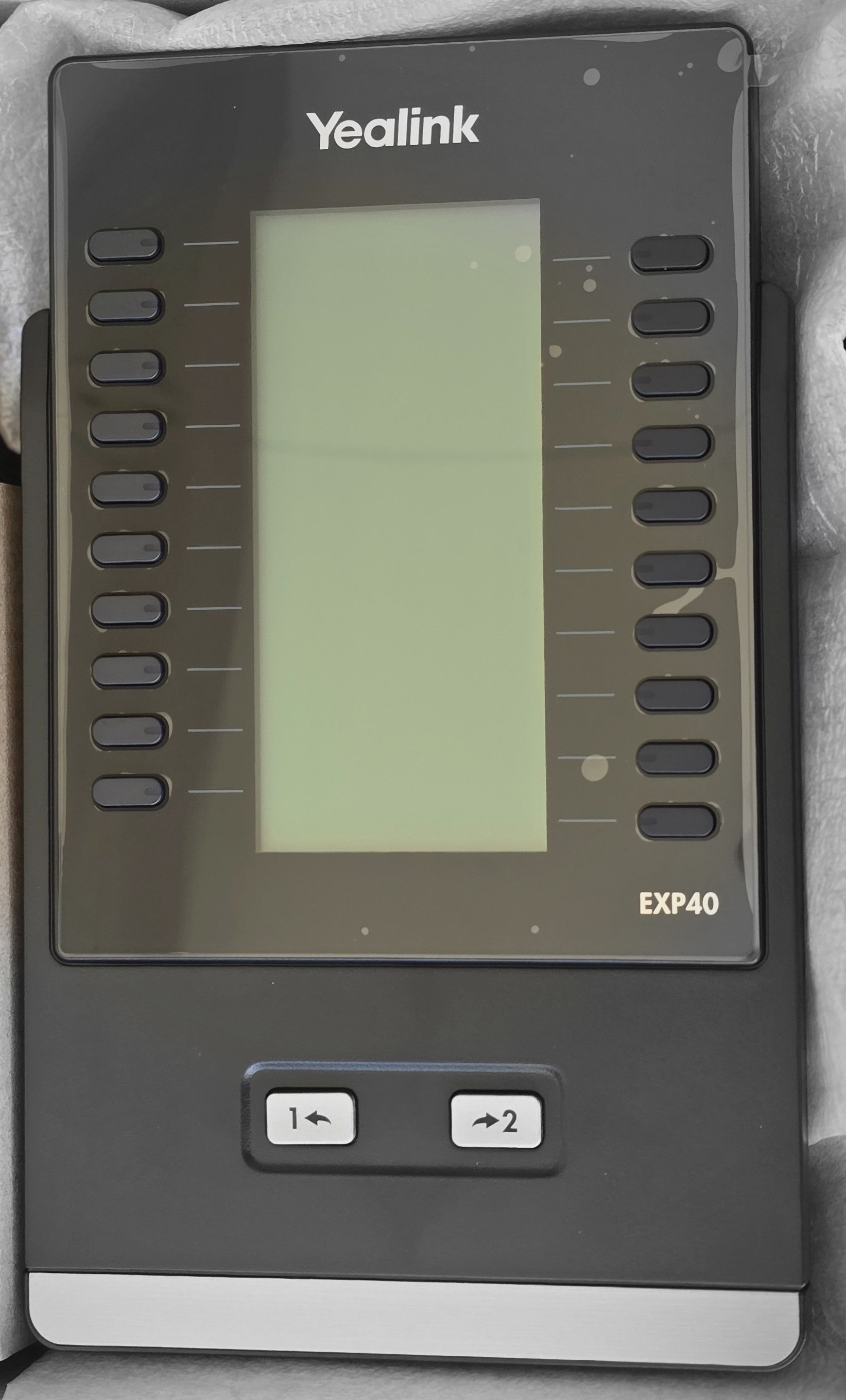

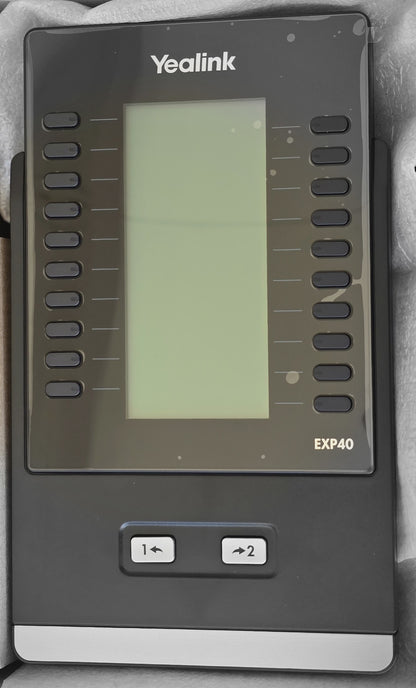

The Yealink EXP40 is an LCD expansion module that adds programmable keys to a Yealink desk phone, so a receptionist or busy operator can see line status and transfer calls without navigating menus. It presents 20 physical keys across two pages, giving 40 programmable positions, each with a dual colour LED for busy lamp field, line, speed dial and other functions.

The module has a 160 x 320 graphic LCD with 16 level greyscale and a backlight. Two RJ12 ports allow modules to be daisy chained, up to six on one phone. The host phone powers the first two modules; a separate 5 V 1.2 A supply is required from the third module onward. The unit comes with a stand offering two viewing angles and can also be wall mounted with a bracket sold separately.

Specifications

Brand: Yealink

Model: EXP40

Part Number: EXP40

Product Type: LCD expansion module for IP desk phones

Display: 160 x 320 graphic LCD, 16 level greyscale, backlit

Keys: 20 physical keys with dual colour LEDs, 2 pages, 40 programmable positions

Daisy Chain: Up to 6 modules per phone

Power: First 2 modules powered by the host phone. External 5 V 1.2 A supply required for modules 3 to 6

Maximum Power Consumption: 0.67 W with external supply

Interfaces: 2 x RJ12 (6P6C) data in and out

Compatible Phones: Yealink SIP-T46S, SIP-T46G, SIP-T48S, SIP-T48G only

Mounting: Stand with 2 adjustable angles, wall mountable with optional bracket

Operating Temperature: -10 to 50 degrees C

Humidity: 10 to 95 percent

Dimensions: 127 x 213 x 167 x 45 mm

Colour: Charcoal black

EAN: 6938818300798

Condition: New in box

Key Features

• 40 programmable keys across 2 pages from 20 physical buttons
• Dual colour LED on every key for busy lamp field and line status
• 160 x 320 backlit graphic LCD
• Daisy chain up to 6 modules on one phone
• Powered by the host phone for the first two modules
• Desk stand with two viewing angles

Typical Applications

• Reception and switchboard positions
• Help desks and contact centres
• Executive assistants monitoring multiple extensions
• Hotel front desk and hospitality

Package Includes

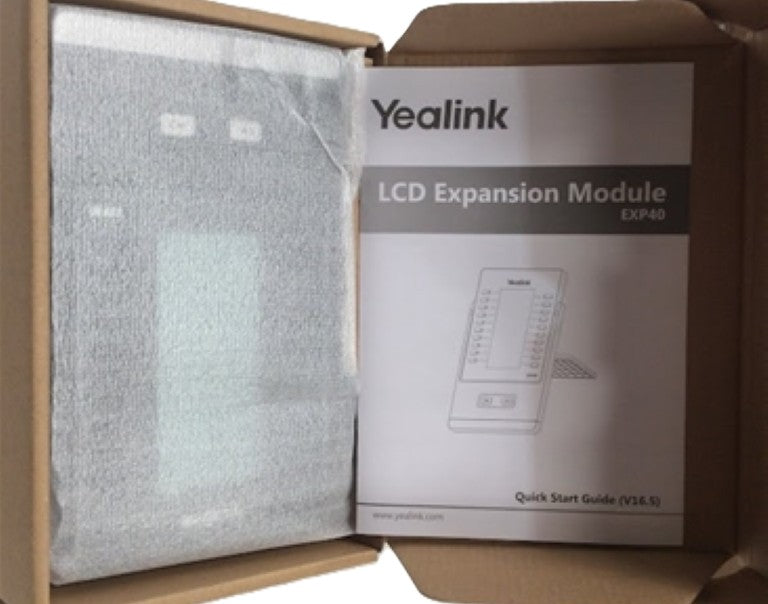

• One Yealink EXP40 expansion module with stand fitted

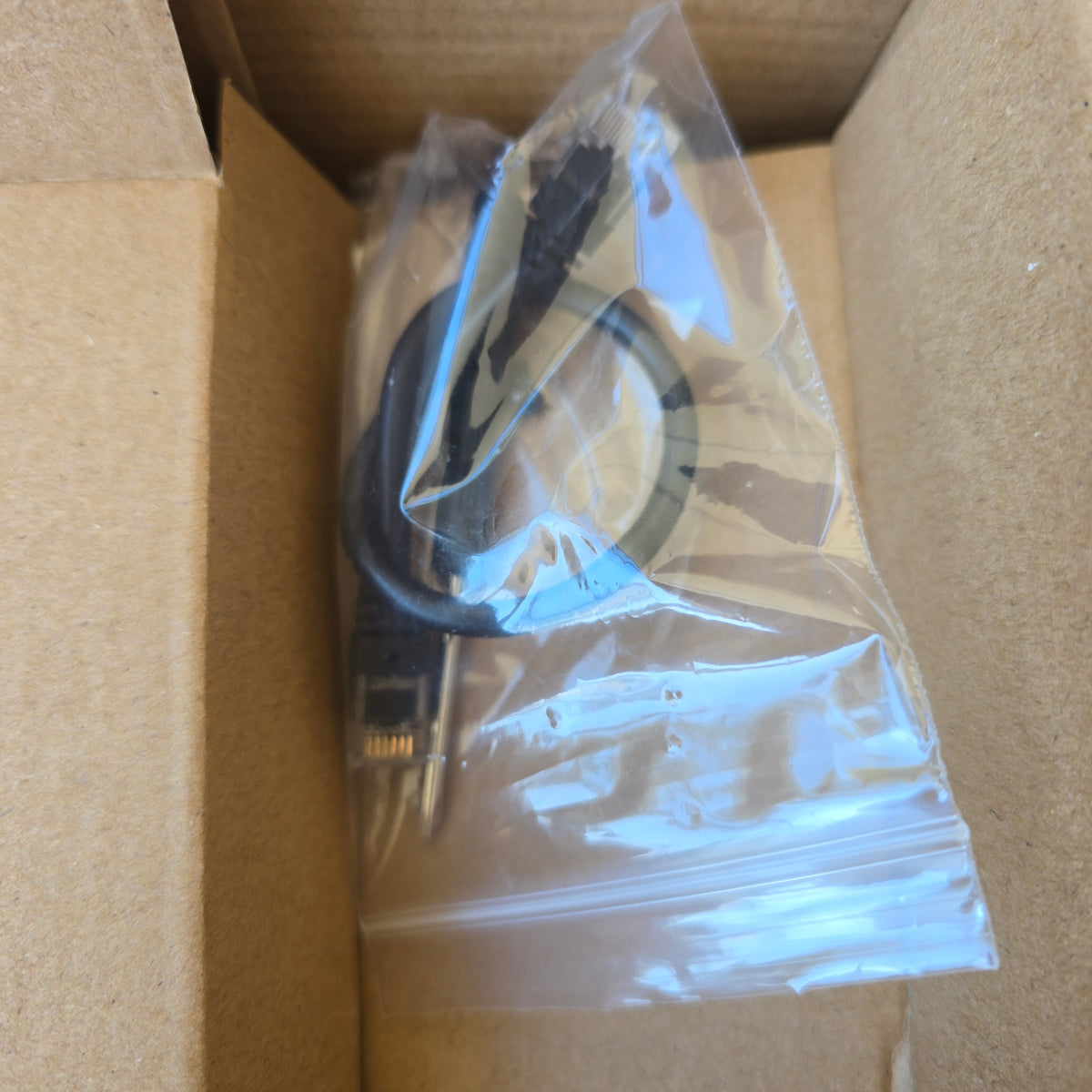

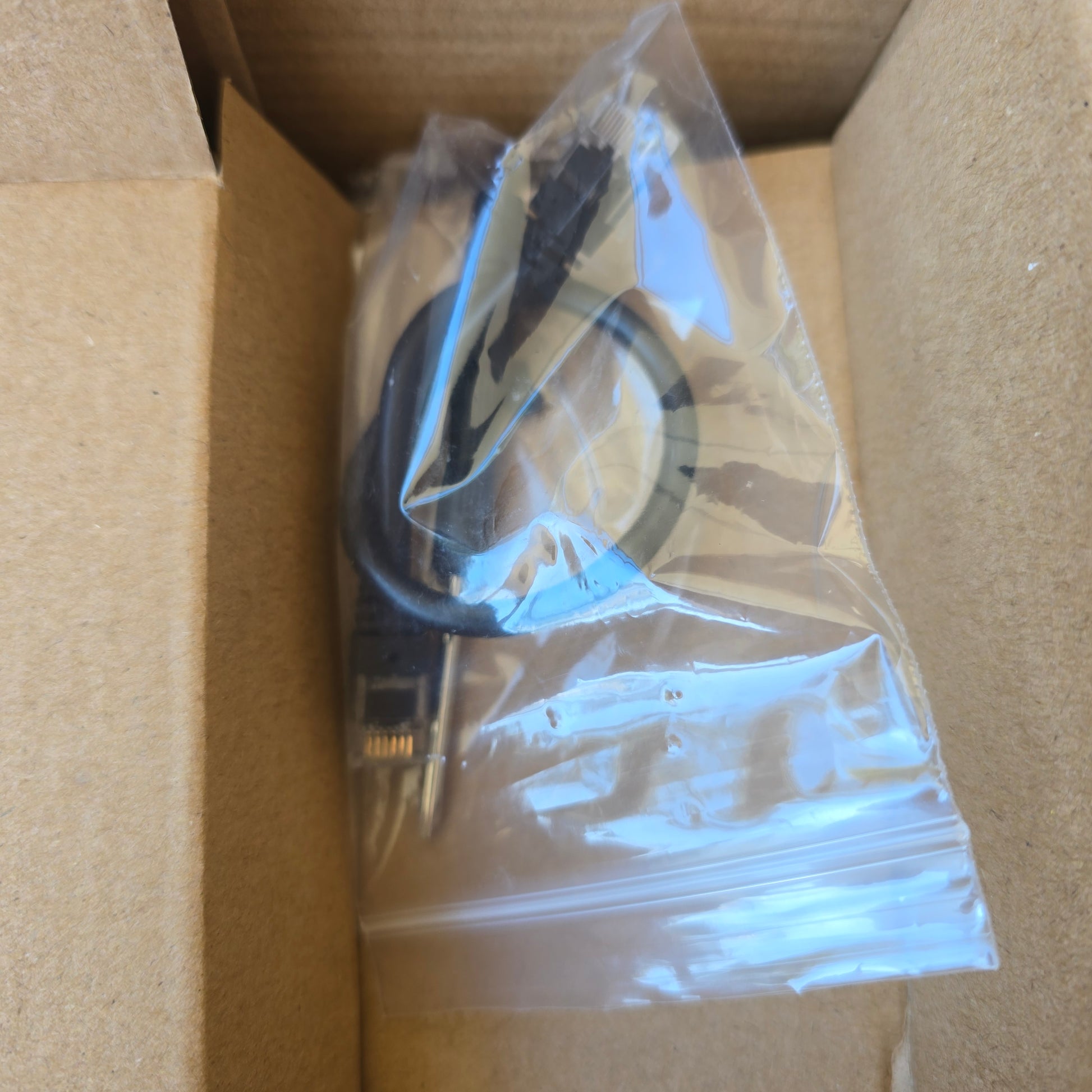

• One short RJ12 connecting cord

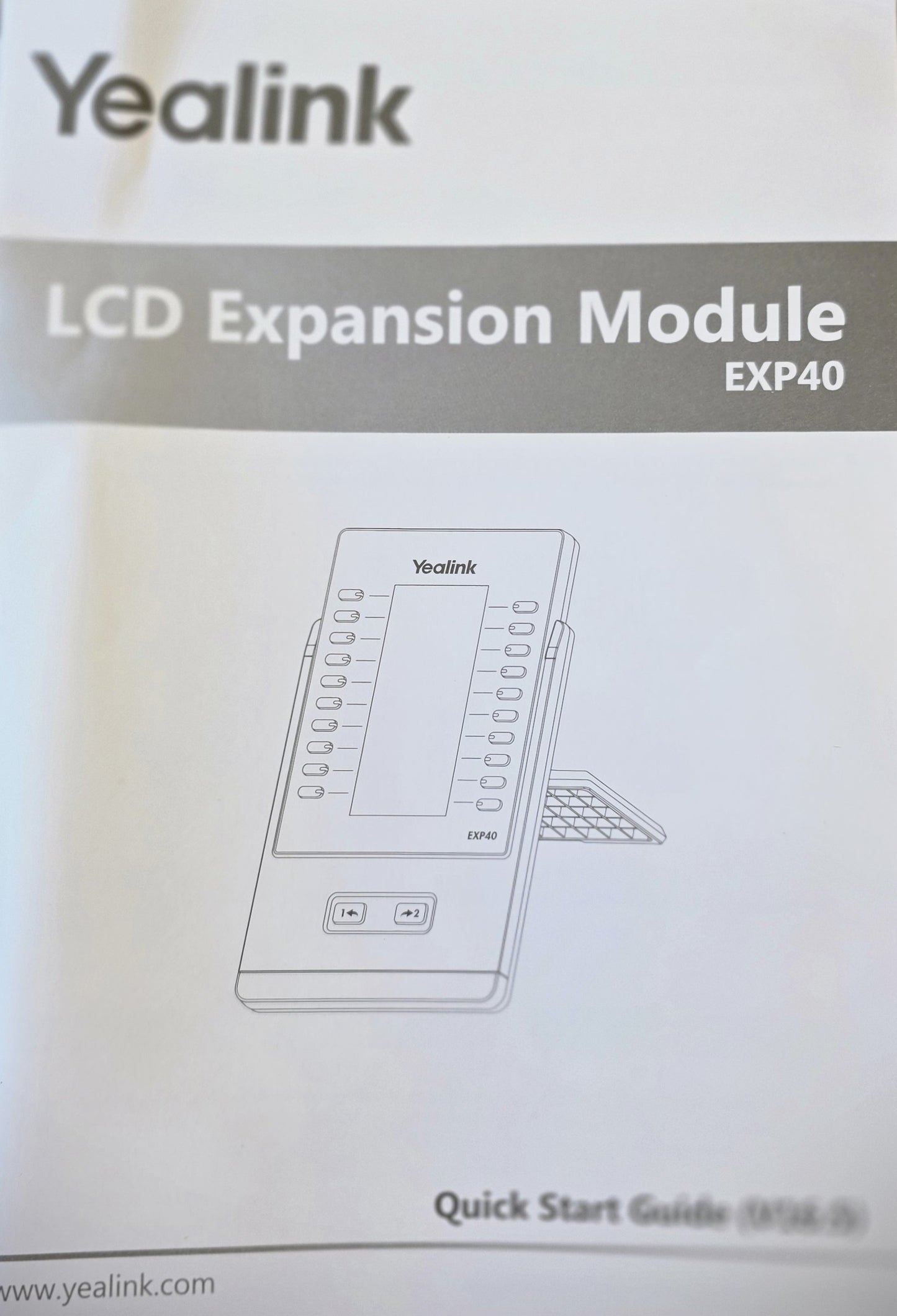

• Printed EXP40 Quick Start Guide
• No power adapter and no wall mount bracket are included

Additional Information

Please read this before ordering. The EXP40 works only with the Yealink SIP-T46G, SIP-T46S, SIP-T48G and SIP-T48S. It will not work with the T4U series such as the T46U and T48U, with the T5 series, or with any non Yealink phone. Check your phone model before buying.

Yealink discontinued the EXP40 on 31 December 2021 and the recommended replacement is the EXP43. This is new old stock offered as is, with no manufacturer warranty implied.

A 5 V 1.2 A power supply is only needed if three or more modules are daisy chained. It is not included.

The item is new and supplied in the manufacturer's box. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
