Wöhner 01285 [Lot of 11] CRITO Busbar Conductor Terminal 4-35mm2 5mm Bar (New)

This is a lot of 11 Wöhner 01285 CRITO universal conductor terminals, made in Germany by Wöhner. Article number 01285 (EAN 4021267012854). The CRITO terminal clamps a round, sector or flat conductor directly onto a 5mm thick flat copper busbar, giving a tap-off connection without drilling the bar.

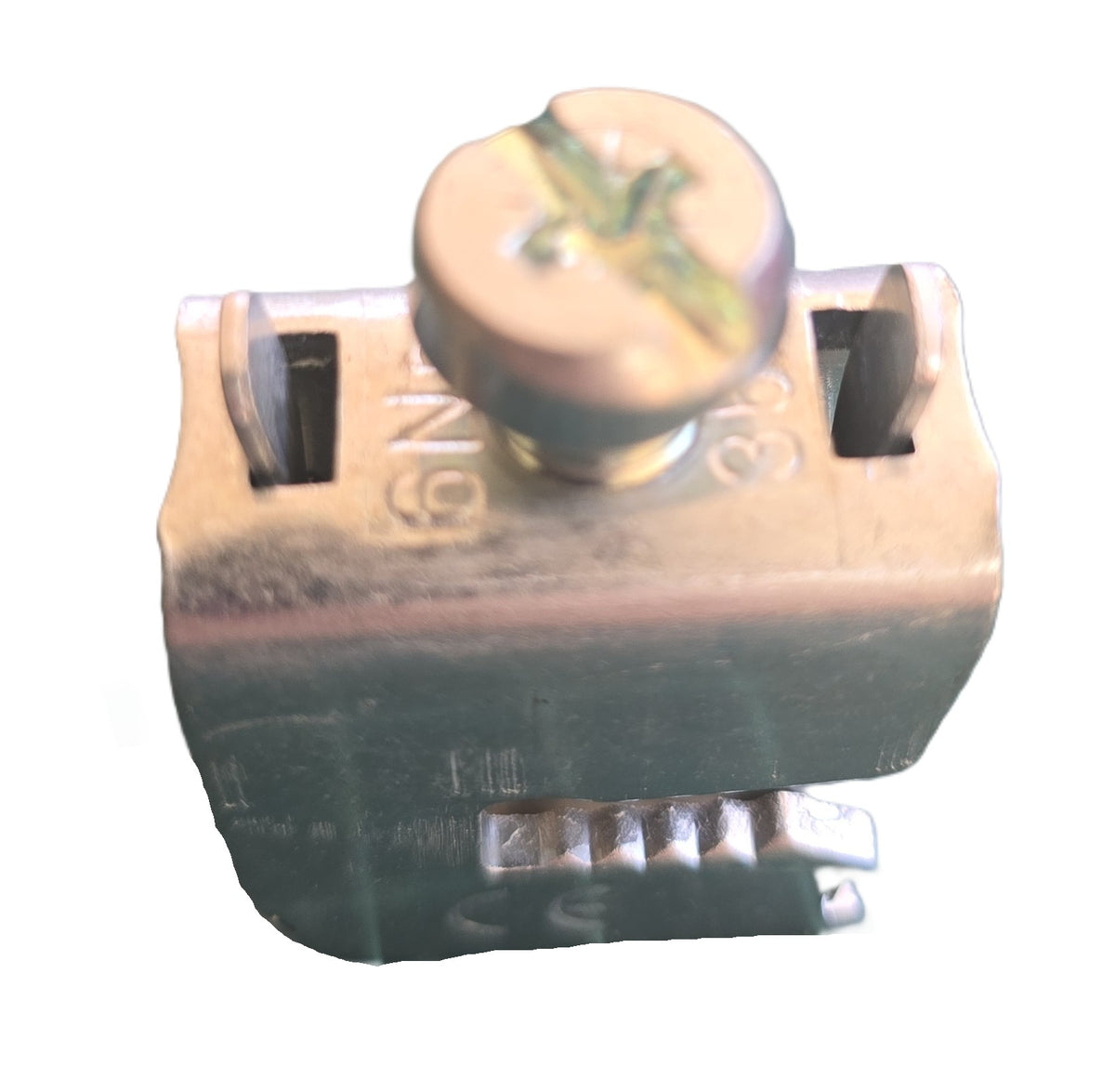

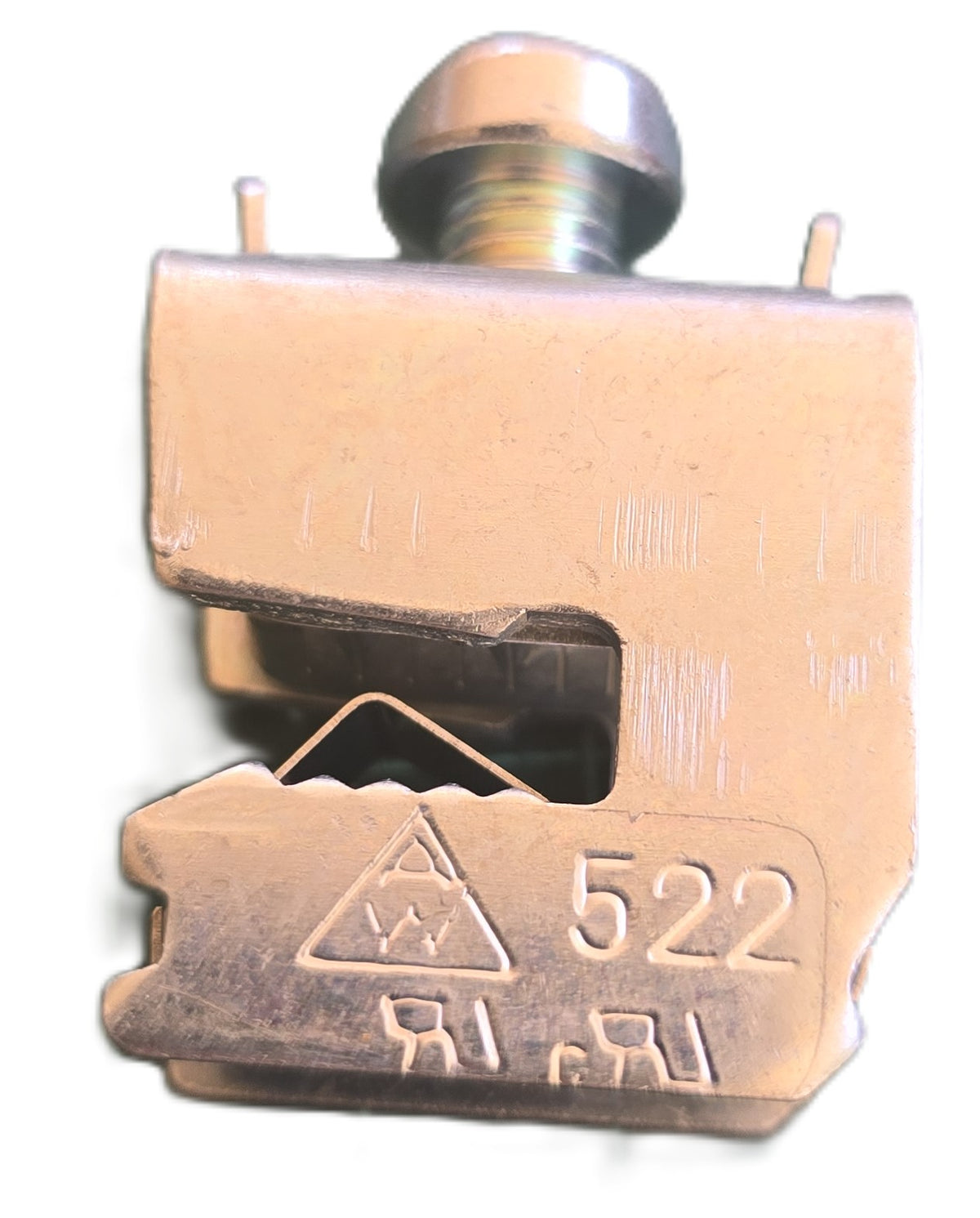

Each terminal accepts conductors from 4 to 35mm2 and is rated 115A at 690V AC to IEC. The clamp has an integrated holding spring, a captive clamping screw and an open terminal space, and is marked with the nominal cross-section. The terminals are stamped 522 and 6N, which are moulding and batch codes rather than part numbers.

Specifications

Brand: Wöhner

Model: CRITO universal conductor terminal

Part Number: 01285

Alternate Part Number: 01285.000

Product Type: Busbar conductor terminal

Conductor Cross-Section: 4 to 35mm2

Busbar Thickness: 5mm

Busbar Width: 12 to 120mm

Rated Current: 115A (IEC)

Rated Voltage: 690V AC (IEC)

Dimensions (each): 16 x 29 x 36mm

Weight (each): Approx. 46g

EAN: 4021267012854

Country of Origin: Germany

Condition: New surplus, unused

Key Features

• Clamps conductors directly onto 5mm flat busbars
• Integrated holding spring keeps the terminal on the bar during wiring
• Captive clamping screw
• Open terminal space for easy conductor entry
• Marked with nominal cross-section

Typical Applications

• Tap-off connections from busbar systems in switchboards
• Connecting circuit breakers and fuse switches to busbars
• Panel building and switchgear assembly

Package Includes

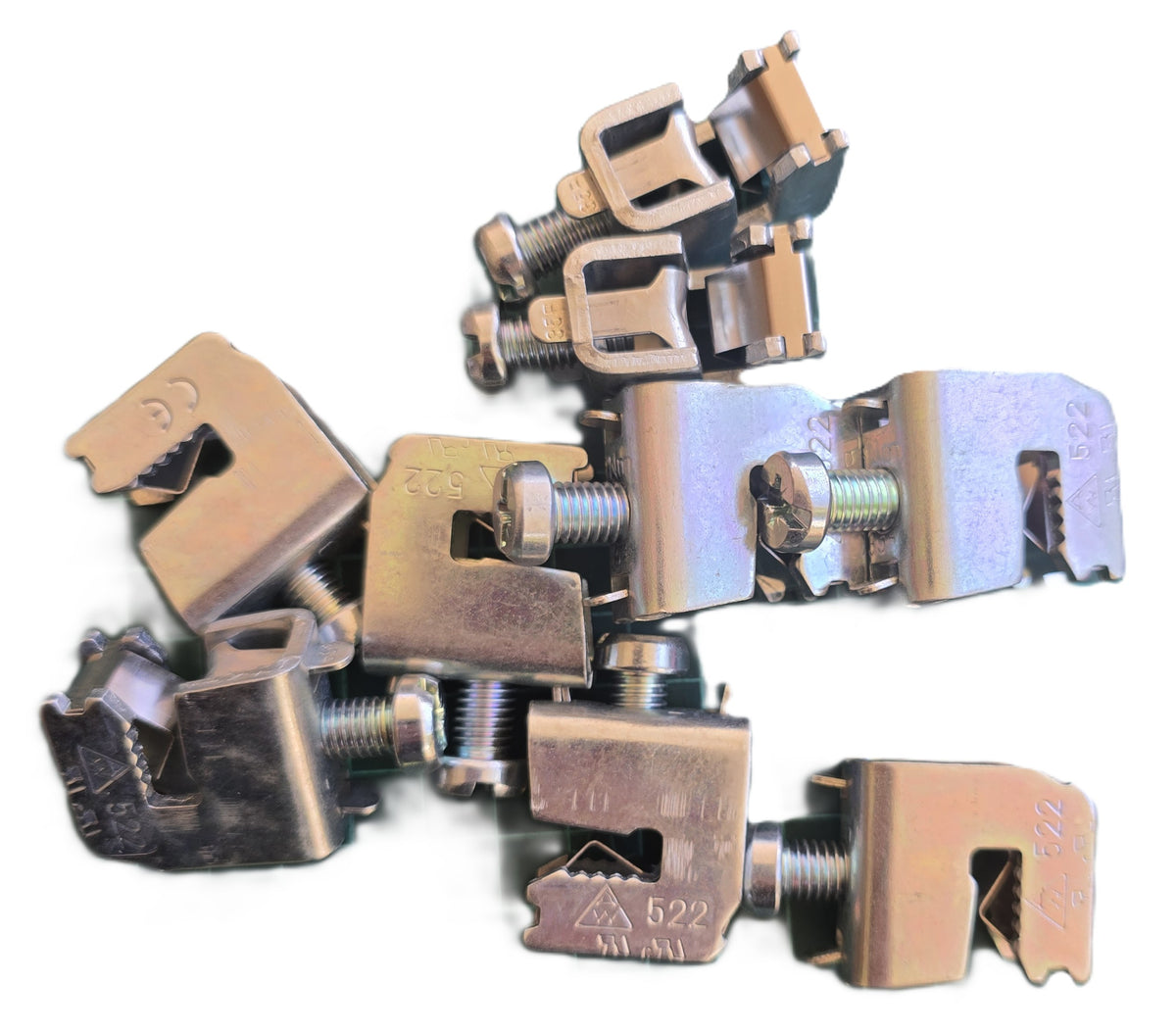

• 11 x Wöhner 01285 CRITO conductor terminals as photographed

Additional Information

This listing is for the lot of terminals shown in the photographs. Terminals are unused surplus stock supplied loose without retail packaging and may show light handling marks.

The item is new and unused. It is supplied without retail packaging unless shown in the listing photographs.

Shipping from Sydney, Australia.
