Wöhner 01284 CRITO Busbar Conductor Terminal 1.5-16mm2 5mm Bar 1pc (New)

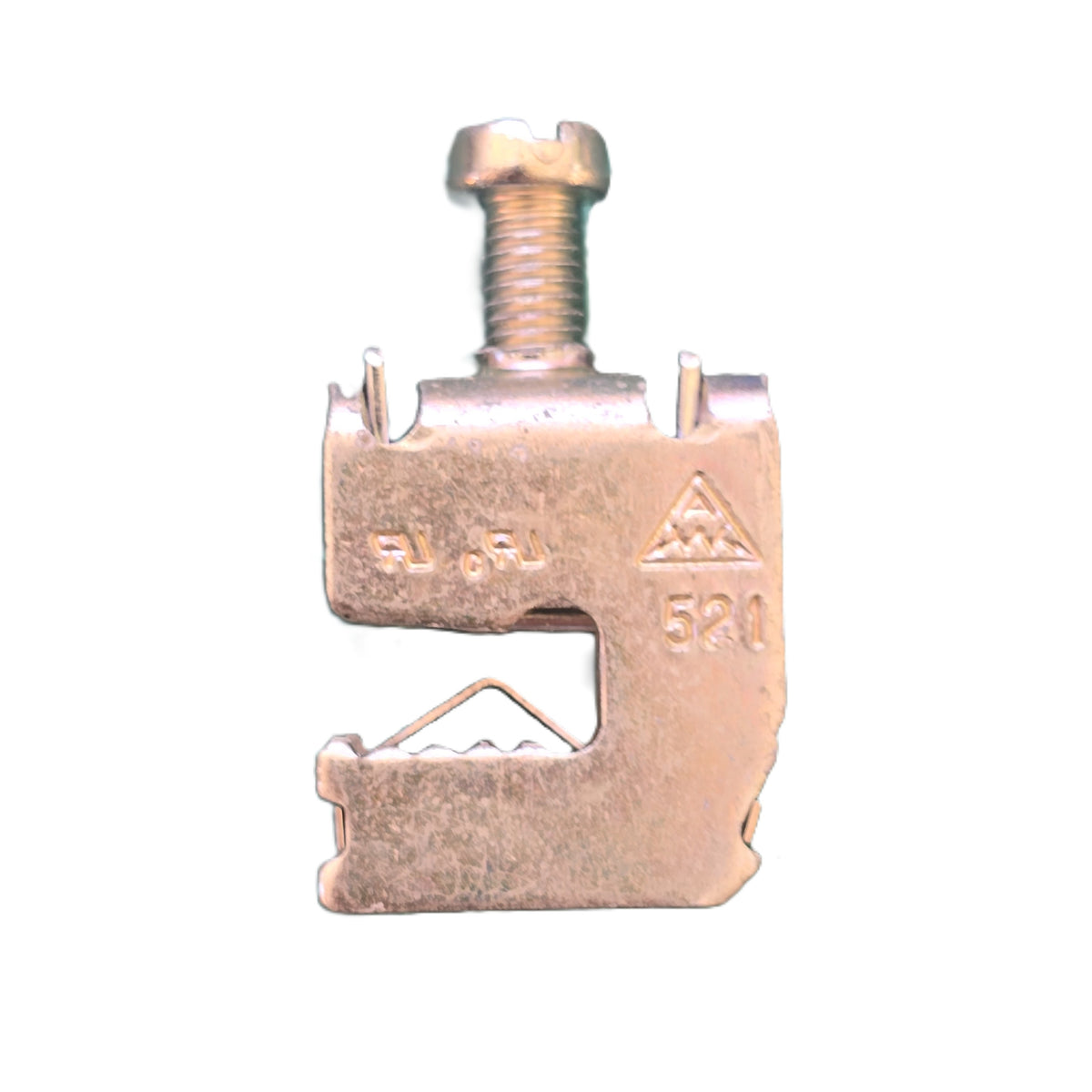

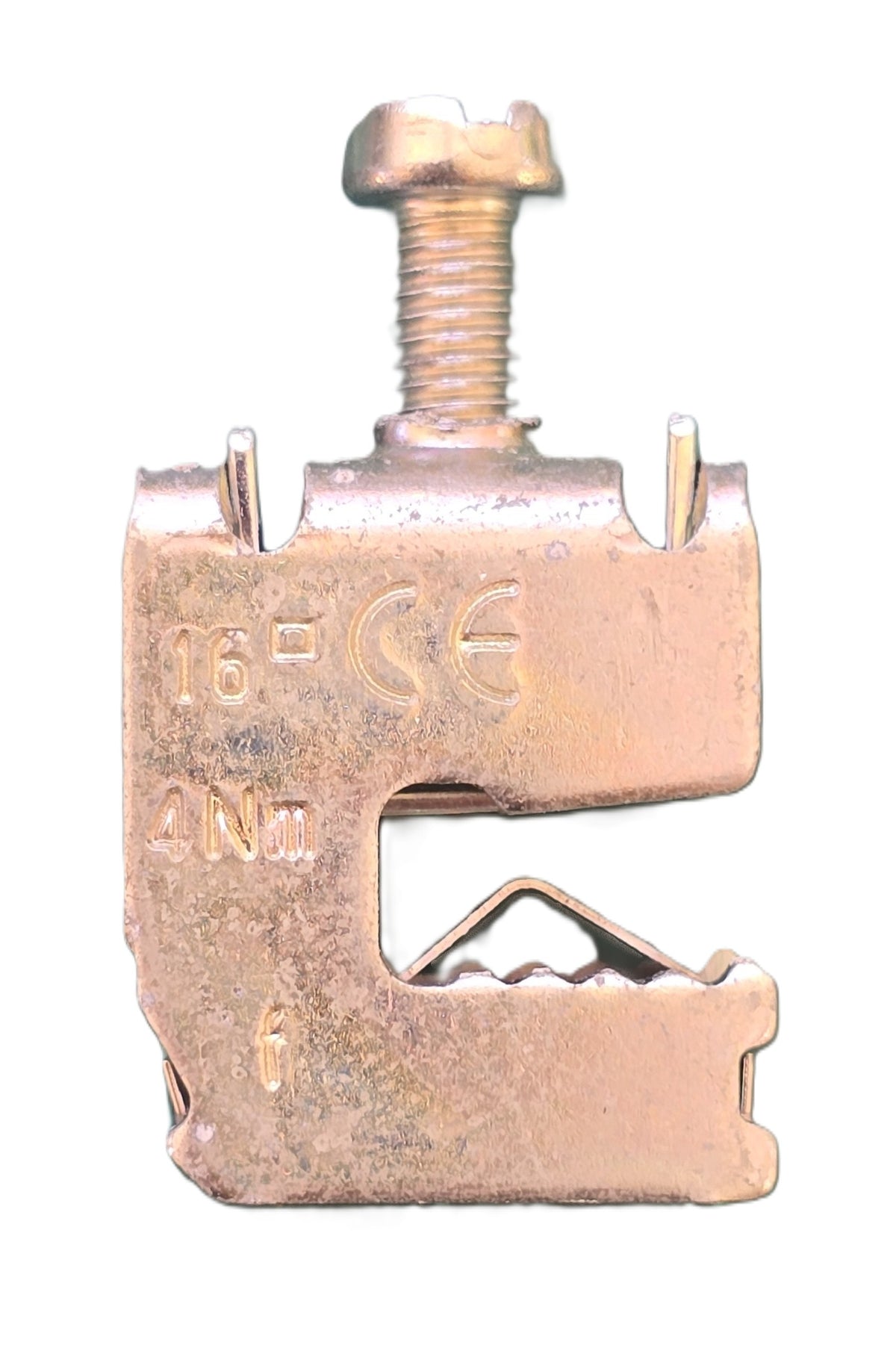

This is a single Wöhner 01284 CRITO universal conductor terminal, made in Germany by Wöhner (EAN 4021267012847). It clamps a conductor of 1.5 to 16 mm2 directly onto a 5 mm thick flat copper busbar, giving a tap-off connection without drilling the bar. The part is stamped 16, 4Nm and 521.

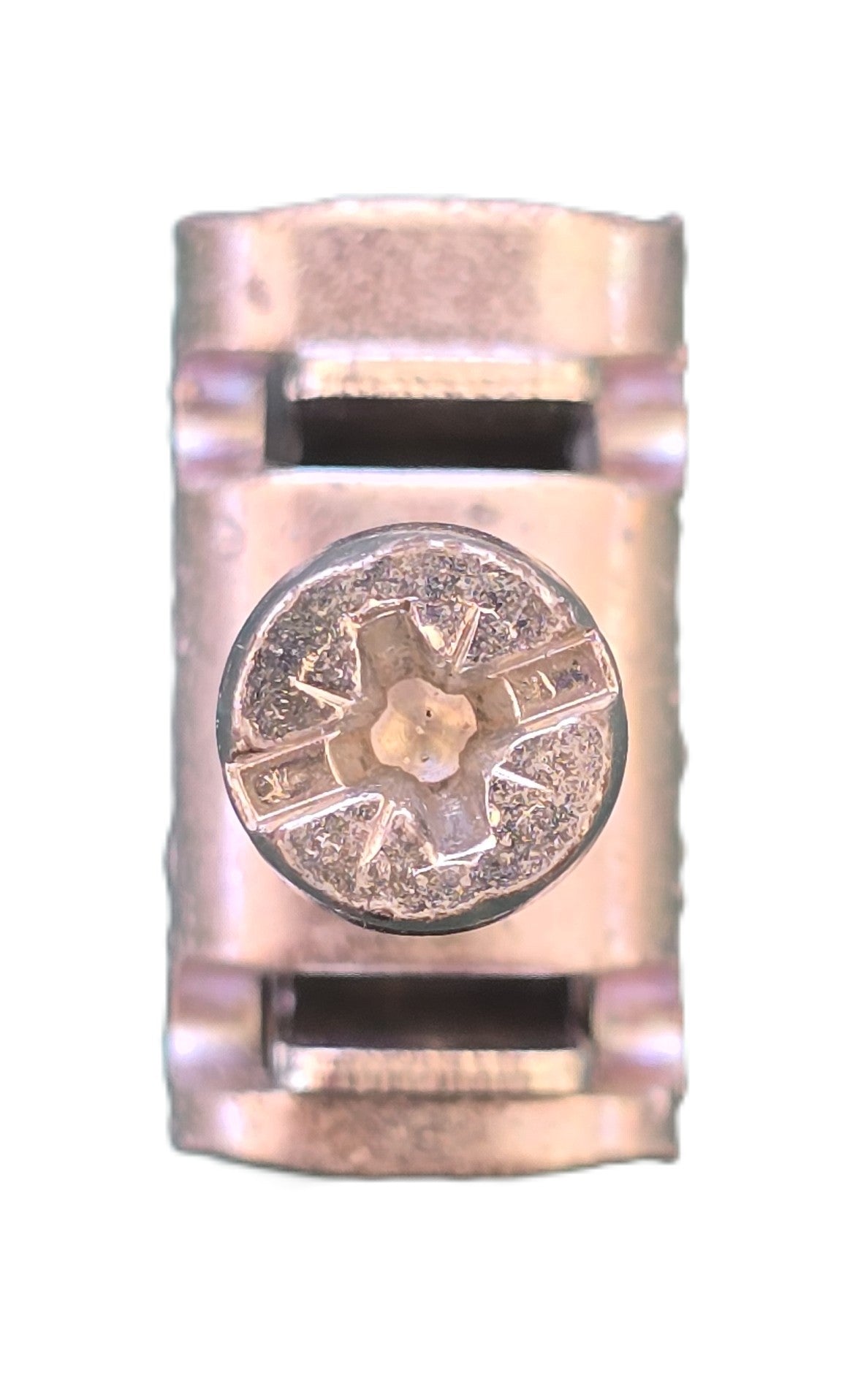

The terminal has an integrated holding spring, a captive PZ2 clamping screw and an open terminal space, and is rated 690 V AC to IEC. It is unused surplus stock supplied loose.

Specifications

Brand: Wöhner

Model: CRITO universal conductor terminal

Part Number: 01284

Alternate Part Number: 01284.000

Product Type: Busbar conductor terminal

Conductor Cross-Section: 1.5 to 16 mm2 (AWG 16 to 6)

Busbar Thickness: 5 mm

Rated Voltage: 690 V AC (IEC)

Tightening Torque: 4 Nm

Width: 12 mm

EAN: 4021267012847

Country of Origin: Germany

Condition: New surplus, unused

Key Features

• Clamps conductors directly onto 5 mm flat busbars
• Integrated holding spring
• Captive PZ2 clamping screw
• Marked with nominal cross-section and torque

Typical Applications

• Tap-off connections from busbar systems in switchboards
• Panel building and switchgear assembly

Package Includes

• 1 x Wöhner 01284 terminal

Additional Information

This listing is for one terminal only.

The item is new and unused. It is supplied without retail packaging unless shown in the listing photographs.

Shipping from Sydney, Australia.
