Product Details

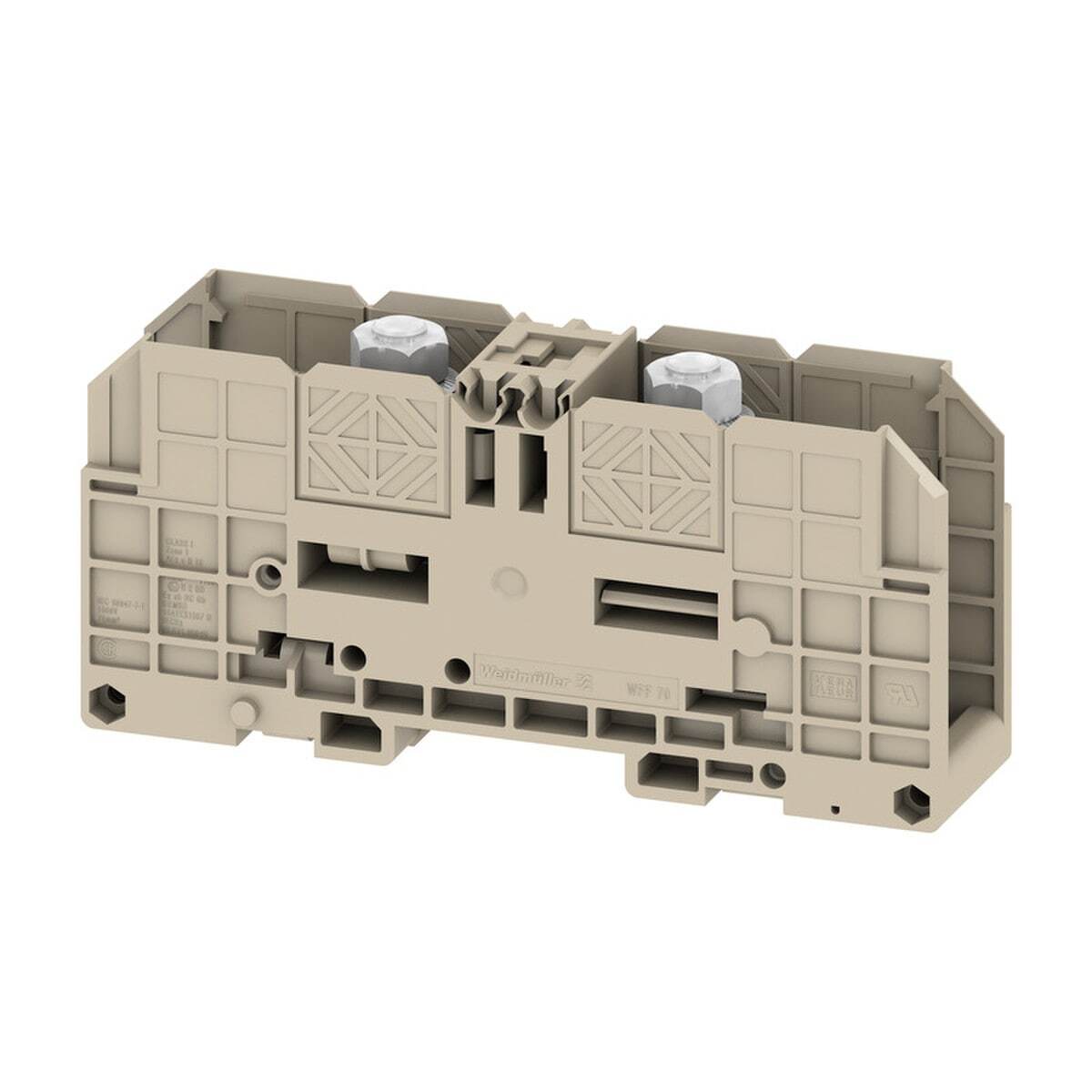

Stud Terminals – W Series
W series stud terminals are available in single or double studs from M6 to M16, accepting up to 300 mm² cables. They are manufactured from self-extinguishing polyamide UL94 V0 and supplied with nut and spring washer.

Features and Benefits

• Double studs with integral partitions

• Easily cross-connectable between different size terminals due to common base height

• Robust connection for harsh environments

Approvals

CSA, UL

Additional Information

The W series screw clamp terminals are suitable for Top Hat DIN rail mounting and manufactured from nylon 6.6, with a continuous temperature rating of 120 °C (180 °C short term). They are self-extinguishing to UL94 V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure current capacity above the nominal rating. Terminals are touch-proof in accordance with BS 3042.

Specifications

• Series: WFF

• Wire Size: 10 AWG

• Cable CSA: 120 mm²

• Colour: Brown

• Current Rating: 309 A

• Number of Levels: Single

• Termination Method: Threaded Stud

• Voltage Rating: 1 kV
