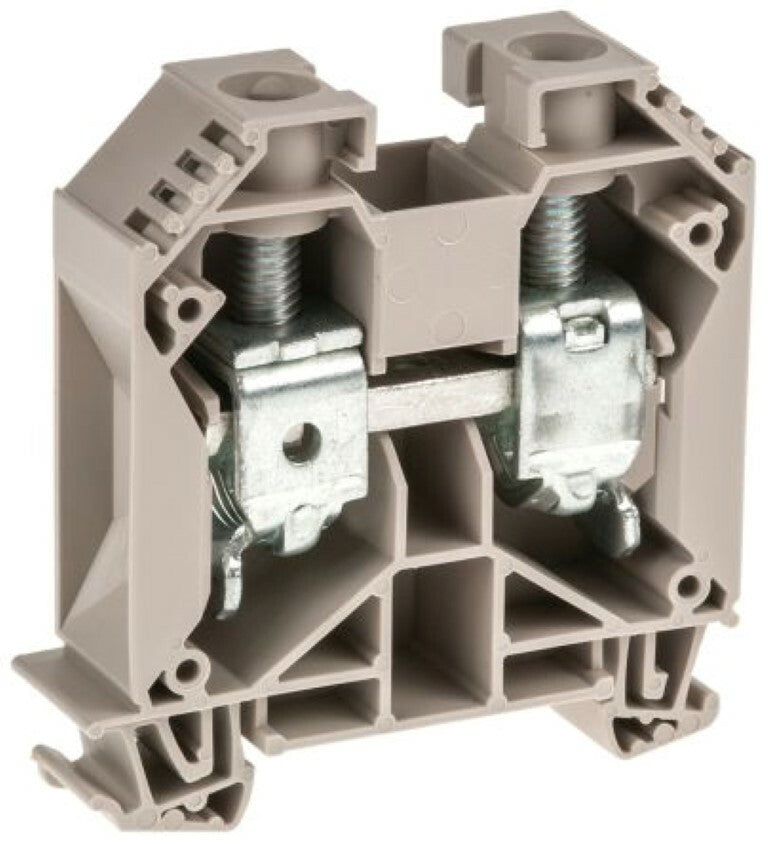

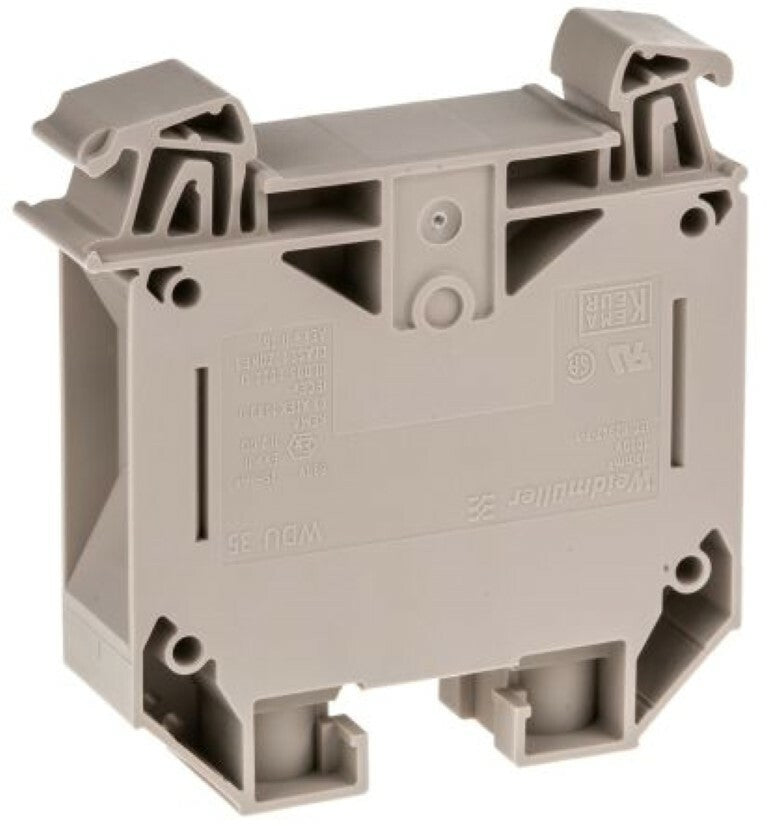

Weidmüller ‘W’ Series Terminal Blocks – WDU (High-Current)
The W-Series lets you choose plug-in (ZQV) or screw-in (WQV) cross-connections within the same modular terminal, saving substantial wiring time versus conventional screw terminals.

Features & Benefits

• Accepts ZQV (plug-in) or WQV (screw-in) cross-connections

• Screw-clamp technology for secure, vibration-resistant connections

• Touch-proof design for safer installation (BS 3042)

• For Top-Hat DIN rail (BS5584:1978, EN 50022)

• Nylon 6.6 housing, self-extinguishing to UL94 V-0, cadmium- and halogen-free

• Current bars in 10 mm electrolytic copper for generous headroom

Application Info

Build out terminal assemblies quickly with time-saving cross-connection options. The design allows two conductors of the same cross-section to be clamped into the same point securely—attach to the rail, tighten, and the conductor is locked in place.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, Lloyd’s Register of Shipping, SETI, KEMA, Reg of USSR.

Specifications (WDU variant)

• Series: WDU

• Wire size: 12 → 2 AWG

• Conductor cross-section (CSA): 35 mm²

• Colour: Brown

• Current rating: 125 A

• Levels: Single

• Termination method: Screw down

• Voltage rating: 1 kV

• Operating temperature: −50 °C to +120 °C

• Hazardous area certification: ATEX
