Product Details

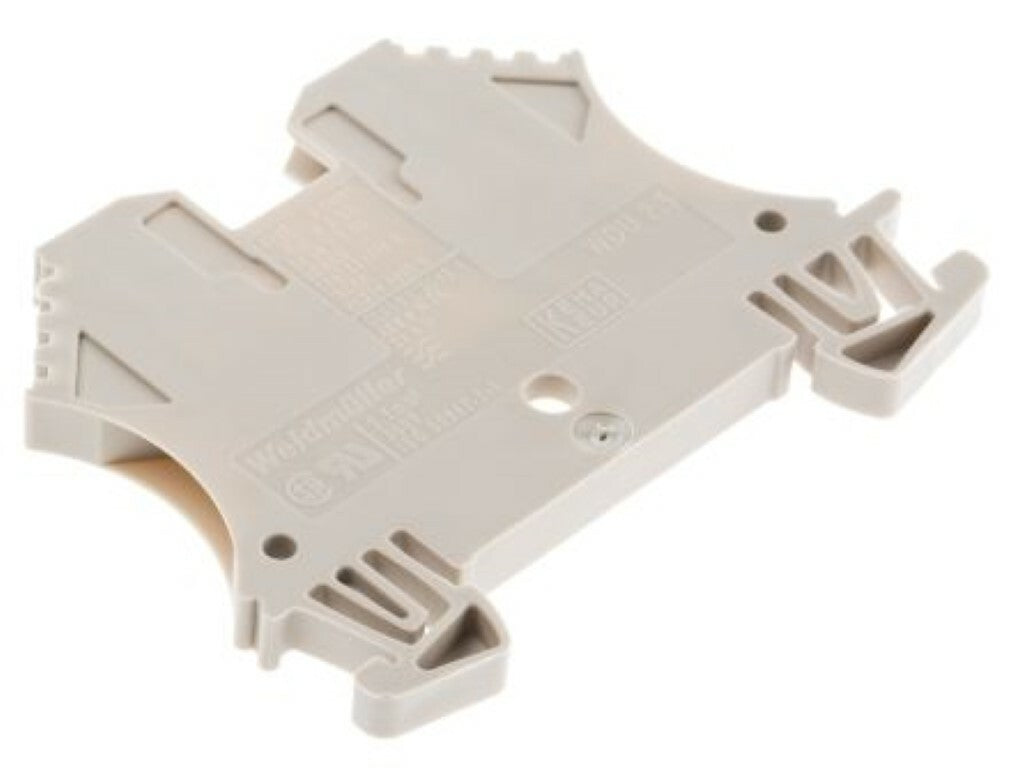

‘W’ Series Terminal Blocks (Weidmüller W-Series)
One key advantage of the W-Series is the choice of plug-in (ZQV) or screw-in (WQV) cross-connections within one modular terminal, saving substantial time compared with other screw terminals.

Features & Benefits

• Available in a range of colours

• Choice of plug-in (ZQV) or screw-in (WQV) cross-connection for screw terminals

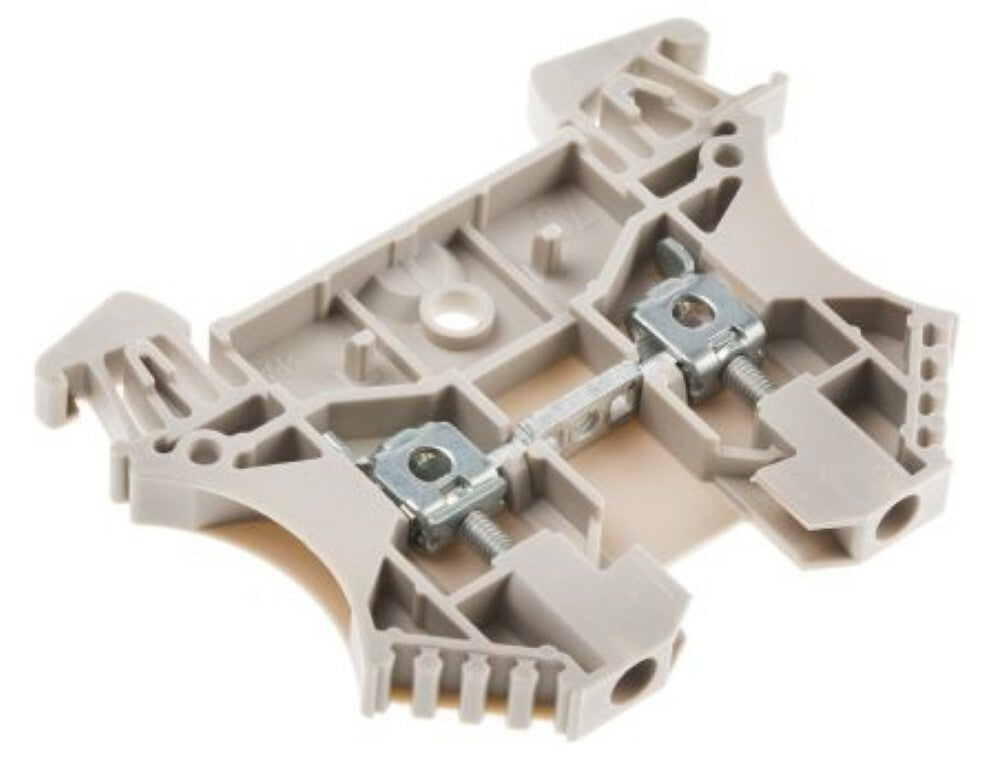

• Screw clamp technology for secure, vibration-resistant connections

• Touch-proof design (BS 3042) for safer installation

• Built for Top-Hat DIN rail (BS5584:1978, EN 50022)

• Housing in nylon 6.6; self-extinguishing to UL94 V-0; cadmium- and halogen-free

• 10 mm electrolytic copper current bars provide headroom beyond nominal rating

Application Information

Handy components to build up your terminal block with time-saving options. Thanks to the unique design, two conductors of the same cross-section can be connected in the same clamping point without difficulty.
Ideal when you need to connect an assembly securely—attach to the terminal block, screw down, and clamp firmly in place.

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, Lloyd’s Register of Shipping, SETI, KEMA, Reg of USSR.

Specifications (WDU series example)

• Series: WDU

• Wire size: 30 → 12 AWG

• Cable CSA (cross-section): 2.5 mm²

• Colour: Beige

• Current rating: 32 A

• Levels: Single

• Termination method: Screw down

• Voltage rating: 800 V

• Operating temperature: −50 °C to +120 °C

• Hazardous area certification: ATEX
