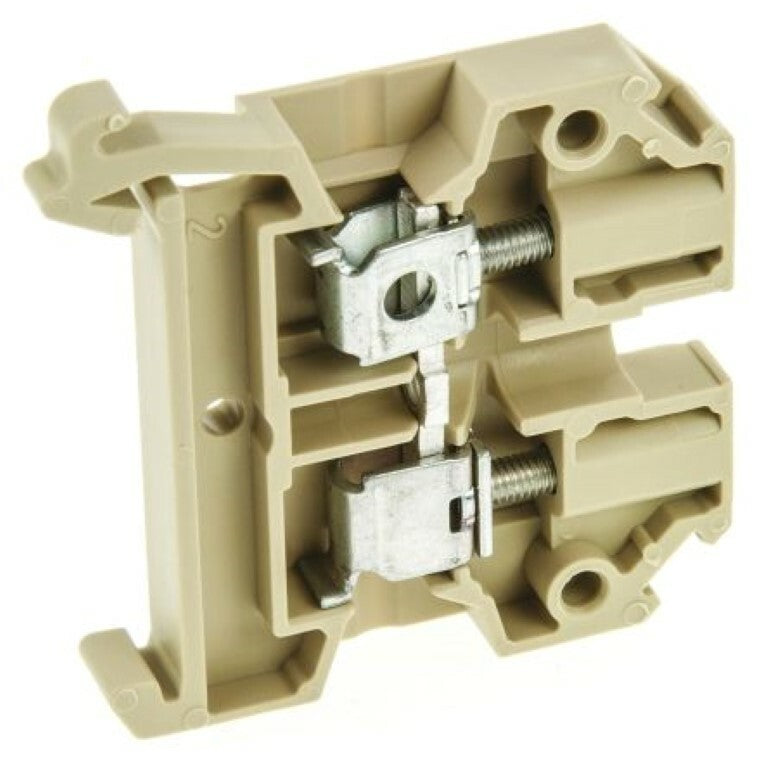

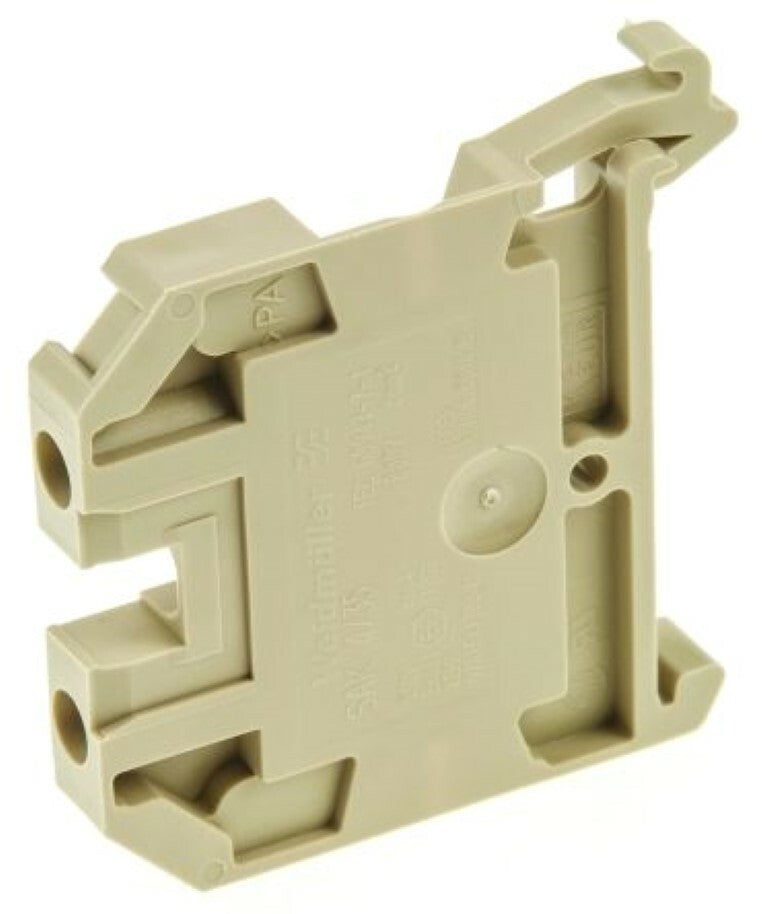

Weidmuller SAK 4/35 0443660000 SAK Series Feed Through Terminal Block Screw 4mm²

SAK TS35 Range
High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and variety of designs, the SAK series from Weidmüller make planning easier and optimise safety.

The terminals are manufactured from polyamide 6.6 with a working temperature of -50 °C to +100 °C, and meet the requirements of IEC 60947-1.

Features and Benefits

• Flammability class UL 94V-2

• Clamping yoke technology

Approvals
CSA certified, UL listed, NEMKO, ATEX, IECEx

SAK Series

• Terminals manufactured from polyamide 6.6 with a working temperature of -50 °C to +100 °C

• Fused terminal block (425-689) is high grade melamine with a working temperature of -60 °C to +130 °C

• Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

Specifications

• Series: SAK

• Wire Size: 26 → 10 AWG

• Cable CSA: 4 mm²

• Colour: Beige

• Current Rating: 41 A

• Number of Levels: Single

• Termination Method: Screw Down

• Voltage Rating: 800 V

• Minimum Operating Temperature: -60 °C

• Maximum Operating Temperature: +130 °C
