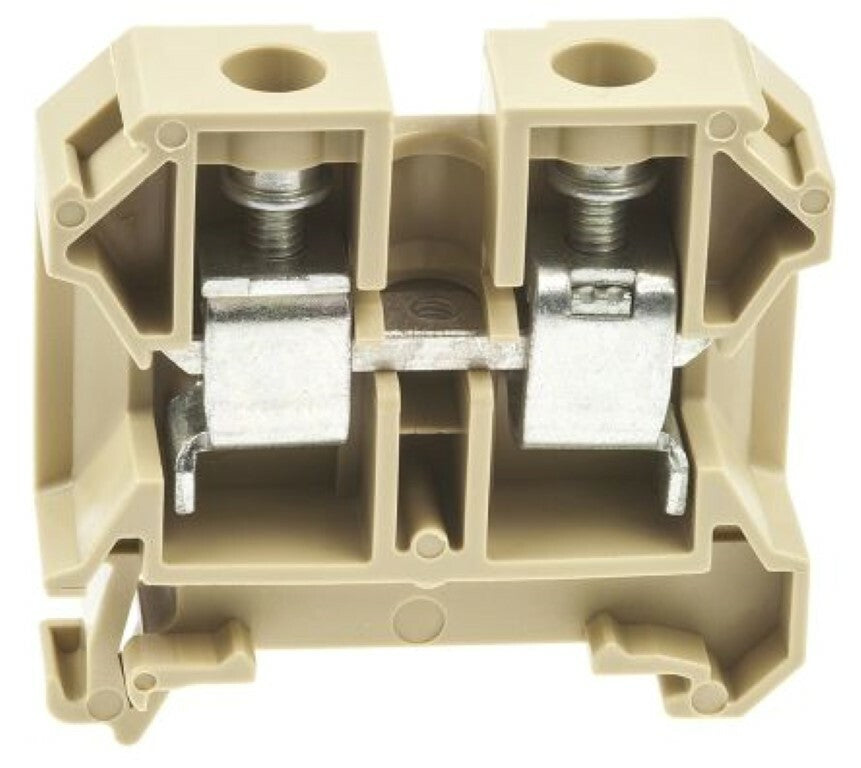

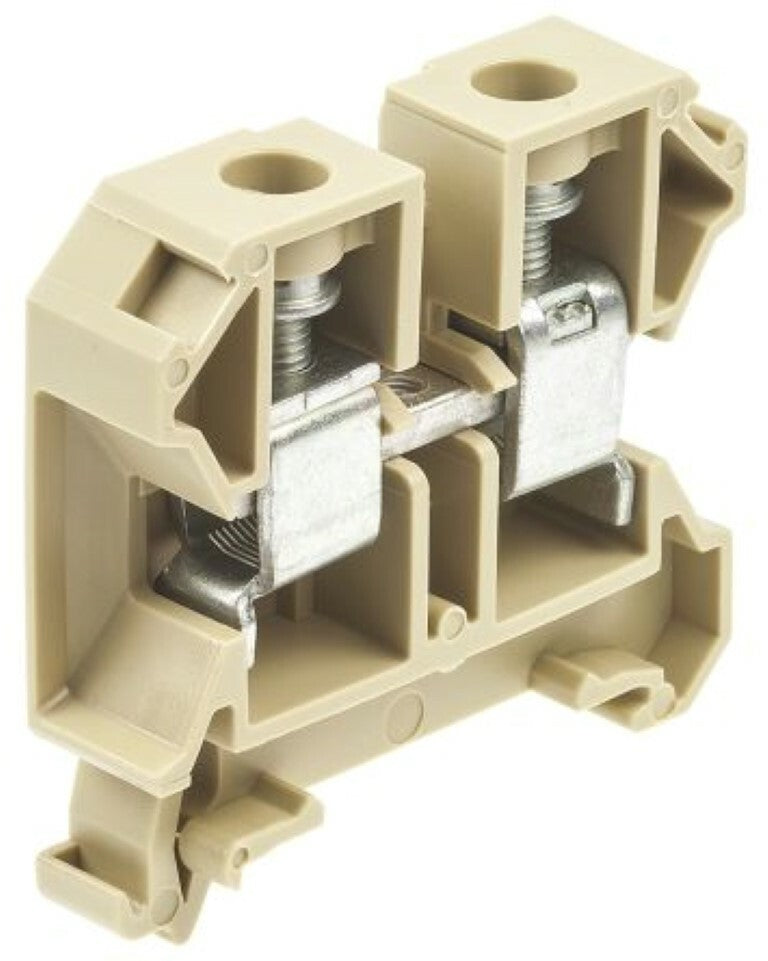

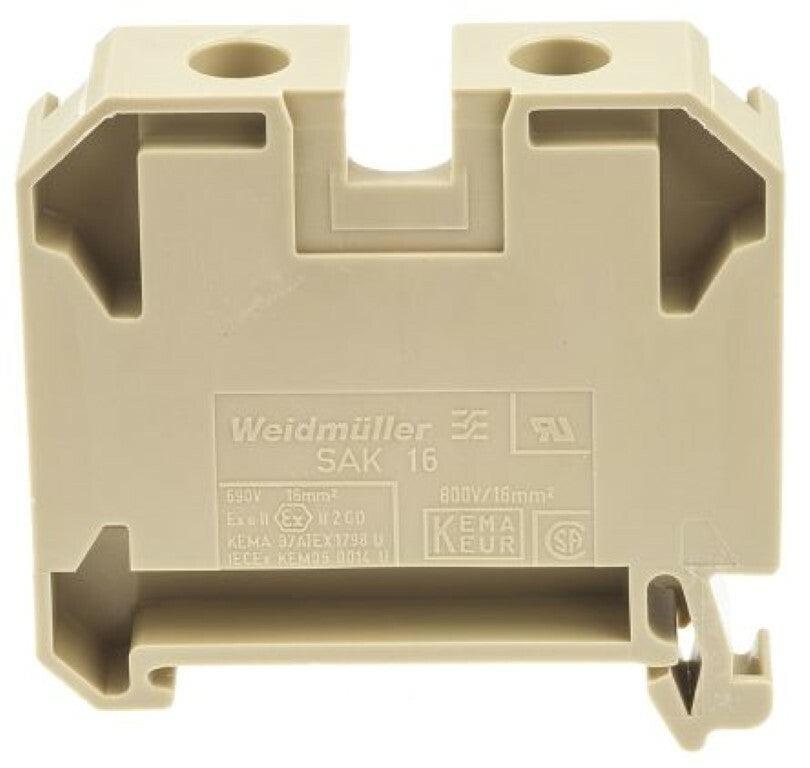

Weidmuller SAK 16/35 PA 380660000 SAK Series Feed-through terminal 16 mm² Screw

Product Details
SAK TS35 Range – High quality, industry standard terminals designed for mounting on symmetrical TS35 (top-hat profile) DIN Rail. With high reliability and a variety of designs, the SAK series from Weidmüller make planning easier and optimise safety.

The terminals are manufactured from polyamide 6.6 with a working temperature of -50 °C to +100 °C, and meet the requirements of IEC 60947-1.

Features and Benefits

• AP SAK end plates available in 4 sizes to suit 2.5 mm² to 35 mm² terminals

• Partitions available in both beige and blue

• Flammability class UL 94V-2

• Clamping yoke technology

Approvals
CSA certified, UL listed, NEMKO, ATEX, IECEx

SAK Series Notes

• Terminals manufactured from polyamide 6.6 with a working temperature of -50 °C to +100 °C

• Fused terminal block (425-689) uses high grade melamine with a working temperature of -60 °C to +130 °C

• Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting

Specifications

• Series: SAK

• Wire Size: 12 → 6 AWG

• Cable CSA: 16 mm²

• Colour: Beige

• Current Rating: 76 A

• Number of Levels: Single

• Termination Method: Screw down

• Voltage Rating: 1 kV

• Minimum Operating Temperature: -60 °C

• Maximum Operating Temperature: +130 °C
