ViewSonic LB-WIFI-001 VS16935 Dual Band WiFi Module ViewBoard IFP50 (NEW In Box)

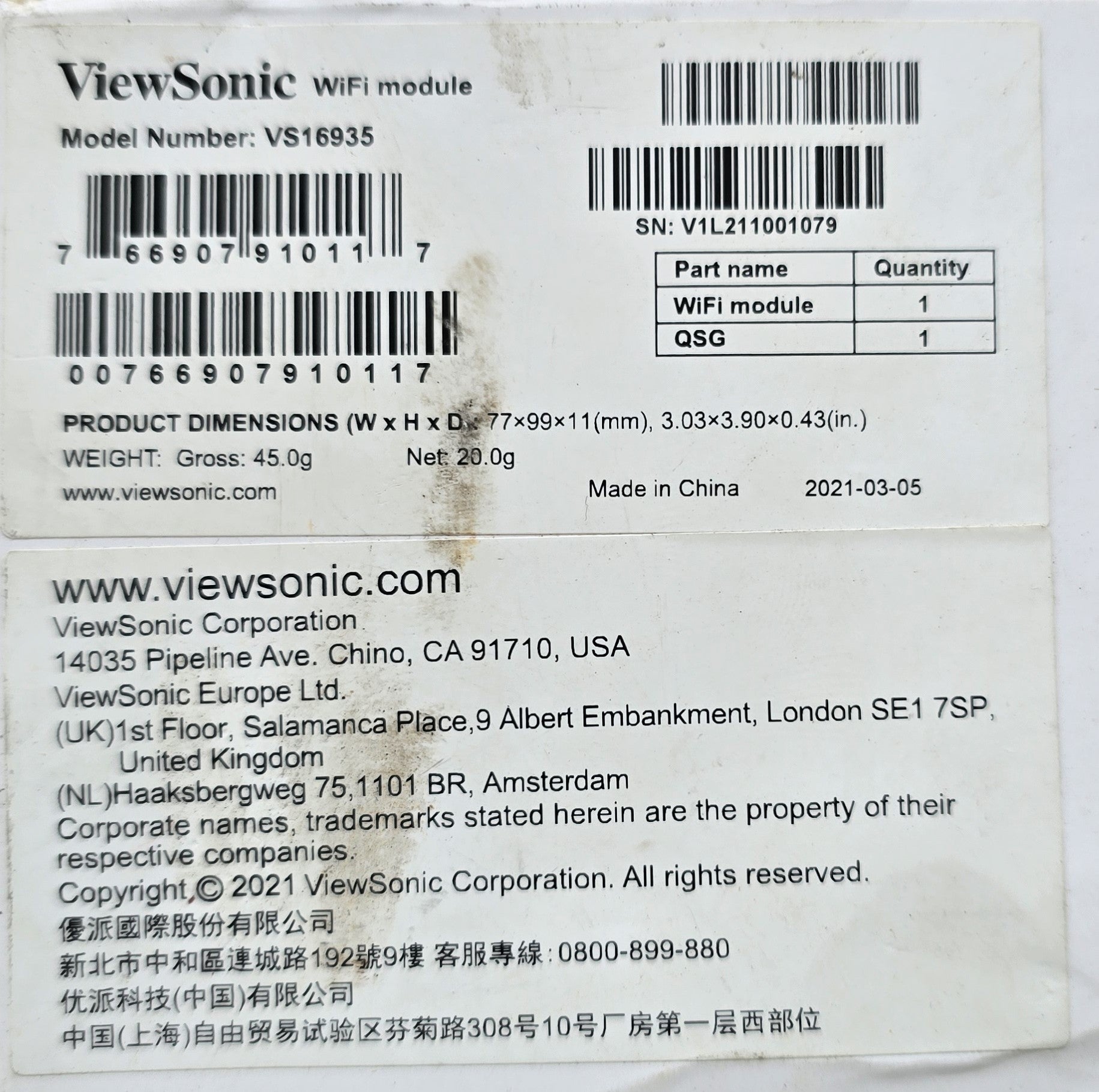

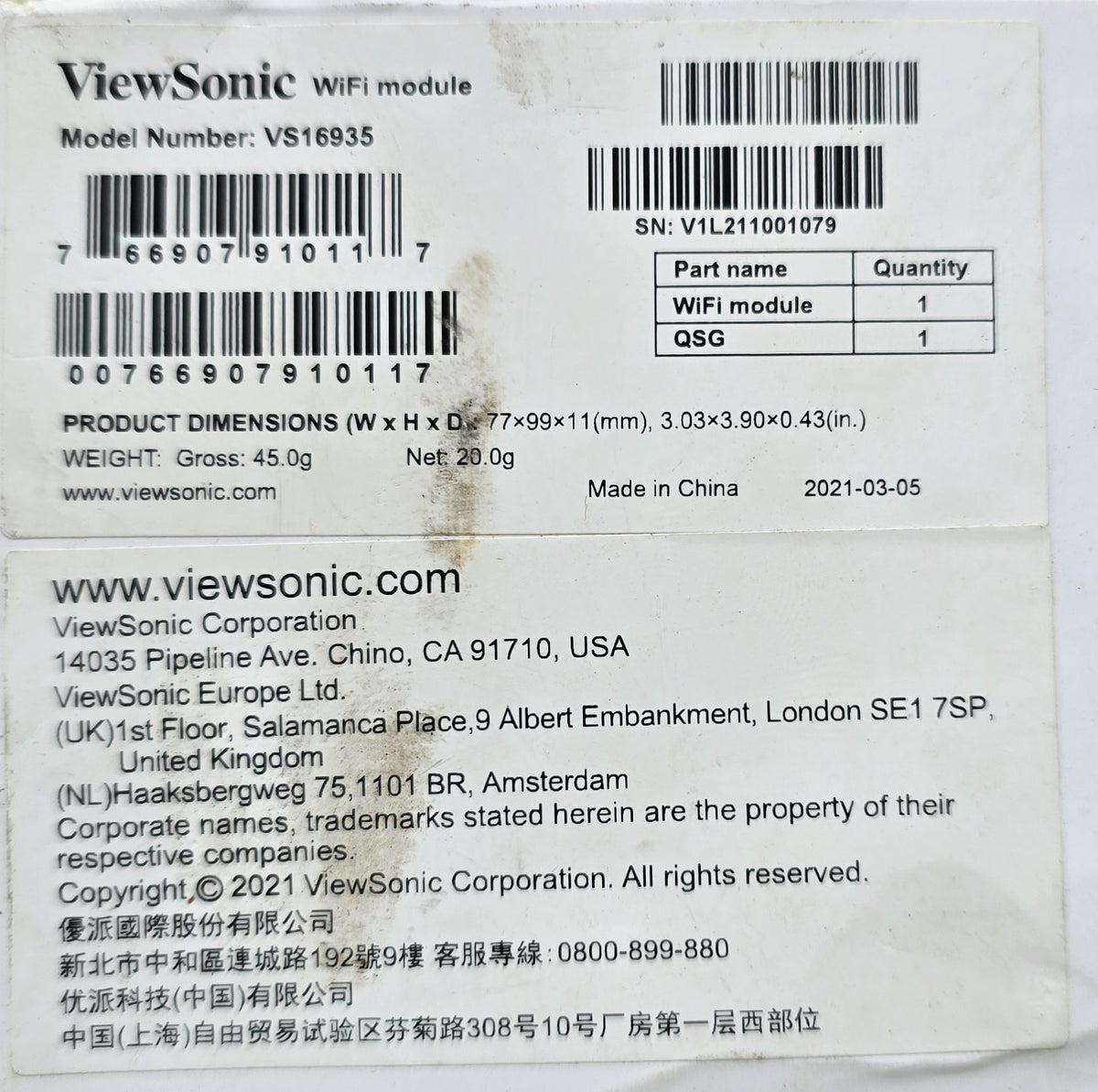

The ViewSonic LB-WIFI-001 is a dual band wireless module that adds WiFi and Bluetooth connectivity to ViewSonic ViewBoard interactive flat panel displays. It fits the dedicated wireless module slot on the panel and connects internally over USB 2.0, so no external dongle sits on the outside of the display. The carton and the module carry ViewSonic model number VS16935.

The module supports 802.11 a, b, g, n and ac on both the 2.4 GHz and 5 GHz bands, at up to 433.5 Mbps, and adds Bluetooth 2.1, 3.0 and 4.0 BLE. It is built on the Realtek RTL8821AU-VS chipset and draws less than 2.5 W at 5 V DC. ViewSonic lists it as compatible with the ViewBoard IFP50 series, the IFP70 series in 65 and 86 inch sizes, and the CDE20 series from 65 to 86 inches. It carries FCC, CE and RCM approvals.

Specifications

Brand: ViewSonic

Model: VS16935

Part Number: LB-WIFI-001

Alternate Part Number: VS16935

Product Type: Dual band WiFi and Bluetooth module for interactive flat panels

WiFi Standards: 802.11 a/b/g/n/ac

Frequency Bands: 2.4 GHz and 5 GHz (5150 to 5250 MHz and 5725 to 5825 MHz)

Maximum Throughput: Up to 433.5 Mbps

Bluetooth: 2.1, 3.0 and 4.0 BLE

Chipset: Realtek RTL8821AU-VS

Interface: USB 2.0, fits the ViewBoard wireless module slot

Power: 5 V DC, less than 2.5 W

Dimensions: 77 mm W x 99 mm H x 11 mm D

Net Weight: 20 g

Operating Temperature: 0 to 40 degrees C

Approvals: FCC, CE, RCM

Compatibility: ViewBoard IFP50 series, IFP70 series (65 and 86 inch), CDE20 series (65 to 86 inch)

Barcode: 766907910117

Country of Origin: China

Condition: New, in the original box

Key Features

• Dual band 2.4 GHz and 5 GHz operation at up to 433.5 Mbps
• Adds Bluetooth alongside WiFi on a single module
• Fits the internal module slot so nothing protrudes from the display
• RCM marked for use in Australia
• Powered from the panel, no separate supply needed

Typical Applications

• Adding wireless network access to a ViewBoard interactive panel in a classroom
• Meeting room panels where a cabled network drop is not available
• Restoring wireless connectivity to a panel whose original module is missing
• Digital signage displays in the CDE20 series

Package Includes

• 1 x ViewSonic LB-WIFI-001 WiFi module
• 1 x Quick Start Guide
• No display, antennas or mounting hardware are included

Additional Information

This is a module only and is not a standard external USB WiFi adapter. It is designed for the dedicated wireless module slot in the supported ViewSonic panels listed above and will not fit other brands.

ViewSonic does not publish an antenna count or antenna type for this module, so that detail is not stated here. This is the 802.11ac generation module and should not be confused with the later VB-WIFI-001, model VS18758, which is the WiFi 6 version.

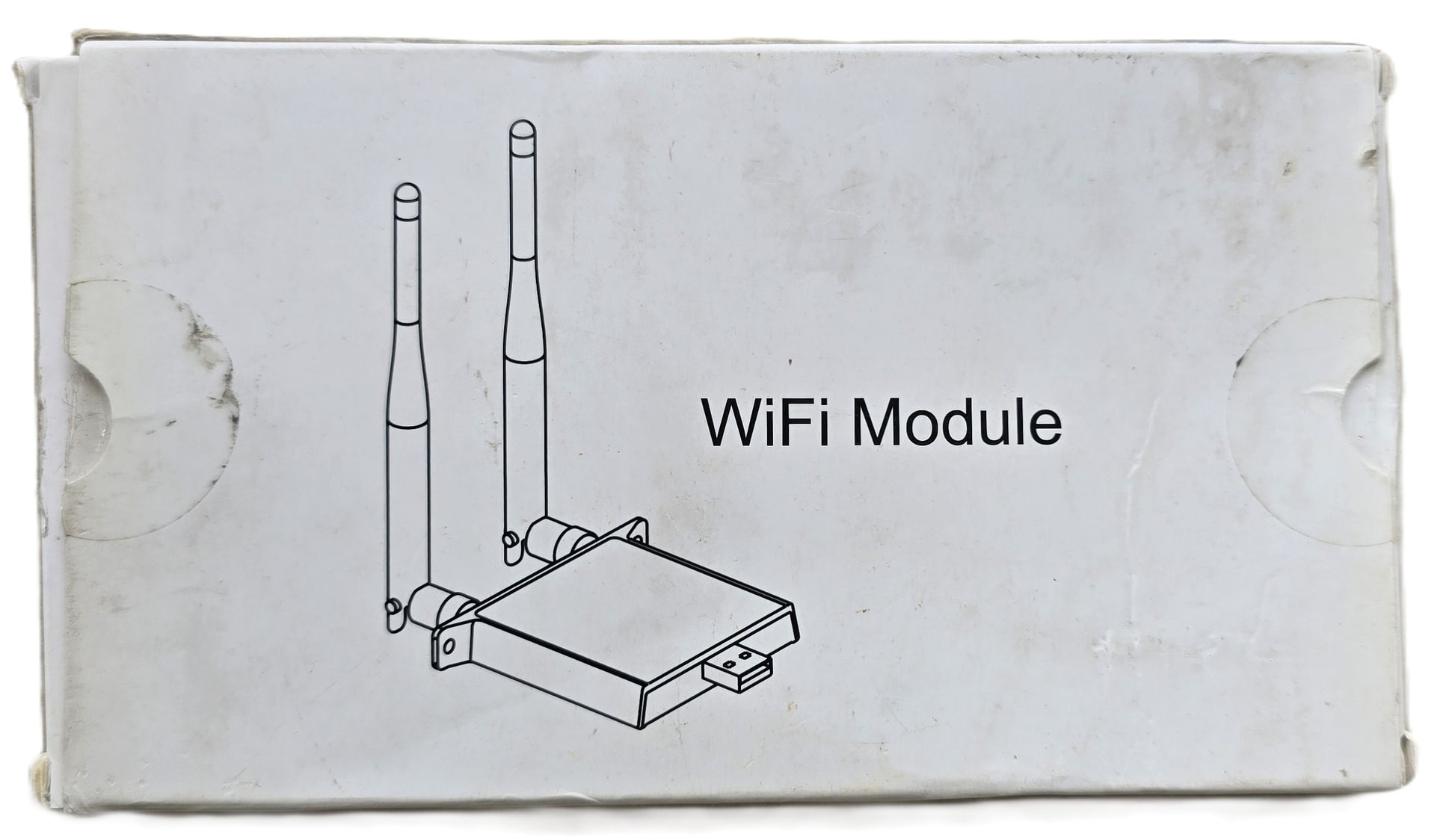

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
