UTC RCR-REX-W Dual Tech Request to Exit Motion Sensor Sounder White (NEW In Box)

The RCR-REX-W is a dual technology request to exit sensor in white, used above a controlled door to release the lock when someone approaches from the secure side. It combines passive infrared with 5.8 GHz Doppler range controlled radar and only triggers when both technologies detect motion, which is the standard method for keeping a door from releasing on a passing shadow or a draught.

Two Form C relay outputs rated 2 A at 30 V are provided, along with a tamper output and a door monitor input. A built in adjustable piezo sounder gives a continuous tone for the fifteen seconds before the relay timer expires and a beeping tone when a door is held open too long. Eight DIP switches set the relay time from half a second to sixty four seconds and configure the sounder, LED, timer reset, door monitor mode and fail safe or fail secure relay behaviour. The unit is supplied with a matching wall plate.

Specifications

Brand: UTC Fire & Security. Now sold in Australia under the Aritech brand by Carrier, previously GE Security, Sentrol and Interlogix

Model: RCR-REX

Part Number: RCR-REX-W

Product Type: Dual technology request to exit motion sensor with sounder

Detection: Passive infrared plus 5.8 GHz Doppler range controlled radar. Both must detect motion to trigger

Radar Range: Adjustable 0.9 to 4.57 m, radar width 2.4 m

PIR Range: 4.5 m, adjustable, maskable field of view

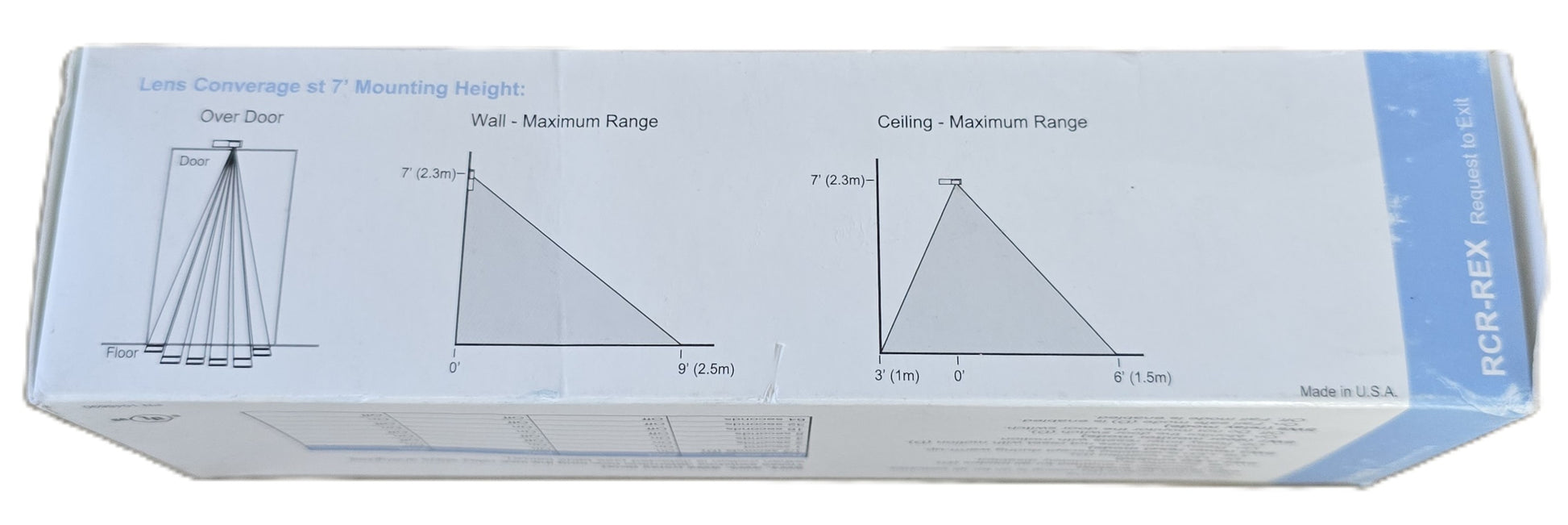

Coverage At 2.3 m Mounting Height: Wall mount maximum 2.5 m. Ceiling mount maximum 1.5 m forward and 1 m behind

Input Voltage: 12 to 30 V AC or V DC

Current Draw: 15 to 38 mA depending on supply, 23 mA typical at 12 V DC

Relay Outputs: 2 x Form C, DPDT, maximum 2 A at 30 V AC or DC

Tamper Output: 50 mA at 30 V DC

Sounder: Built in adjustable piezo. Continuous tone 15 s before relay timer expiry, beeping tone for door open too long

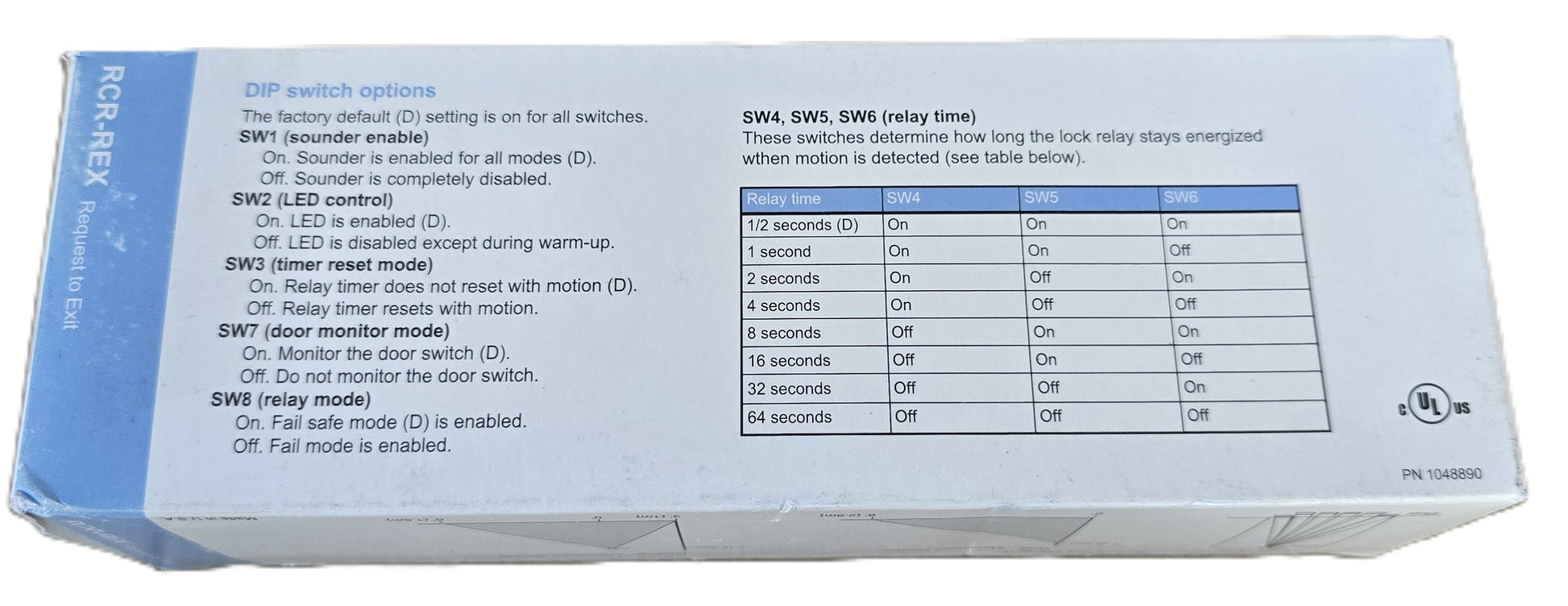

Relay Time: DIP selectable 0.5, 1, 2, 4, 8, 16, 32 or 64 seconds, plus or minus 10 percent. Default 0.5 s

DIP Options: Sounder enable, LED enable, timer reset on motion, door monitor mode, fail safe or fail secure relay mode

Door Monitor Input: Monitors door position and beeps if the door is held open

Wire Gauge: AWG 14 to 22, 18 to 22 recommended

Mounting: Wall or ceiling, typical height 2.13 to 4.57 m, swing open housing, adjustable angle

Operating Temperature: -29 to +50 degrees C, humidity 0 to 95 percent non condensing

Environment: Indoor

Dimensions: 188 x 45 x 47 mm

Weight: 261 g

Colour: White. RCR-REX-B is black and RCR-REX-G is grey

Approvals: cULus, FCC, Industry Canada, CE, Australian C-Tick 007-573-417

UPC: 046188123629

Manufactured: November 2015

Country of Manufacture: Mexico

Condition: New in box

Key Features

• Dual technology, PIR and radar must both trip, reducing false releases
• Two Form C relays rated 2 A at 30 V
• Built in piezo sounder with pre expiry and door held open tones
• Relay time selectable from half a second to sixty four seconds
• Door monitor input for door held open supervision
• Fail safe or fail secure relay mode by DIP switch
• Matching wall plate supplied

Typical Applications

• Egress release above access controlled doors
• Office, education, healthcare and government fit outs
• Retail back of house and staff only doors
• Replacement or spare for an existing RCR-REX installation

Package Includes

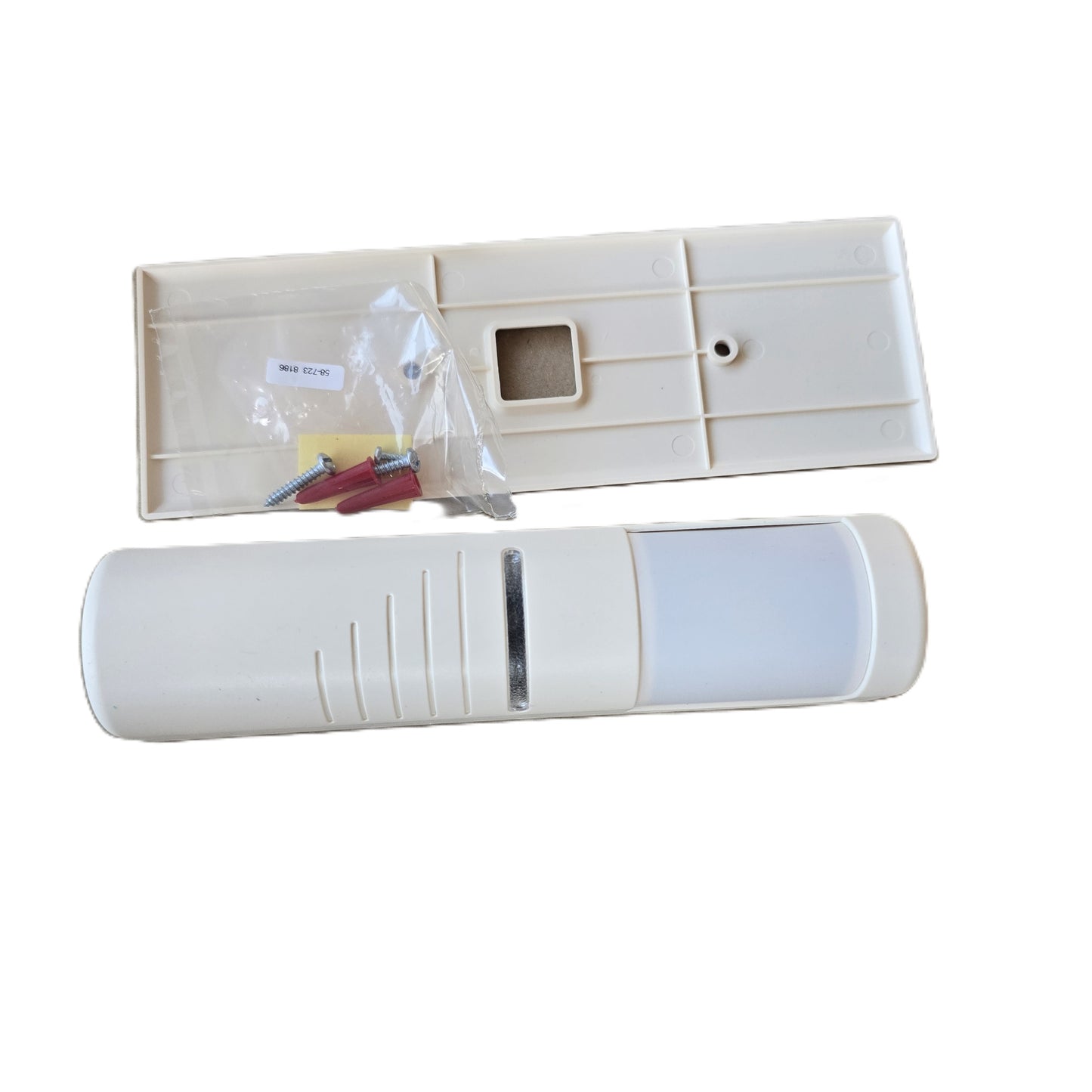

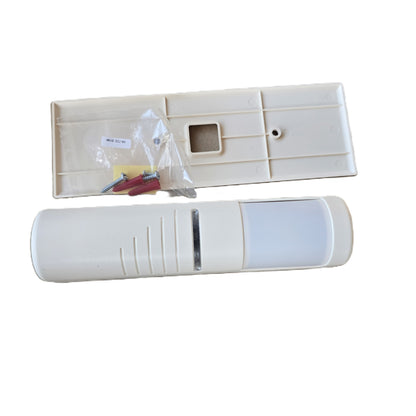

• One RCR-REX-W sensor in white
• Matching single gang wall plate
• Bag of mounting hardware, screws and wall plugs
• This listing is for two separate single unit boxes, not one twin pack

Additional Information

Please read this before ordering. The quantity is two individually boxed units, each carton marked quantity 1. It is not a factory two pack.

The applied product label states Made in Mexico while the pre printed carton artwork states Made in U.S.A. The applied label reflects the actual build, so the country of origin is stated as Mexico.

This is an indoor device with no published ingress protection rating. It is not suitable for exposed outdoor mounting.

Dual technology means both the infrared and the radar must detect motion before the relay operates. This is a deliberate false alarm reduction design, not a fault.

UTC Fire & Security and Interlogix no longer exist as go to market brands. The identical product is now supplied in Australia under the Aritech brand by Carrier.

The date code indicates November 2015 manufacture. This is new old stock and the cartons are shelf worn. One of the two cartons has been opened for photography, the other has not.

Installation should be carried out by a licensed security technician.
