Telemecanique 9012 GGW-1 Differential Pressure Switch Type 4,4X, 13 ENCL, SPDT

Telemecanique 9012GGW-1 – Differential Pressure Switch, SPDT, Adjustable, NEMA Type 4/4X/13 Enclosure

Condition:
Brand New – Unused, unopened, undamaged item in its original packaging.

Brand: Telemecanique (Schneider Electric)
Model: 9012GGW-1
MPN: 9012GGW1
Type: Differential Pressure Switch
Contact Configuration: SPDT (Single Pole Double Throw)
Operation: Adjustable differential
Enclosure Rating: NEMA Type 4, 4X, 13 – suitable for harsh and industrial environments
Application: Industrial control, fluid and pneumatic systems, pressure monitoring and protection

Specifications:

• Dimensions: approx. 90 mm (H) × 75 mm (W) × 110 mm (D)

• Weight: approx. 0.75 kg (1.65 lbs)

• Mounting: Direct or panel mount

• Electrical Rating: up to 600 VAC, 10 A (depending on load type)

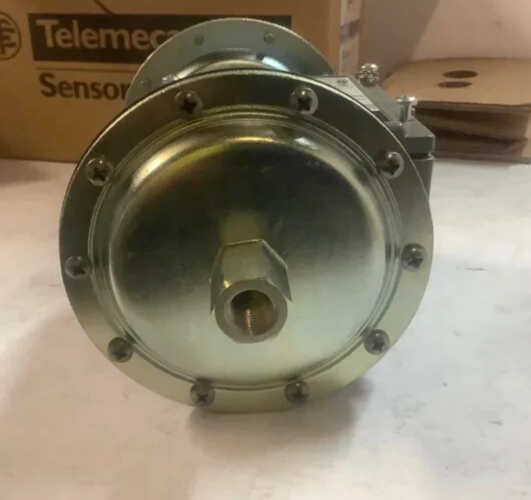

• Pressure Connection: Standard 1/4" NPT female port

Other Identifiers:

• Catalog/Order No.: 20250843985 / 24 21

• Switch Function: Adjustable, factory set range

Logistics & Compliance:

• HS Code: 85365080 (Switches for voltages ≤1000V, electrical control)

• Country of Origin: USA (common for Telemecanique 9012 series)
