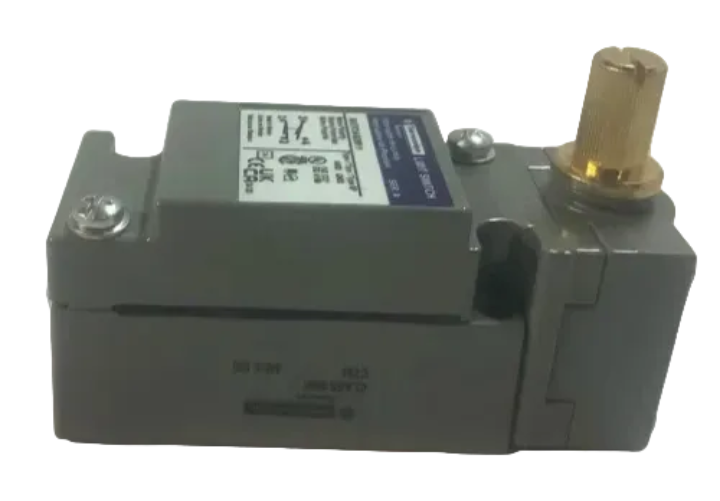

Telemecanique 9007C54B2M11 9007 Series Limit Switch NO/NC IP67 SPDT-DB (NEW)

Telemecanique 9007C54B2M11 9007 Series Heavy Duty Limit Switch SPDT IP67

The Telemecanique 9007C54B2M11 is a heavy-duty industrial limit switch designed for reliable position sensing and machine control in demanding environments. Part of the renowned 9007 Series from Schneider Electric, this switch features a rugged zinc housing, rotary spring-return head, and IP67 environmental protection for long-term performance in industrial applications.

The switch incorporates a snap-action SPDT contact arrangement with one normally open and one normally closed contact, providing dependable switching performance for machinery, conveyors, process equipment, and automation systems.

Supplied new in original box.

Specifications

Brand: Telemecanique (Schneider Electric)
Model: 9007C54B2M11
Series: 9007 Heavy Duty
Product Type: Limit Switch
Switch Function: SPDT-DB (Form Z)
Contact Configuration: 1 NO + 1 NC
Contact Operation: Snap Action
Contact Material: Silver Contacts
Operator Type: Zinc Spring Return Rotary Head
Lever: Not Included (Compatible with 9007C Levers)
Actuation Direction: CW and CCW
Approach Direction: Lateral, Programmable Left or Right
Mounting Type: Body Fixing
Terminal Type: Screw Clamp
Wire Size: AWG 22–12
Cable Entry: M20 × 1.5mm
Condition: New (In Box)
Country of Origin: Mexico

Electrical Ratings

Maximum Voltage: 600VAC
Maximum Current: 1.2A

Mechanical & Environmental

Enclosure Rating: IP67
Housing Material: Zinc
Head Material: Zinc
Repeat Accuracy: ±0.002 in Linear Travel of Cam
Local Signalling: No

Key Features

• Genuine Telemecanique heavy-duty limit switch
• SPDT contact configuration (1NO + 1NC)
• Snap-action switching mechanism
• Rugged zinc housing and rotary head
• Spring-return operator design
• IP67 dust and water protection
• Programmable left or right actuation
• Compatible with 9007C lever accessories
• Silver contacts for reliable switching performance
• Designed for harsh industrial environments

Typical Applications

• Industrial machinery
• Conveyor systems
• Packaging equipment
• Material handling systems
• Process automation
• Manufacturing equipment
• Position detection systems
• Heavy-duty industrial controls

Package Includes

1 × Telemecanique 9007C54B2M11 Limit Switch

Additional Information

HS Code: 85365080
