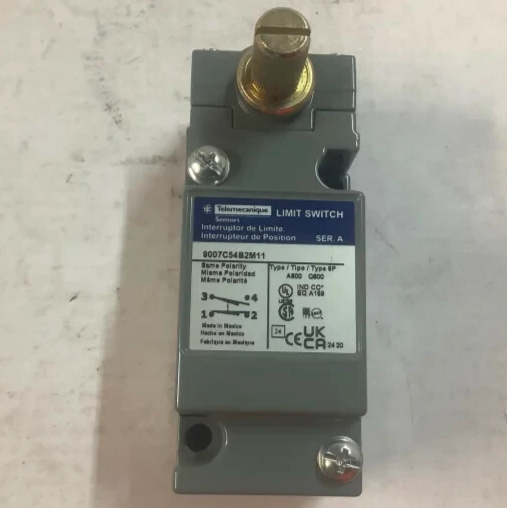

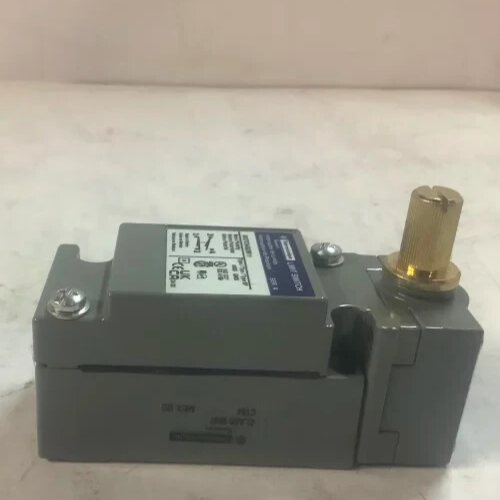

Telemecanique 9007C54B2M11 9007 Series Limit Switch, NO/NC, IP67, SPDT-DB

Telemecanique 9007C54B2M11 – 9007 Series Heavy Duty Limit Switch, SPDT-DB, NO/NC, Zinc Housing, IP67, 600V AC Max

Condition: Brand New – Unused, unopened, undamaged item in its original packaging.

Brand: Telemecanique (Schneider Electric)
Model: 9007C54B2M11
Series: 9007 (Heavy Duty)
Type: Limit Switch
Switch Function: SPDT-DB (Form Z) – 1 NO + 1 NC
Contact Operation: Snap action
Contacts: Silver contacts
Terminals: Screw-clamp (AWG 22–12)
Cable Entry: 1 × M20 x 1.5 mm (BS 4568 compliant)
Actuation: CW and CCW, lateral approach, programmable from left and right
Operator Type: Zinc spring return rotary head (without lever, compatible with 9007C lever)
Body Material: Zinc housing
Head Material: Zinc
Enclosure Rating: IP67
Electrical Ratings:

• Max Voltage: 600V AC

• Max Current: 1.2 A

Other Features:

• Repeat accuracy: ±0.002 in linear travel of cam

• Local signalling: Without

• Mounting: Body fixing

• Application: Standard box, heavy-duty environments

Classification: Industrial limit switch, plug-in body design

HS Code: 85365080 (Switches, for a voltage ≤1000V, other than push-button/rotary types)
Country of Origin: Mexico (Telemecanique/Schneider 9007 series are typically manufactured in Mexico)
