TE-Connectivity 5503948-5 SC [10 Pack] Multimode Fibre Optic Connector Kit (New)

The TE Connectivity (Tyco Electronics / AMP) 5503948-5 is a multimode SC fibre optic connector kit designed for field termination of optical fibre. It provides a one-piece, simplex SC/UPC connector with a ceramic ferrule and is intended for use with 0.9 mm buffered fibre and 3.0 mm jacketed cordage.

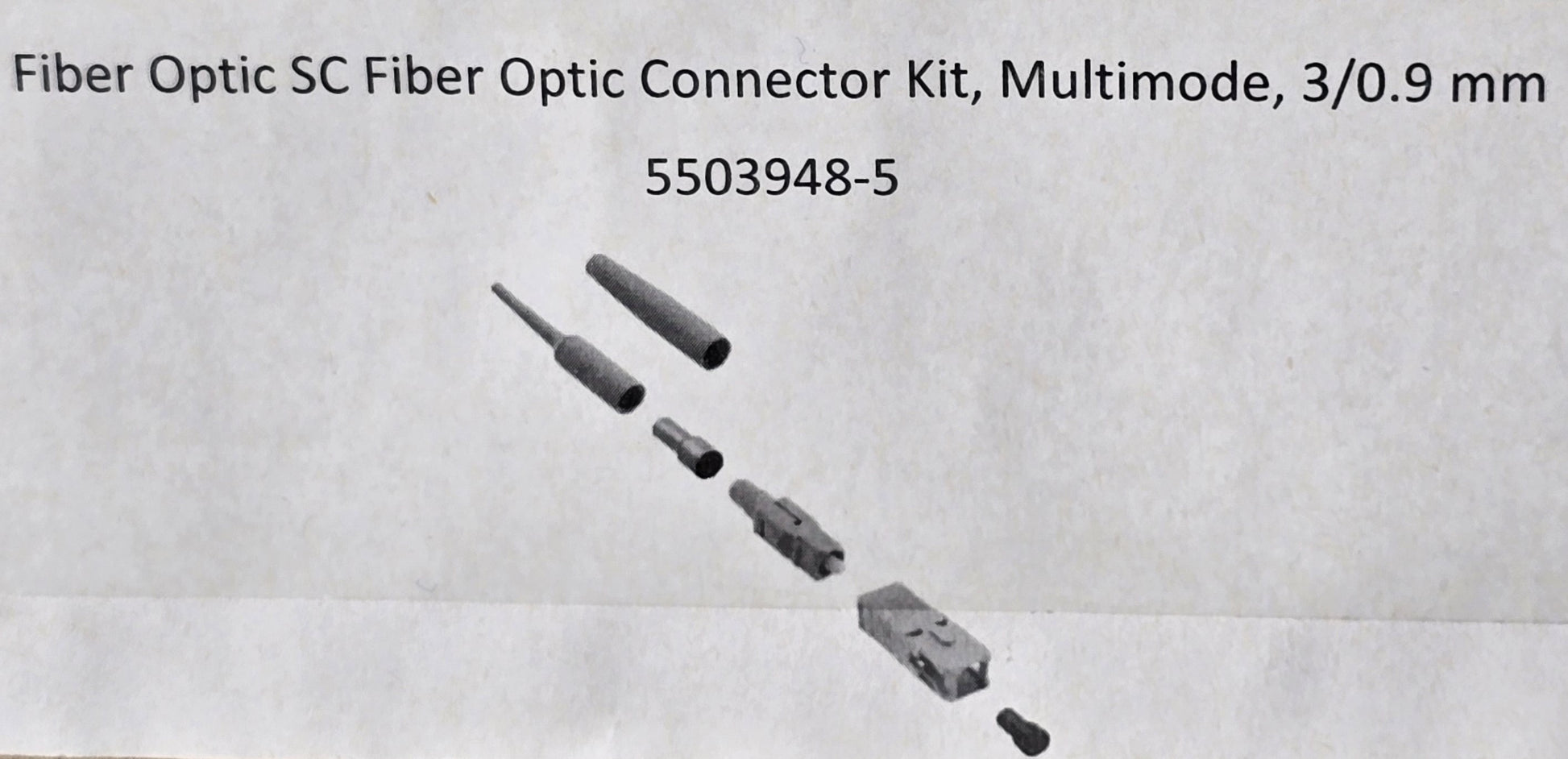

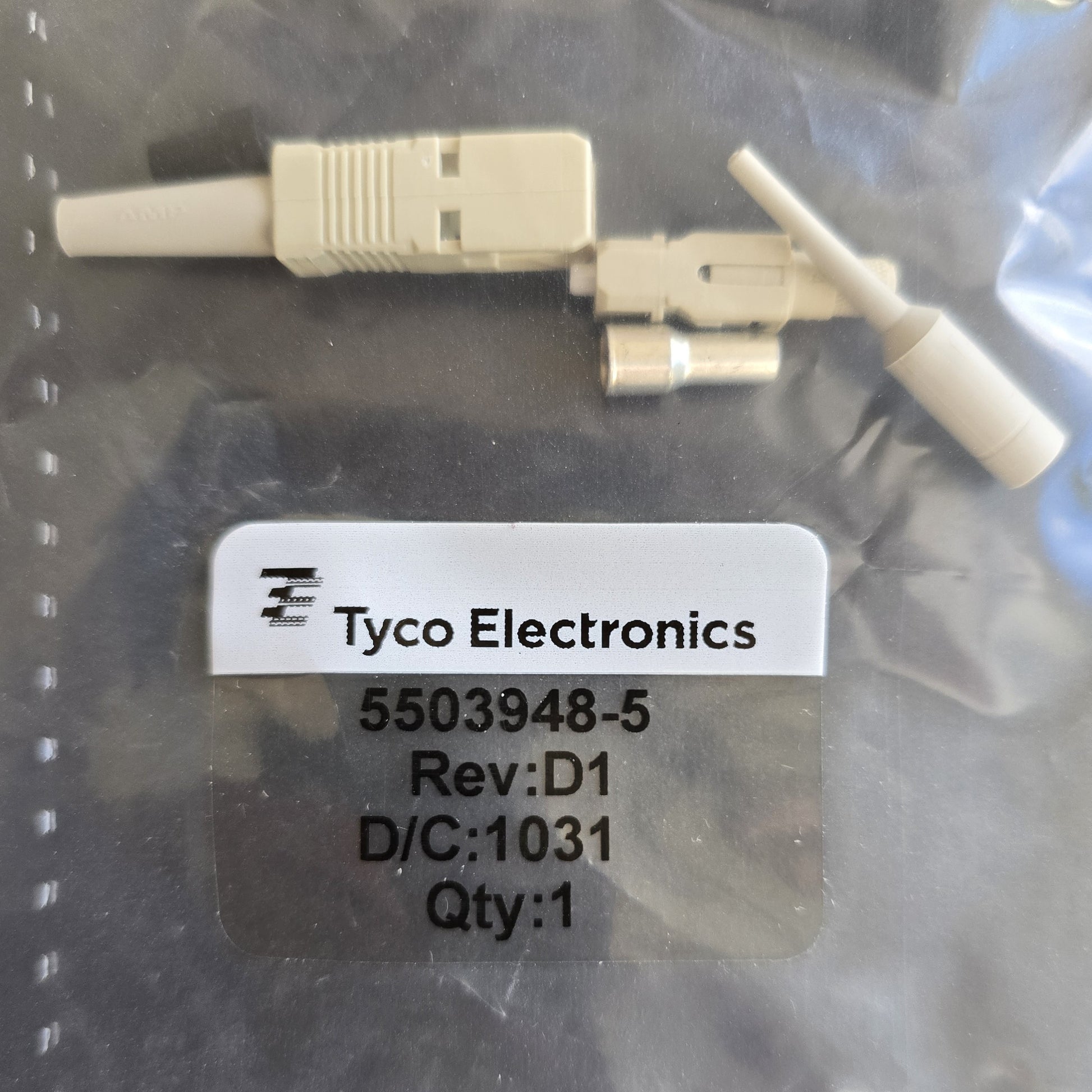

The kit is supplied as individual components for termination, including the beige SC connector housing, ferrule assembly, crimp sleeve and strain-relief boot. The manufacturer label reads KIT,CONN,SC,3.0/.9MM,MM, Revision D1. This is a genuine TE/Tyco part and is now a discontinued line.

Specifications

• Manufacturer: TE Connectivity (Tyco Electronics / AMP)
• Part number: 5503948-5
• Label description: KIT,CONN,SC,3.0/.9MM,MM
• Connector type: SC, simplex, one-piece
• Fibre mode: Multimode
• Ferrule material: Ceramic
• Interface and polish: SC/UPC
• Fibre and cable: 0.9 mm buffered fibre and 3.0 mm jacketed cordage
• Housing material: PBT plastic, beige with matching beige boot
• Operating temperature: -40 C to +85 C
• Revision: D1
• Country of assembly: China (of US and other components)

Key Features

• Genuine TE Connectivity / Tyco Electronics AMP component
• Ceramic ferrule for stable, low-loss terminations
• Standard SC/UPC interface compatible with common SC adapters and equipment
• Multimode, simplex configuration
• Field-terminable kit format

Typical Applications

• Multimode structured cabling and patch lead assembly
• Local area network (LAN) and data centre fibre links
• Telecommunications and industrial fibre installations
• On-site termination of 0.9 mm buffered fibre and 3.0 mm cordage

Package Includes

• 10 Pack x TE 5503948-5 SC multimode fibre optic connectors kit per pack (connector housing, ferrule assembly, crimp sleeve and boot)


Additional Information

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
