Takex TX-103R Outdoor Battery PIR Sensor Ness 106-215 Radio Ready (NEW In Box)

The Takex TX-103R is a battery powered outdoor passive infrared sensor with a bay for a plug in radio transmitter module, supplied to the Australian market by Ness Corporation under part number 106-215. It is designed for wireless perimeter and approach detection where running cable is impractical, such as driveways, side paths, sheds and rural gates.

The sensor head rotates through 180 degrees and offers four selectable detection patterns. Mounted vertically it gives a wide angle pattern to 10 metres, a horizontal curtain to 10 metres, or a long range curtain to 20 metres. Mounted horizontally it gives a vertical curtain to 3 metres. It runs from a single 9 volt battery, drawing 30 microamps in standby and 5 milliamps in alarm. Sensitivity is adjustable from 30 to 170 percent and a DIP switch selects either a one minute inhibit timer or a five second alarm.

Specifications

Brand: Takex (Takenaka Engineering)

Model: TX-103R Outdoor Passive Sensor

Part Number: TX-103R

Alternate Part Number: Ness 106-215

Product Type: Battery powered outdoor PIR sensor head with radio transmitter bay

Detection Method: Passive infrared

Detection Patterns Vertical Install: Wide angle up to 10 m, horizontal curtain 10 m, long range curtain 20 m

Detection Pattern Horizontal Install: Vertical curtain up to 3 m

Detection Zones: 5 pairs in wide angle and curtain modes, 1 pair in long range mode

Sensor Head: Rotates 180 degrees, four selectable patterns

Power Supply: 9 V battery, 6LR61 alkaline or U9VL lithium. Operating range 5 to 10 V DC

Current Consumption: 30 microamps standby, 5 mA alarm maximum

Output: CMOS output with an on board 5 V DC regulator, for connection to a radio transmitter module

Alarm Timing: DIP selectable 1 minute inhibit timer or 5 second alarm

Sensitivity Adjustment: 30 percent to 170 percent

Transmitter Bay: Accepts a transmitter PCB up to 59 x 46 mm. The manual names Inovonics, Cooper, Visonic and DSC transmitters as compatible

Environment: Rated for indoor and outdoor use, rainproof

Mounting Height: 0.8 to 1.5 m vertical install, 3 m maximum semi outdoor

Weight: 212 g

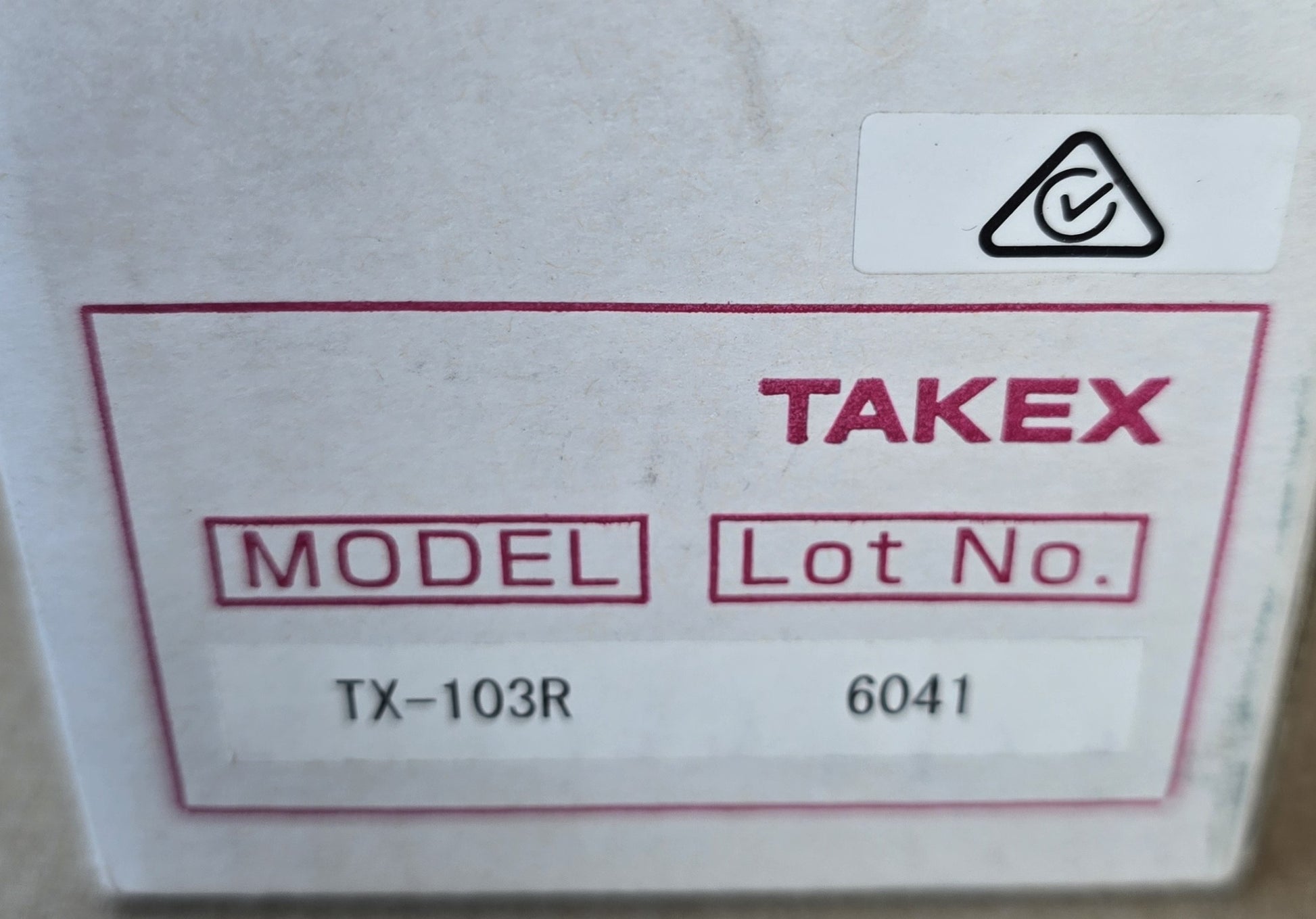

Compliance: RCM

Country of Manufacture: Japan

Condition: New in box

Key Features

• Four selectable detection patterns from one sensor, including a 20 m long range curtain
• Sensor head rotates 180 degrees for flexible aiming
• Battery powered, no cable run required to the sensor
• 30 microamp standby draw for long battery life
• Internal bay accepts a third party radio transmitter PCB
• Sensitivity adjustable from 30 to 170 percent
• Made in Japan, carries the Australian RCM mark

Typical Applications

• Driveway and approach detection on rural and semi rural property
• Side paths, gates and yard perimeters where cabling is impractical
• Sheds, carports and outbuildings
• Retrofit wireless zones on an existing alarm system

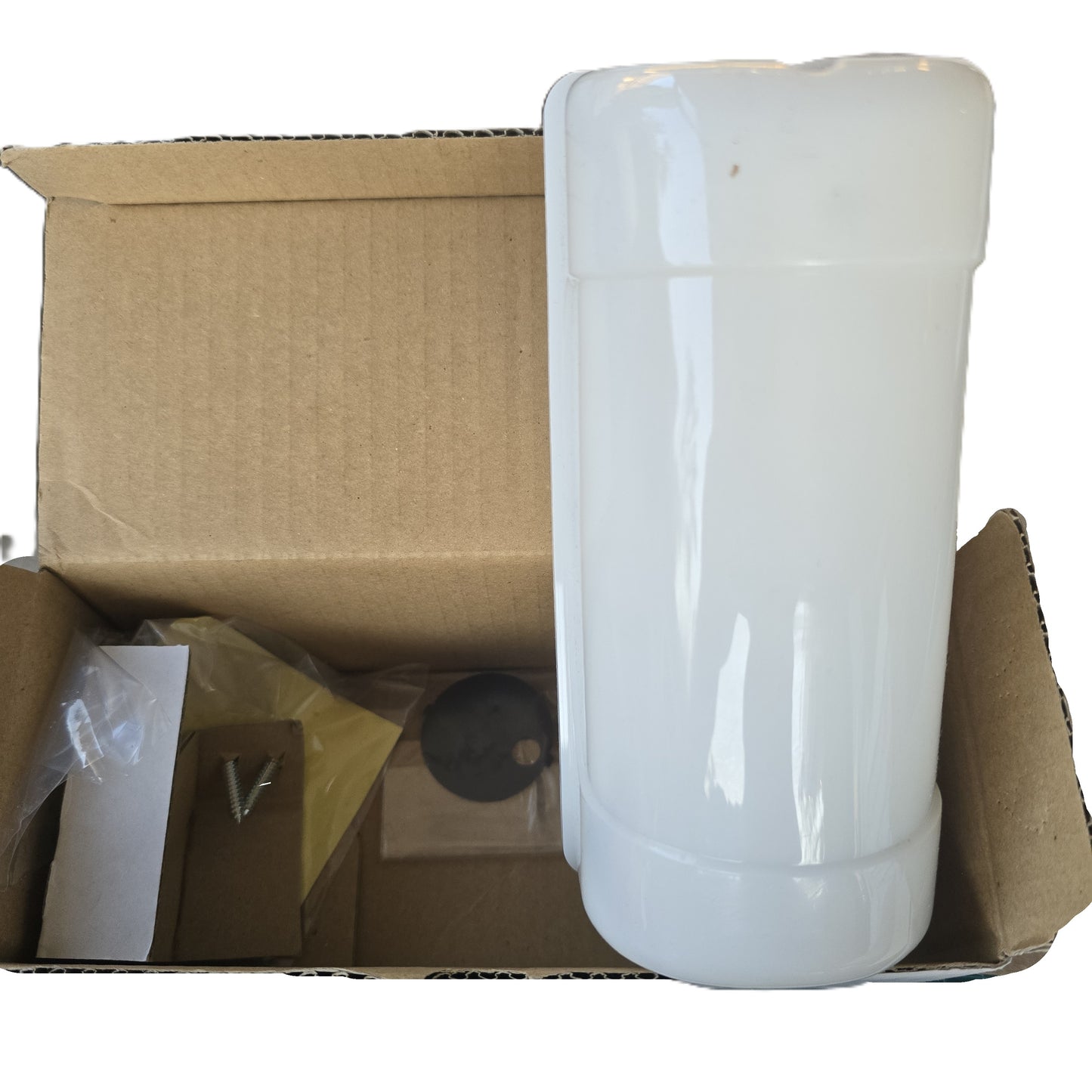

Package Includes

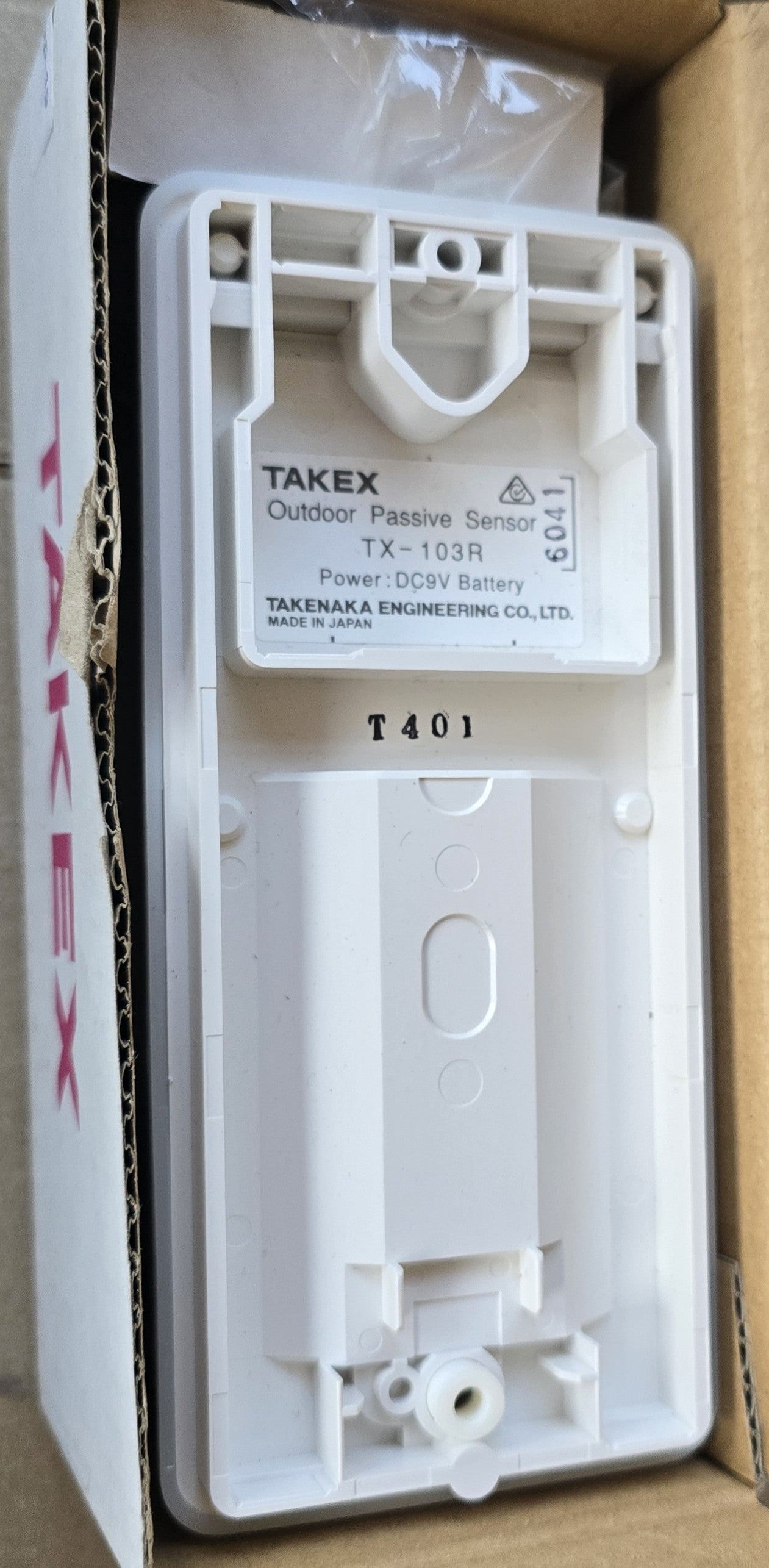

• One Takex TX-103R sensor with rear mounting plate
• Bagged mounting screws
• A cable grommet or blanking plug
• Printed literature and a further bagged plastic component as packed by the manufacturer
• No battery and no radio transmitter module are included

Additional Information

Please read this before ordering. This is a sensor head, not a complete wireless detector. It provides a CMOS output and an empty bay for a radio transmitter PCB of up to 59 by 46 mm. Unless you already have a compatible transmitter module, one must be supplied separately. Please contact us before ordering if you need us to open the unit and confirm whether a transmitter module is fitted.

No battery is included. The sensor takes a 9 V 6LR61 alkaline or U9VL lithium battery.

The sensor is rainproof rather than waterproof and no ingress protection rating is published by the manufacturer. Mount it under some cover.

This model is end of line. It does not appear in Takex Australia's current PIR range and no current Australian distributor listing was found. Spares and support should not be assumed.

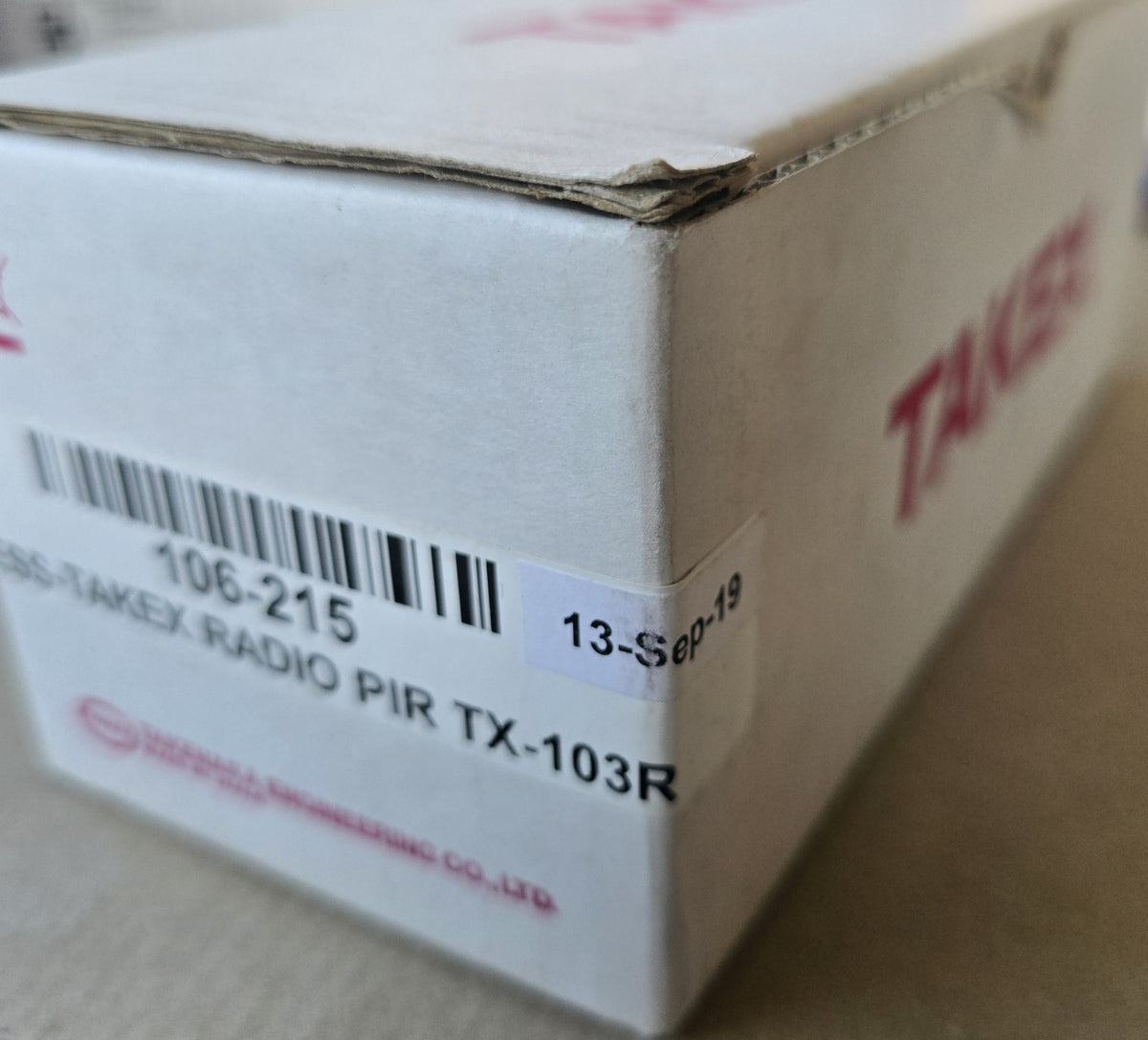

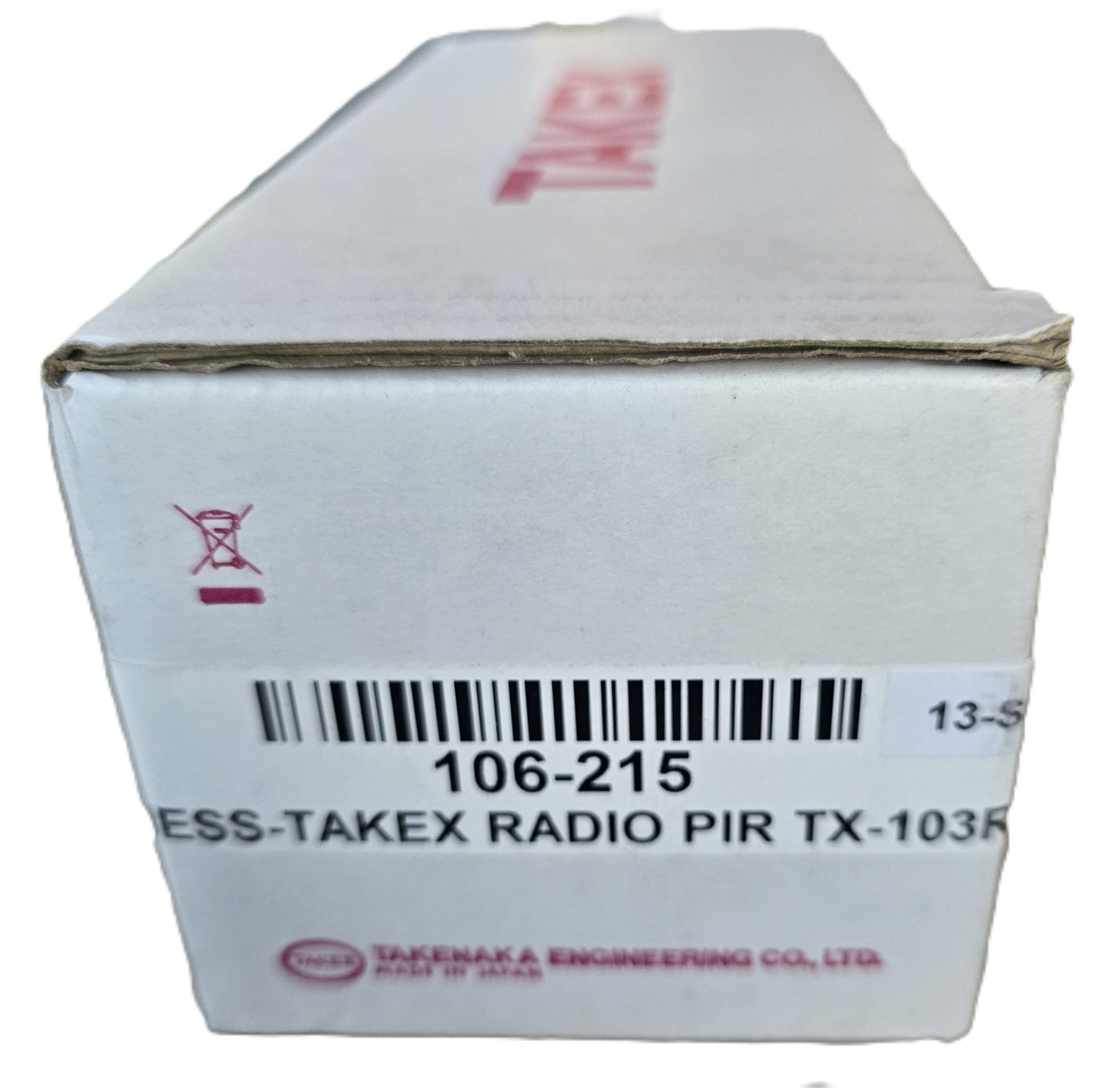

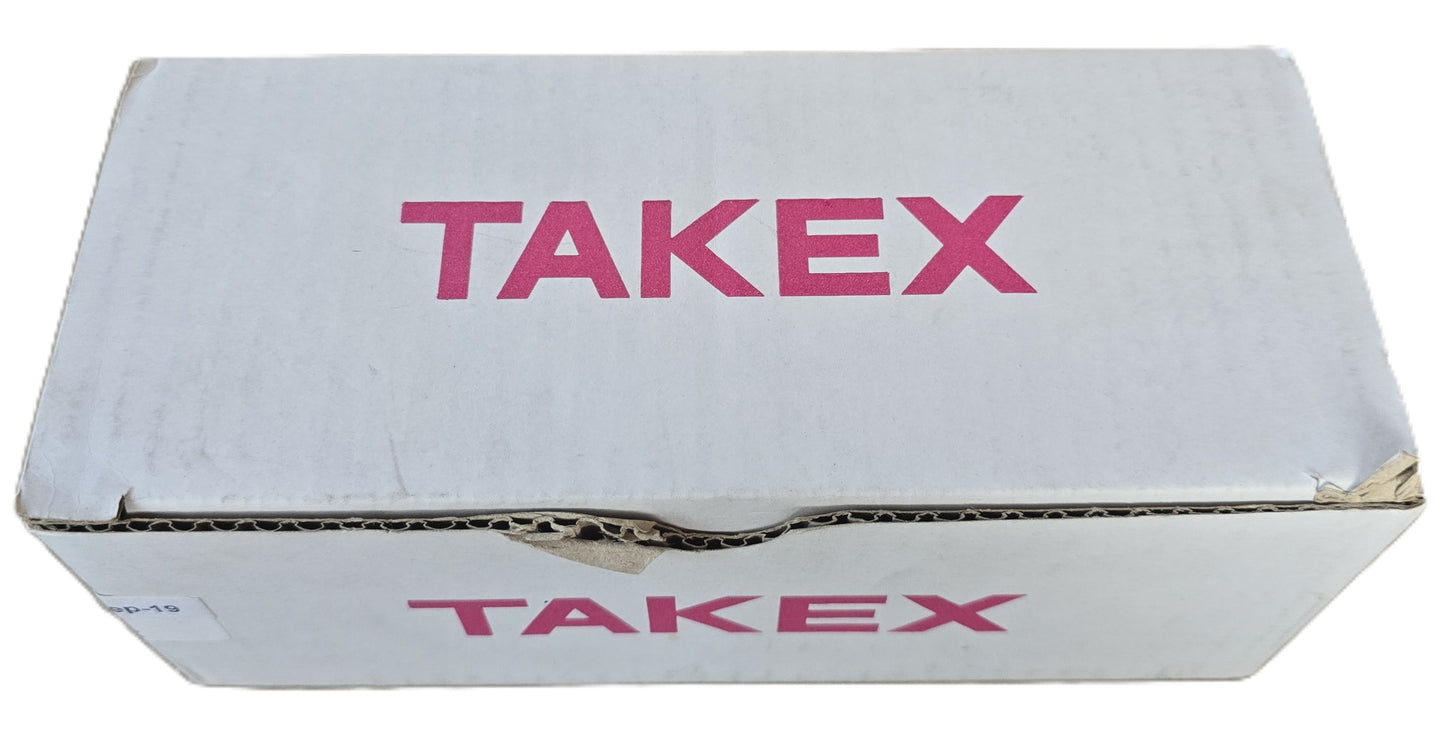

The carton is damaged, with a split along one top edge. The sensor and accessories inside are new and unused. The date sticker indicates 2019 stock.

Installation should be carried out by a licensed security technician.

Shipping from Sydney, Australia.
