Takex PA-4810 Quad Mirror Optic PIR Detector 12m Wide Angle Indoor (NEW In Box)

The Takex PA-4810 is a wall or pillar mounted indoor passive infrared intrusion detector using precision mirror optics rather than a plastic Fresnel lens. The mirror assembly is adjustable and has an aiming LED and viewfinder, so the detection pattern can be aimed accurately at installation rather than approximated. Coverage is 84 degrees over 12 metres, giving 18 pairs of sensitive zones.

Detection uses a quad pyroelectric element with fuzzy logic signal processing and selectable twin or quad sensing for fine motion. A trouble output monitors circuit damage, low supply voltage and head unit replacement failure, which is unusual at this level and useful on monitored sites. Alarm memory, remote LED control and a red warm up indicator are included. The alarm output is a dry contact relay selectable NO or NC, and a separate NC tamper contact opens if the cover is removed.

Specifications

Brand: Takex (Takenaka Engineering)

Model: PA-4810

Part Number: PA-4810

Current Manufacturer Designation: PA-4810E

Product Type: Indoor wall or pillar mount PIR intrusion detector

Detection Method: Passive infrared, quad pyroelectric element with fuzzy logic processing

Optics: Precision mirror optics, adjustable quad mirror with aiming LED and viewfinder

Detection Area: Wide angle, 84 degrees x 12 m, approximately 16 m wide by 12 m long

Sensitive Zones: 18 pairs, 72 zones

Power Supply: 9.5 to 28 V DC, non polarity

Current Consumption: 25 mA maximum

Alarm Output: Dry contact relay, NO or NC selectable, 30 V DC at 0.25 A maximum

Trouble Output: Monitors circuit damage, low voltage and head unit replacement failure

Tamper Output: Dry contact NC, opens when the cover is detached

Other Features: Fine motion detection with selectable twin or quad sensing, alarm memory, remote LED control, red warm up LED flickering every 0.5 s

Maximum Mounting Height: 3 m

Operating Temperature: -10 to +50 degrees C, no condensation

Environment: Indoor only

Dimensions: 127 high x 90 wide x 60 deep mm

Weight: 165 g

Compliance: CE, Australian C-Tick N1702

Australian Warranty Class: 5 year through the local distributor

Country of Manufacture: Japan

Condition: New in box

Key Features

• Mirror optics rather than a Fresnel lens for sharper zone definition
• Adjustable mirror with aiming LED and viewfinder for accurate setup
• 84 degree by 12 m wide angle coverage, 72 sensitive zones
• Quad pyroelectric element with fuzzy logic processing
• Trouble output monitors circuit damage and low voltage
• Alarm memory and remote LED control
• Made in Japan

Typical Applications

• Commercial premises, offices and retail interiors
• Warehouses and storerooms up to 3 m mounting height
• Monitored alarm installations needing a trouble output
• Replacement or spare for an existing Takex PA-4800 series installation

Package Includes

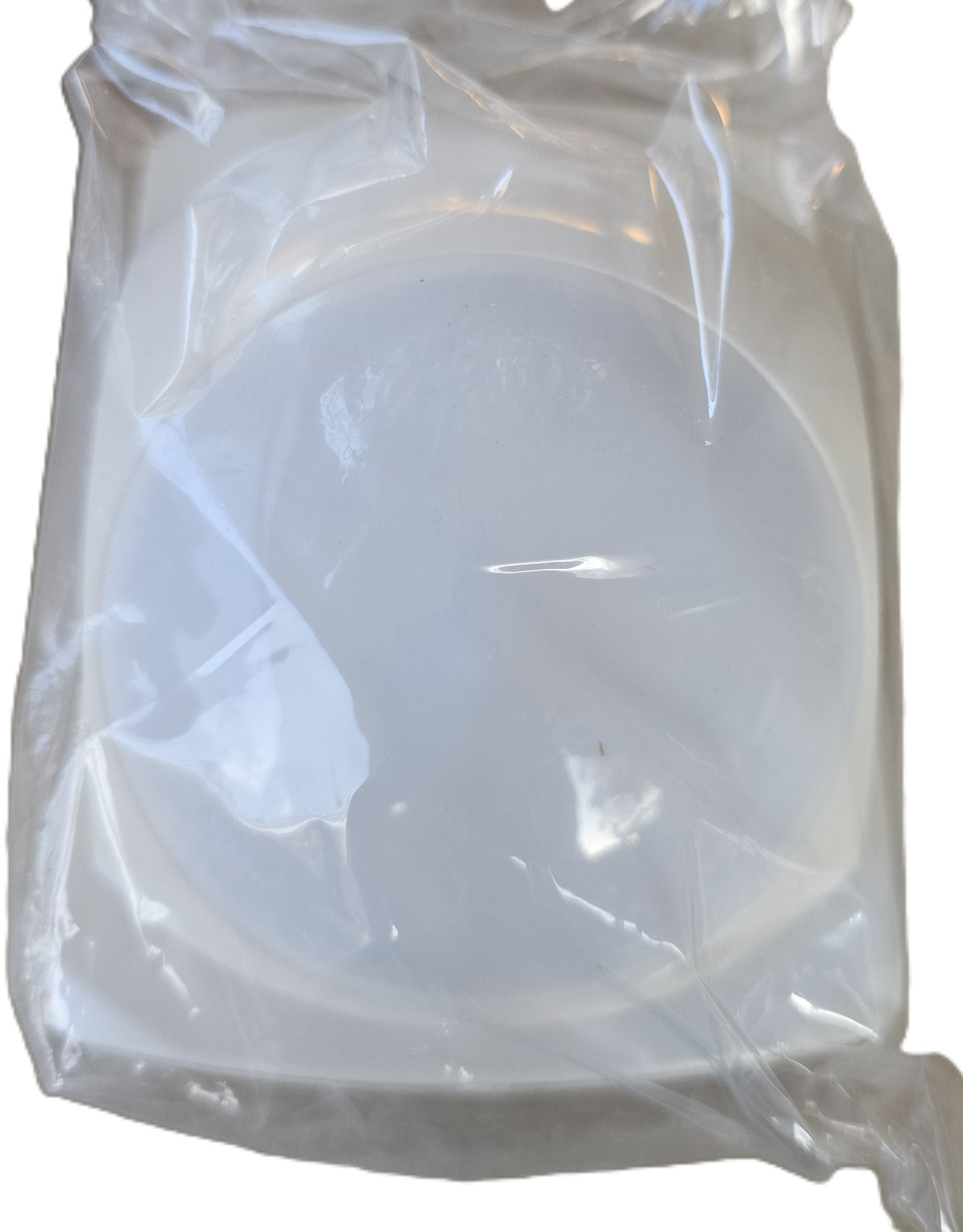

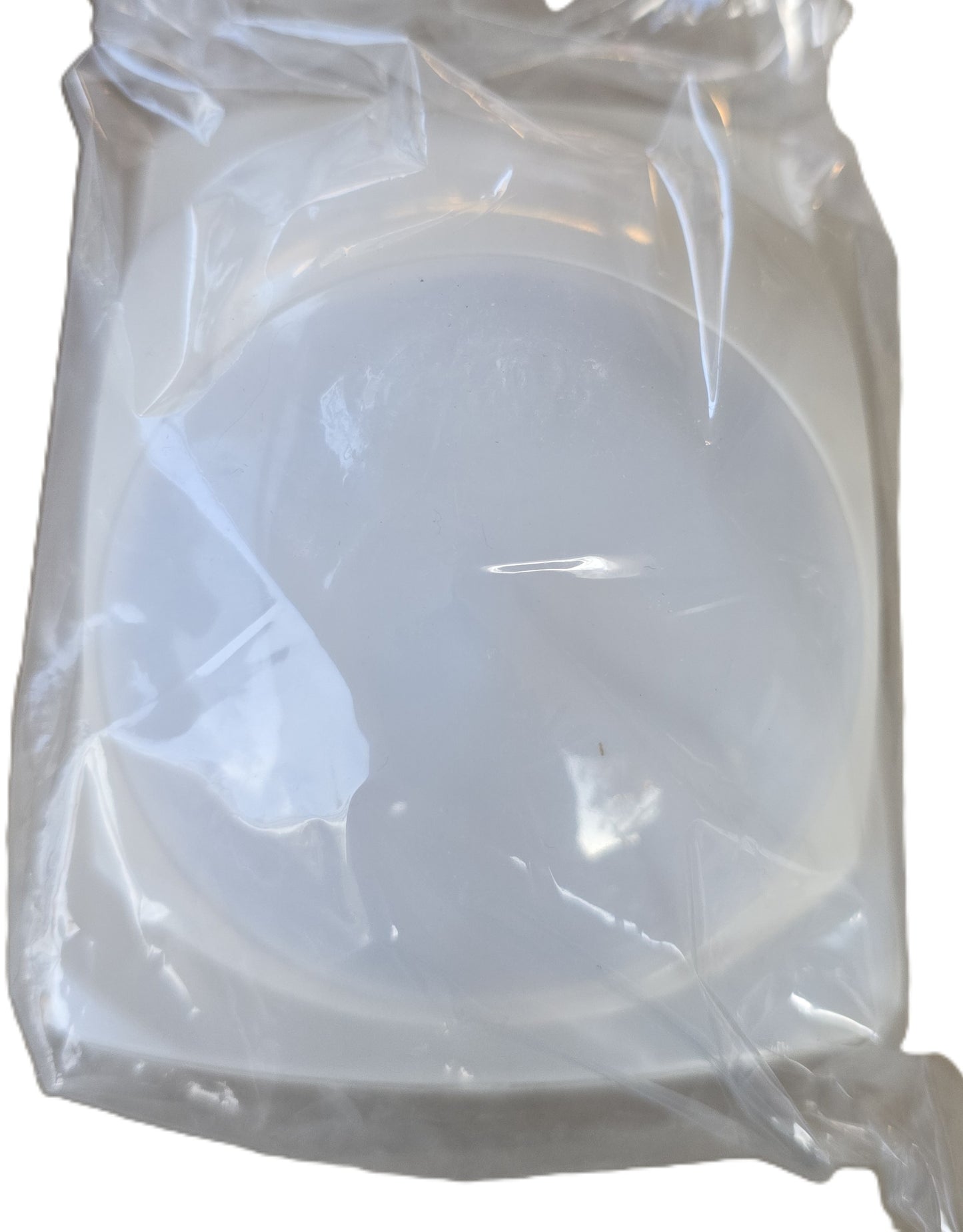

• One Takex PA-4810 PIR detector, factory bagged
• Manufacturer's fixing screws as packed
• The BCW-401 swivel mounting attachment is an optional accessory and is not included

Additional Information

Please read this before ordering. This is an indoor detector. It is not weatherproof and has no published ingress protection rating, so it must not be mounted in an exposed outdoor position.

The carton is labelled PA-4810 and the current manufacturer designation for the same product is PA-4810E.

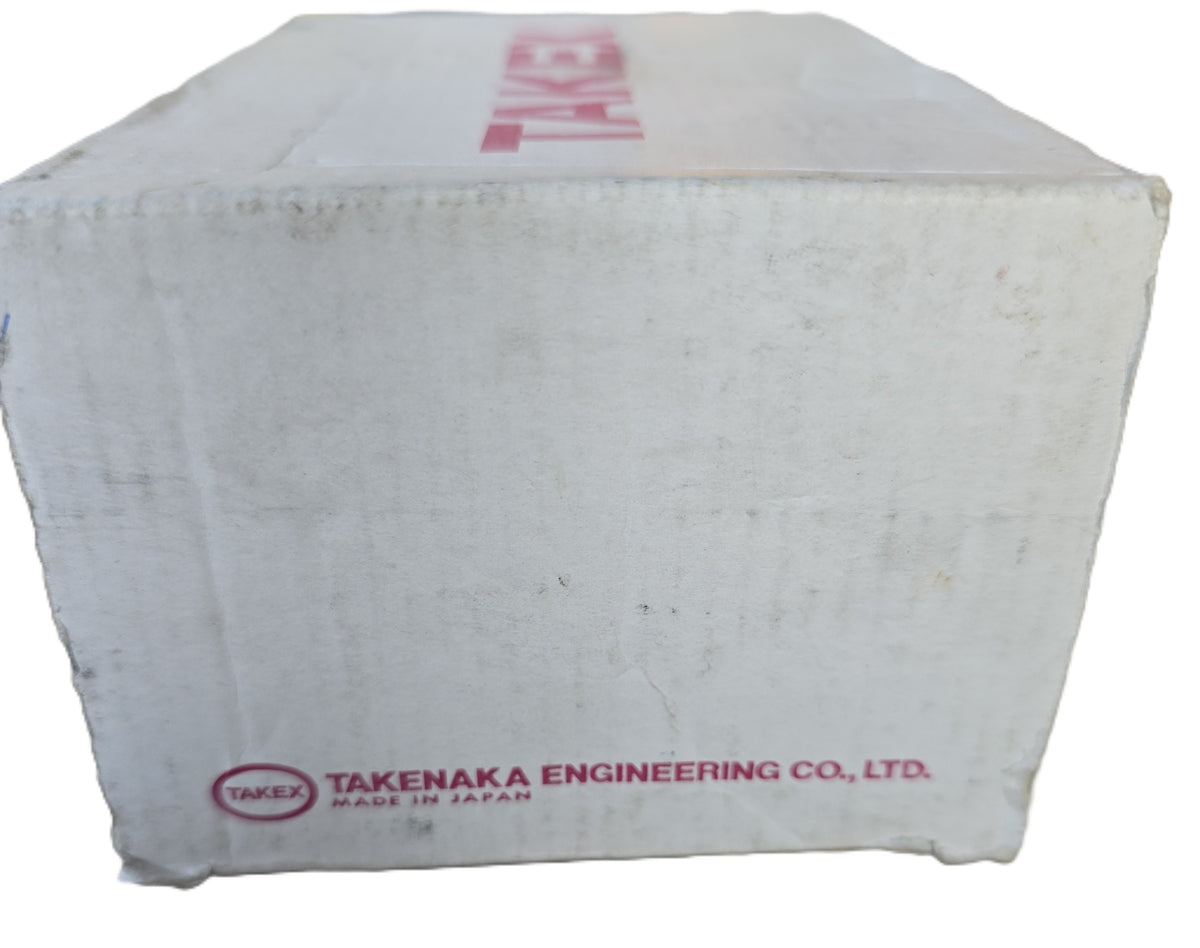

This is aged stock. The lot code and inventory sticker date the unit to 2013 and the carton is scuffed from long storage. The detector itself is new and unused.

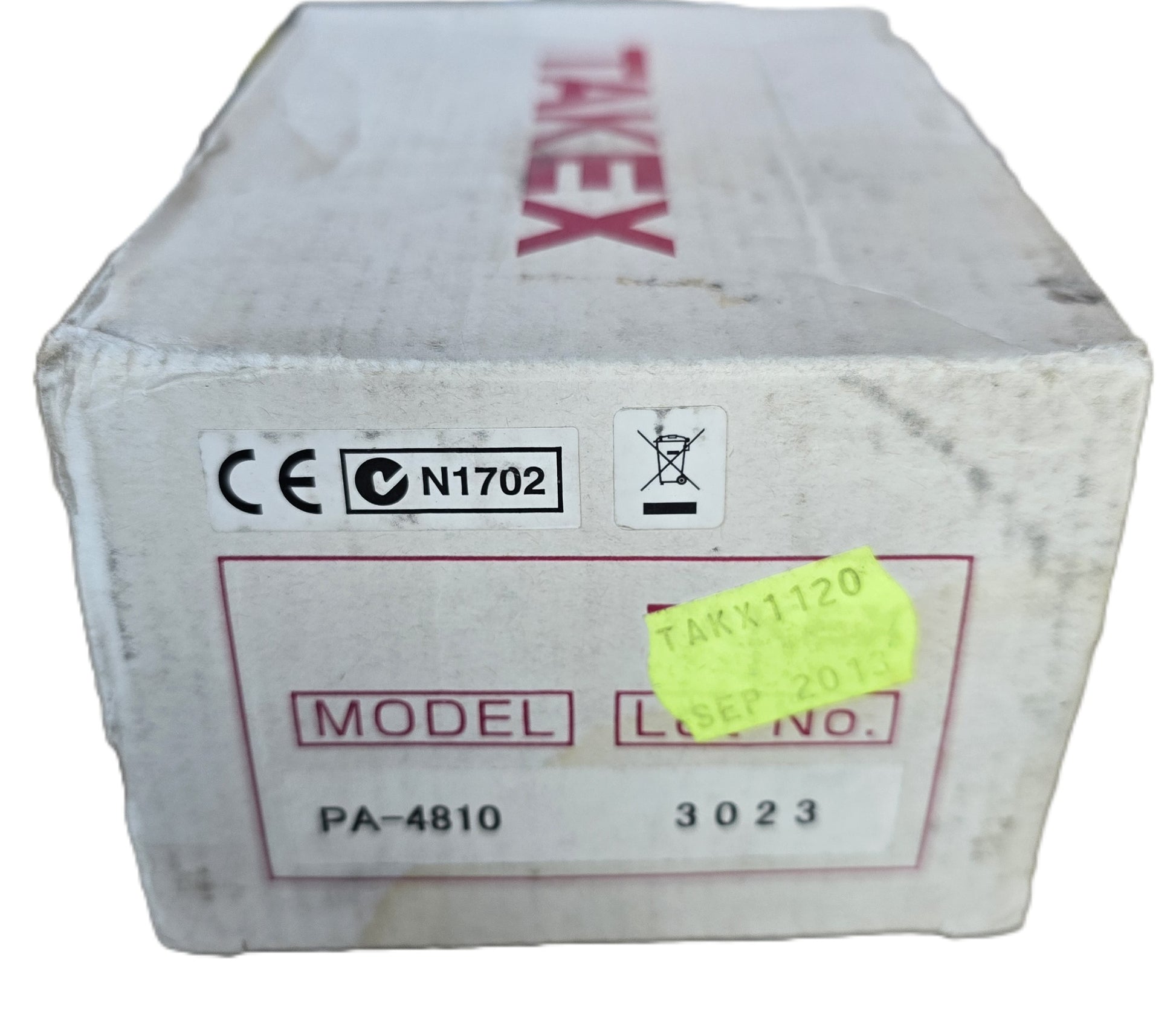

The carton carries the superseded Australian C-Tick mark N1702 rather than the current RCM mark.

Installation should be carried out by a licensed security technician.

Shipping from Sydney, Australia.
