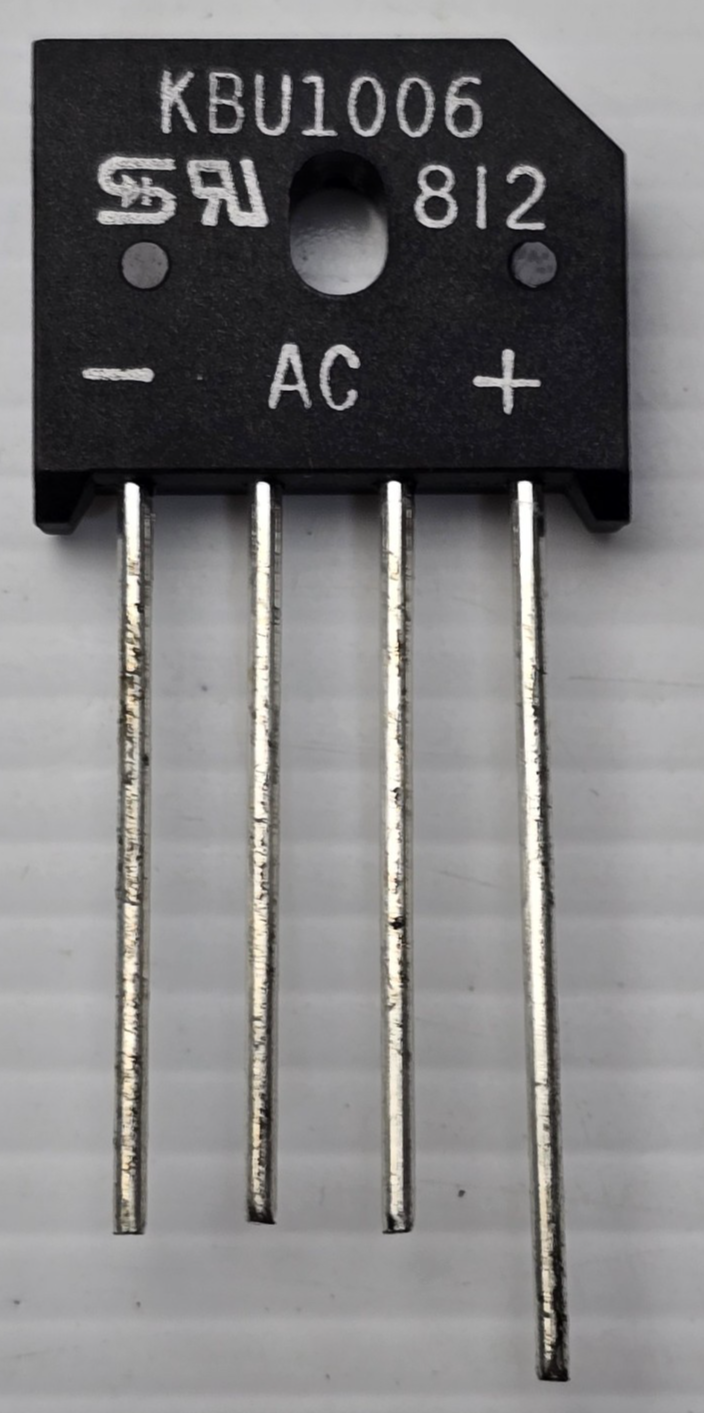

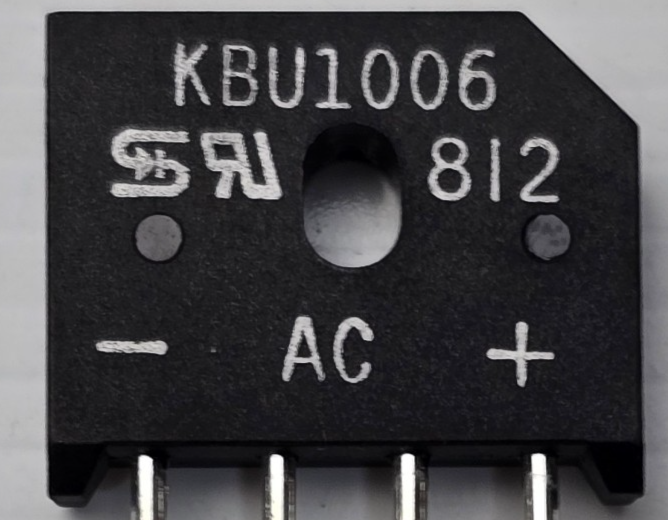

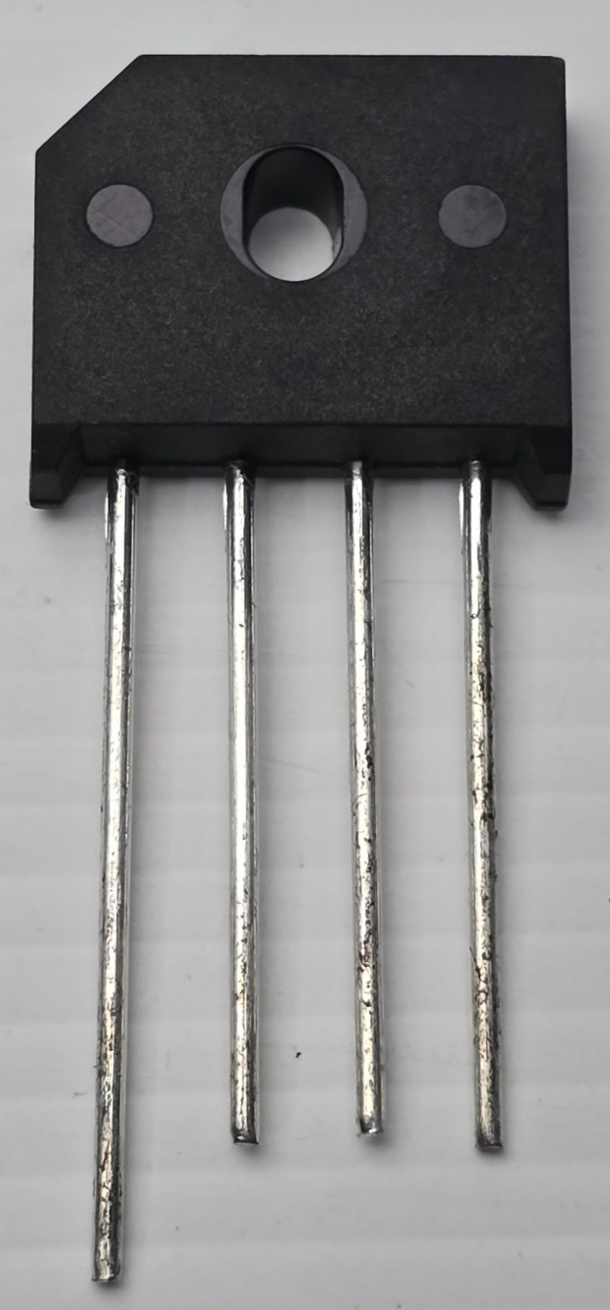

Taiwan Semiconductor KBU1006 T0 Single Phase Bridge Rectifier 10A 800V [10PACK]

Brand: Taiwan Semiconductor
Model / Part Number: KBU810
Description: The Taiwan Semiconductor KBU810 is a single-phase bridge rectifier designed for efficient AC-to-DC conversion in a wide range of electronic applications. With a forward current rating of 10A and a peak reverse voltage of 800V, this component provides reliable performance under demanding conditions. Its through-hole mounting and solder pin termination allow for secure and straightforward PCB integration. Built in a KBU-4 package, this bridge rectifier ensures durability and consistent operation, even in high-temperature environments.
Product Category: Bridge Rectifiers
Type: Single Phase
Mounting Style: Through Hole
Termination Style: Solder Pin
Package / Case: KBU-4
Forward Current (If): 10A
Peak Reverse Voltage (VRRM): 800V
Reverse Voltage (VR): 560V
Forward Voltage (VF): 1.1V
Maximum Surge Current: 200A
Reverse Current (IR): 5µA
Operating Temperature Range: -55°C to +150°C
Dimensions (L x W x H): 23.7mm x 7.1mm x 19.3mm
Unit Weight: 9g
Packaging: Tray
Subcategory: Diodes & Rectifiers
Condition: New
Country of Origin: Taiwan
HS Code: 85411000 (Diodes, other than photosensitive or light emitting diodes)
