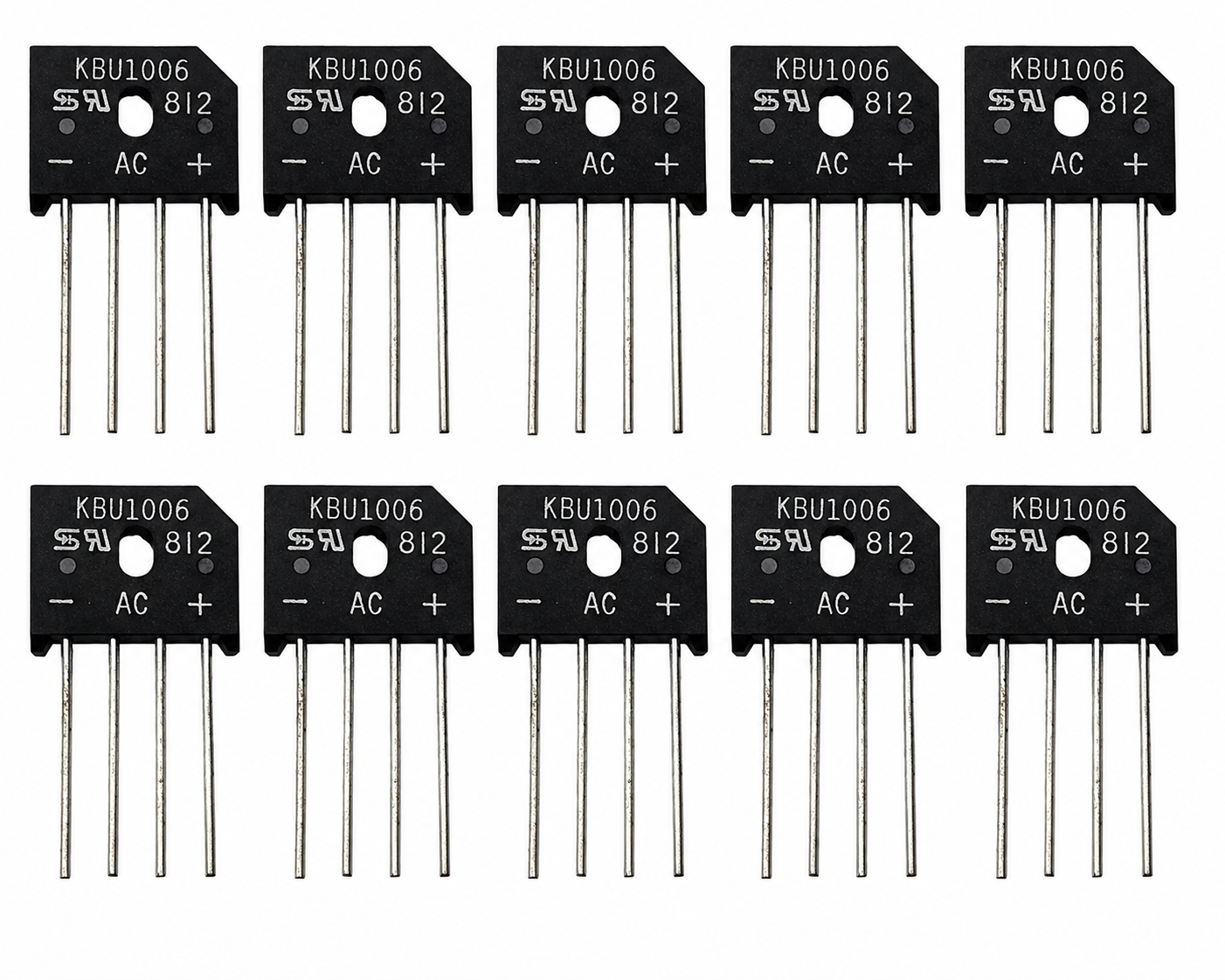

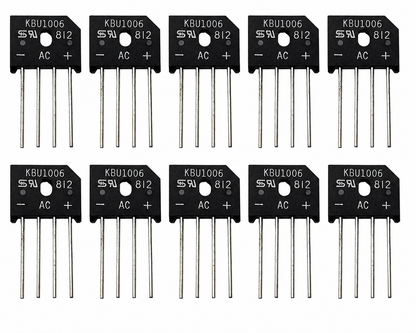

Taiwan-Semiconductor KBU1006 [10 Pack] Single Phase Bridge Rectifier 10A 600V (NEW)

Taiwan Semiconductor KBU1006 Single Phase Bridge Rectifier 10A 600V [10 Pack]

The Taiwan Semiconductor KBU1006 is a high-reliability single-phase bridge rectifier designed for efficient AC-to-DC power conversion in power supplies, battery chargers, industrial controls, and electronic equipment. With a 10A forward current rating and 600V peak reverse voltage, the KBU1006 provides dependable performance for a wide range of commercial and industrial applications.

Manufactured in the industry-standard KBU package, this rectifier features through-hole mounting, high surge current capability, and excellent thermal performance for long-term reliability.

This listing includes 10 bridge rectifiers.

Supplied new.

Specifications

Brand: Taiwan Semiconductor
Model: KBU1006
Product Type: Bridge Rectifier
Configuration: Single Phase
Package Type: KBU-4
Mounting Style: Through Hole
Termination Style: Solder Pin
Forward Current (If): 10A
Peak Reverse Voltage (VRRM): 600V
Reverse Voltage (VR): 420V
Forward Voltage (VF): 1.1V
Maximum Surge Current: 200A
Reverse Current (IR): 5µA
Operating Temperature Range: -55°C to +150°C
Packaging: Tray
Condition: New
Country of Origin: Taiwan

Dimensions

Length: 23.7mm
Width: 7.1mm
Height: 19.3mm
Weight: Approx. 9g Each

Key Features

• Genuine Taiwan Semiconductor bridge rectifier
• Pack of 10 units
• Single-phase AC-to-DC conversion
• 10A forward current rating
• 600V peak reverse voltage
• High 200A surge current capability
• Through-hole PCB mounting
• Industry-standard KBU package
• Low reverse leakage current
• Wide operating temperature range
• Suitable for industrial and commercial applications

Typical Applications

• AC/DC power supplies
• Battery chargers
• Industrial control equipment
• Motor drives
• Power conversion circuits
• Automation systems
• Consumer electronics
• Electronic repair and maintenance

Package Includes

10 × Taiwan Semiconductor KBU1006 Bridge Rectifiers

Additional Information

HS Code: 85411000
Shipping: Shipping from Sydney, Australia.
