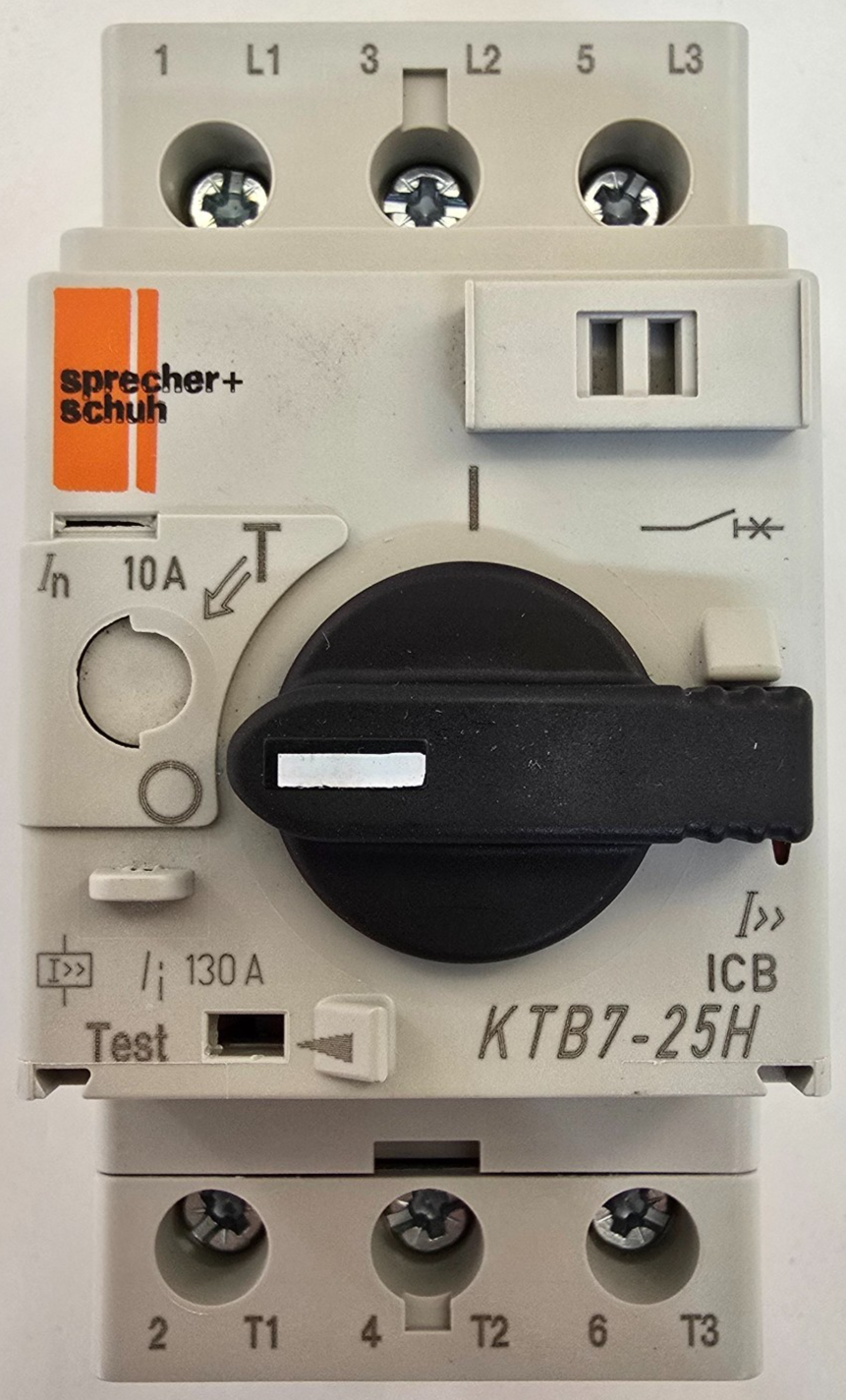

Sprecher+Schuh KTB7-25H-10A KT7 Motor Circuit Protector 10A

Brand: Sprecher + Schuh
Model / Part Number: KTB7-25H-10A
Description: The Sprecher + Schuh KTB7-25H-10A is a motor circuit protector engineered for reliable protection and precise control of motor circuits in industrial environments. Featuring a rotary knob control and three-position switch, this unit allows for straightforward operation and quick adjustment during maintenance or setup. With a maximum current rating of 10A and AC operational compatibility, the KTB7 series ensures dependable performance and safety for motors and connected loads. Its rugged construction and high-quality components reflect Sprecher + Schuh’s long-standing reputation for excellence in industrial control solutions.

Series: KTB7 Motor Circuit Protector
Type: Manual Motor Starter / Circuit Protector
Rated Operational Current: 10 A
Control Type: Rotary Knob (3-position switch)
Number of Poles: 3-Pole
Voltage Rating: 690 VAC / 50–60 Hz
Mounting Type: DIN Rail
Trip Class: Adjustable thermal-magnetic protection
Operating Temperature: -25°C to +60°C
Standards Compliance: IEC 60947-2, IEC 60947-4-1
Applications: Motor protection, short-circuit and overload protection, control panels, machinery protection
Housing Material: High-durability thermoplastic
Protection Rating: IP20 (finger-safe)
Dimensions (W x H x D): 45 mm x 80 mm x 75 mm
Weight: 0.35 kg
Condition: New
Country of Origin: Germany
HS Code: 85362090 (Automatic circuit breakers for a voltage not exceeding 1000V)
