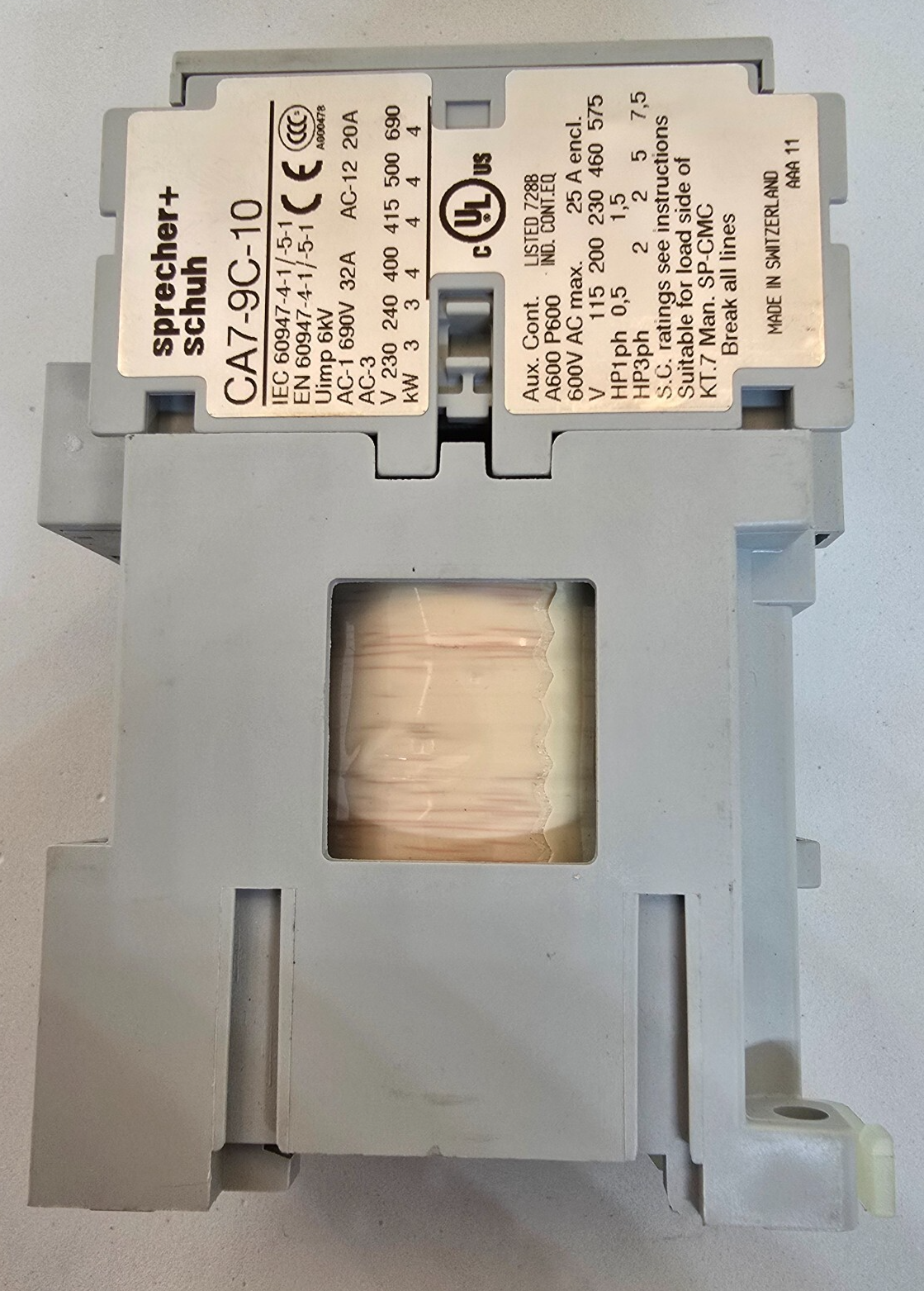

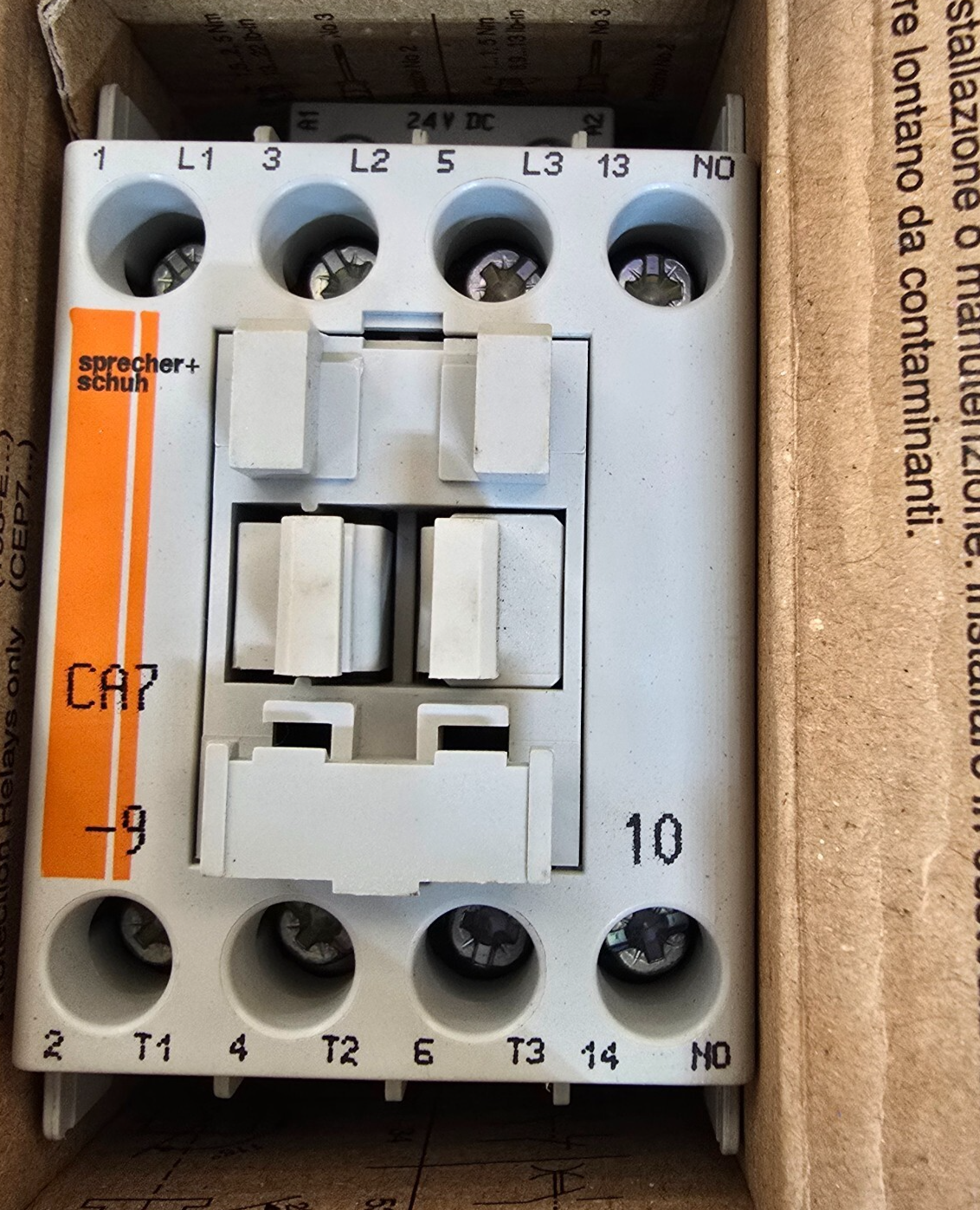

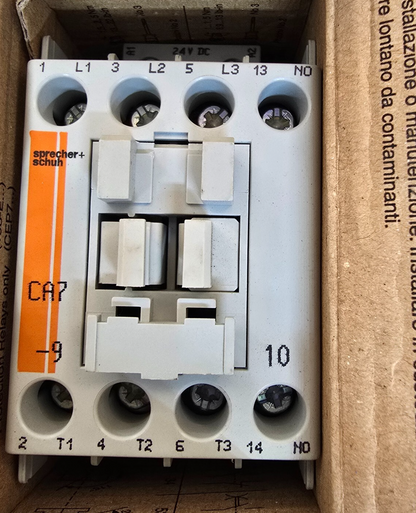

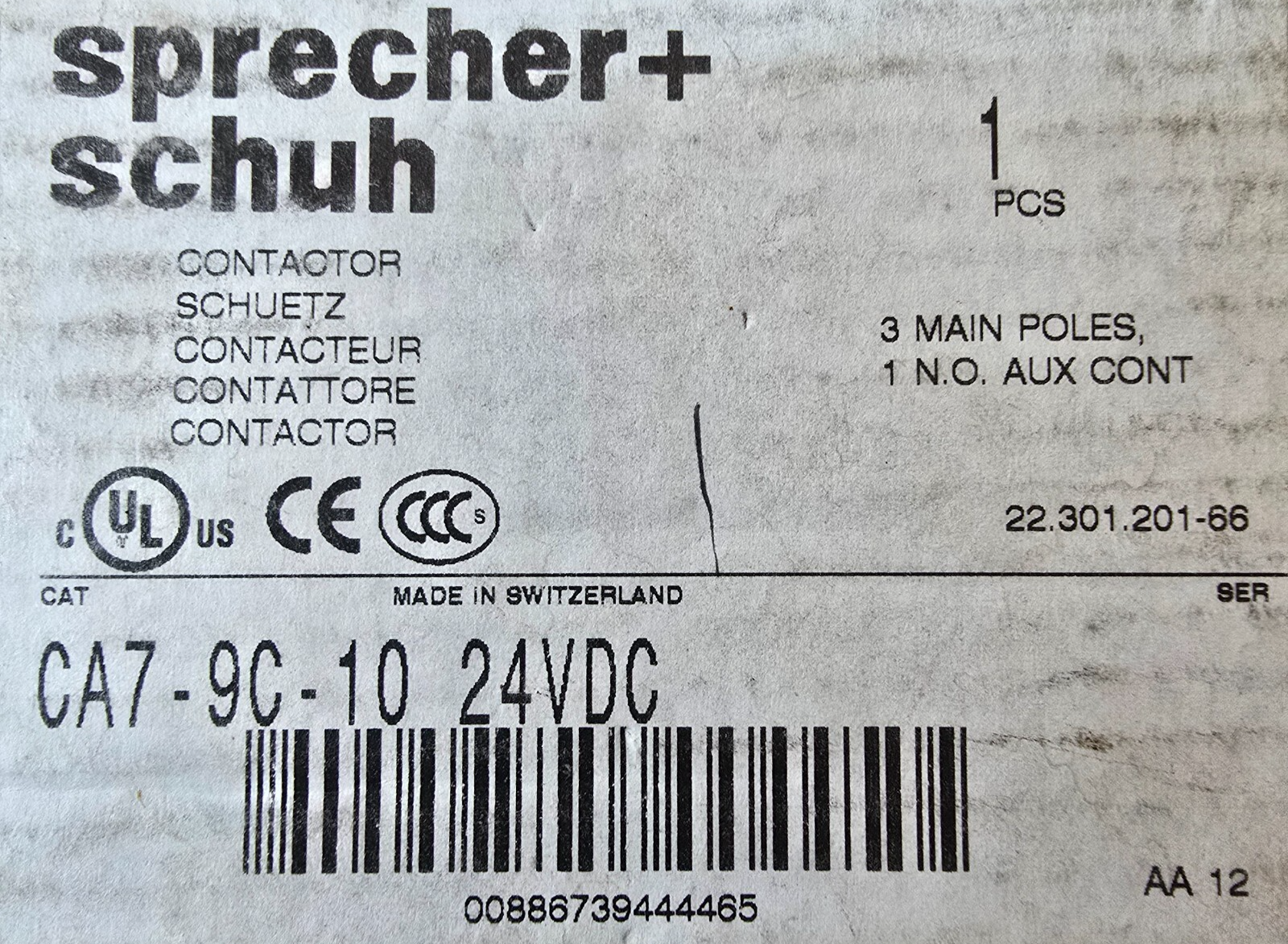

Sprecher+Schuh CA7-9C-10 24VDC CA7 Contactor 3 pole 9A 4kW 1N/O Auxiliary 24VDC

Brand: Sprecher + Schuh
Model / Part Number: CA7-9C-10
Series: CA7 Contactor Series
Description: The Sprecher + Schuh CA7-9C-10 is a 3-pole contactor rated at 9A / 4kW and equipped with a 1 N/O auxiliary contact. It operates with a 24V DC coil and is designed for motor control and general-purpose switching in industrial and commercial applications.

Type: Contactor
Poles: 3P
Auxiliary Contacts: 1 N/O (Normally Open)
Rated Operational Current (Ie): 9A (AC-3, 400V)
Rated Operational Power: 4kW (400V AC)
Coil Voltage: 24V DC
Rated Insulation Voltage (Ui): 690V AC
Frequency: 50/60Hz
Mounting: DIN-rail or panel mount
Terminals: Screw type
Standards: IEC 60947-4-1, UL, CSA
Dimensions: Compact modular housing for control panels
Application: Motor control, power circuits, and auxiliary load switching
Condition: New
Country of Origin: Switzerland
HS Code: 85364900 (Electromechanical relays and contactors for ≤1000V)
