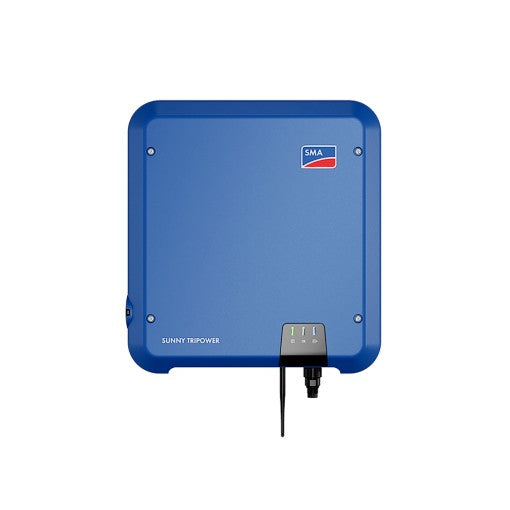

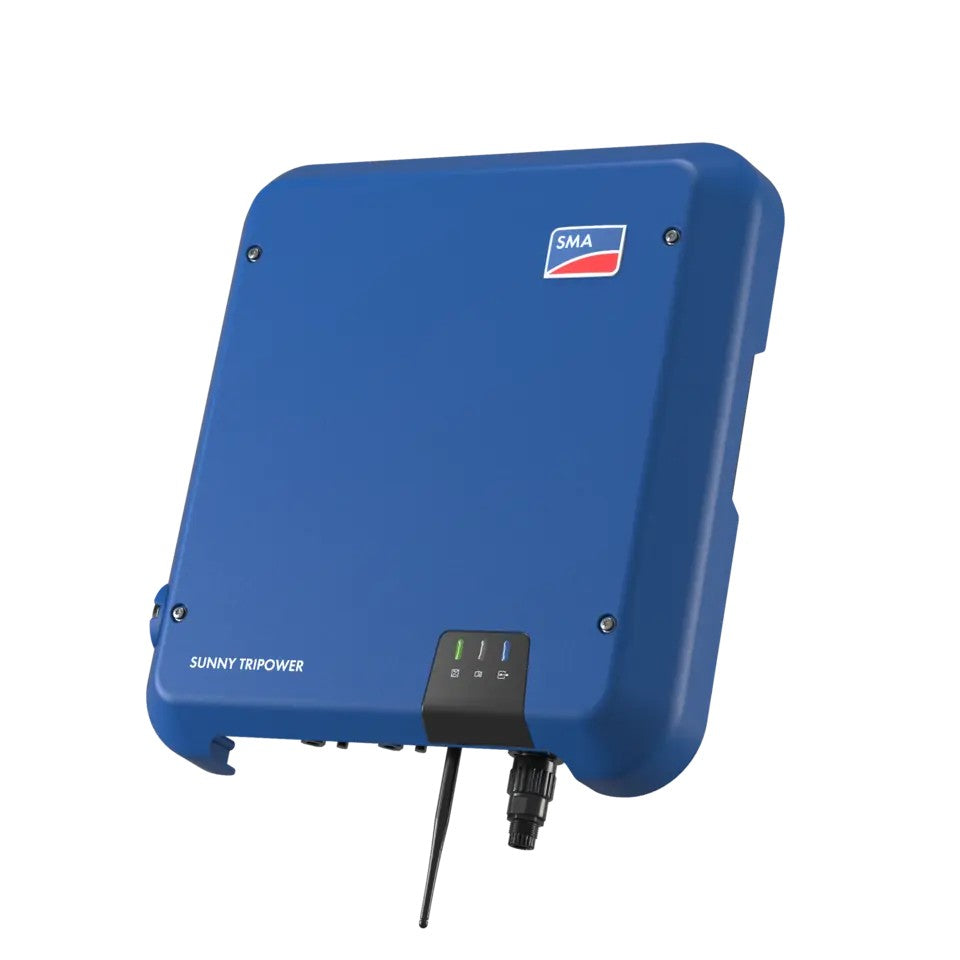

SMA STP8.0-3AV-40 Sunny Tripower 8.0 8kW 3 Phase Solar Inverter (NEW In Box)

The SMA Sunny Tripower 8.0, material number STP8.0-3AV-40, is an 8 kW three phase grid tie solar inverter from SMA Solar Technology AG in Niestetal, Germany. It is a transformerless string inverter with two independent MPP trackers, convection cooled with no fan, rated IP65 for indoor or outdoor mounting. This unit is new in its sealed factory carton, serial number 3009034867, built 14 May 2021.

The carton configuration block records this build as Communication: W-LAN, Speedwire/Webconnect, RS485; Cover colour Gentian blue RAL5010; Documentation: All European Languages; Grid Guard: OTS300; Factory warranty 5 years. The WLAN and Speedwire hardware is fitted, so the inverter can be commissioned and monitored over wireless or wired Ethernet without an add on module. Maximum efficiency is 98.3 percent and European efficiency is 97.7 percent.

Specifications

Brand: SMA Solar Technology AG

Model: Sunny Tripower 8.0

Part Number: STP8.0-3AV-40

Product Type: Three phase grid tie PV string inverter

Rated AC Power: 8000 W

Maximum Apparent AC Power: 8000 VA

Maximum PV Array Power: 15,000 Wp

Maximum Input Voltage: 1000 V

MPP Voltage Range: 260 V to 800 V

Rated Input Voltage: 580 V

MPP Trackers: 2 independent, inputs A and B

Maximum Input Current: A 20 A, B 12 A

Strings per MPPT: A 2, B 1

Nominal AC Voltage: 3/N/PE 220/380 V, 230/400 V, 240/415 V

Maximum Output Current: 3 x 12.1 A

Rated Frequency: 50 Hz, range 45 to 55 Hz

Power Factor: cos phi 1, adjustable 0.8 overexcited to 0.8 underexcited

Maximum Efficiency: 98.3 percent

European Efficiency: 97.7 percent

Topology: Transformerless, convection cooled, no fan

Ingress Protection: IP65

Protection Class: Class I, overvoltage category III

Operating Temperature: -25 to +60 degrees C

Noise Emission: 30 dB(A)

Night Self Consumption: 5.0 W

DC Connection: SUNCLIX connectors

AC Connection: Screwless AC plug connector, supplied

Interfaces: WLAN, Ethernet Speedwire/Webconnect, RS485

DC Isolator: Integrated load break switch

Dimensions: 460 mm W x 497 mm H x 176 mm D

Unit Weight: 20.5 kg

Packed Weight: 24.7 kg

Serial Number: 3009034867

Country of Origin: Germany

Condition: New, in the sealed original carton

Key Features

• Two independent MPP trackers for split or shaded arrays
• 98.3 percent maximum efficiency, 97.7 percent European efficiency
• WLAN, Speedwire/Webconnect and RS485 all fitted from the factory
• Transformerless and fan free, so operation is near silent at 30 dB(A)
• IP65 rated for outdoor wall mounting
• Integrated DC load break isolator
• All pole sensitive residual current monitoring and ground fault monitoring

Typical Applications

• Three phase residential and small commercial rooftop PV systems
• Systems up to 15 kWp of array on an 8 kW inverter
• Replacing a failed three phase inverter of similar rating
• Farm sheds, workshops and light industrial premises on three phase supply

Package Includes

• 1 x SMA Sunny Tripower 8.0 inverter, STP8.0-3AV-40
• 1 x wall mounting bracket
• 1 x AC plug connector
• SUNCLIX DC connectors as supplied by SMA
• Printed documentation, European language set
• No PV modules, DC isolator enclosure, cabling or mounting rail is included

Additional Information

Australian compliance. The STP8.0-3AV-40 is listed on the Clean Energy Council Approved Inverters list against AS/NZS 4777.2:2020, certificate EESS-220404-2, approved 4 July 2024 with the listing current to 4 July 2027. It survived the August 2025 cull of models whose manufacturers did not lodge a declaration against Amendment 2:2024.

A firmware update will be required. SMA specifies a minimum firmware version for AS/NZS 4777.2:2020 operation, and that firmware post dates this unit's May 2021 build. Assume the installer must update the firmware before the Australian grid code data sets become available. This is a routine step performed with an SD card or the SMA installer app.

Country data set. SMA ships these inverters with no country data set applied, and feed in operation is blocked until one is selected. The installer chooses Australia Region A, B or C at commissioning according to the local network operator. After ten hours of feed in operation the grid parameters lock and further changes require the installer's own SMA Grid Guard code.

Grid Guard: OTS300 on the carton is an SMA factory option code recorded in the configuration block. It is not a country setting and it is not an installer Grid Guard code, and it does not restrict the inverter to Europe.

Documentation. The printed documentation supplied is the European language set. English manuals for this model are published on the SMA website.

Warranty. The SMA factory warranty runs from date of purchase. This unit was produced for the European channel, and whether SMA Australia will provide warranty support on stock that did not come through the Australian channel is not confirmed. Please do not assume Australian warranty service.

Installation must be carried out by a licensed electrical worker and an accredited solar installer in accordance with AS/NZS 5033 and AS/NZS 3000.

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
