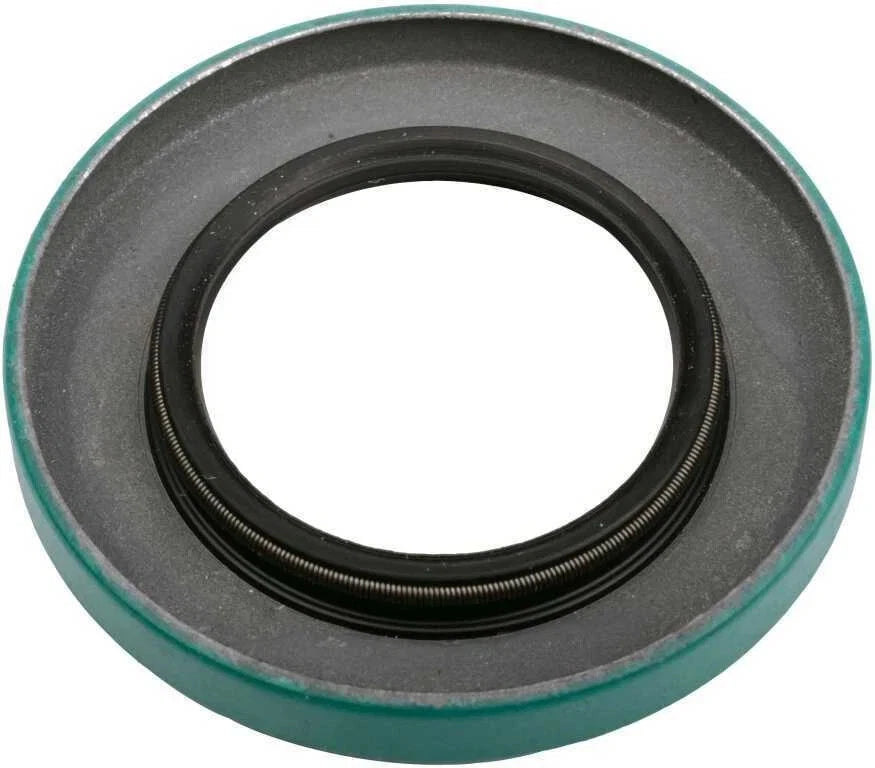

SKF 21103 – Radial Shaft Seal with Metal Case and WAVE Lip

Product Description

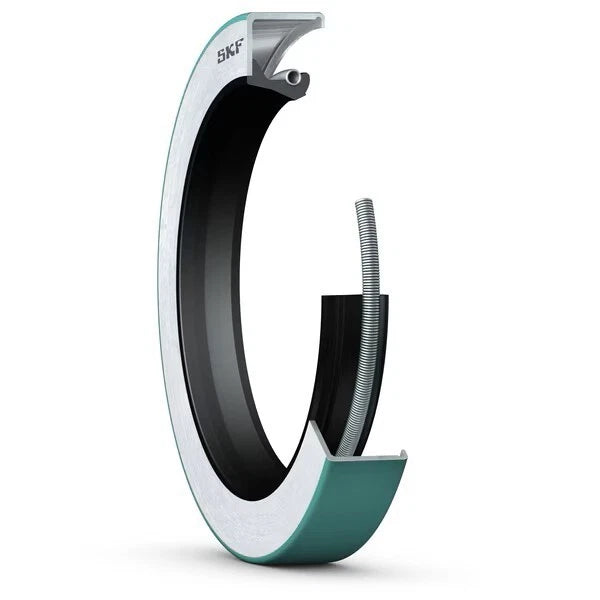

The SKF 21103 radial shaft seal is engineered for oil or grease applications, providing reliable sealing performance between rotating and stationary components. Built with a metal case, an SKF WAVE lip for higher pumping efficiency, and a garter spring for optimal shaft sealing, this seal is designed to reduce heat generation and extend service life. Most seals also feature the SKF Bore Tite coating, ensuring a tight fit by filling small imperfections in the housing bore.

Benefits

• Suitable for oil or grease

• Garter spring for consistent sealing pressure

• WAVE lip design improves pumping rate

• Reduced friction between shaft and lip

• Lower temperature at the contact point

Dimensions

• Shaft diameter: 53.975 mm

• Housing bore diameter: 73.03 mm

• Seal width: 9.53 mm

Performance

• Limiting speed: 5,000 r/min

• Maximum operating temperature: +160 °C

• Minimum operating temperature: −70 °C

• Permissible circumferential speed: 26.05 m/s

• Rotational speed: 5,000 r/min

Properties

• Design: CRW1

• Auxiliary lip: No

• Sealing lip material: Silicone rubber (MVQ)

• Outside diameter type: Metal-cased with sealant coating

• Unit system: Inch

Logistics

• Product net weight: 0.0227 kg

• eClass code: 23-07-08-01

Classification

• HS/Commodity Code: 84842000 (Mechanical seals, including oil seals)

• Country of Origin: *Common SKF production sites include Germany, Italy, or USA (varies by batch)
