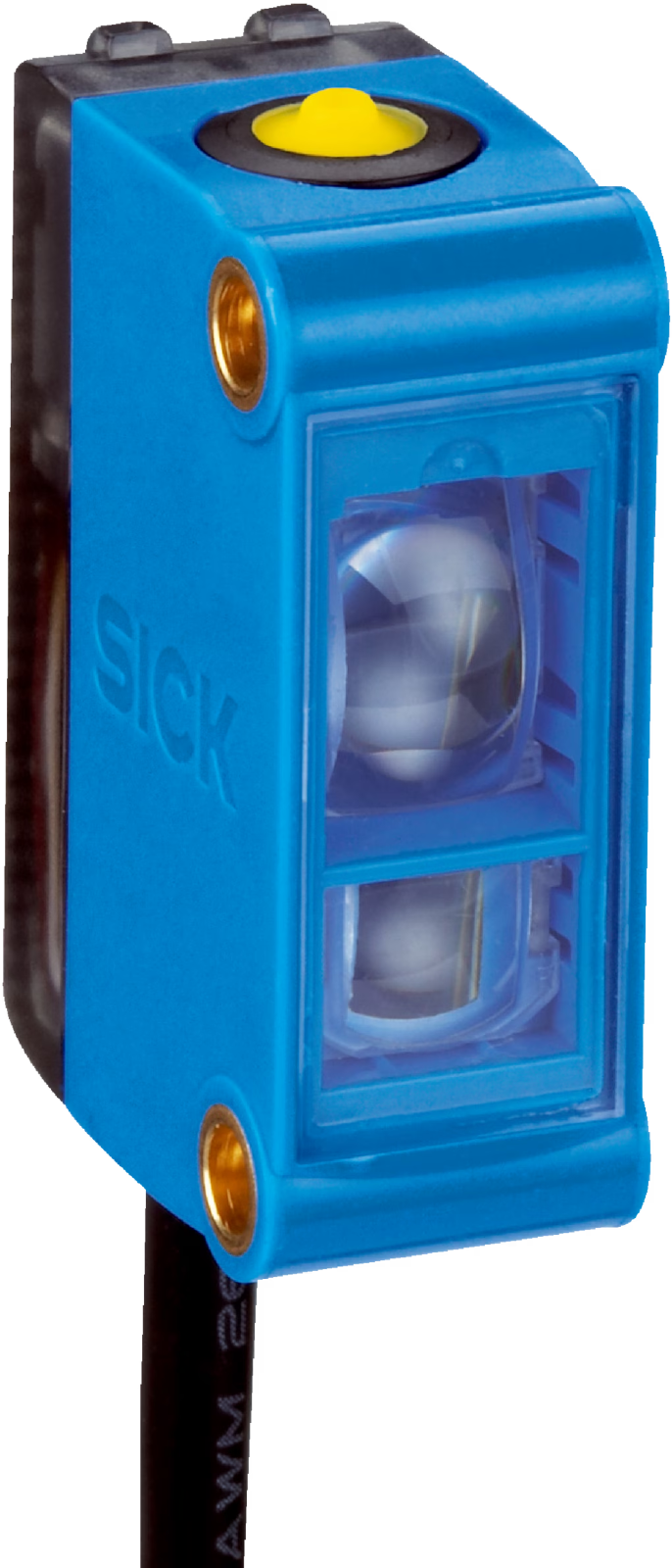

Compact RGB Mark Sensor — NPN, M12 Pigtail, IP67

Highlights

• Mini housing: 12 × 31.5 × 21 mm (W × H × D)

• RGB LED light source: 470 / 525 / 625 nm with vertical light spot (long-side emission)

• Tight spot: 1.6 × 9.5 mm for precise mark detection

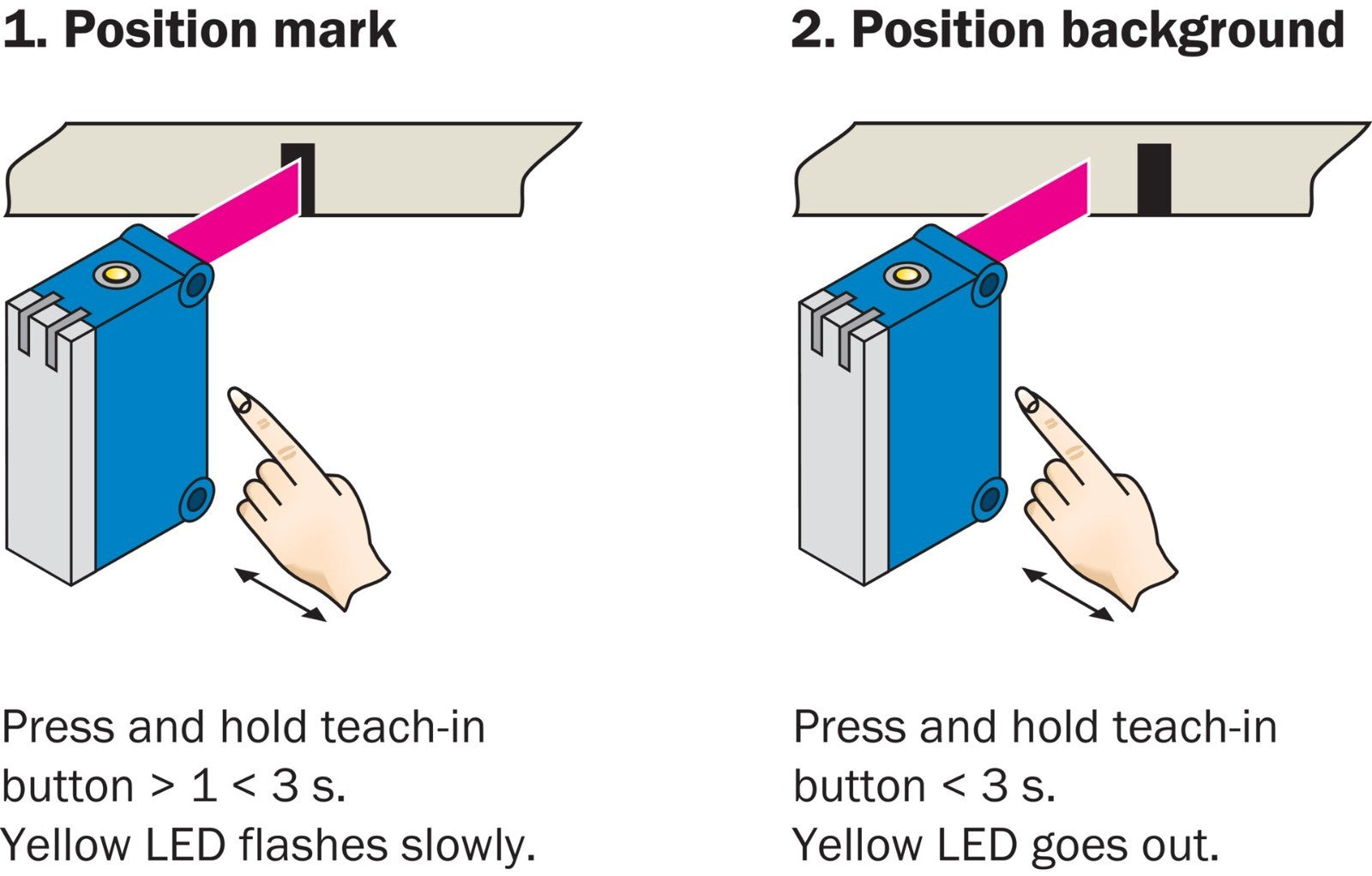

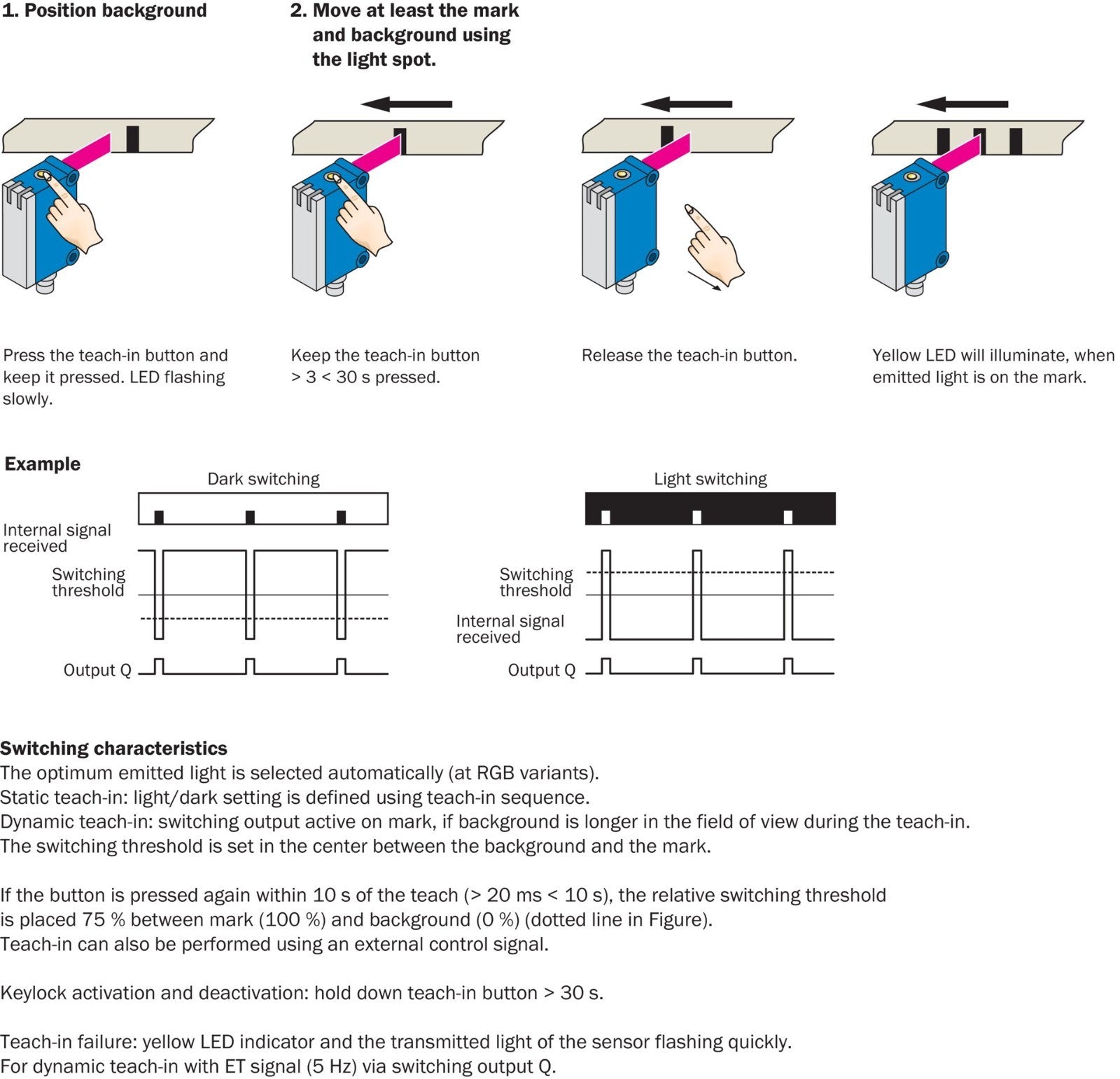

• Teach-in button: Static/dynamic 2-point teach + proximity-to-mark mode

• Fast response: 32 µs, up to 15 kHz switching rate; jitter 15 µs

• Output: NPN, light/dark switching, 50 mA max (short-circuit protected)

• Power: 12–24 V DC (≤5 Vpp ripple), <50 mA (no load), Class III, reverse-polarity protected

• Rugged: IP67 enclosure; ABS housing with PMMA optics

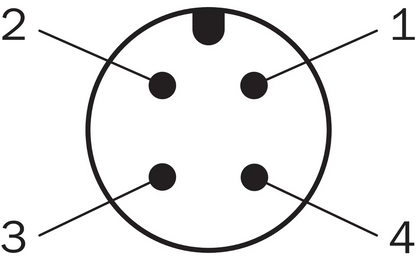

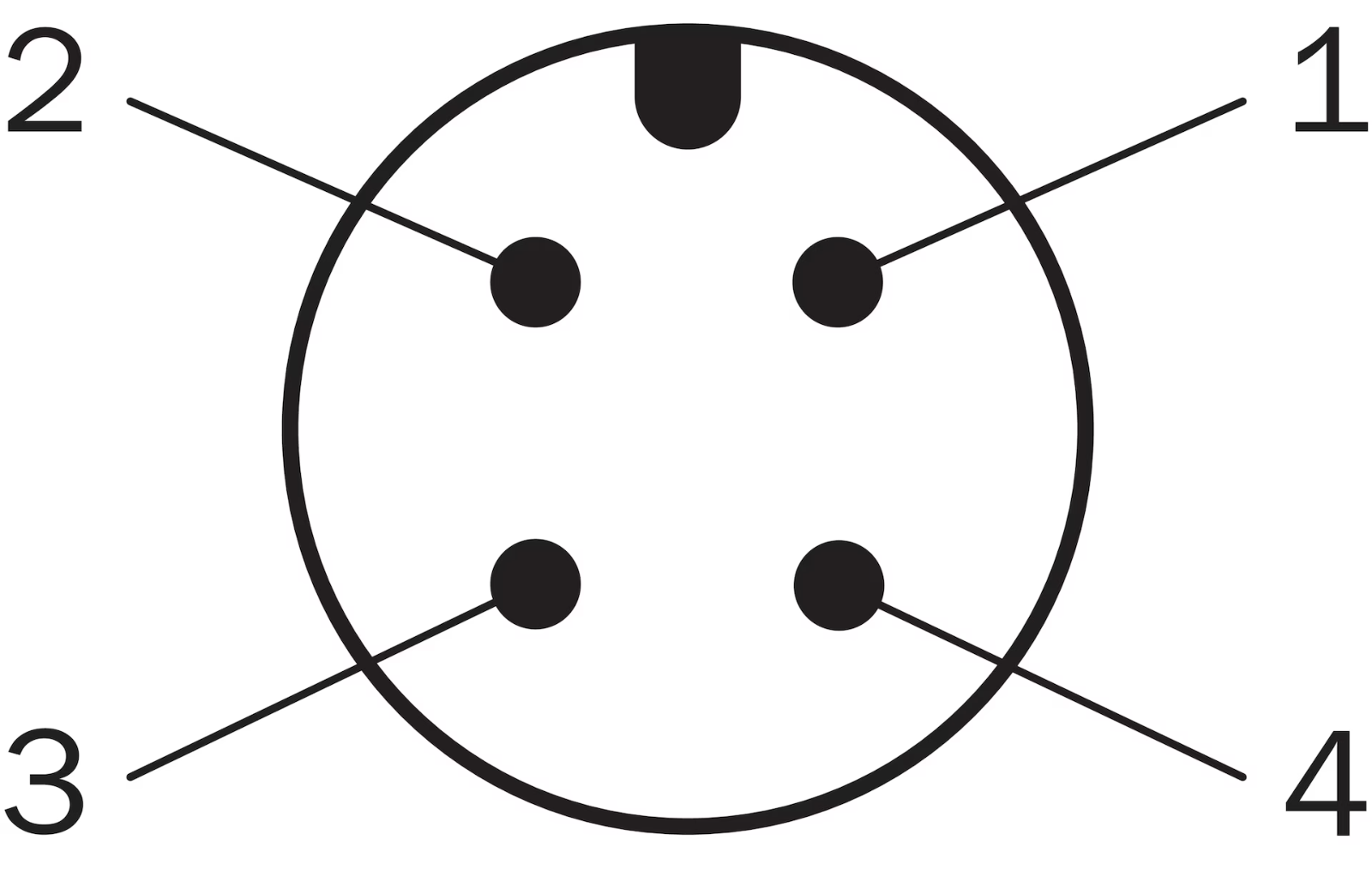

• Connection: 0.2 m cable to M12 male, 4-pin

• Status LEDs: Green (power), Yellow (Q output)

Specifications

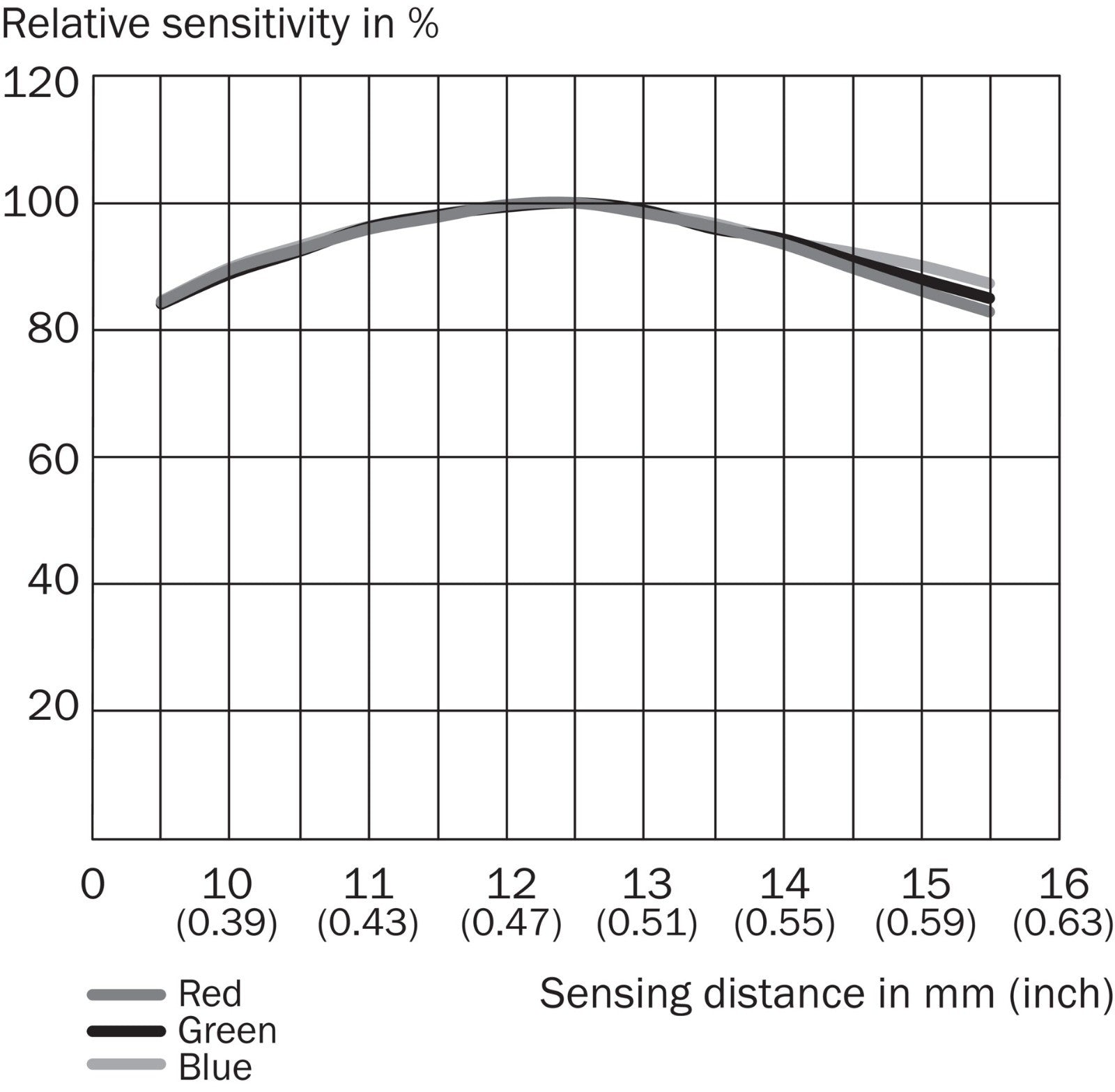

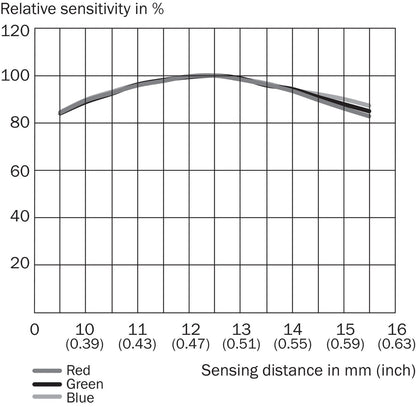

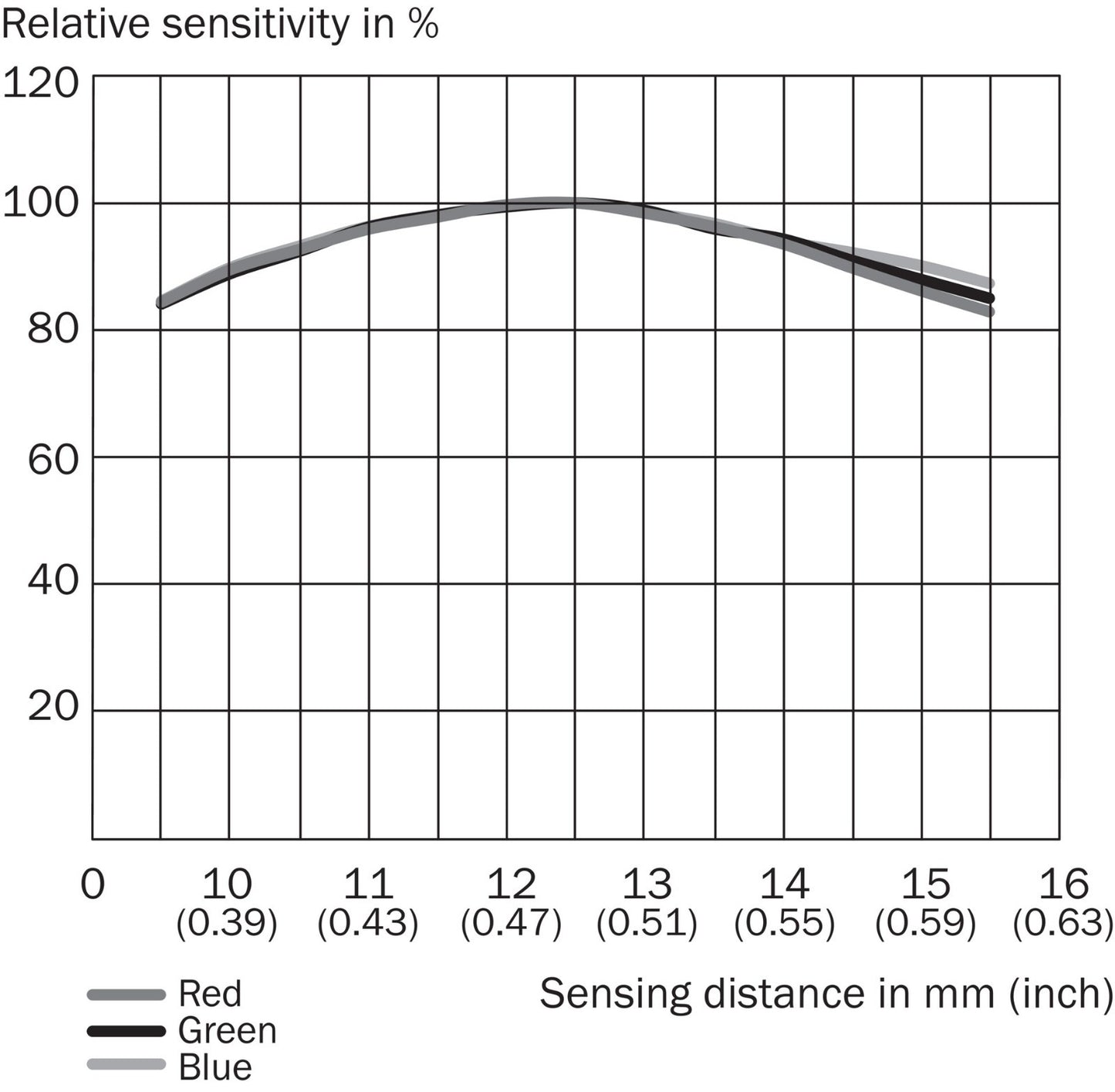

• Sensing distance: ≤ 12.5 mm (tolerance ±3 mm)

• Light emission: From the long side of the housing; spot direction: vertical

• Switching output levels: HIGH ≈ UV, LOW ≤ 2 V (NPN)

• Teach-in input (ET):

  • Teach: U < 2 V

  • Run: UV − 2 V or open

  • Retention time: 28 ms to non-volatile memory

• Time delay: None

• Protection features: Reverse-polarity, short-circuit (Q), interference pulse suppression

• Operating temp: −10…+55 °C

• Storage temp: −20…+75 °C

• Enclosure rating: IP67

• Materials: Housing ABS, Optics PMMA

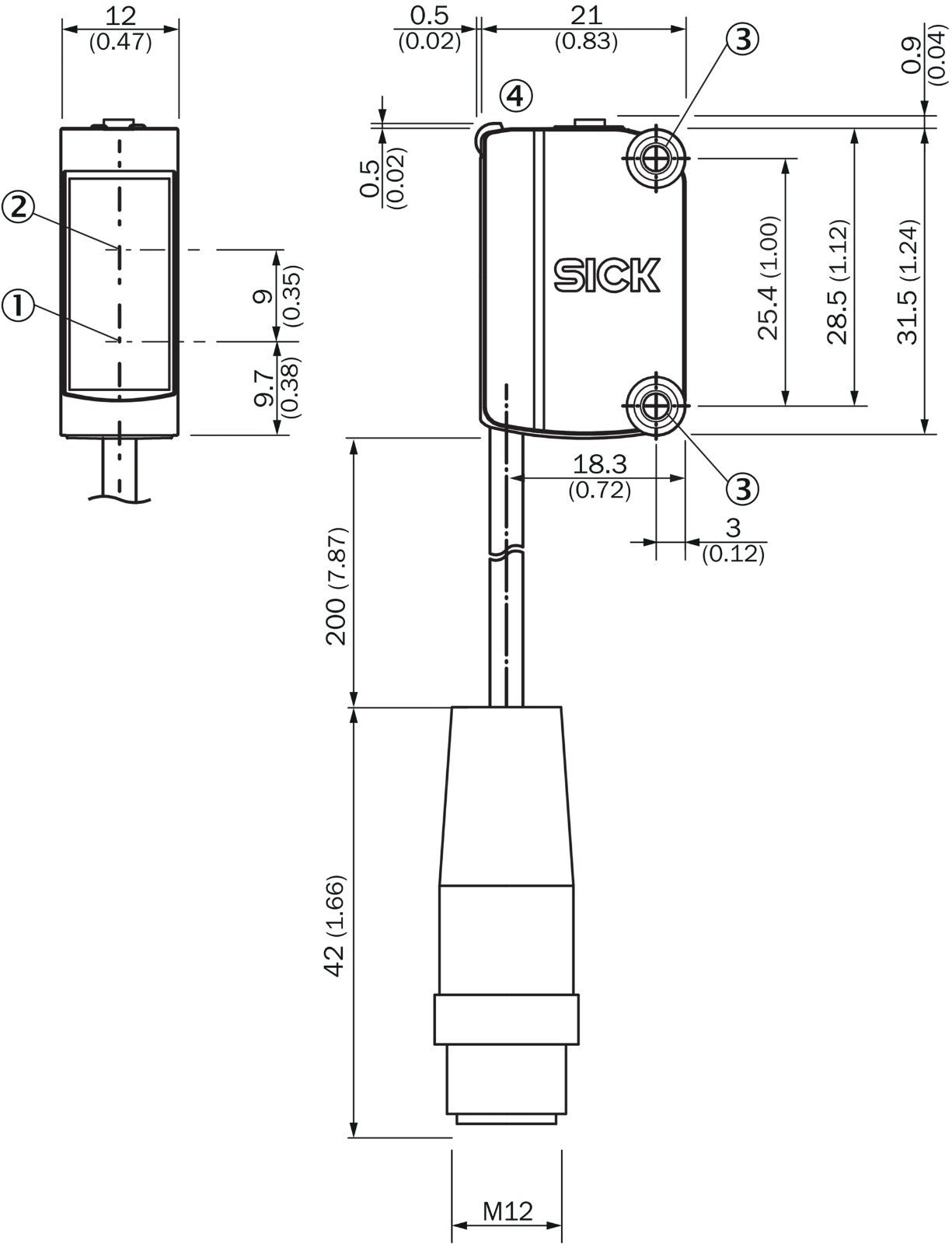

• Dimensions (W×H×D): 12 × 31.5 × 21 mm

• Mass: 20 g (device); 63 g unit/net weight noted in data (includes cable/pack—see note)

• Compliance/IDs: UL File NRKH.E348498 & NRKH7.E348498; HS Code 853650

• Origin: Malaysia

• EAN: 4047084398988

• Product hierarchy: 10AC0101KTMPM

Notes

1. LED lifetime: ~100,000 h at +25 °C.

2. Spot direction “vertical” is with respect to the housing’s long side.

3. Current consumption specified without load.

4. Switching frequency at 1:1 light/dark ratio.

5. Response time with resistive load.

6. 50 mA is the total current across all outputs.

7. Supply limits: DC 12 V (−10%) to DC 24 V (+20%); use a short-circuit-protected 8 A max network.
