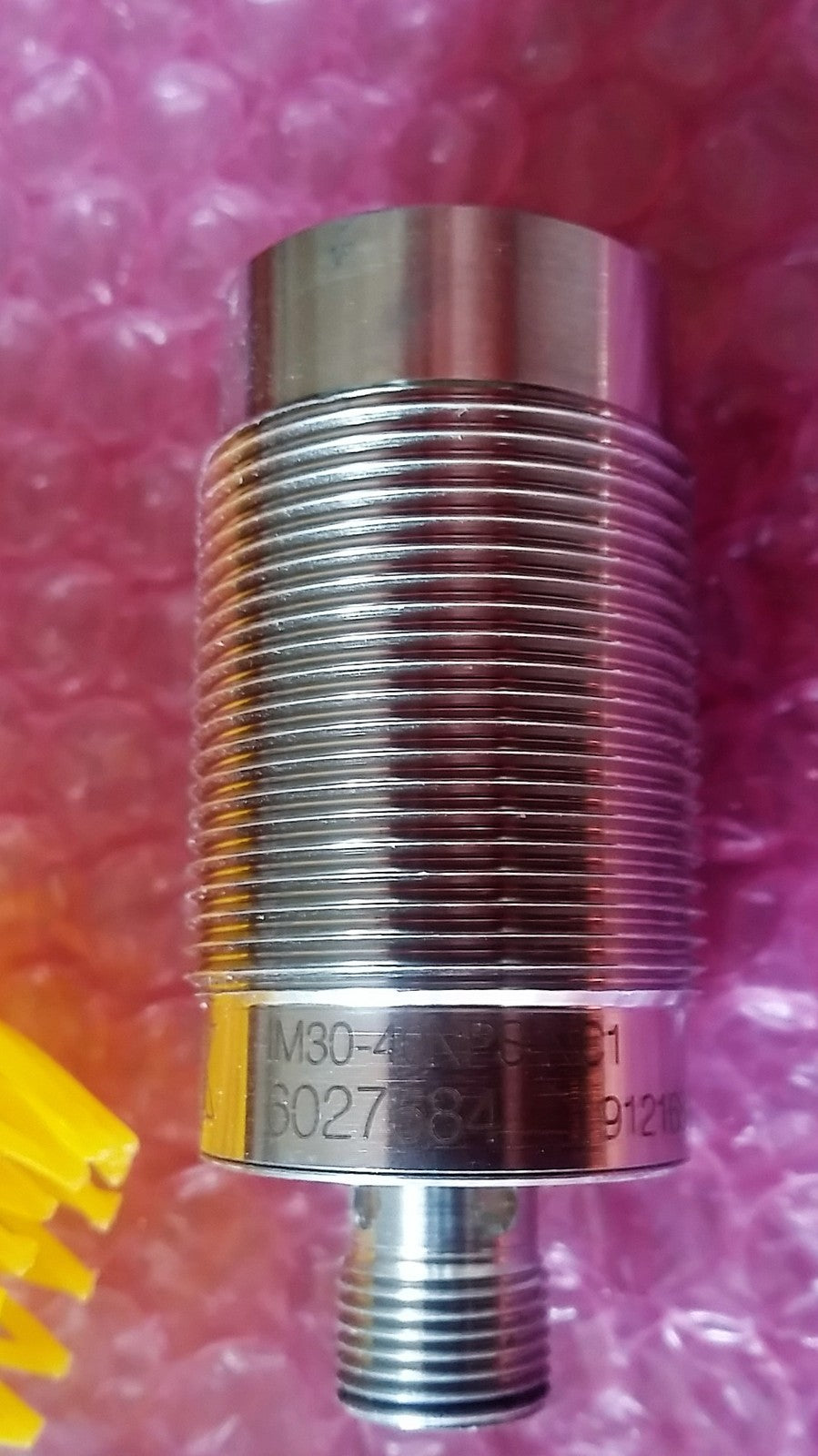

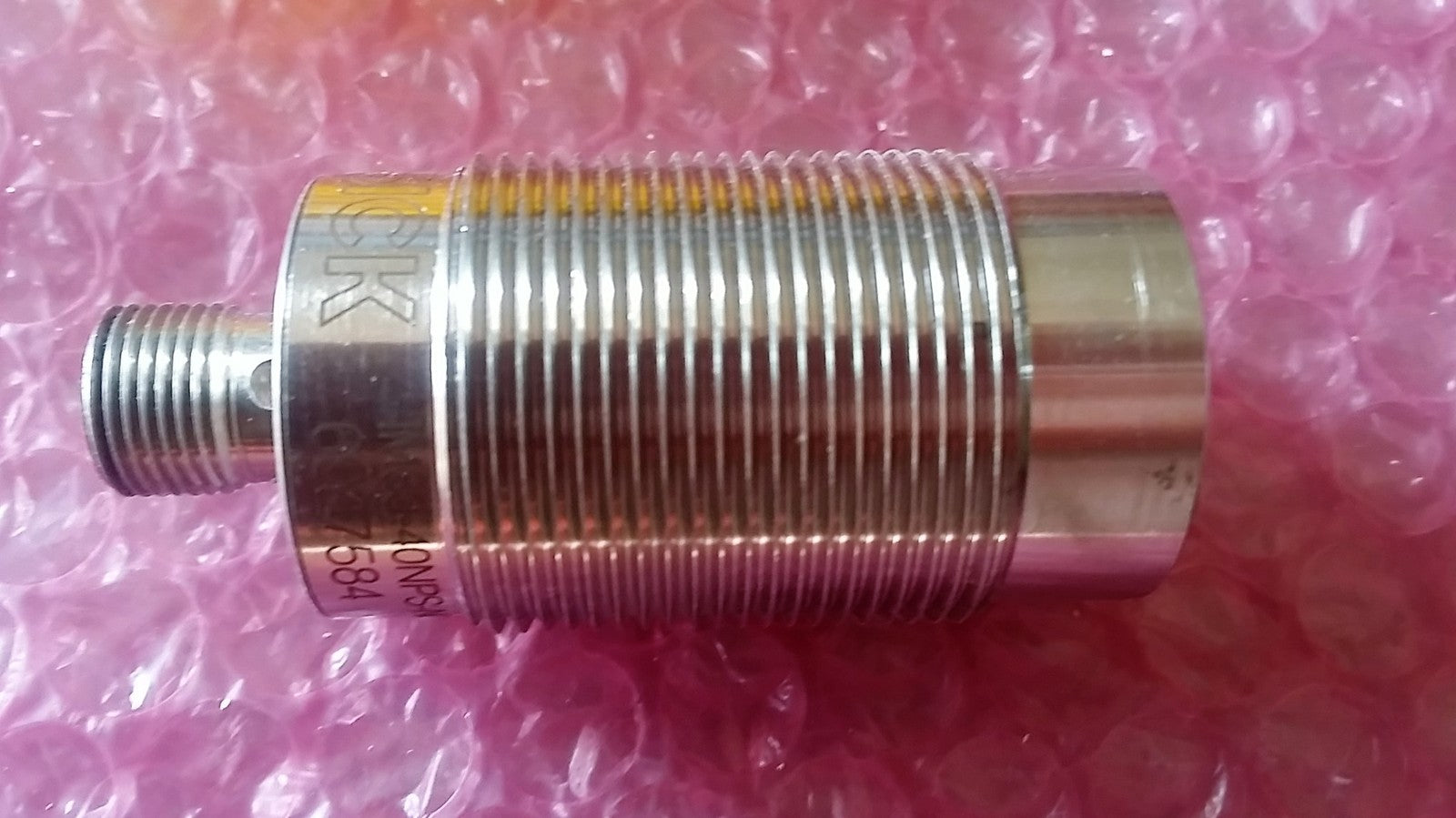

SICK IM30-40NPS-NC1 Inductive proximity sensor 6027584 M30 PNP Non-flush IMI

Technical details

Features

• Housing: Cylindrical thread design

• Thread size: M30 x 1.5

• Diameter: Ø 30 mm

• Sensing range Sn: 40 mm

• Safe sensing range Sa: 32.4 mm

• Installation type: Non-flush

• Switching frequency: 90 Hz

• Connection type: Male connector M12, 4-pin

• Output type: PNP

• Output function: NO

• Electrical wiring: DC 3-wire

• Enclosure rating: IP68, IP69K (according to EN 60529)

• Special features: Metal Face, triple sensing range

Mechanics / electronics

• Supply voltage: 10…30 V DC

• Ripple: ≤ 20% (of VS)

• Voltage drop: ≤ 2 V (at Ia max.)

• Current consumption: ≤ 10 mA (without load)

• Time delay before availability: ≤ 40 ms

• Hysteresis: 1%…15%

• Repeatability: ≤ 5% (of Sr) [UB = 20…30 V DC, TA = 23 °C ± 5 °C]

• Temperature drift (of Sr): ≤ 10%

• EMC: According to EN 60947-5-2

• Continuous current Ia: ≤ 200 mA

• Short-circuit protection: Yes

• Reverse polarity protection: Yes

• Power-up pulse protection: Yes

• Shock and vibration resistance: 30 g, 11 ms / 10…55 Hz, 1 mm

• Ambient operating temperature: −25 °C…+85 °C

• Housing material: Stainless steel, V4A (1.4435, 316L)

• Sensing face material: Stainless steel, V4A (1.4435, 316L)

• Housing length: 63.5 mm

• Thread length: 32 mm

• Tightening torque, max.: 150 Nm

Reduction factors (reference values; may vary)

• St37 steel (Fe): approx. 1

• Aluminum (Al): approx. 1

• Copper (Cu): approx. 0.9

• Brass (Br): approx. 1.2

Installation note

• Remark: Associated graphic see “Installation”

• A: 75 mm

• B: 270 mm

• C: 30 mm

• D: 120 mm

• E: Aluminium: 34 mm, Steel: 18 mm, Brass: 34 mm, Stainless steel: 18 mm

• F: 400 mm

Classifications

• ECl@ss 5.0: 27270101

• ECl@ss 5.1.4: 27270101

• ECl@ss 6.0: 27270101

• ECl@ss 6.2: 27270101

• ECl@ss 7.0: 27270101

• ECl@ss 8.0: 27270101

• ECl@ss 8.1: 27270101

• ECl@ss 9.0: 27270101

• ETIM 5.0: EC002714

• ETIM 6.0: EC002714

• UNSPSC 16.0901: 39122230

Technical drawings (descriptions)

• Dimensional drawing IM30 Inox, non-flush

• Installation note Non-flush installation

• Connection diagram Cd-007
