Sensata-Airpax CELHPK11-1REC5-32933-200 200A 80VDC Hydraulic Breaker (Pre-owned)

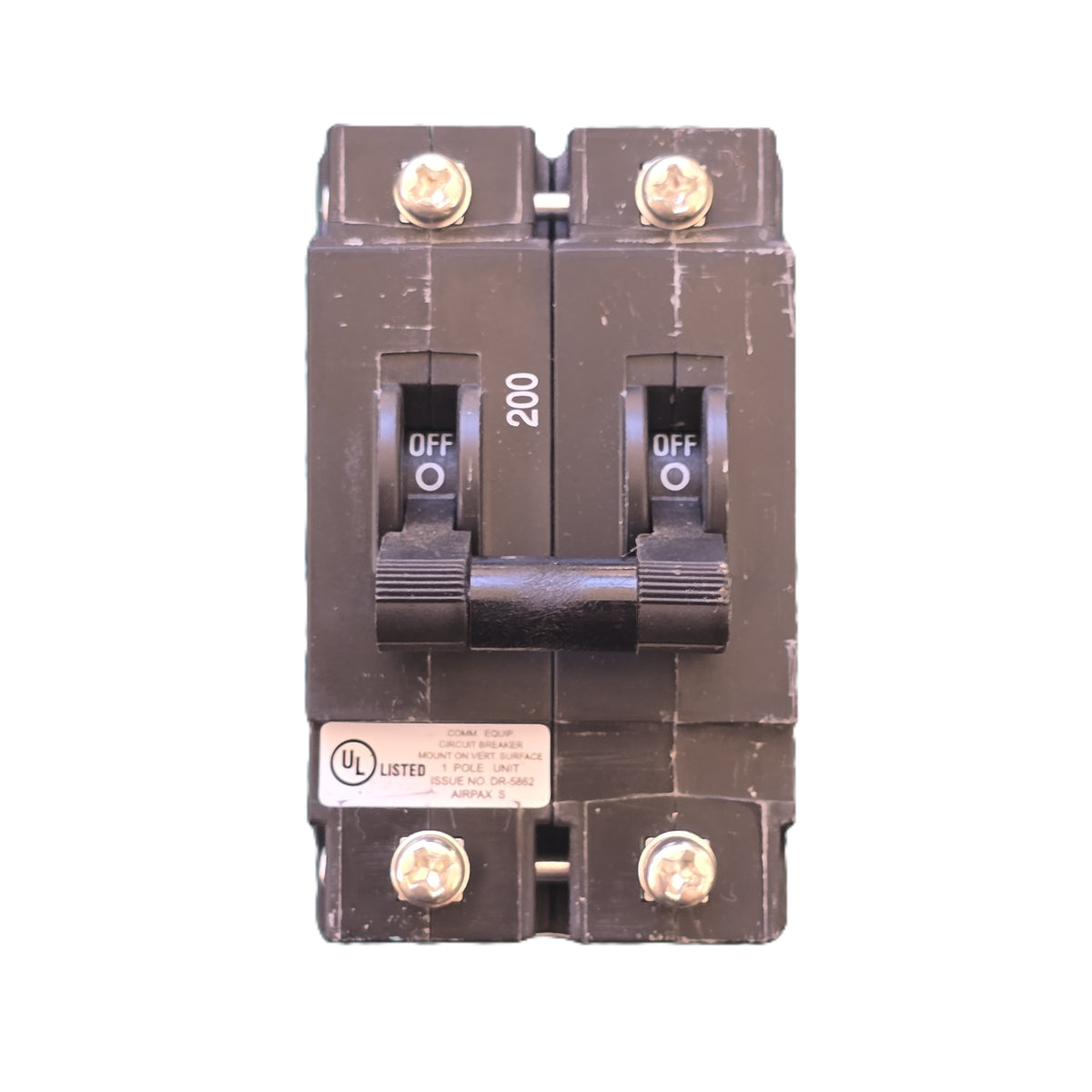

The Sensata Airpax CELHPK11-1REC5-32933-200 is a hydraulic magnetic circuit breaker from the Airpax CEL series for DC communications equipment. It is rated 200 A at up to 80 V DC, with two poles connected in parallel under a single handle and stud terminals for busbar or cable lug connection.

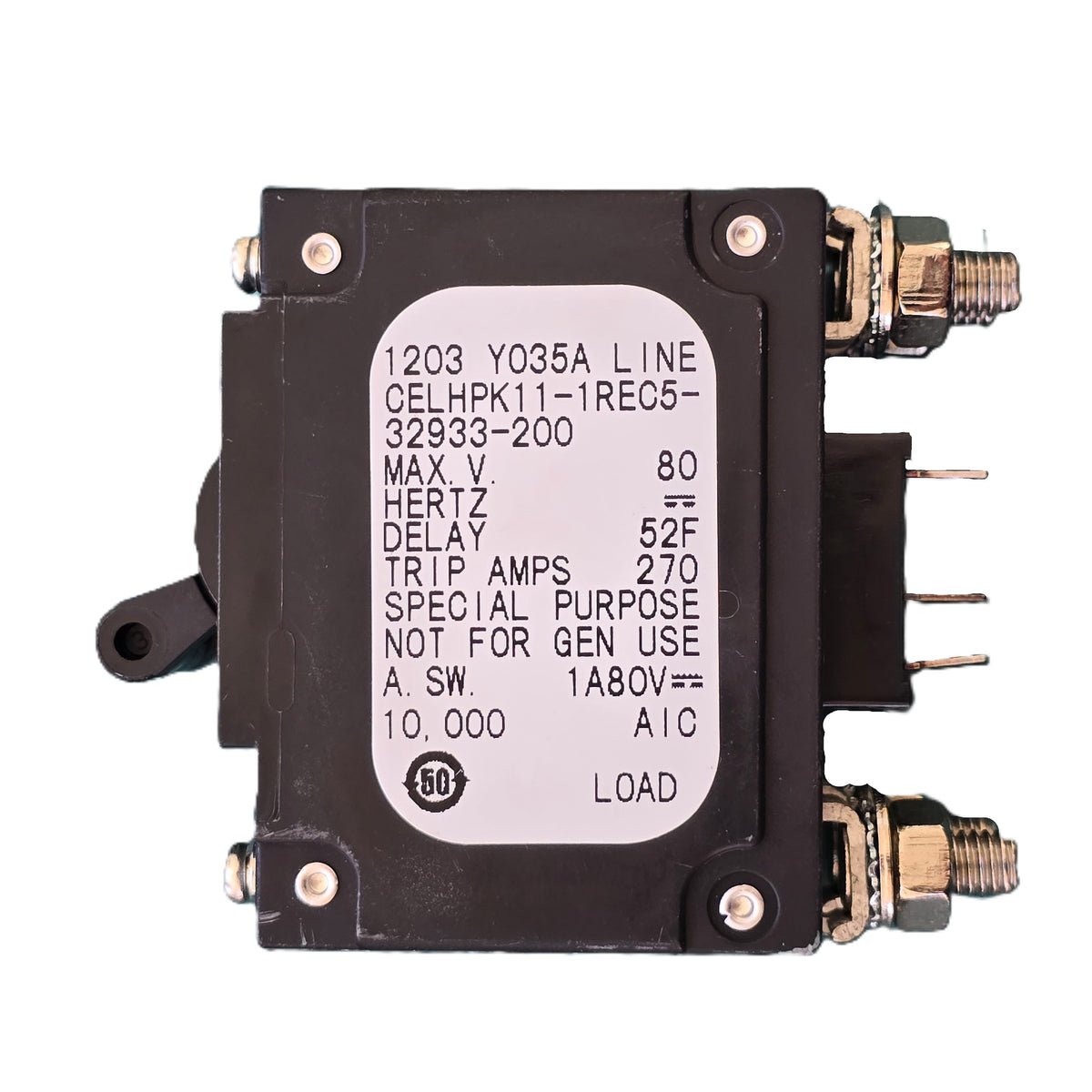

The breaker has a DC long delay (code 52, trip at 270 A per the label), an auxiliary switch with 0.187 inch quick connect terminals rated 1 A 80 V, and an interrupting capacity of 10,000 A. It is UL listed under UL489A for communications equipment. Three used units are available, sold untested.

Specifications

Brand: Sensata Airpax

Model: CEL series

Part Number: CELHPK11-1REC5-32933-200

Alternate Part Number: CELHPK11-1REC4-32599-200

Product Type: Hydraulic magnetic circuit breaker

Rated Current: 200 A (trip 270 A)

Voltage: 80 V DC maximum

Poles: 2 in parallel, single handle

Delay: 52 (DC long delay)

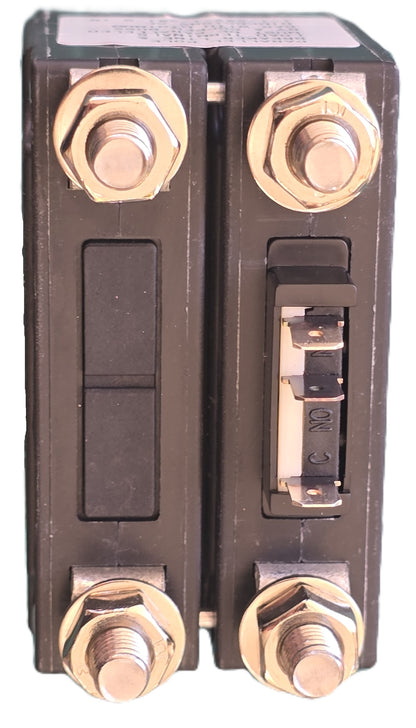

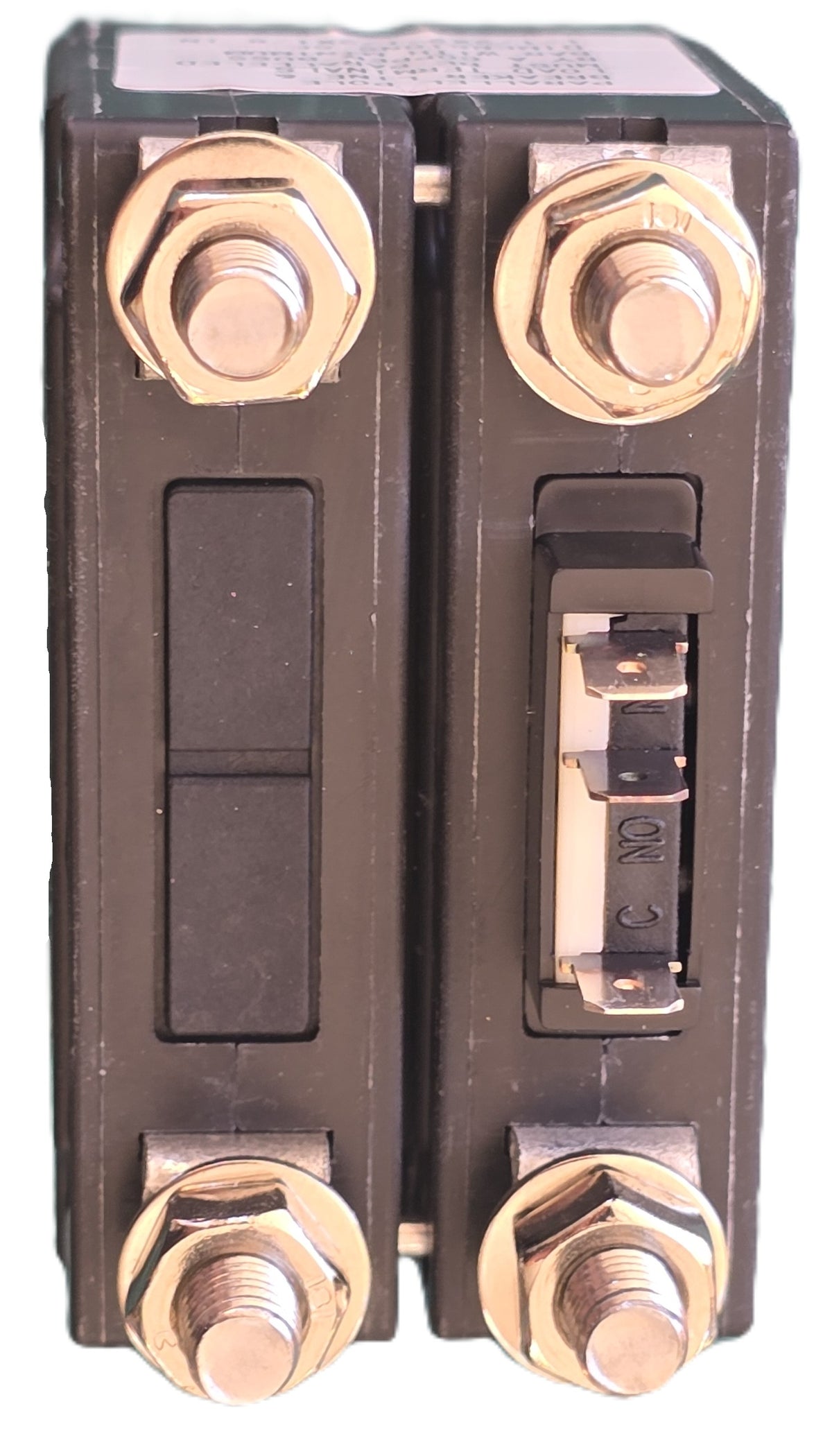

Auxiliary Switch: 1 A 80 V DC, 0.187 in quick connect

Interrupting Capacity: 10,000 A

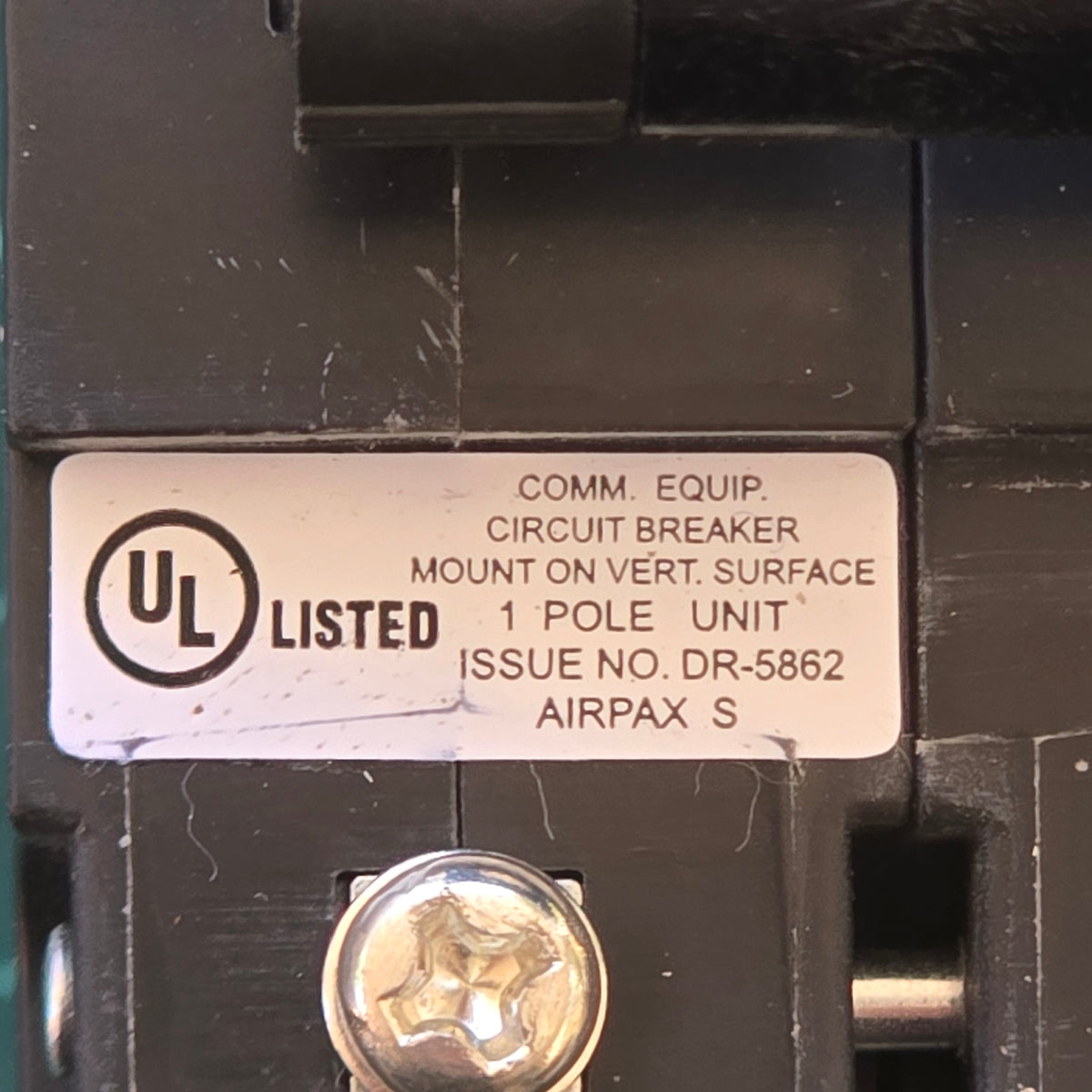

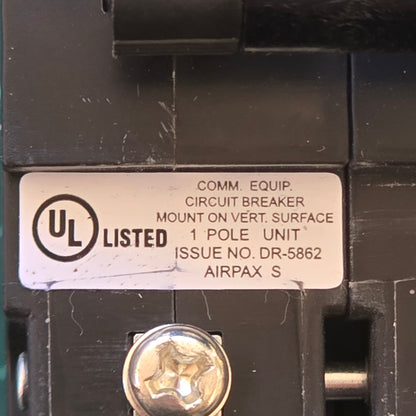

Approvals: UL 489A

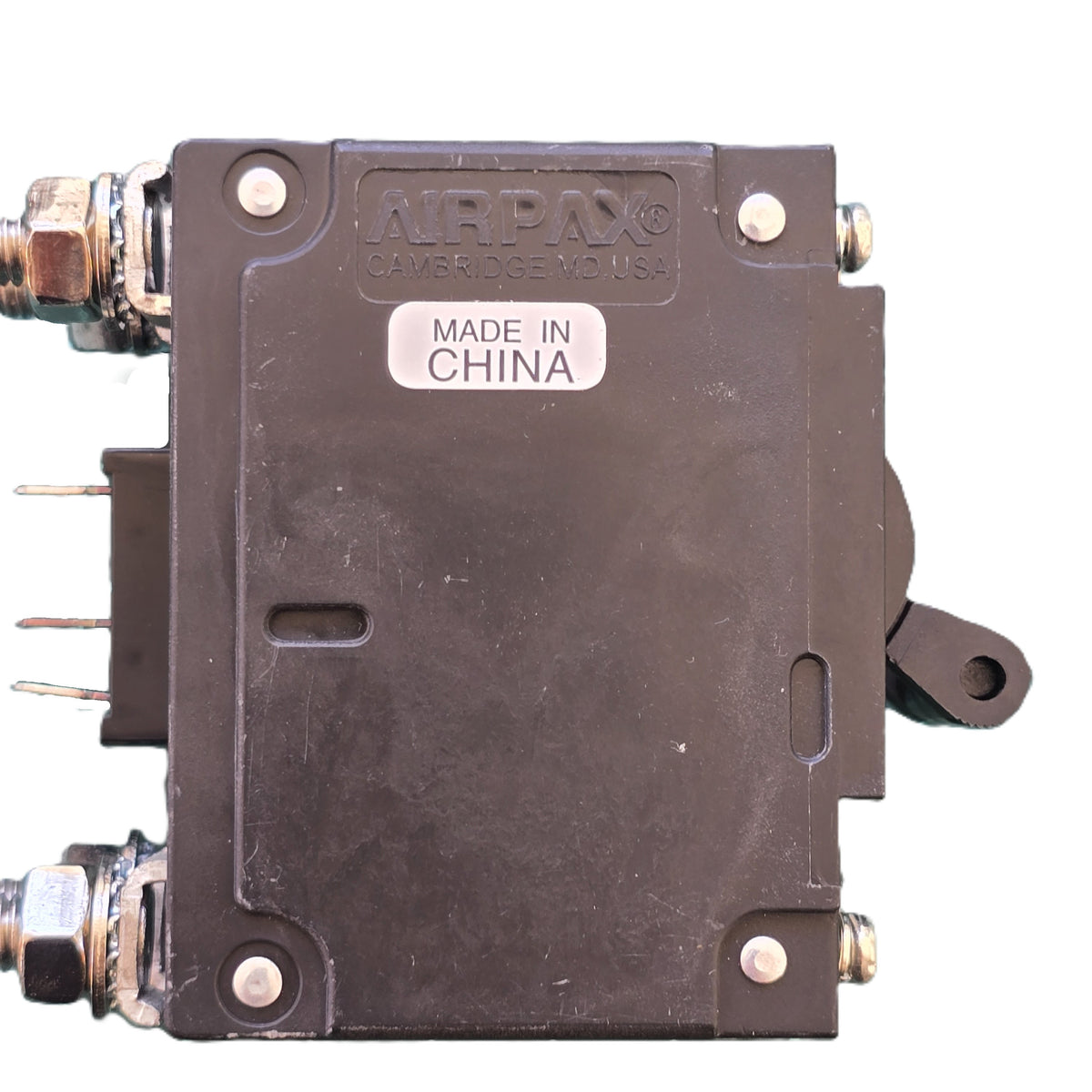

Country of Origin: China

Condition: Used, untested

Key Features

• Hydraulic magnetic trip, not affected by ambient temperature
• Two paralleled poles for 200 A
• Auxiliary switch for trip indication
• Panel mount with stud terminals

Typical Applications

• Telecom DC power plants and battery distribution
• Rectifier shelf and load protection
• Spare for existing Airpax CEL installations

Package Includes

• 1 x Airpax CELHPK11-1REC5-32933-200 breaker

Additional Information

Price is per breaker. Three units are available.

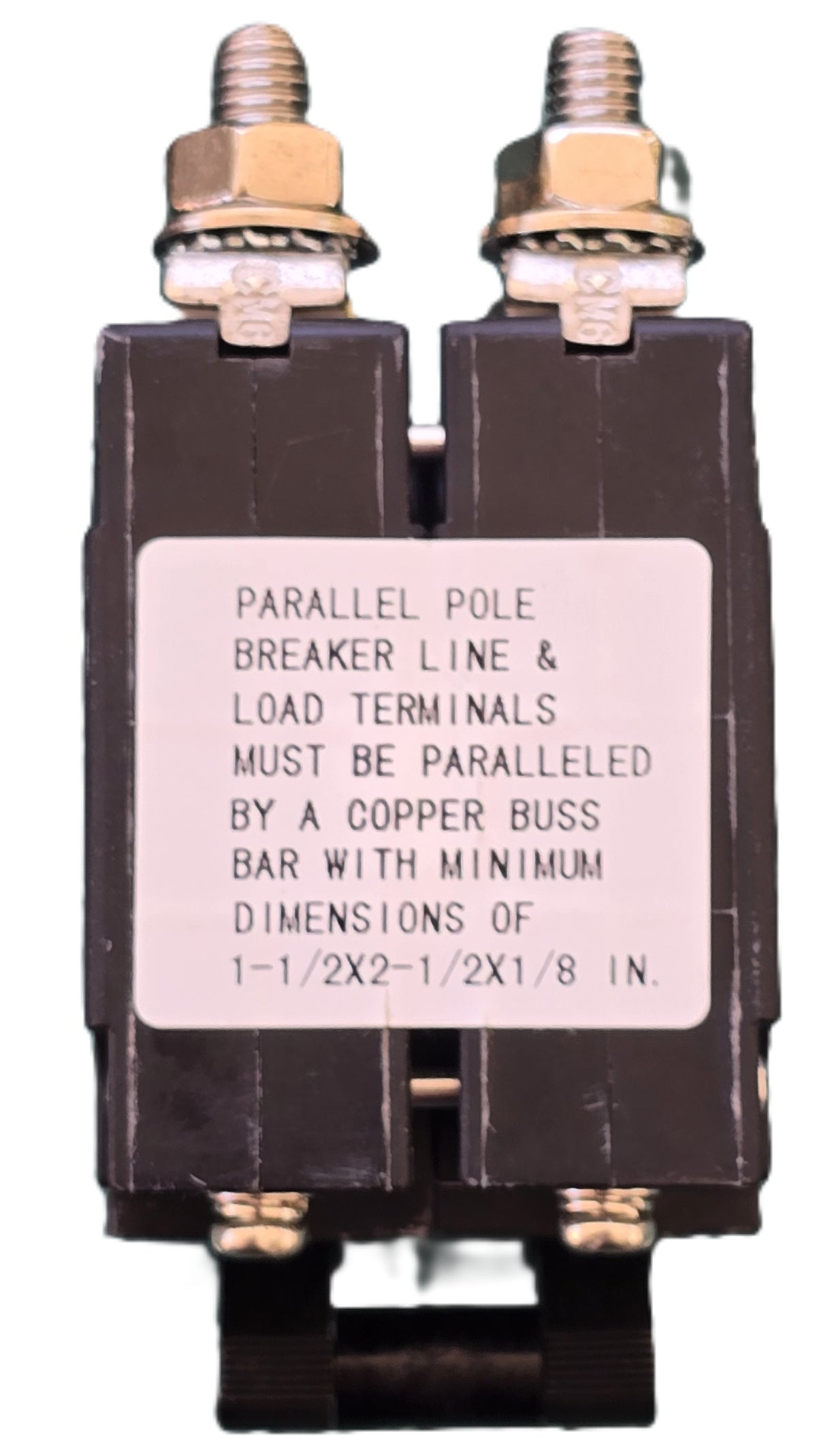

The label requires the line and load terminals to be paralleled by a copper busbar of at least 1-1/2 x 2-1/2 x 1/8 inch.

This is a used item and may show minor cosmetic marks from previous use. Please refer to the photographs for the overall condition.

Shipping from Sydney, Australia.
