SDS MK4n Swerve Module Parts - Wheel, Billet, 4"OD x 1.5"W (MK4/4c/4i/4n)

SDS Swerve Drive Specialties – Billet Wheel, 4"OD x 1.5"W (MK4/4c/4i/4n)

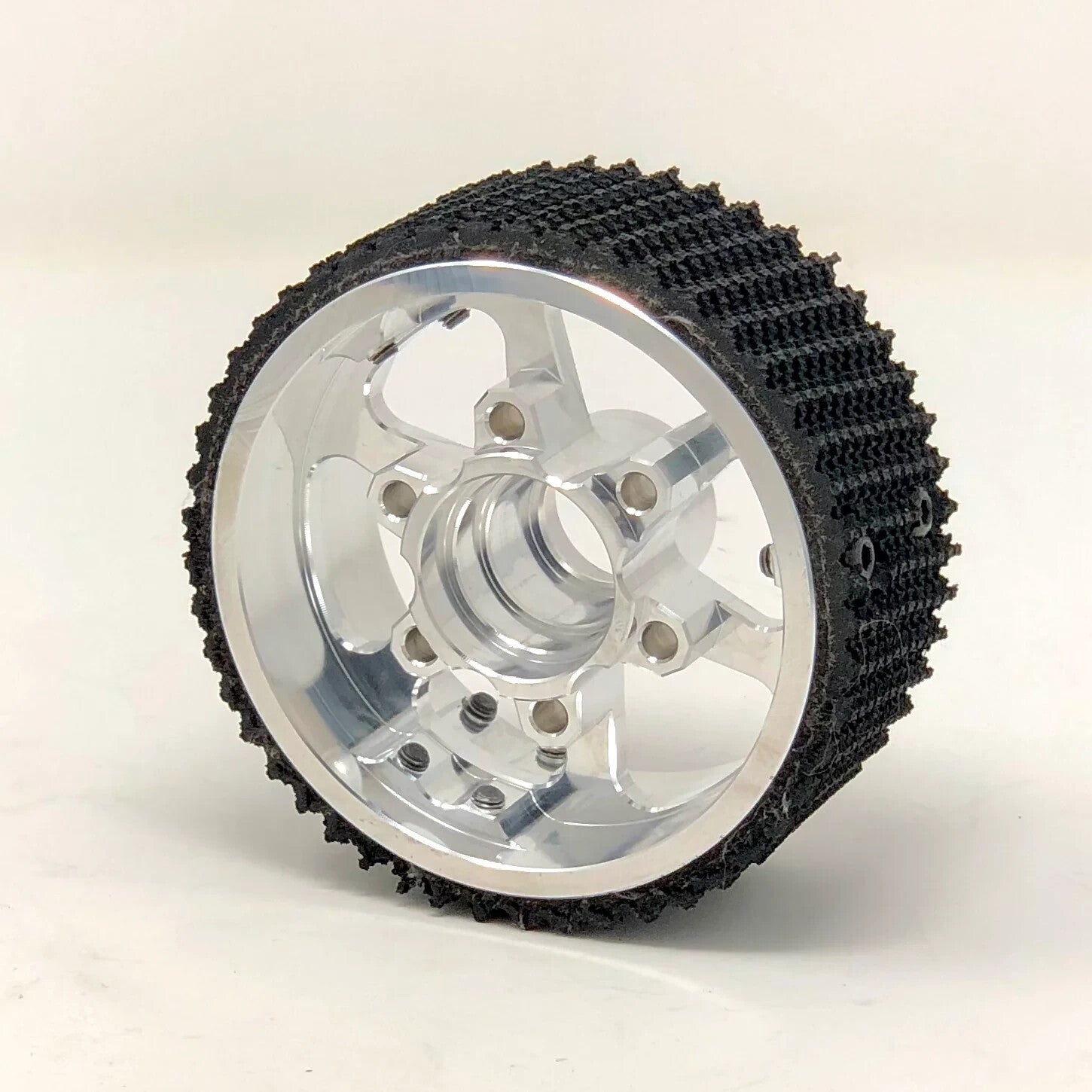

The SDS Billet Aluminum Wheel is designed for precision and durability in competitive robotics applications. Featuring a 4-inch outer diameter and 1.5-inch width, this wheel is optimized for use with SDS MK4, MK4c, MK4i, and MK4n swerve modules. It comes pre-installed with black neoprene tread, providing excellent traction and extended wear life compared to traditional nitrile options.

Key Features

• Outer Diameter: 4"

• Width: 1.5" (tread width)

• Material: Aluminum 6061-T6

• Tread: Black neoprene (pre-installed)

• Mounting: 4 pairs of 10-32 tapped holes for tread attachment

• Bearings Required: One R8ZZ bearing and one R6ZZ bearing

• Compatibility: MK4 / MK4c / MK4i / MK4n swerve modules

• Tread Replacement: Precut and drilled replacement treads available

Included Hardware

• 8 × 10-32 × 1/2" button head screws (for tread attachment)

• 6 × 10-32 × 3/4" button head screws (for attaching a 45T bevel gear)

Weight

• 0.32 lbs – wheel only

• 0.51 lbs – wheel with tread

• 0.55 lbs – wheel with tread + screws for bevel gear

Technical Resources

• CAD Files: STEP and x_t formats available

• Alternative Option: Colson wheel setup available for extended wear life

Item Specifics

• Brand: SDS – Swerve Drive Specialties

• Model: Billet Wheel, 4"OD × 1.5"W

• Country of Origin: USA

• HS Code (guidance): 8714.99 – Parts and accessories of vehicles (other) – or 8483.90 (gearing/parts), depending on customs classification (confirm with your broker)
