SDS MK4n Swerve Module Parts Wheel Billet 4"OD x 1.5"W MK4/4c/4i/4n (NEW)

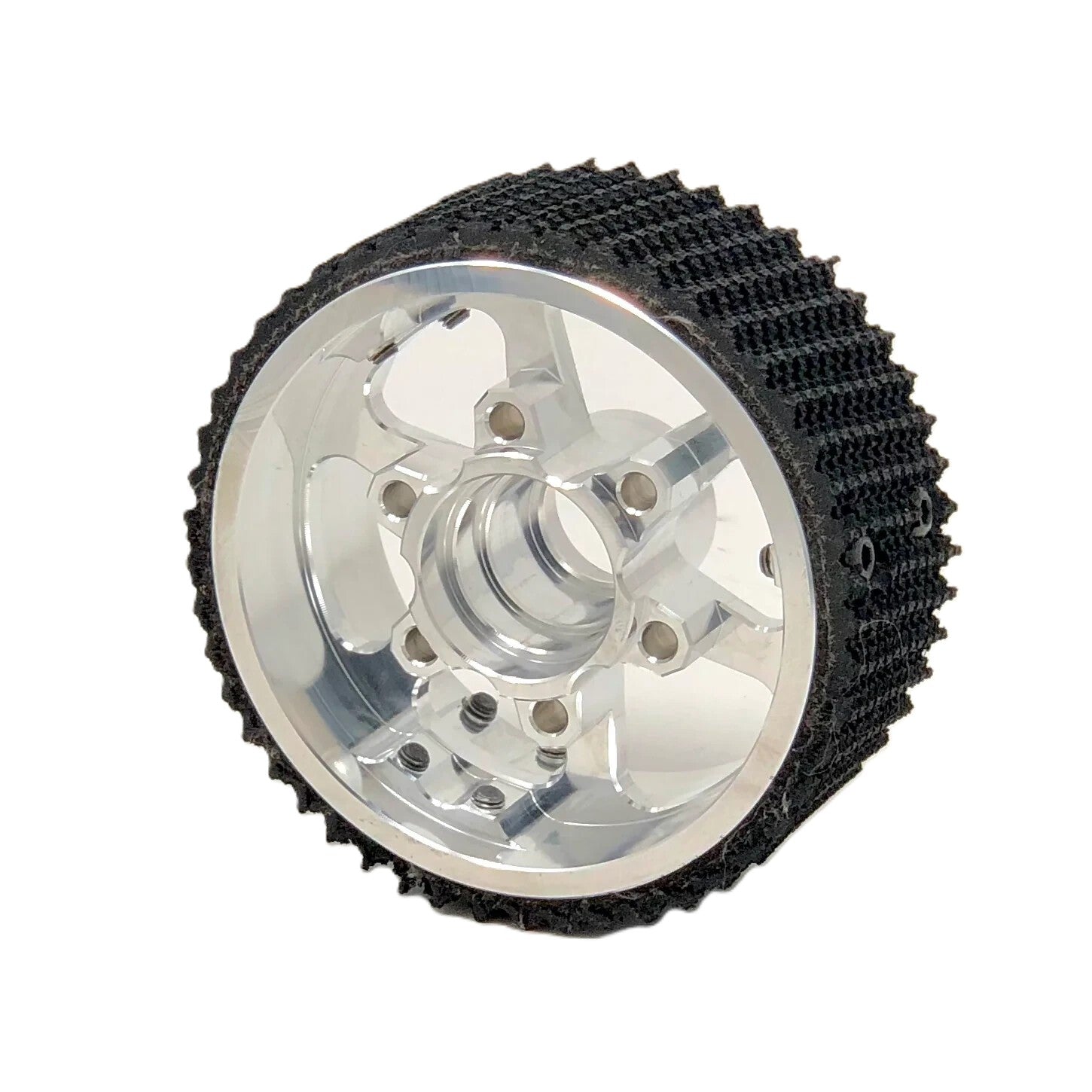

SDS MK4n Billet Wheel 4" OD x 1.5" W Swerve Module Wheel

The SDS Billet Wheel is a precision-machined aluminum wheel engineered for use with Swerve Drive Specialties MK4, MK4c, MK4i, and MK4n swerve modules. Designed for competitive robotics applications, this lightweight yet durable wheel features a 4-inch outer diameter and 1.5-inch tread width for optimal traction and performance.

Supplied with pre-installed black neoprene tread, the wheel offers excellent grip and wear resistance, making it ideal for FRC and other advanced robotics projects. The billet aluminum construction provides strength while minimizing weight, helping teams maximize drivetrain efficiency and reliability.

Supplied new.

Specifications

Brand: SDS – Swerve Drive Specialties
Model: Billet Wheel 4" OD × 1.5" W
Compatibility: MK4, MK4c, MK4i, MK4n Swerve Modules
Wheel Diameter: 4" (101.6mm)
Wheel Width: 1.5" (38.1mm)
Material: 6061-T6 Billet Aluminum
Tread Material: Black Neoprene
Mounting: 4 Pairs of 10-32 Tapped Holes
Condition: New
Country of Origin: USA

Bearing Requirements

• 1 × R8ZZ Bearing
• 1 × R6ZZ Bearing

Included Hardware

• 8 × 10-32 × 1/2" Button Head Screws (Tread Attachment)
• 6 × 10-32 × 3/4" Button Head Screws (45T Bevel Gear Attachment)

Weight

Wheel Only: 0.32 lbs (145g)
Wheel with Tread: 0.51 lbs (231g)
Wheel with Tread & Bevel Gear Screws: 0.55 lbs (249g)

Key Features

• Genuine SDS Swerve Drive Specialties component
• Precision-machined 6061-T6 billet aluminum construction
• Pre-installed black neoprene tread
• Compatible with MK4, MK4c, MK4i and MK4n modules
• Lightweight design for competitive robotics
• High-strength wheel construction
• Excellent traction and durability
• Tapped mounting holes for tread replacement
• Supports 45T bevel gear mounting
• Ideal for FRC and advanced robotics projects

Typical Applications

• FIRST Robotics Competition (FRC) robots
• Swerve drive systems
• Educational robotics
• Research and development projects
• Custom robotic platforms
• High-performance mobile robots

Package Includes

1 × SDS Billet Wheel 4" OD × 1.5" W
Pre-Installed Black Neoprene Tread
Mounting Hardware as Specified

Additional Information

HS Code: 871499
Shipping: Shipping from Sydney, Australia.
