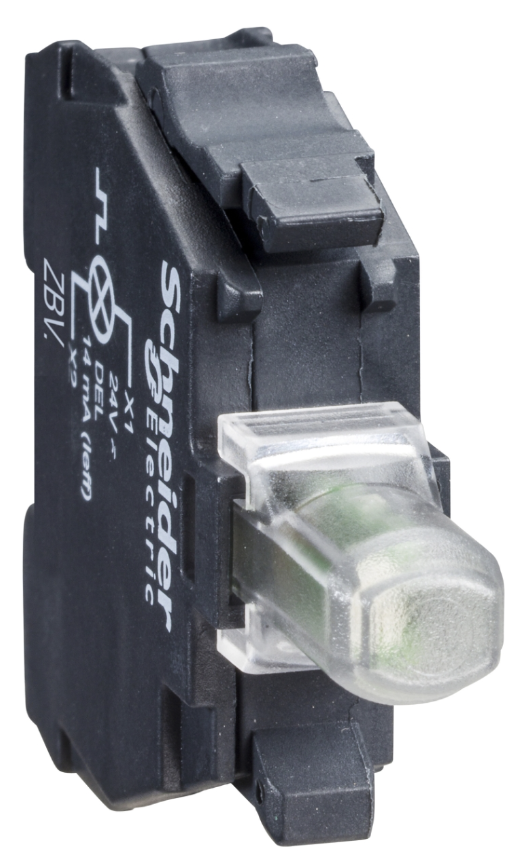

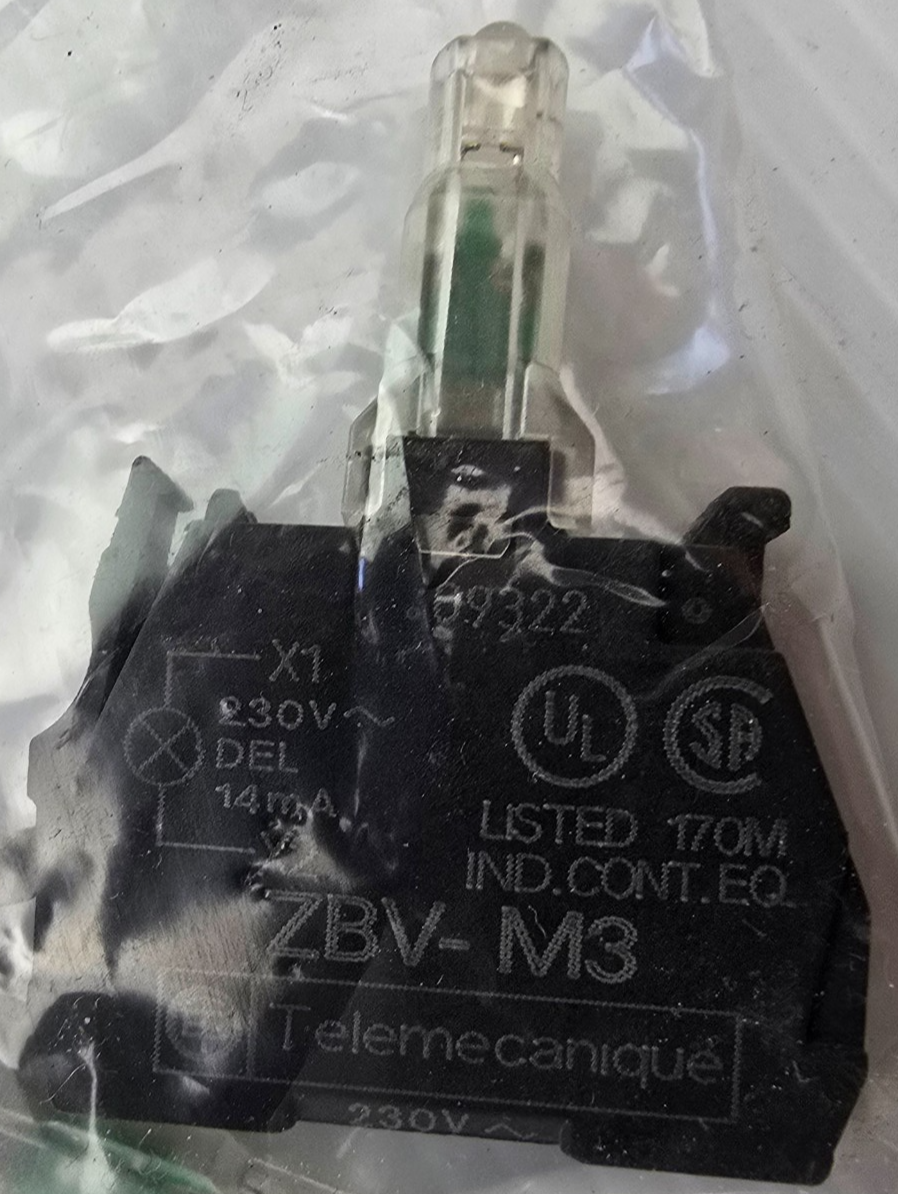

Schneider ZBVM3 Indicator Harmony XB4 green integral LED 240VAC (NEW From AUS)

Brand: Schneider Electric
Model / Part Number: ZBV-G4B
Description: The Schneider Electric Harmony ZBV-G4B is a green LED light block designed for use with Harmony XB4 and XB5 series illuminated push-buttons and selector switches. Operating at 230–240 V AC, this light block features an integral protected LED for long-lasting, energy-efficient signaling. Its direct light supply and screw clamp terminals make installation simple, while vibration-resistant connections ensure reliable performance even in demanding industrial environments. The compact, front-mounted design and IP20 protection rating enhance safety and convenience, making it an ideal choice for panel builders and maintenance engineers seeking durability and reliability in control and signaling systems.

Range: Harmony XB4 / Harmony XB5
Type: Light Block with Integral LED
Light Colour: Green
Light Source: Protected Integral LED
Signaling Type: Steady
Rated Supply Voltage: 230–240 V AC (50/60 Hz)
Supply Voltage Limits: 195–264 V AC
Current Consumption: 14 mA
Service Life: 100,000 h at rated voltage and 25°C
Mounting Type: Front Mounting
Connections: Screw Clamp Terminals (≤ 2 × 1.5 mm² with cable end or ≥ 1 × 0.22 mm² without cable end)
Tightening Torque: 0.8–1.2 N·m (EN 60947-1)
Screw Head Compatibility: Philips No.1, Pozidriv No.1, Flat Ø4 mm / Ø5.5 mm
Protection Treatment: TH
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +70°C
Protection Rating: IP20 (IEC 60529)
Surge Withstand: 1 kV (IEC 61000-4-5)
Electrostatic Discharge Resistance: 6 kV (contact) / 8 kV (air) per IEC 61000-4-2
Electromagnetic Emission: Class B (IEC 55011)
Approvals / Standards:
EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL 508, CSA C22.2 No.14, JIS C8201-1, JIS C8201-5-1
Certifications: UL Listed, CSA
Electrical Composition Codes: M1, M2, M3, M4, M5, M6, M10, MF1, P1, P2, PF1
Dimensions (W x H x D): 4.5 × 3.5 × 1.0 cm
Weight: 9 g (Net Weight: 0.017 kg)
Packaging: Sold individually (1 piece per pack, box of 5 units)
Condition: New
Country of Origin: France
HS Code: 85312090 (Indicator panels incorporating LEDs)
