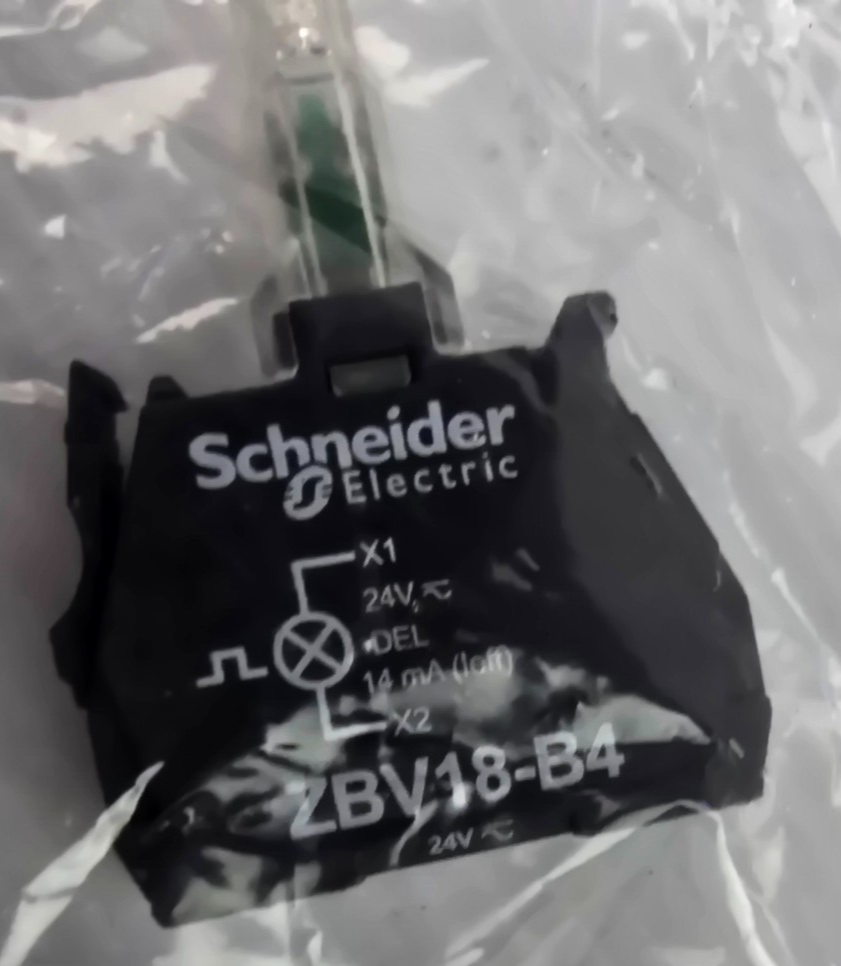

SCHNEIDER ZBV18B4 red flashing 24V LED Ø22 screw clamp terminals (NEW AU)

Brand: Schneider Electric
Model / Part Number: ZBV-B3B
Series: Harmony XB4 / XB5

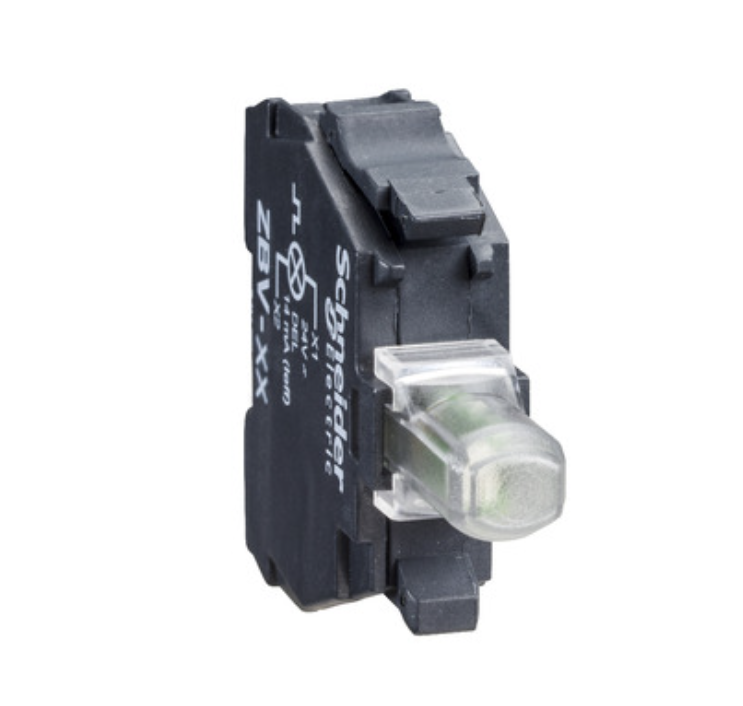

Description: The Schneider Electric ZBV-B3B is a light block module designed for use with Harmony XB4 and XB5 illuminated pushbuttons. It features a protected red LED light source with a rated supply voltage of 24V AC/DC (50/60Hz). This compact, direct-supply LED module provides clear visual indication and long service life, ideal for control panels, machinery, and automation systems.

Type: Light Block (Illuminated module)
Signalling Type: Flashing (red LED)
Light Source: Protected LED (Integral LED base)
Rated Supply Voltage: 24V AC/DC
Voltage Limits: 19.2–30V DC / 21.6–26.4V AC
Current Consumption: 18mA
Service Life: 100,000 hours at rated voltage and 25°C
Connections: Screw clamp terminals (up to 2 × 1.5mm² with cable ends)
Tightening Torque: 0.8–1.2 N·m (EN 60947-1 compliant)
Screw Head Type: Cross (Philips No.1, Pozidriv No.1) / Slotted 4–5.5mm
Mounting Type: Clip-on for Harmony XB4/XB5 series pushbuttons
Weight: 0.017 kg
Function: Visual indication (Red LED)
Surge Withstand: 1kV (IEC 61000-4-5)
Application: Industrial control panels, machinery status indication, automation systems
Condition: New (In Box)
Country of Origin: France
HS Code: 85319000 (Parts of signalling devices, control panels, or relays)
