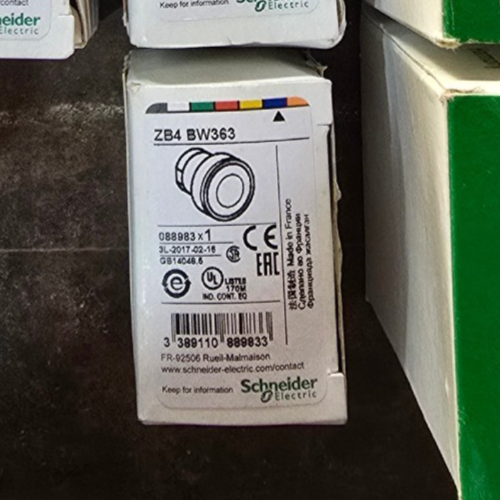

Schneider ZB4BW363 Illuminated push button XB4 metal blue 22mm LED (NEW AUS)

Brand: Schneider Electric
Model / Part Number: ZB4-BW363

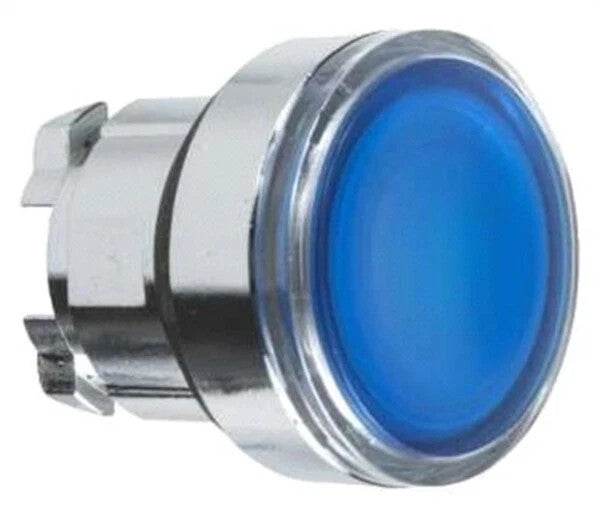

Description: The Schneider Electric Harmony XB4 ZB4-BW363 is a metal head for illuminated push buttons, engineered for industrial control applications requiring precision, durability, and clear operator indication. Featuring a 22.5 mm mounting diameter, this head is compatible with universal LED modules and provides a blue flush, unmarked operator profile with a plain lens. Constructed with a chromium-plated metal bezel, it ensures long-lasting mechanical strength and an elegant industrial look. The spring-return mechanism offers reliable momentary actuation. Rated to IP66, IP67, IP69, and IP69K protection levels and compliant with NEMA 4X and 13 standards, this component withstands harsh environments, vibration, and washdown conditions, making it ideal for industrial panels and control systems.

Range: Harmony XB4
Type: Head for Illuminated Push Button
Device Short Name: ZB4
Compatibility: Universal LED
Head Type: Standard, Round
Bezel Material: Chromium-Plated Metal
Operator Type: Spring Return
Operator Profile: Blue Flush, Unmarked
Lens: Plain
Mounting Diameter: 22.5 mm
Dimensions (W x H x D): 29 mm x 29 mm x 30 mm
Net Weight: 0.026 kg
Mechanical Durability: 10,000,000 Cycles
Vibration Resistance: 5 gn (2–500 Hz) per IEC 60068-2-6
Shock Resistance: 30 gn (18 ms) / 50 gn (11 ms) per IEC 60068-2-27
Protection Rating: IP66, IP67, IP69, IP69K / NEMA 4X, 13
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +70°C
Protective Treatment: TH
Material Strength: IK06 (per IEC 62262)
Certifications: UL Listed, CSA, Lloyd’s Register, BV, DNV
Standards: UL 508, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, CSA C22.2 No 14
Condition: New
Country of Origin: France
HS Code: 85365080 (Switches and pushbuttons for electrical control or distribution)
