Schneider ZB4BW353 Illuminated push button XB4 metal orange 22mm LED (NEW AUS)

Brand: Schneider Electric
Model / Part Number: ZB4-BW363

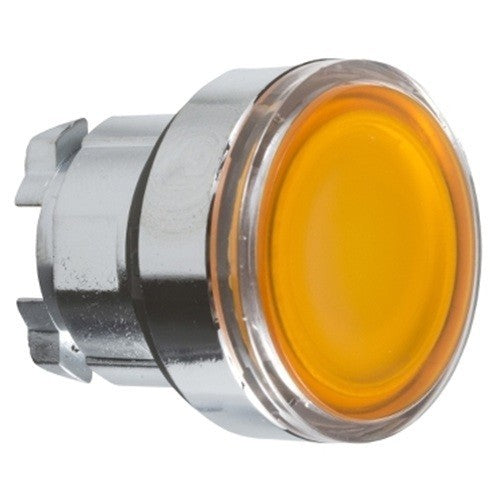

Description: The Schneider Electric Harmony XB4 ZB4-BW363 is a metal head for illuminated push buttons, designed for industrial control applications requiring clear operator indication and robust reliability. Featuring a 22.5mm mounting diameter and a chromium-plated metal bezel, it offers durability and a sleek, professional appearance. The orange flush head with a plain, unmarked lens is compatible with universal LED modules and includes a spring-return mechanism, ensuring smooth operation and fast response. Built for demanding environments, this push-button head provides IP66, IP67, IP69, and IP69K protection, as well as NEMA 4X and 13 ratings, guaranteeing reliable performance in harsh industrial conditions.

Range: Harmony XB4
Type: Head for Illuminated Push Button
Device Short Name: ZB4
Compatibility: Universal LED
Head Type: Standard, Round
Bezel Material: Chromium-Plated Metal
Operator Type: Spring Return
Operator Profile: Orange Flush, Unmarked
Lens: Plain
Mounting Diameter: 22.5 mm
Dimensions (W x H x D): 29 mm x 29 mm x 30 mm
Net Weight: 0.026 kg
Protection Rating: IP66, IP67, IP69, IP69K / NEMA 4X, 13
Mechanical Durability: 10,000,000 Cycles
Vibration Resistance: 5 gn (2–500 Hz) per IEC 60068-2-6
Shock Resistance: 30 gn (18 ms), 50 gn (11 ms) per IEC 60068-2-27
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +70°C
Material Treatment: TH Protective Coating
Certifications: UL Listed, CSA, Lloyd’s Register, Bureau Veritas (BV), DNV
Standards: IEC 60947-1, IEC 60947-5-1, UL 508, JIS C8201-1, CSA C22.2 No 14
Condition: New
Country of Origin: France
HS Code: 85365080 (Switches and pushbuttons for electrical control or distribution)
