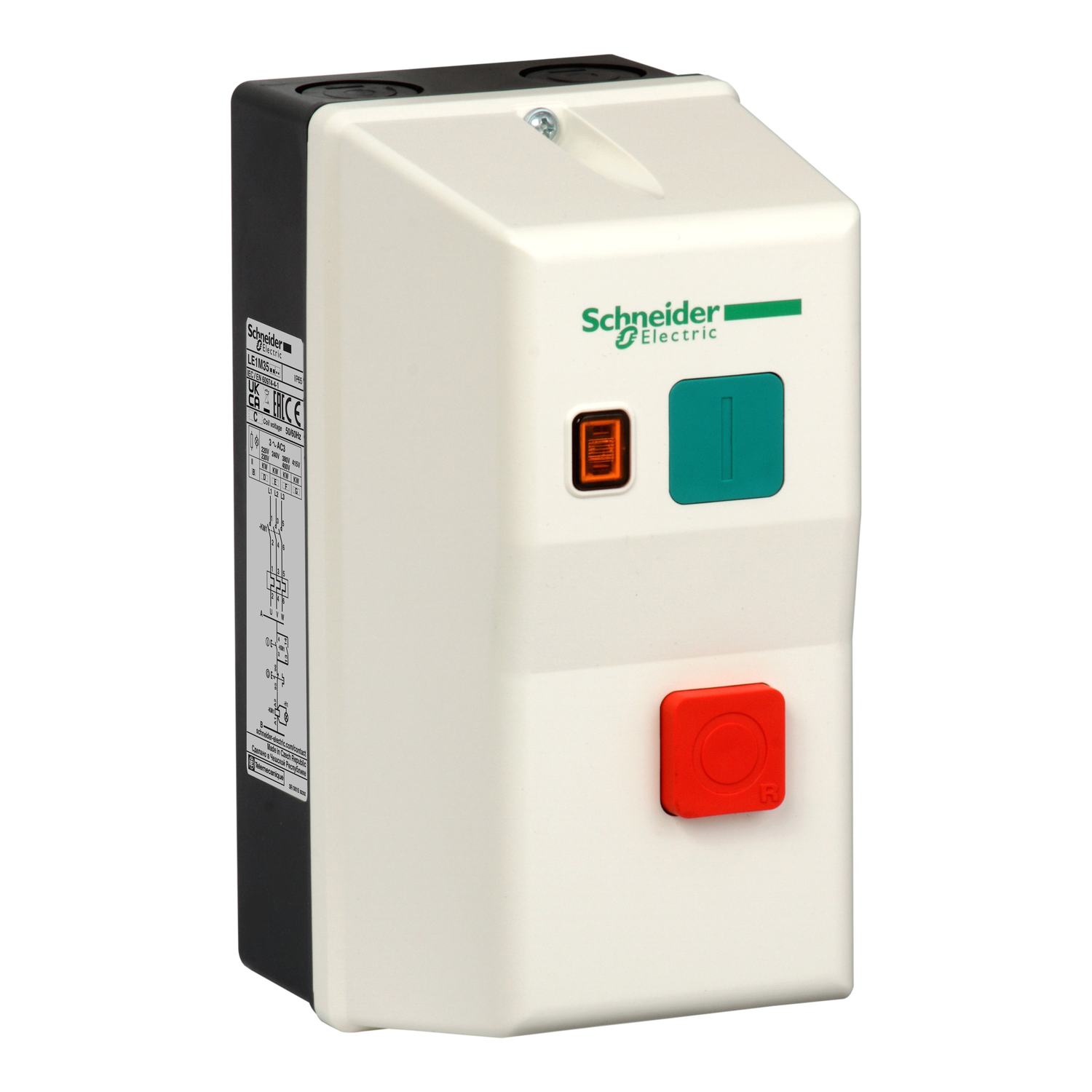

Schneider LE1M35U716 Enclosed DOL Starter, TeSys LE, 8-11.5 A, 240 V AC coil (NEW)

Schneider Electric TeSys LE1M Enclosed DOL Motor Starter — 240 VAC Coil, 8...11.5 A  O/L, AC-3, IP65

Enhance your motor control setup with the Schneider Electric TeSys LE1M enclosed direct-on-line (DOL) starter. Built for dependable switching and protection, this compact unit integrates a contactor, thermal overload relay, and front push-buttons in an IP65 enclosure—ideal for standard industrial environments.

Key Features

• Range / Series: TeSys / TeSys LE

• Device Short Name: LE1M

• Type: Enclosed DOL starter (contactor + thermal overload)

• Utilisation Category: AC-3

• Control Circuit Voltage: 240 VAC, 50/60 Hz

• Thermal Overload Adjustment: 8…11.5 A

• Motor power kW
  4 kW at 415 V AC 50/60 Hz
  2.2 kW at 240 V AC 50/60 Hz
  4 kW at 380/400 V AC 50/60 Hz
  2.2 kW at 220/230 V AC 50/60 Hz

• Local Signaling: Operating LED (yellow)

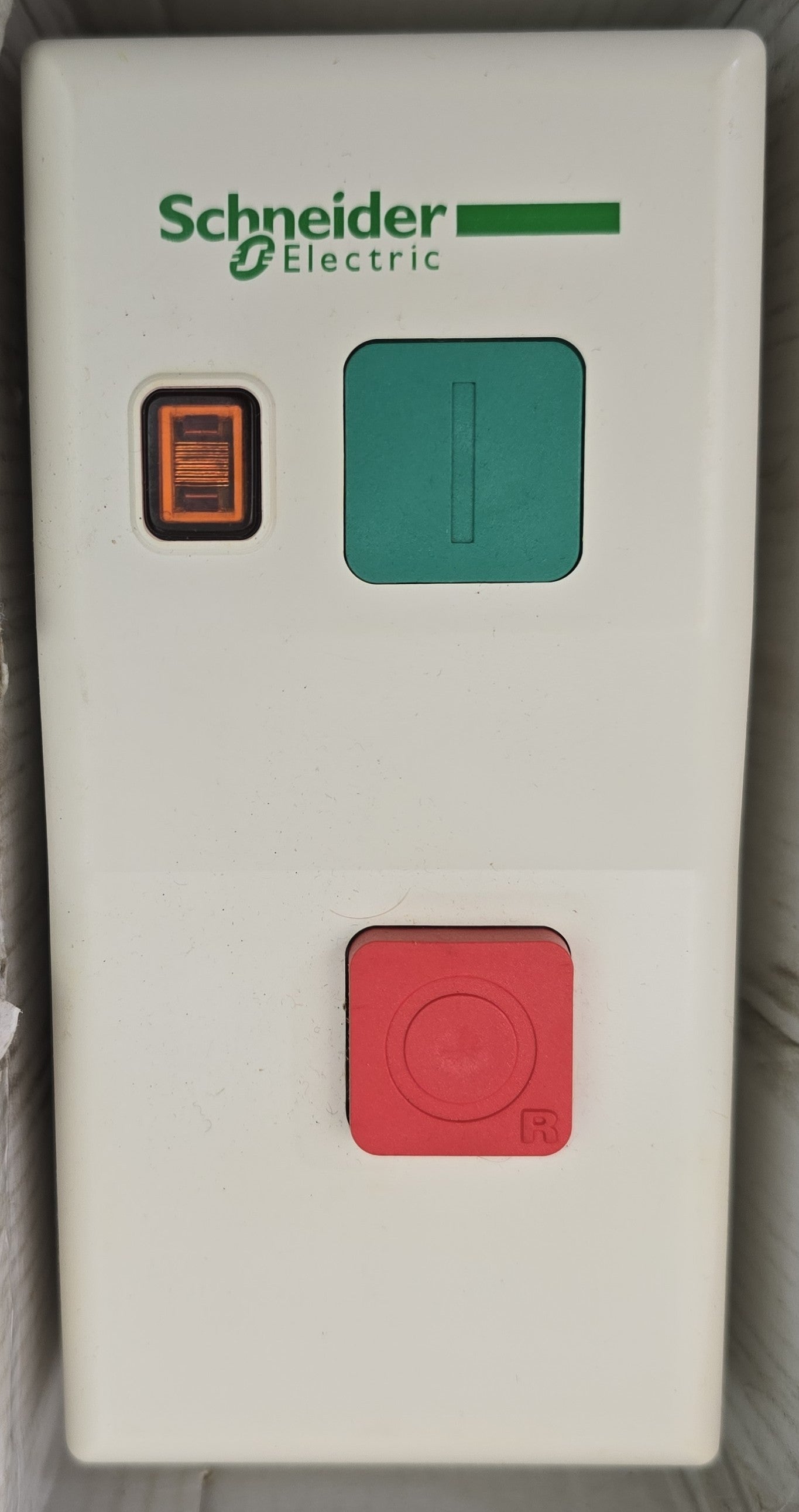

• Front Controls: Green I (Start), Red O (Stop/Reset)

• Enclosure Material / Rating: ABS; IP65 (IEC 60529)

• Cable Entries (top & bottom options): ISO20/ISO25, Pg13/Pg16/Pg21 (multiple knockouts)

• Dimensions (W×H×D): 78 × 160 × 108 mm | Net Weight: 0.6 kg

• Standards / Compliance: IEC 60947-4-1, UKCA

• Condition: Brand New

Item Specifics

• Brand: Schneider Electric

• Model: LE1M (TeSys LE)

• Type: Enclosed DOL Motor Starter

• Coil Voltage: 240 VAC 50/60 Hz

• Overload Range: 8…11.5 A adjustable

• Utilisation Category: AC-3

• Enclosure Rating: IP65

• Materials: ABS enclosure

• Dimensions: 78 mm (W) × 160 mm (H) × 108 mm (D)

• Weight: 0.6 kg

• Standards: IEC 60947-4-1

• Certifications: UKCA

• Country of Origin: Varies by production lot — please check product label if required for import.

• HS Code (guidance): 8537.10 – Boards/panels/equipped assemblies for electric control (≤ 1,000 V)
