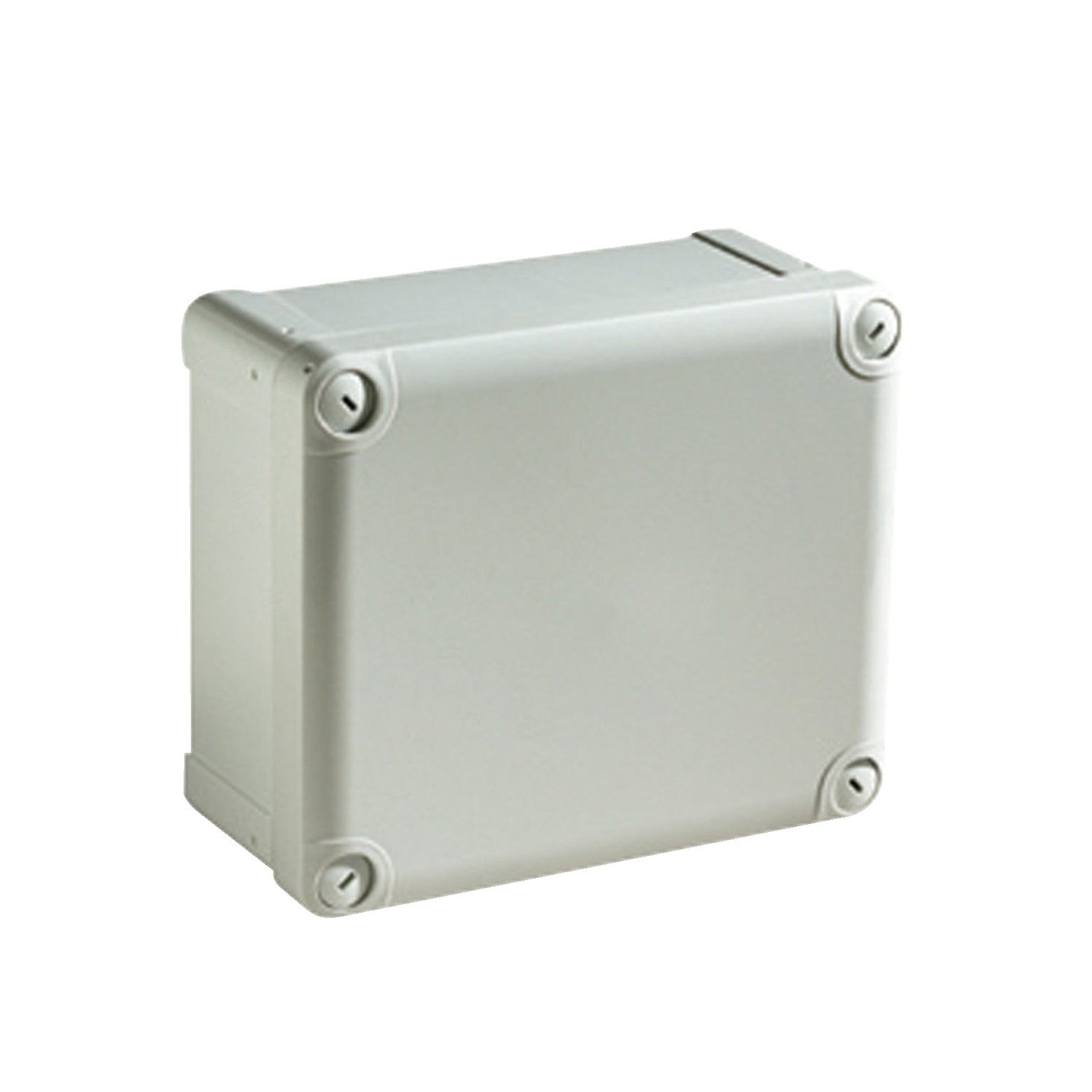

NSYTBS241910H Wall Mounting Enclosure

Protect important and potentially hazardous items from unauthorised access with this multi-purpose wall box from Schneider Electric. It's made of acrylonitrile butadiene styrene (ABS), which is durable and impact-resistant, so it's safe for use in harsh conditions. The unit also serves as an insulator when it houses electrical components, protecting you from electric shocks. For extra security, this box comes with a protective cover that you can lock onto it with plastic captive screws.

Features & Benefits

• Ingress protection rating of IP66 indicates it can withstand dust and high-pressure water jets

• Wide operating temperature range of -25°C to +60°C for use in demanding settings

• Installation is easy with just a flat-headed screwdriver

• Three mounting options to suit your design needs: holes on base, channels outside sealed area, and wrap-over clamps

Applications

• Plant equipment installation

• Domestic electrical wiring

• Marine industry

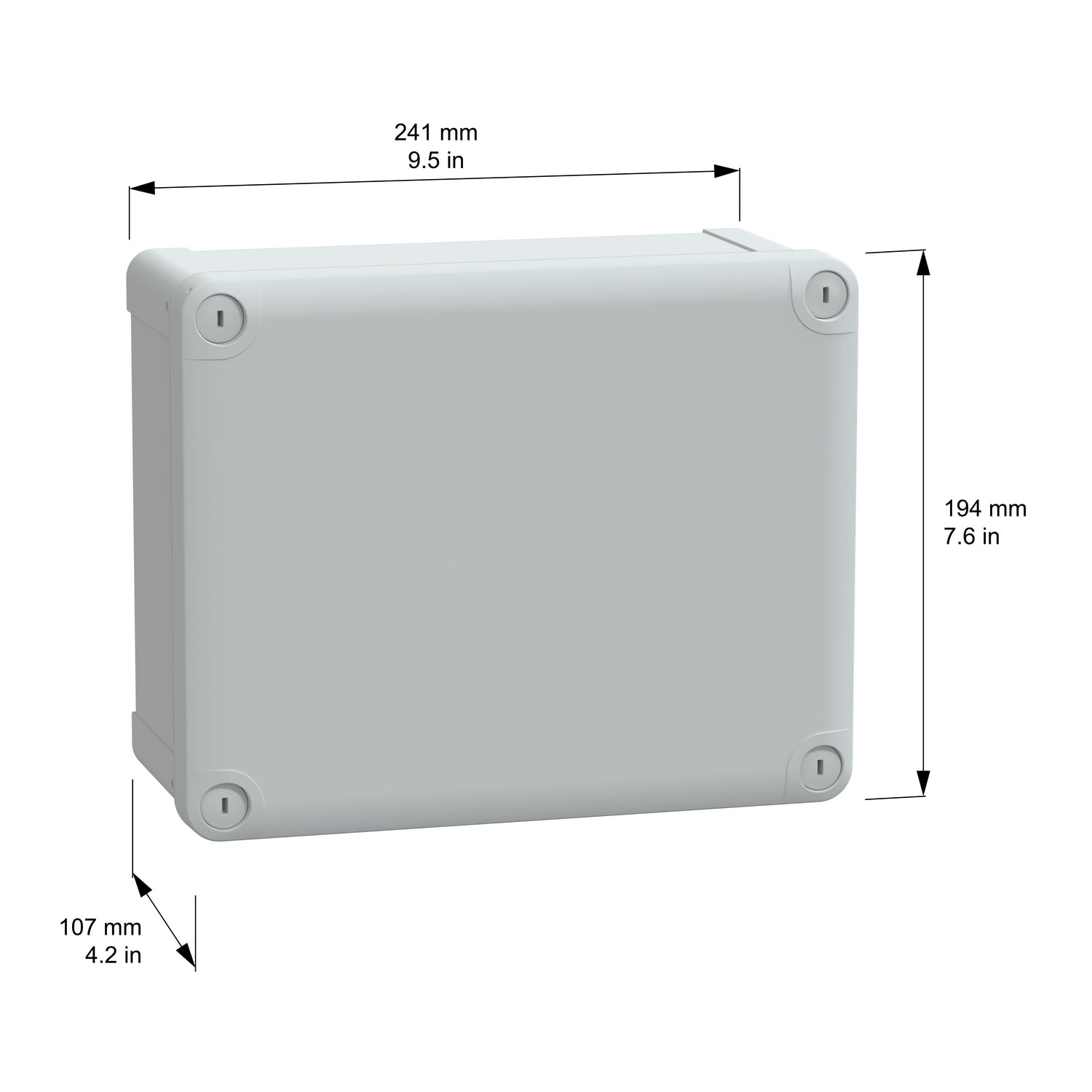

External Dimensions

NSYTBS241910H has external dimensions of 241 x 194 x 107 mm.
