Rheotherm 210R-I-NPT/2I Thermal Mass Flow Meter 24VDC 117-1170 SCFM
The Rheotherm 210R-I-NPT/2I is an industrial thermal mass flow measurement system designed for monitoring compressed air and gas flow applications. This unit features a remote electronics enclosure, 24VDC operation and a calibrated measurement range of 117 to 1170 SCFM. According to the included Intek inspection report, the 4-20mA output circuit was inspected and repaired by Intek in June 2019, with blown fuses replaced and the unit tested. This listing is for one unit and the buyer will receive either serial number 19024-01 or 19024-02. Both units are identical in model and specification.
Specifications

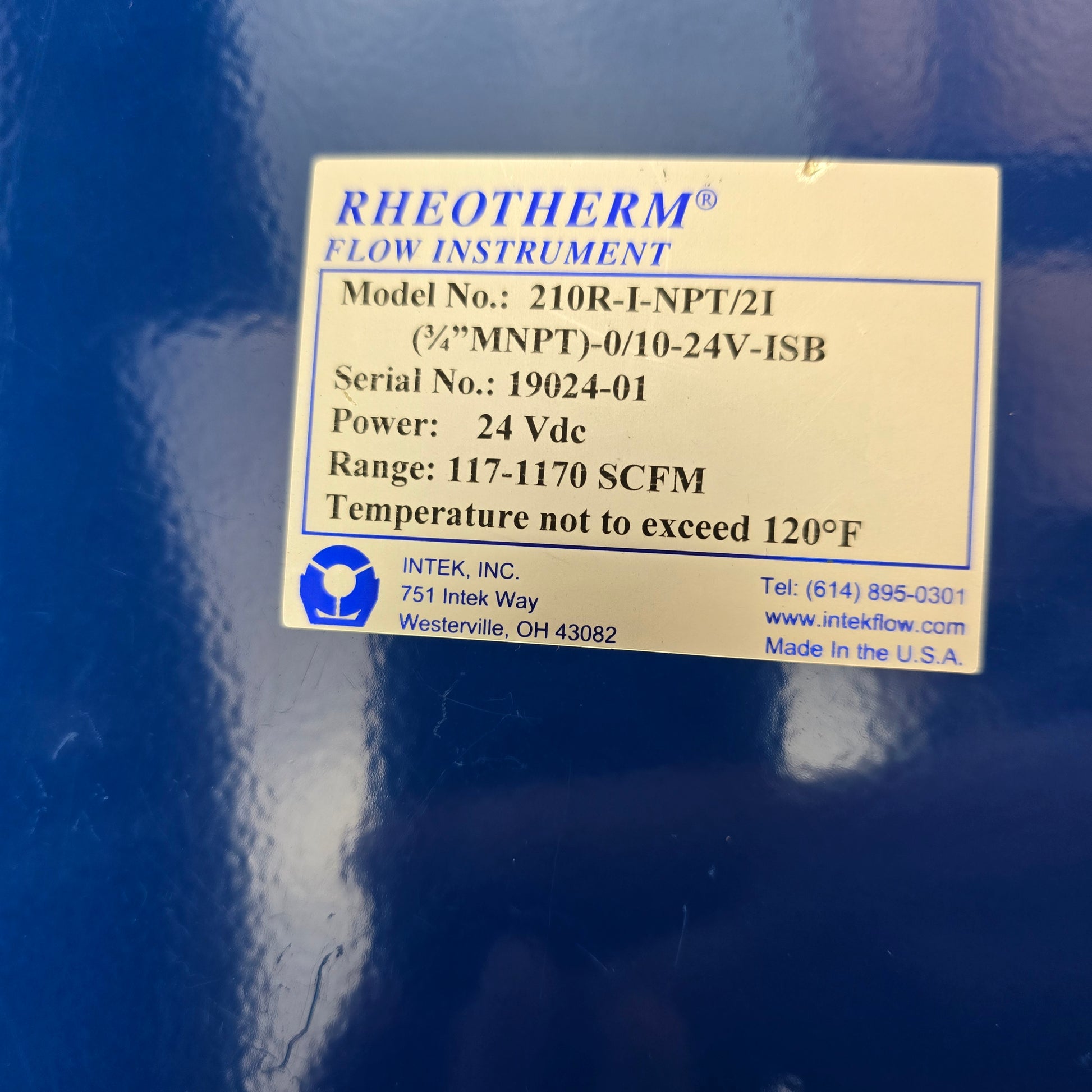

Brand: Rheotherm Model: 210R-I-NPT/2I (3/4" MNPT)-0/10-24V-ISB Part Number: 210R-I-NPT/2I Product Type: Thermal Mass Flow Meter Condition: New Power Supply: 24 VDC Flow Range: 117–1170 SCFM Process Connection: 3/4" MNPT Maximum Process Temperature: 60°C (120°F) Maximum Pressure: 500 psig Output Signal: 0-10V and 4-20mA (per model designation) Installation Type: Inline Flow Measurement Sensor Type: Thermal Mass Flow Sensor Country of Origin: USA
Key Features
Thermal mass flow measurement technology
24VDC powered operation

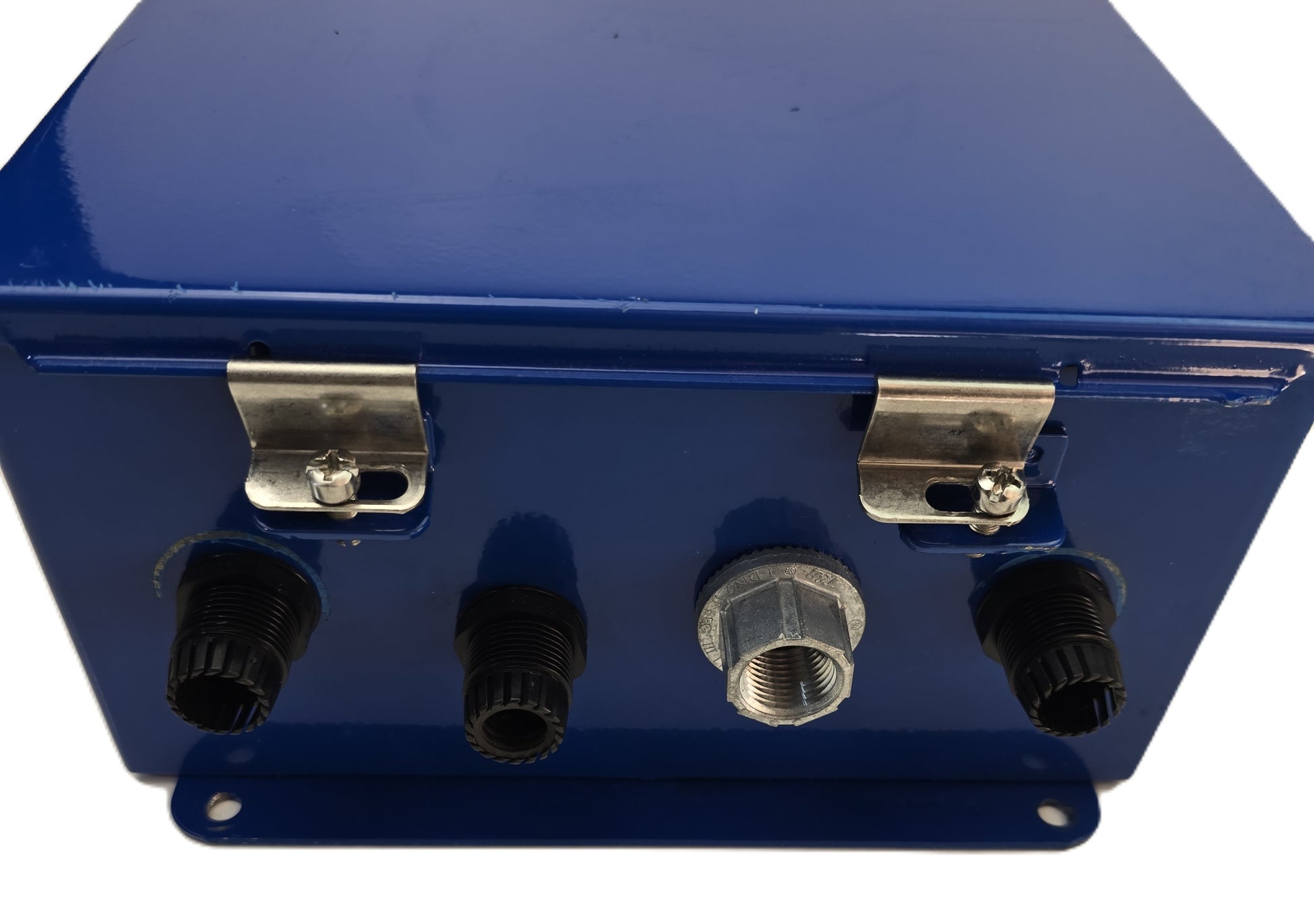

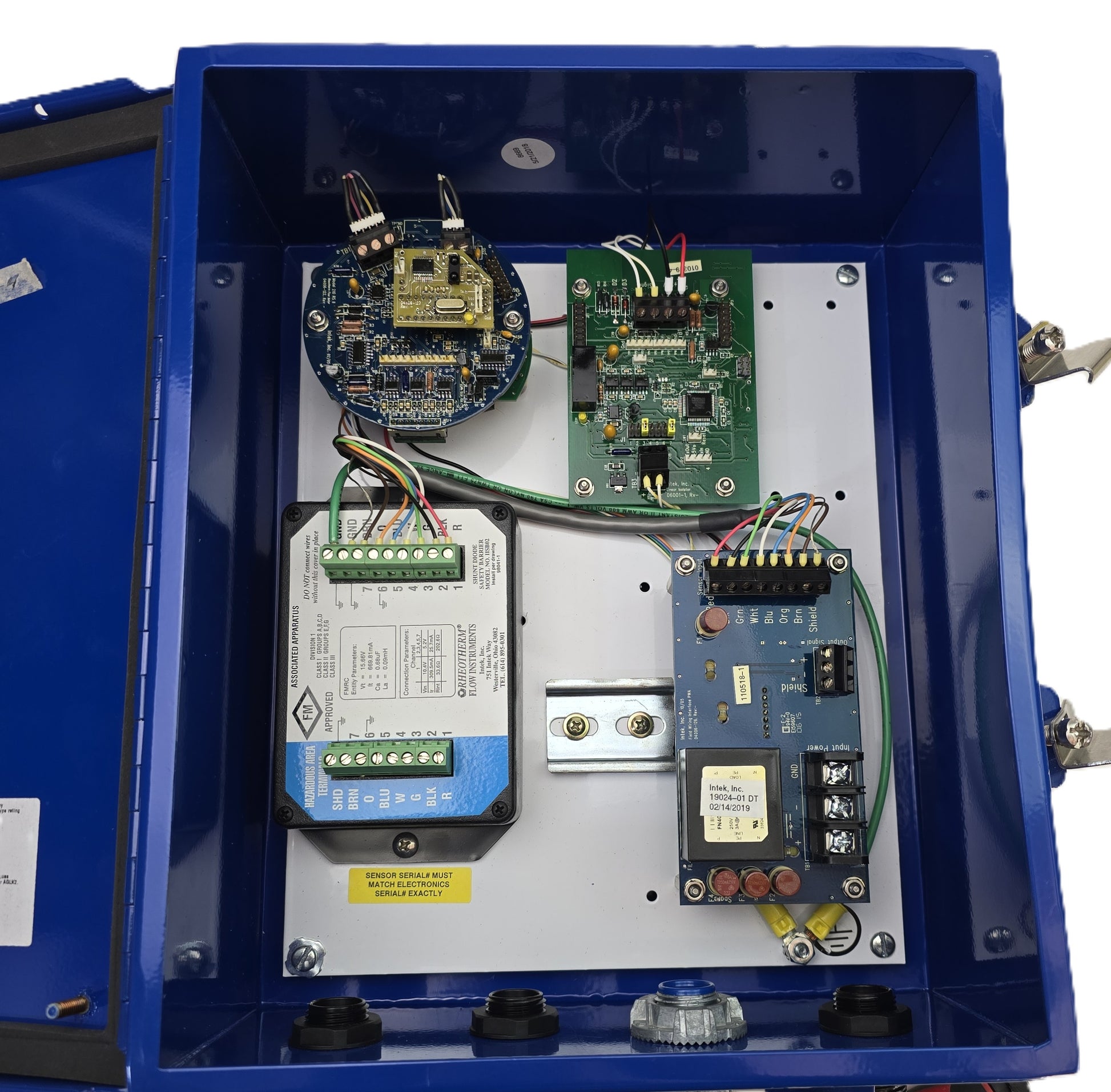

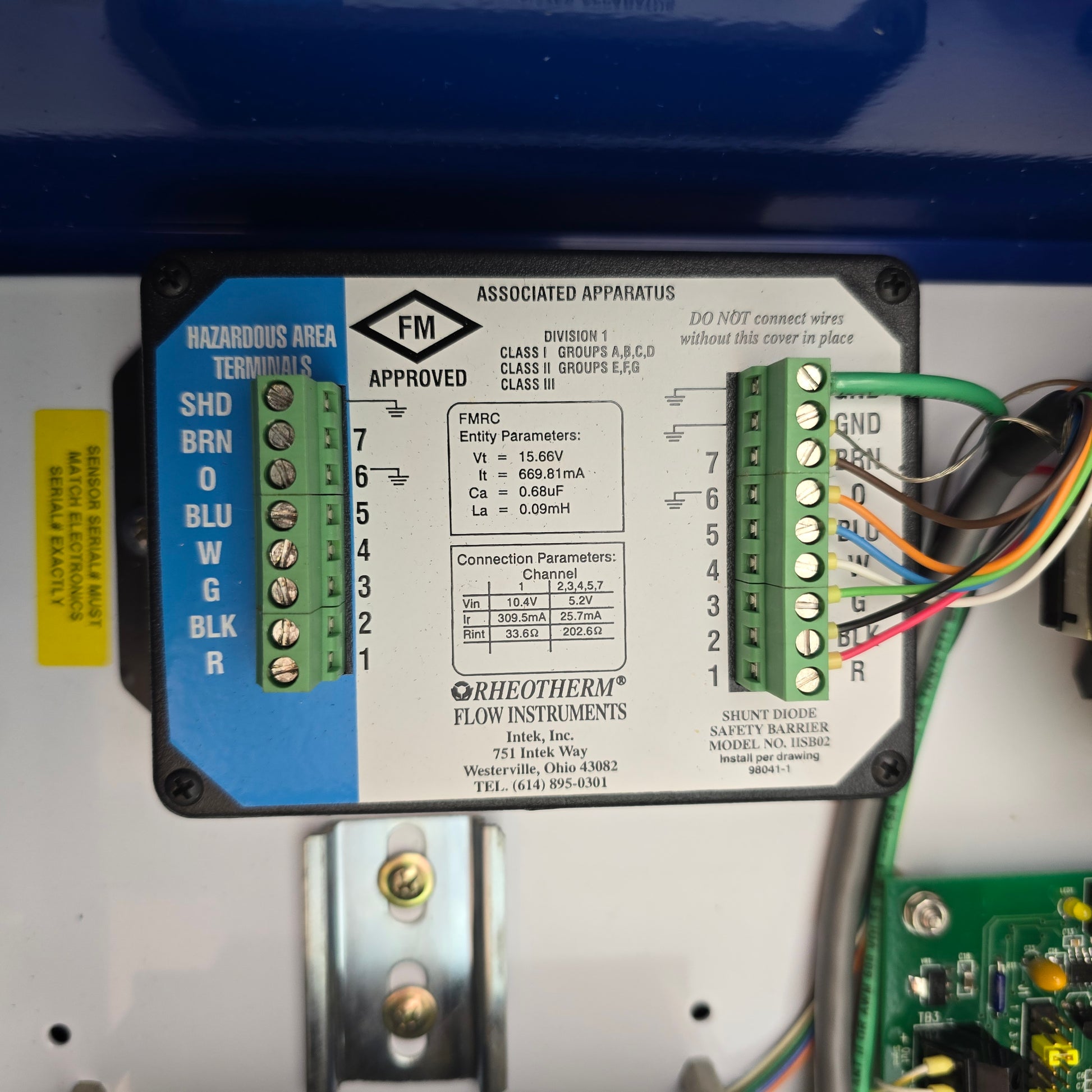

Remote electronics enclosure
117 to 1170 SCFM calibrated range
3/4" MNPT process connection
Maximum pressure rating of 500 psig

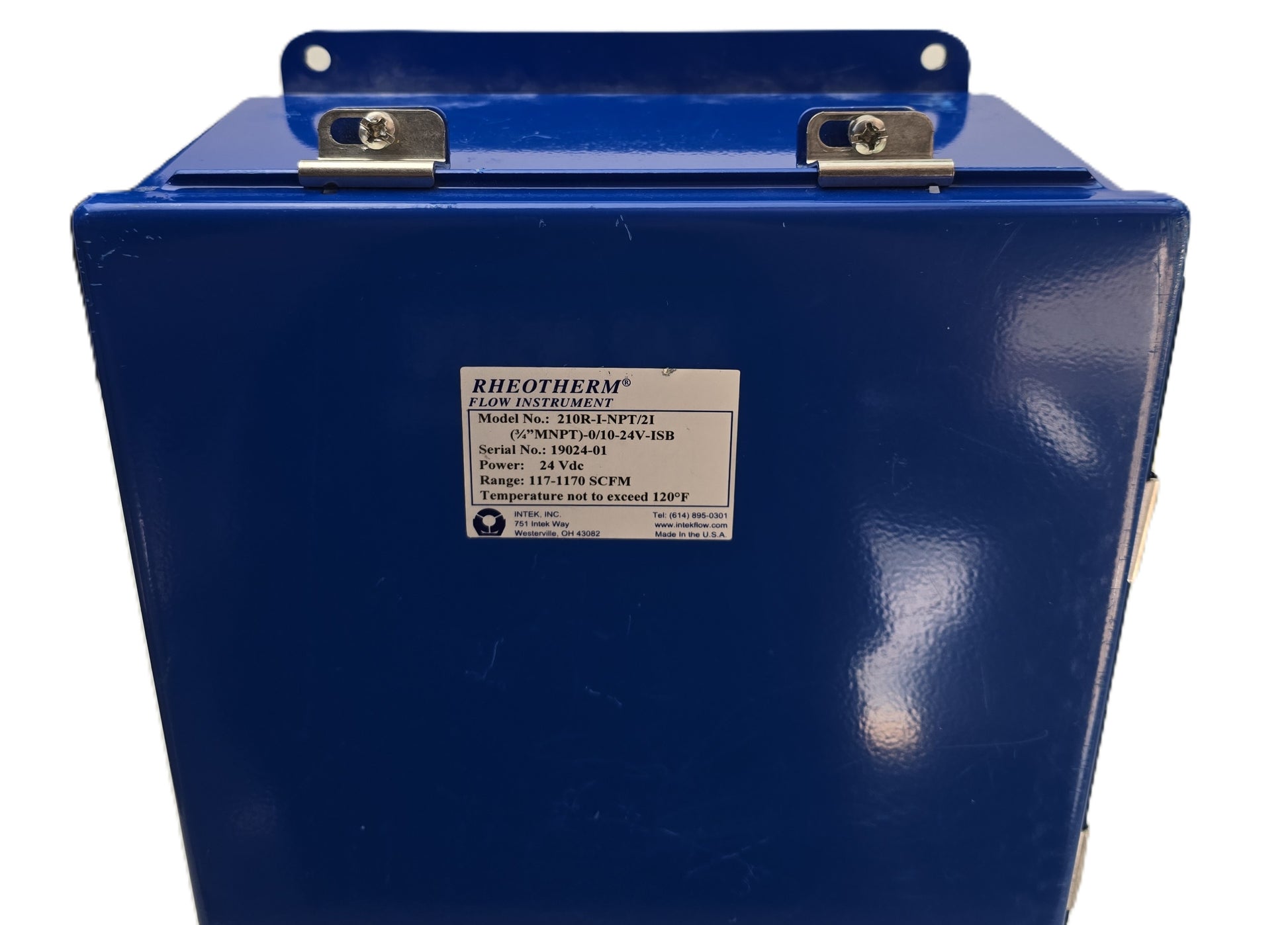

Industrial metal enclosure
Suitable for compressed air and gas monitoring
0-10V and 4-20mA signal capability
Made in USA
Typical Applications
Compressed air monitoring
Industrial gas flow measurement
Process control systems
Manufacturing facilities
Energy monitoring systems
Pneumatic systems
Plant utility monitoring
Industrial automation systems
Package Includes
1 × Rheotherm 210R-I-NPT/2I Flow Meter Assembly

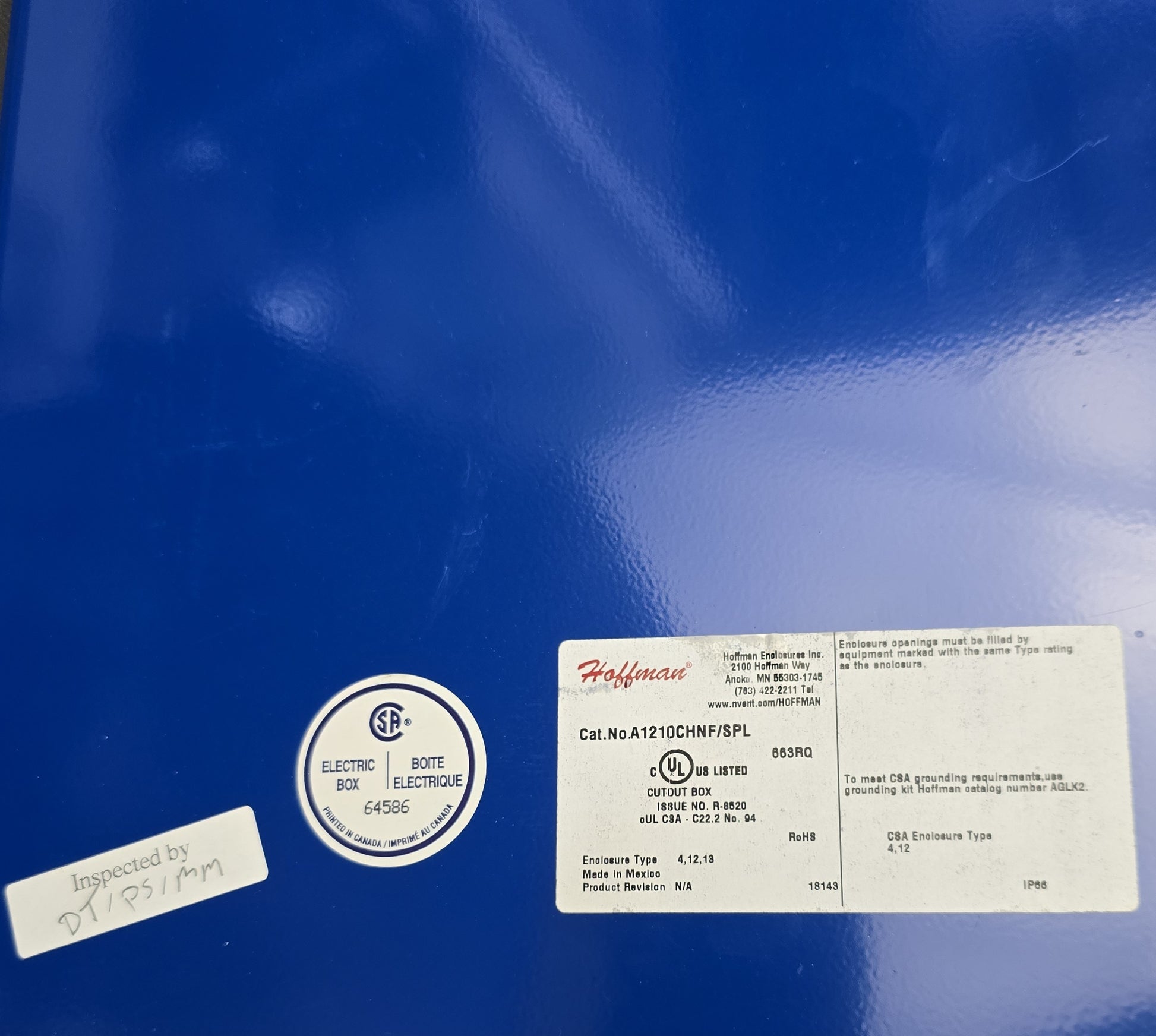

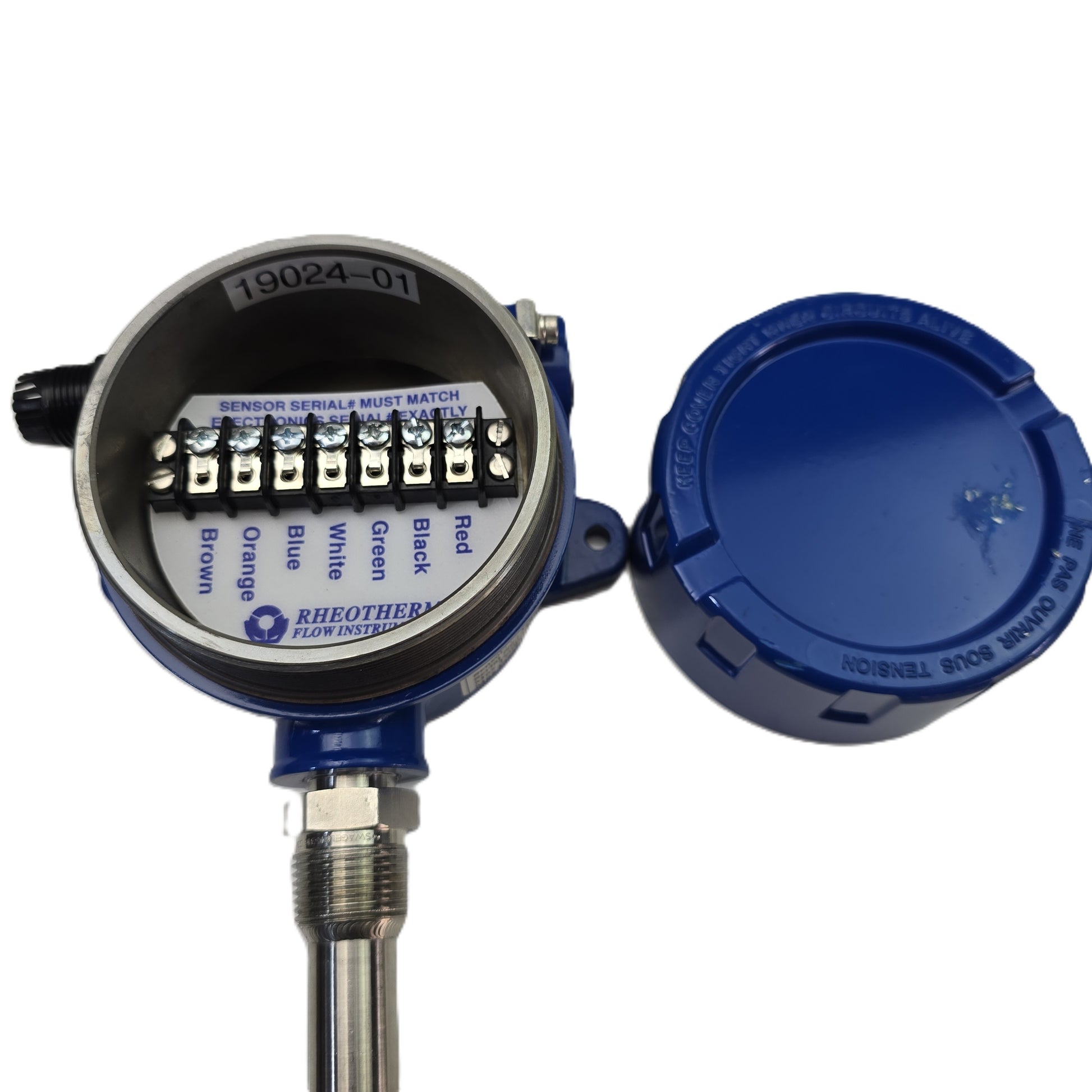

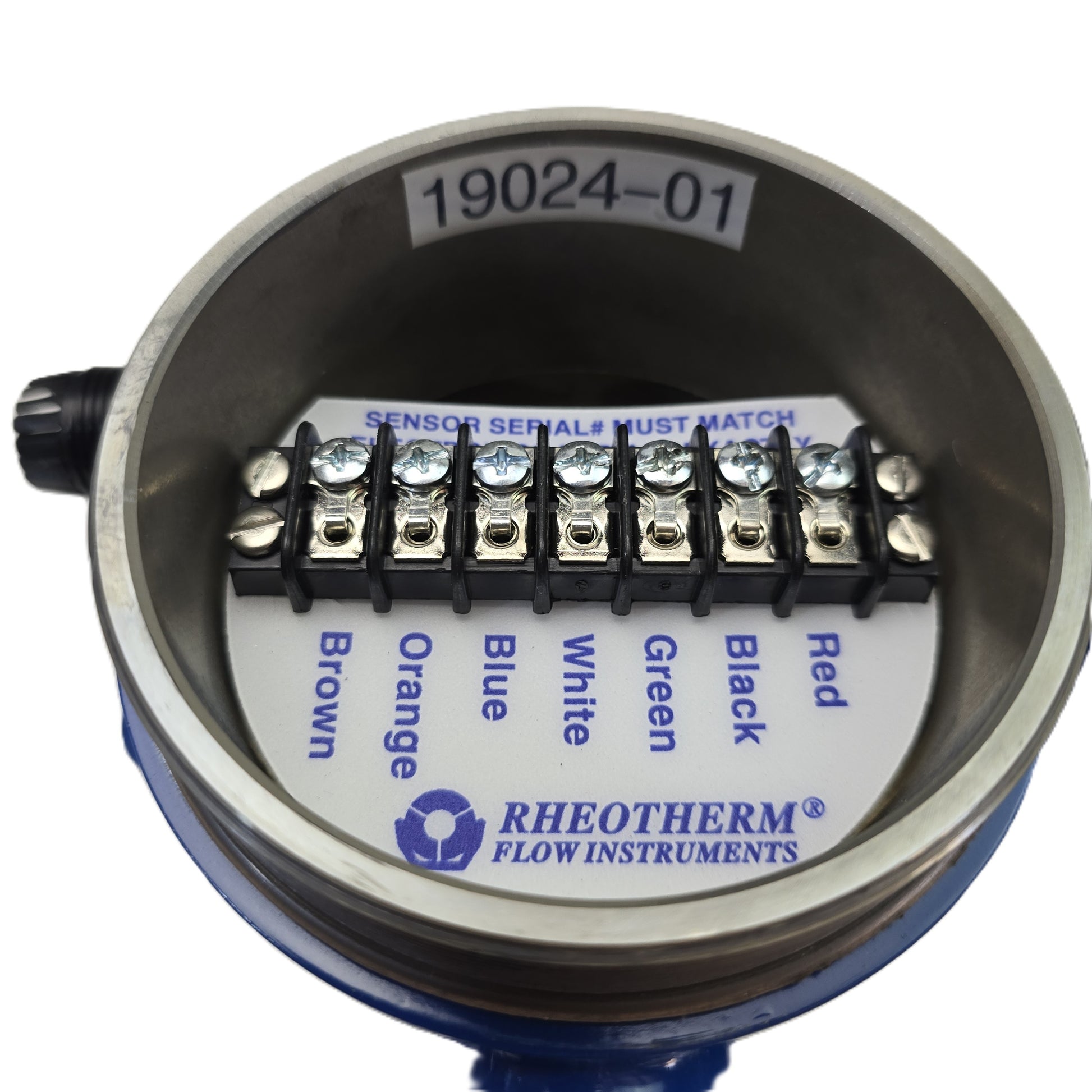

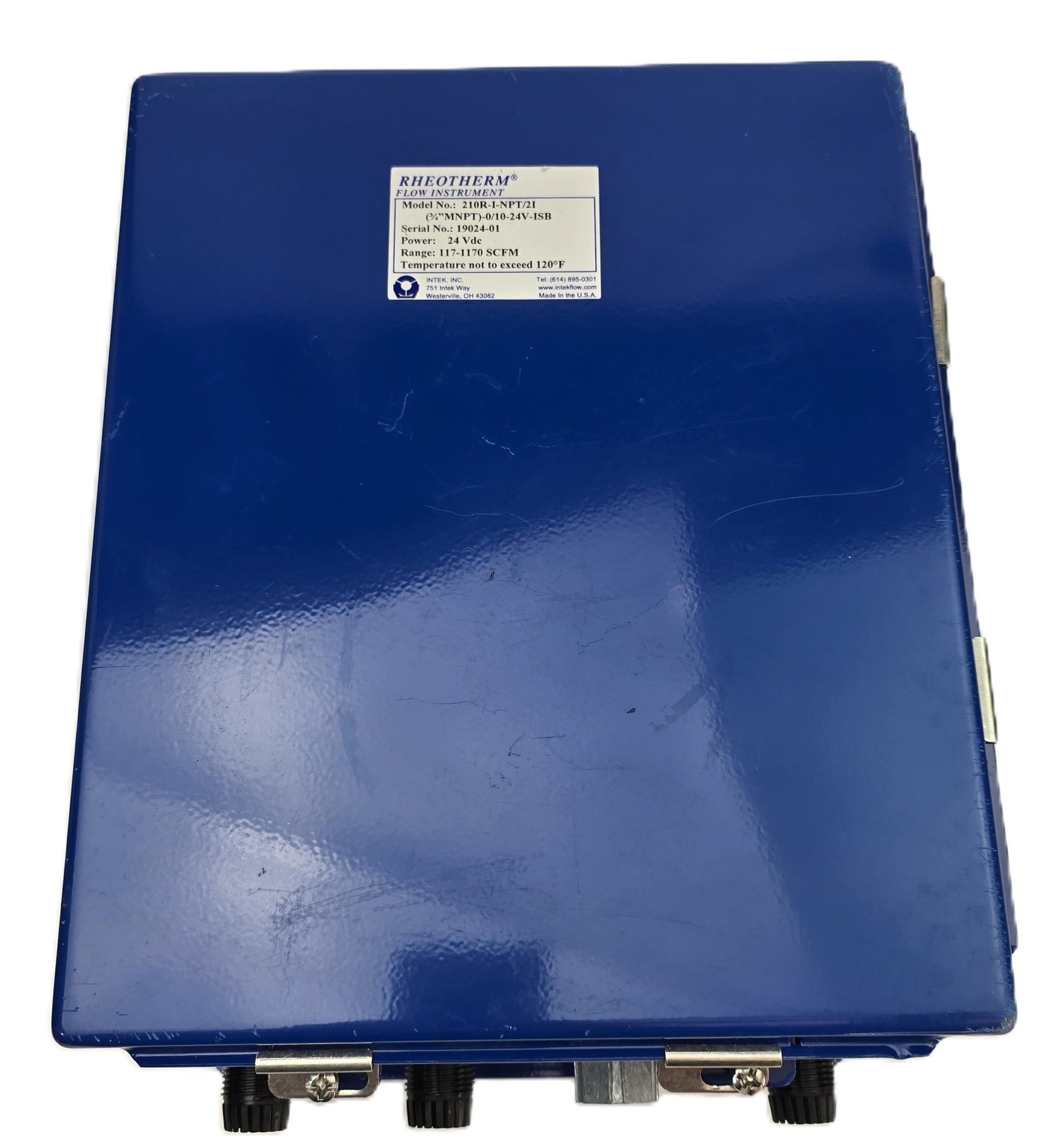

Remote electronics enclosure

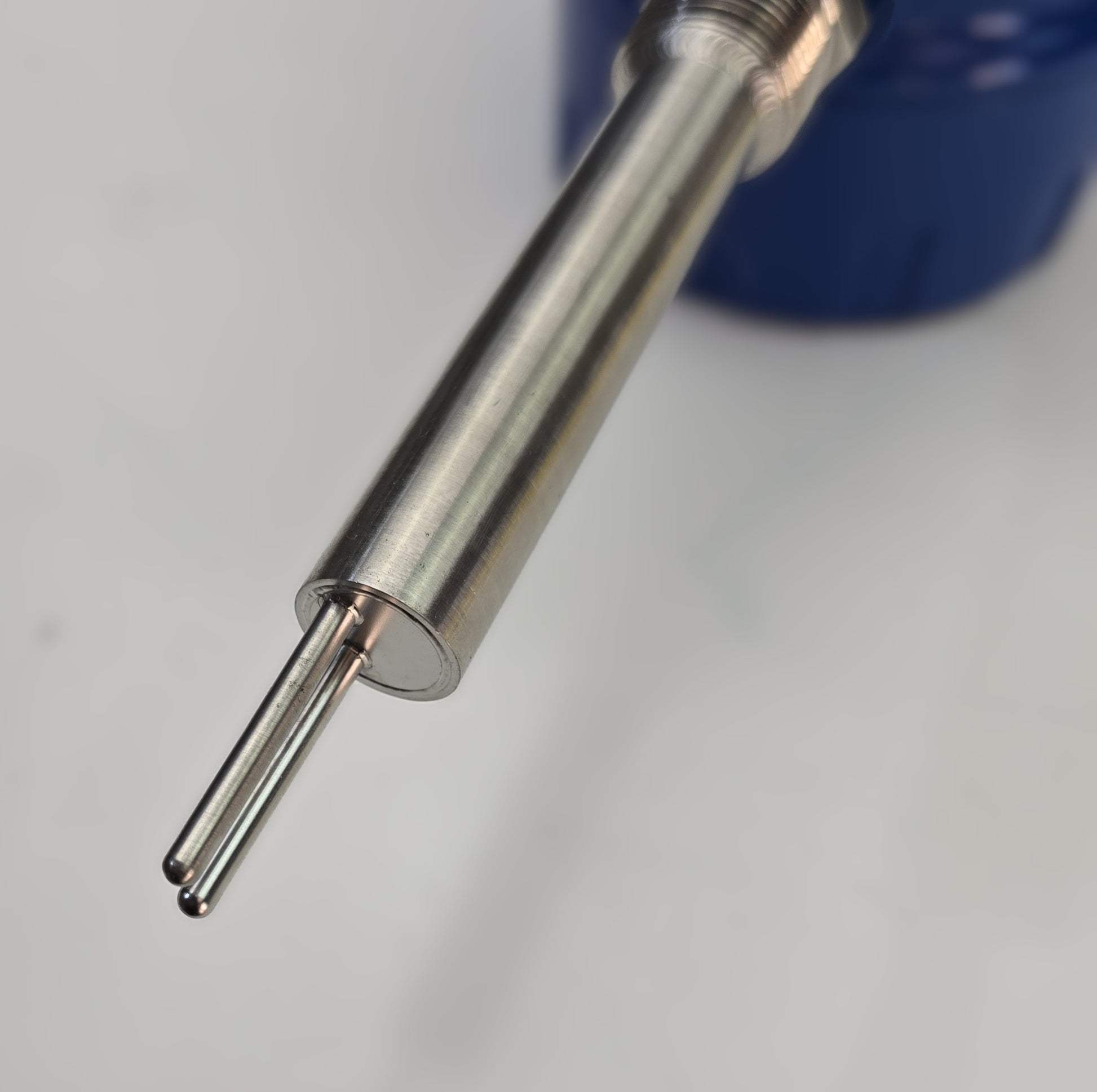

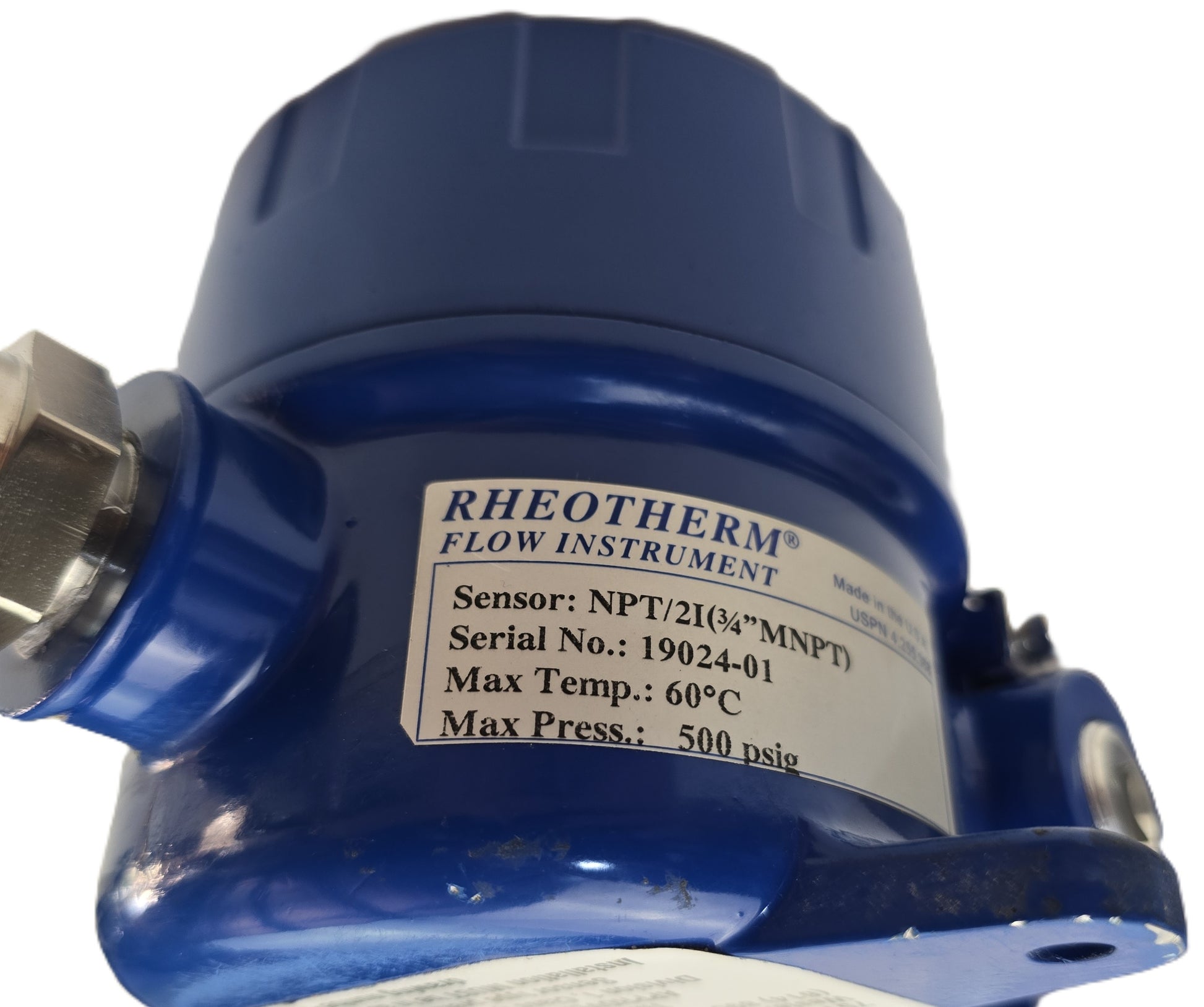

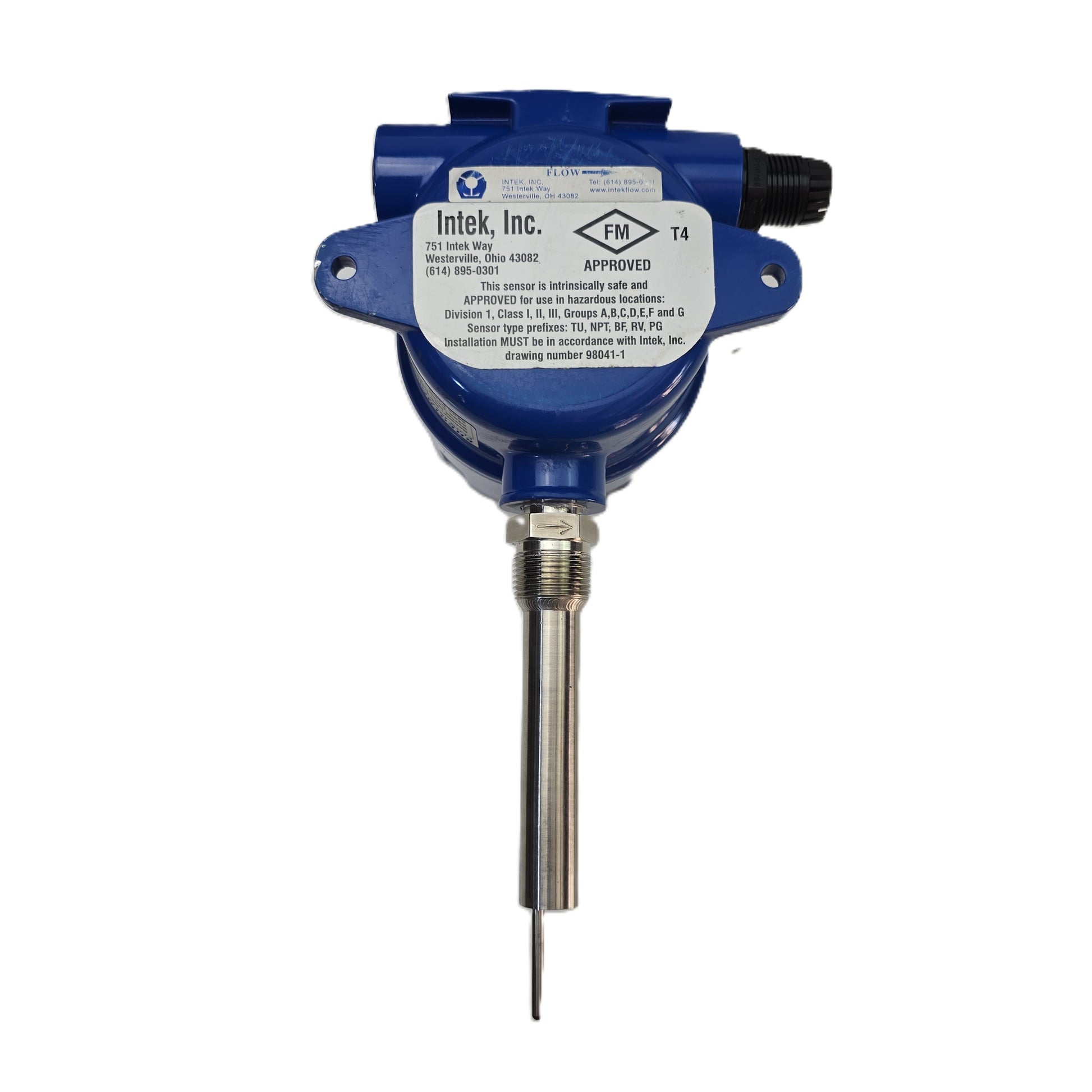

Integrated flow sensor assembly
Buyer will receive either Serial No. 19024-01 or Serial No. 19024-02
Additional Information

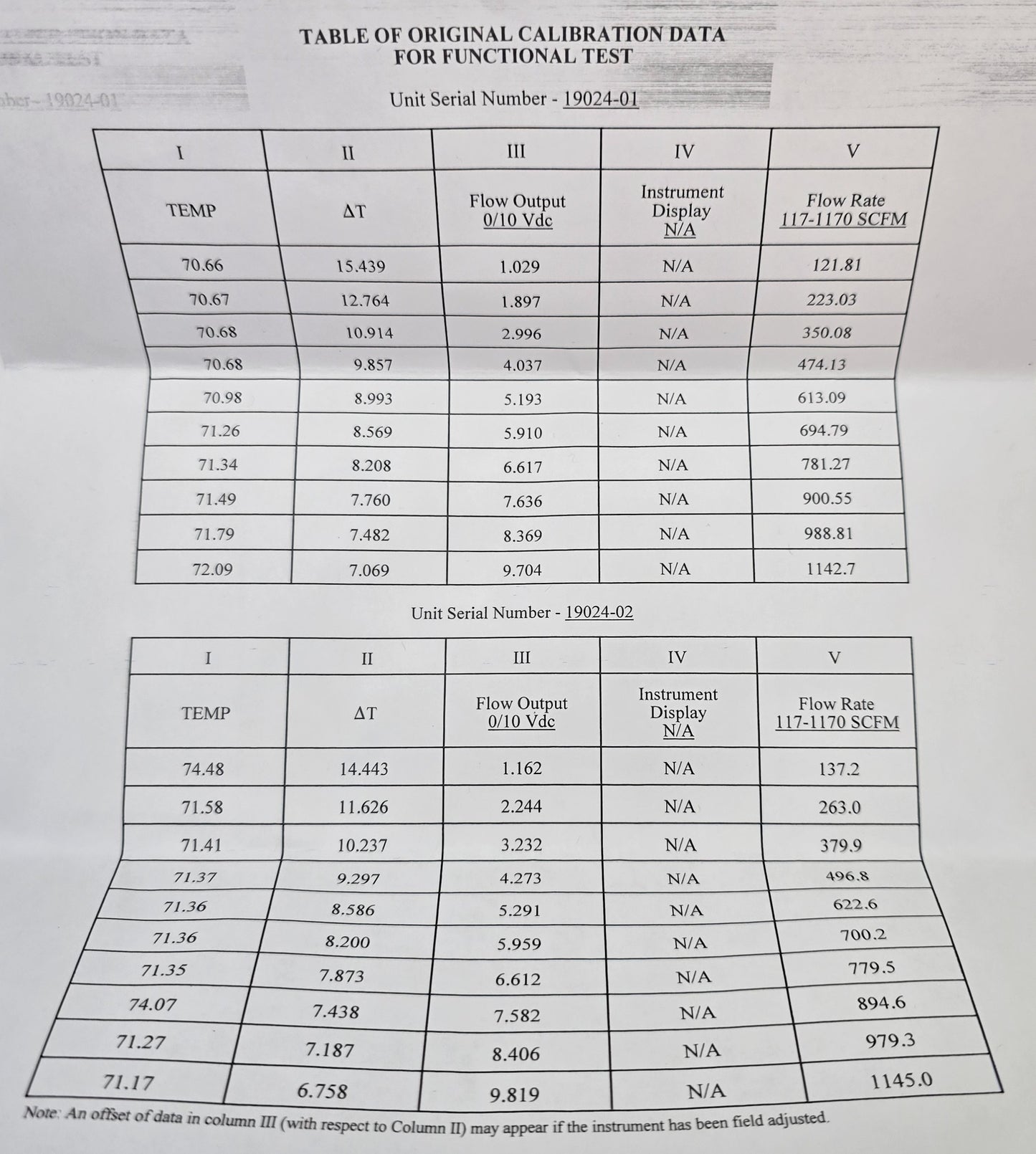

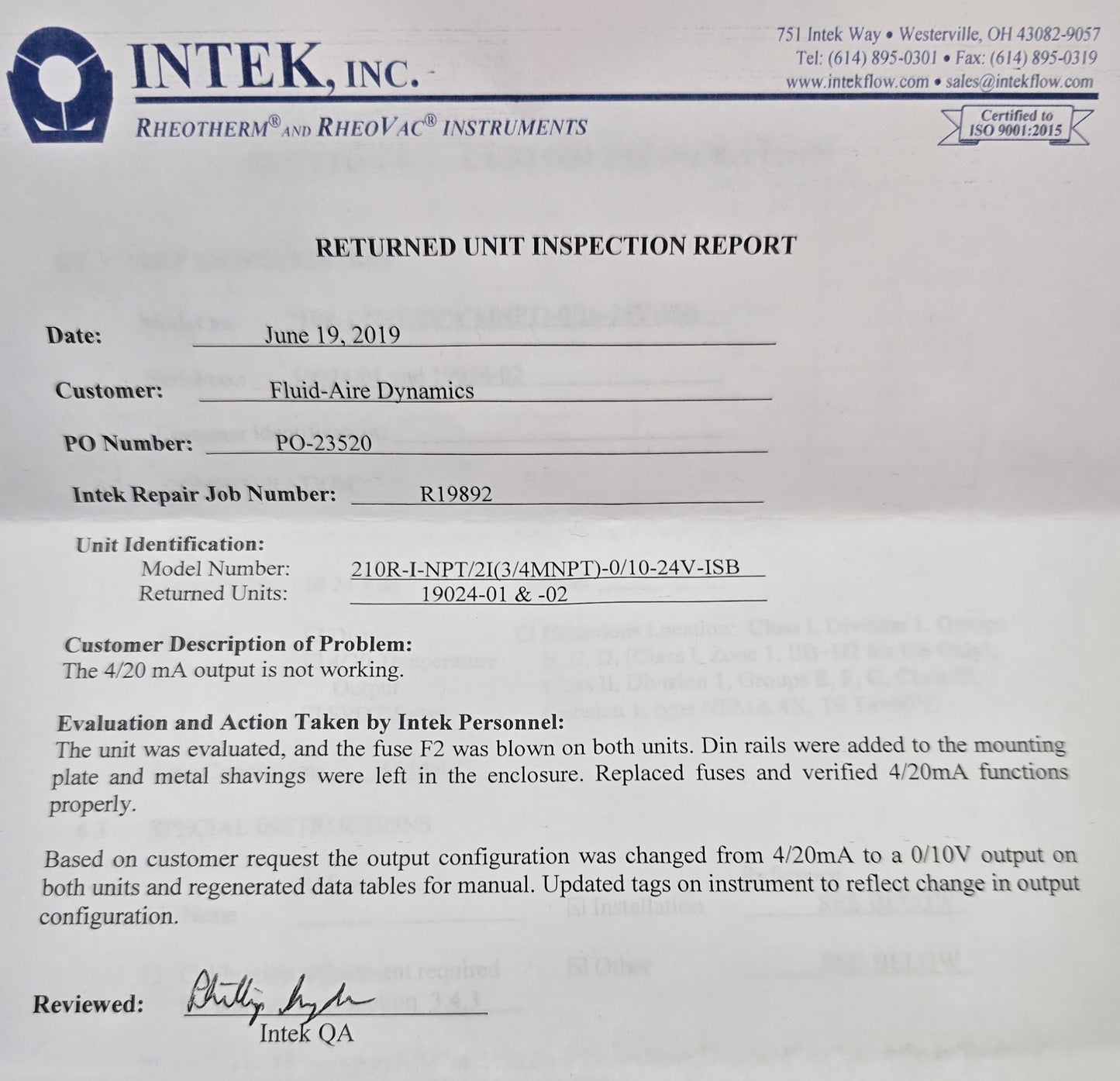

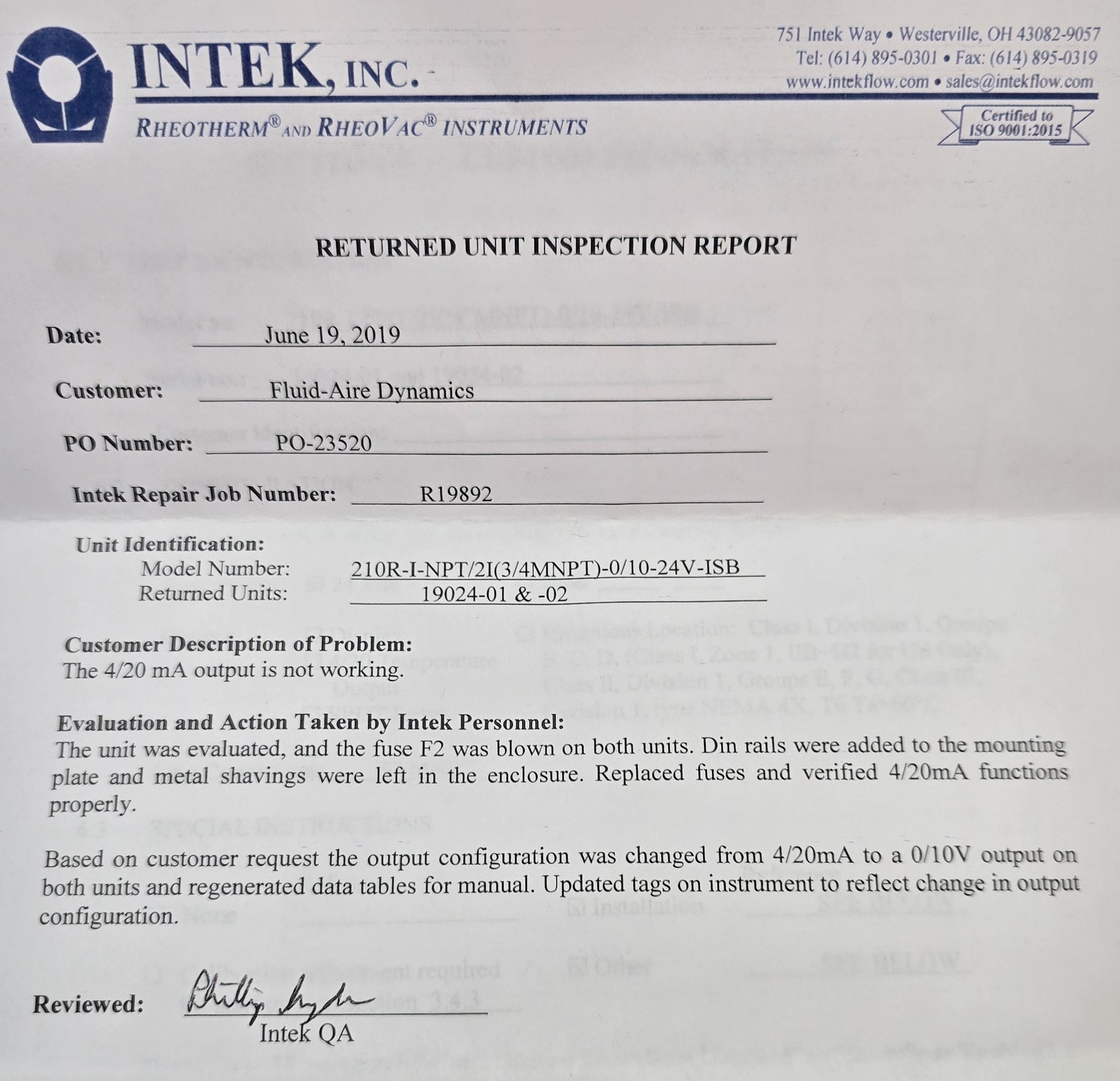

Intek inspection report dated June 2019 shown in listing photos.
Report states the 4-20mA output issue was investigated, fuses replaced and the unit tested by Intek personnel.
Buyer will receive one of two available units (Serial No. 19024-01 or 19024-02). Both units are the same model and specification.
