Revolabs 03-HDXLRMICEU-11 Executive HD Wireless XLR Adapter DECT EU (NEW In Box)

The Revolabs 03-HDXLRMICEU-11 is a wireless XLR plug-on adapter from the Revolabs Executive HD wireless microphone system. Revolabs was acquired by Yamaha and became Yamaha Unified Communications in June 2018, so this part is sold under both the Revolabs and Yamaha names with the part number unchanged. The unit fits onto the male XLR connector of an existing wired handheld or broadcast microphone and turns it into a wireless microphone on an Executive HD system.

It is not a microphone in itself, it has no capsule. Wireless transmission is DECT with 128 bit DSAA authentication and the 64 bit DECT standard cipher. The EU in the part number denotes the 1880 to 1900 MHz DECT band used across Europe, Asia, Africa and Australia, which is the correct band for Australian use. The unit runs on an internal lithium polymer battery giving up to 8 hours of talk time and charges in the Executive HD drop in charger base.

Specifications

Brand: Revolabs (Yamaha Unified Communications)

Range: Executive HD

Model: Executive HD Wireless XLR Adapter

Part Number: 03-HDXLRMICEU-11

Alternate Part Number: HDMICXLR

Product Type: Wireless XLR plug-on transmitter

Input Connector: Female 3 pin XLR

Microphone Support: Dynamic microphones only, no phantom power or bias is supplied

Wireless Technology: DECT, MC/TDMA/TDD

RF Band: 1880 to 1900 MHz (DECT EU)

Channel Spacing: 1.728 MHz

Maximum RF Output: 15.7 dBm

Encryption: 128 bit DSAA authentication with 64 bit DECT standard cipher

RF Range: Approximately 90 m line of sight

Battery: Lithium polymer, up to 8 hours talk time

Charging: Executive HD drop in charger base, approximately 2 hours to full

Frequency Response: 50 to 14,000 Hz in HD mode

Dimensions: 23 mm x 20 mm x 102 mm

Weight: Approximately 20 g

Operating Temperature: 5 to 40 degrees C

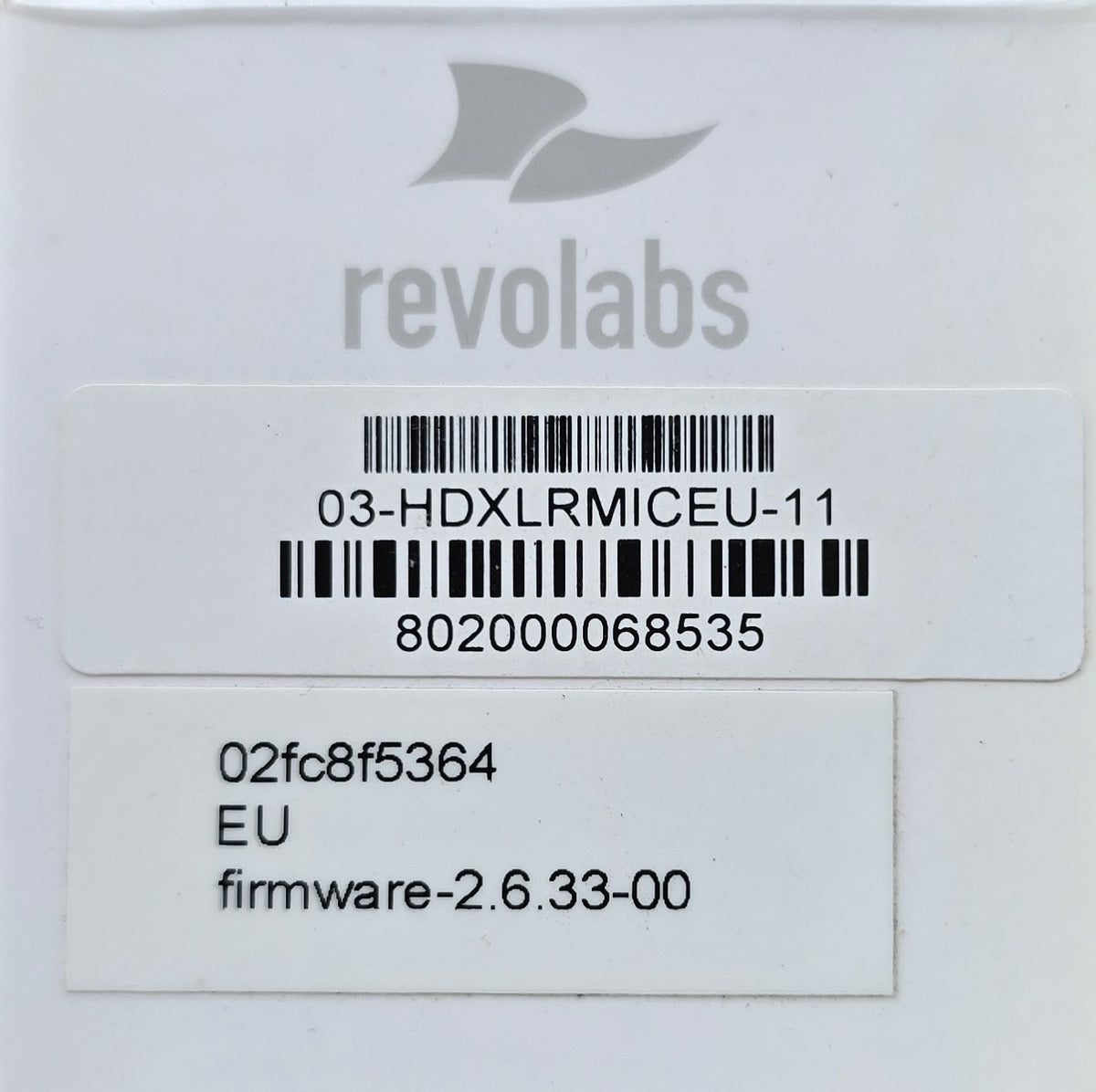

Serial Number: 802000068535

Firmware: 2.6.33-00

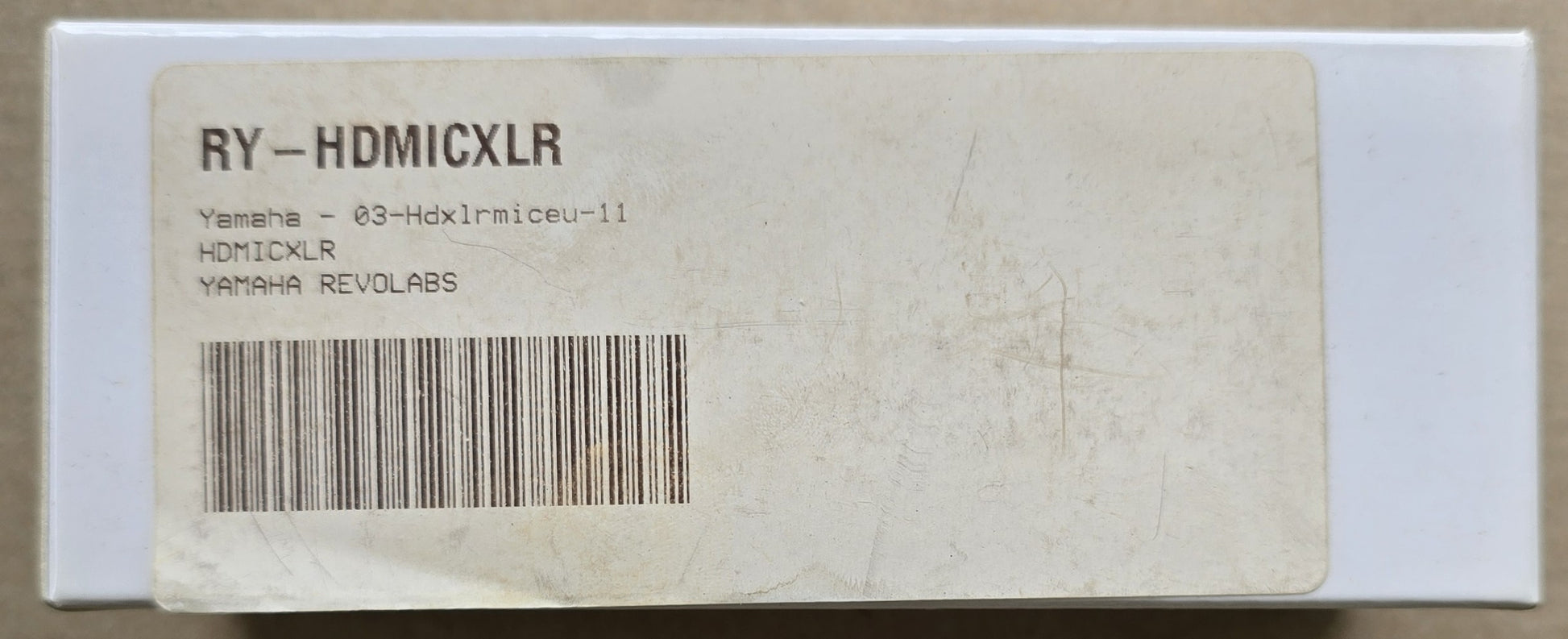

Condition: New, in the original box

Key Features

• Converts a wired dynamic microphone to wireless on an Executive HD system
• DECT 1880 to 1900 MHz EU band, the correct band for Australia
• Encrypted link with DSAA authentication and the DECT standard cipher
• Up to 8 hours talk time from the internal lithium polymer battery
• Comes out of the charger muted, so handling noise is not broadcast

Typical Applications

• Adding a roving handheld microphone to a boardroom conferencing system
• Town hall and presentation rooms already running Executive HD
• Replacing a lost or failed XLR adapter in an existing installation
• Courtroom, council chamber and lecture theatre audio

Package Includes

• 1 x Revolabs 03-HDXLRMICEU-11 wireless XLR adapter
• No microphone, charger base, base station or power supply is included

Additional Information

This adapter does not work on its own. It requires a matching EU region Revolabs Executive HD base station, part number 03-HDEXECEU-NM or 03-HDEXEC4EU-NM, together with the Executive HD charger base. A North American base will not pair with this unit. It is not compatible with the Revolabs Executive Elite range, which uses a different microphone family.

The adapter supplies no phantom power or bias current, so it suits dynamic microphones only and will not operate a condenser or electret microphone.

The Revolabs Executive HD range is discontinued by Yamaha. The internal lithium polymer battery is not user replaceable and its condition has not been tested. Yamaha does not publish a country of origin for this part, so none is stated.

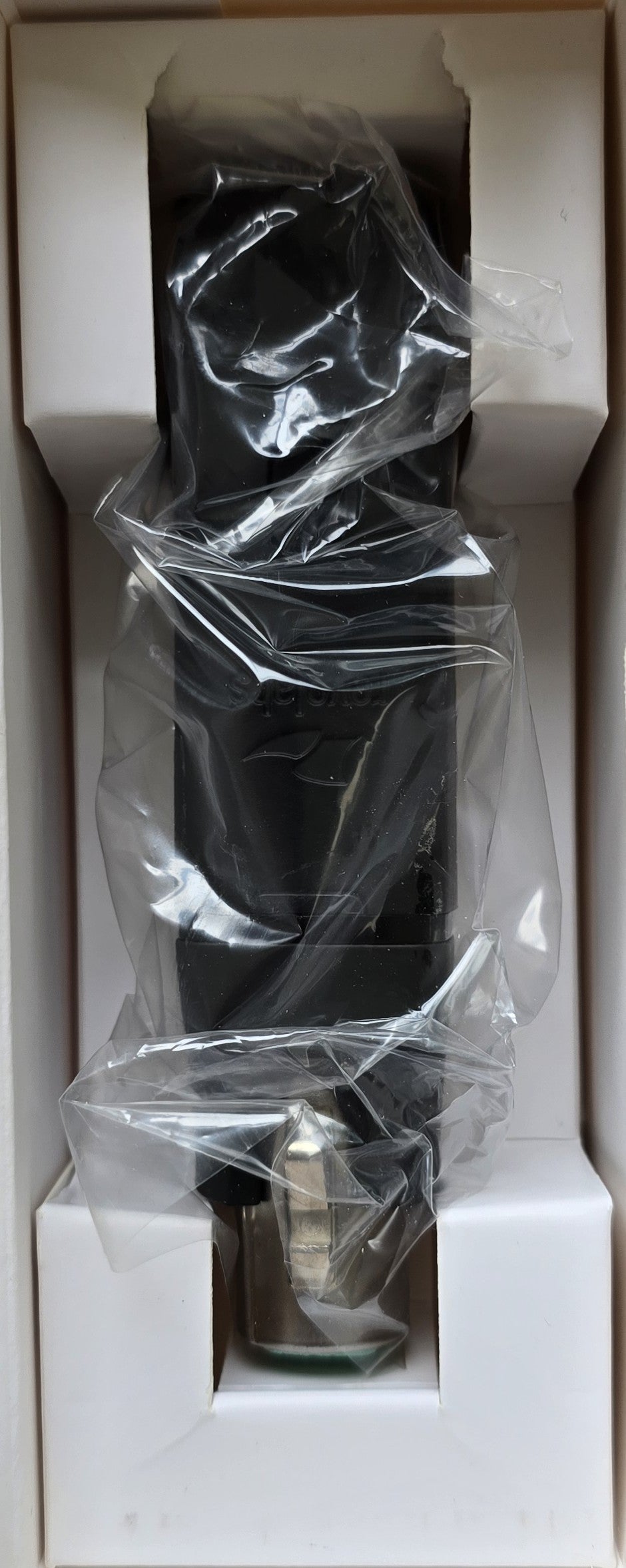

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
