Revolabs 03-HDEXEMICEU-11 Executive HD Wearable Wireless Mic DECT (NEW In Box)

The Revolabs 03-HDEXEMICEU-11 is a wearable wireless microphone from the Revolabs Executive HD wireless microphone system. Revolabs was acquired by Yamaha and became Yamaha Unified Communications in June 2018, so this part is sold under both the Revolabs and Yamaha names with the part number unchanged. The microphone clips to a pocket or lapel using its integral rotating clip, or hangs from the supplied lanyard.

Wireless transmission is DECT with 128 bit DSAA authentication and the 64 bit DECT standard cipher. The EU in the part number denotes the 1880 to 1900 MHz DECT band used across Europe, Asia, Africa and Australia, which is the correct band for Australian use. The microphone runs on an internal lithium polymer battery giving up to 8 hours of talk time and charges in the Executive HD drop in charger base. A 2.5 mm sub miniature output allows the supplied earpiece to be used for monitoring.

Specifications

Brand: Revolabs (Yamaha Unified Communications)

Range: Executive HD

Model: Executive HD Wearable Wireless Microphone

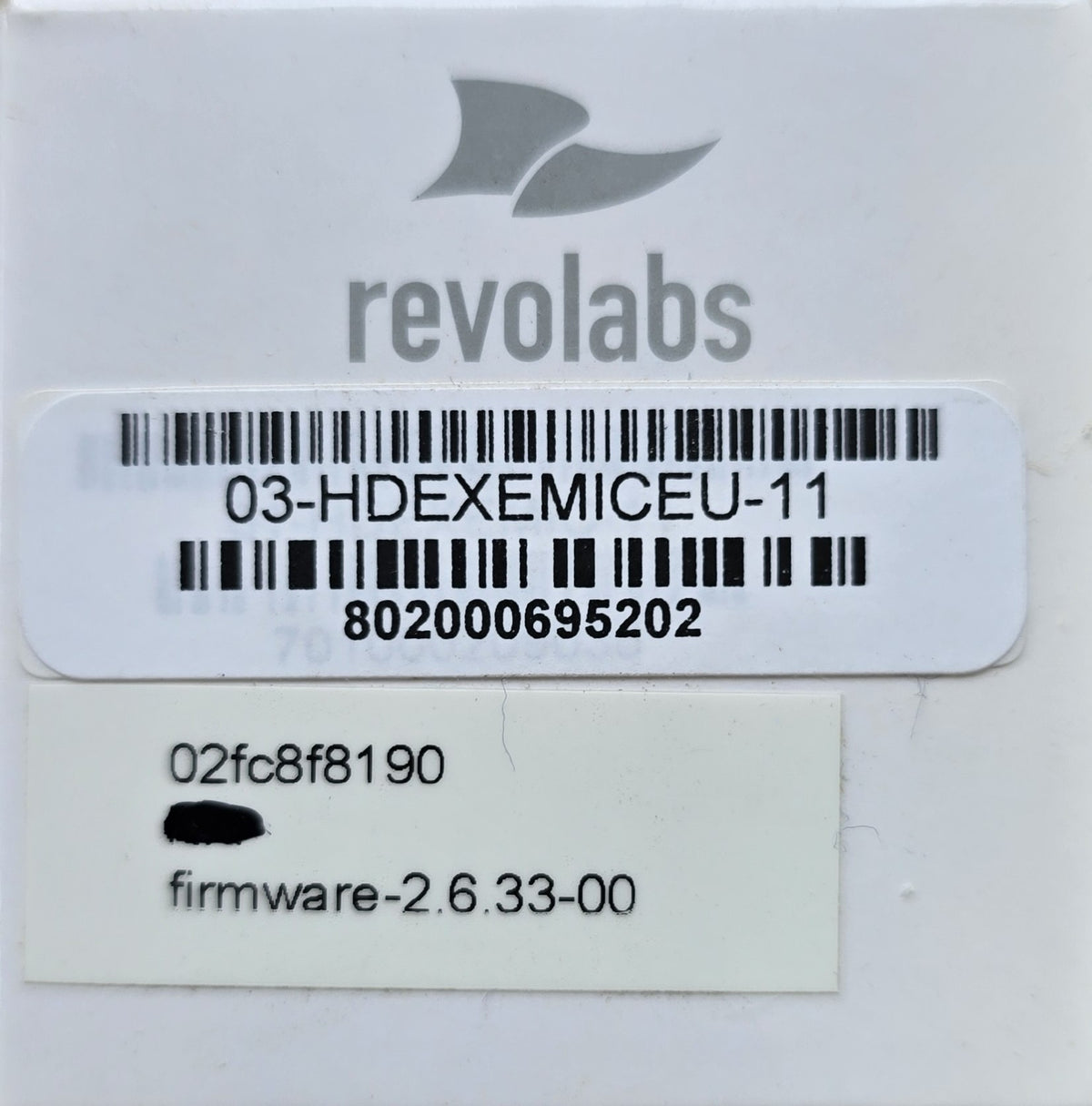

Part Number: 03-HDEXEMICEU-11

Alternate Part Number: HDMICWEAR

Product Type: Wearable lapel wireless microphone

Polar Pattern: Omnidirectional

Wireless Technology: DECT, MC/TDMA/TDD

RF Band: 1880 to 1900 MHz (DECT EU)

Channel Spacing: 1.728 MHz

Maximum RF Output: 15.7 dBm

Encryption: 128 bit DSAA authentication with 64 bit DECT standard cipher

RF Range: Approximately 90 m line of sight

Battery: Lithium polymer, up to 8 hours talk time

Charging: Executive HD drop in charger base, approximately 2 hours to full

Frequency Response: 50 to 14,000 Hz in HD mode

Monitoring Output: 2.5 mm sub miniature earpiece jack

Dimensions: 23 mm x 20 mm x 66 mm

Weight: Approximately 20 g

Operating Temperature: 5 to 40 degrees C

Barcode: 5054629254240

Condition: New, in the original box

Key Features

• Wearable body worn microphone with an integral rotating clothing clip
• DECT 1880 to 1900 MHz EU band, the correct band for Australia
• Encrypted link with DSAA authentication and the DECT standard cipher
• Up to 8 hours talk time from the internal lithium polymer battery
• Earpiece with inline volume control and a lanyard supplied
• Comes out of the charger muted, so handling noise is not broadcast

Typical Applications

• Presenters and chairpersons in boardrooms running Executive HD
• Lecture theatres, training rooms and council chambers
• Hands free speech pickup where a tabletop microphone is not practical
• Adding a wearable channel to an existing Executive HD installation

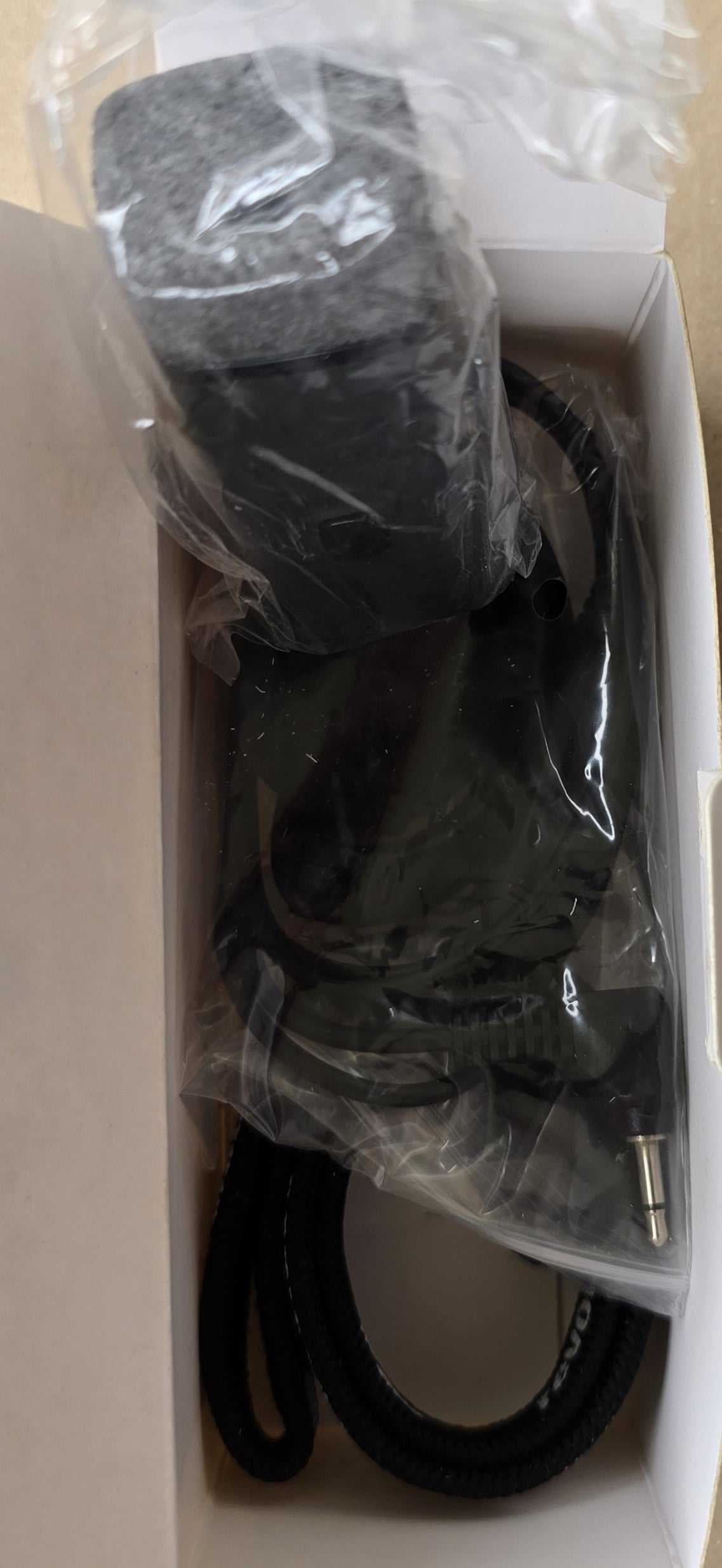

Package Includes

• 1 x Revolabs 03-HDEXEMICEU-11 wearable wireless microphone
• 1 x earpiece with inline volume control
• 1 x lanyard
• No charger base, base station or power supply is included

Additional Information

This microphone does not work on its own. It requires a matching EU region Revolabs Executive HD base station, part number 03-HDEXECEU-NM or 03-HDEXEC4EU-NM, together with the Executive HD charger base. A North American base will not pair with this unit. It is not compatible with the Revolabs Executive Elite range, which uses a different microphone family.

The Revolabs Executive HD range is discontinued by Yamaha. The internal lithium polymer battery is not user replaceable and its condition has not been tested. Yamaha does not publish a country of origin for this part, so none is stated.

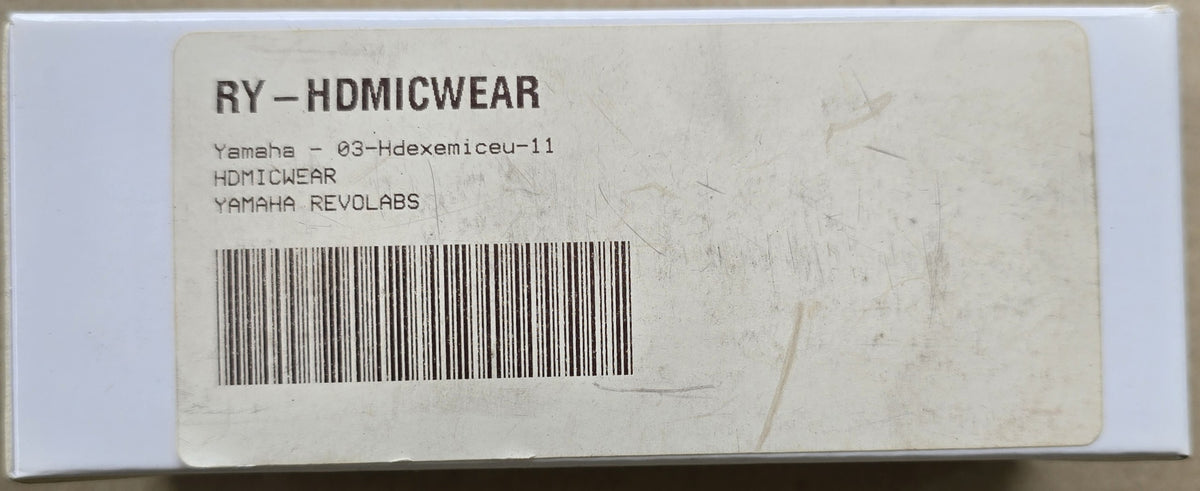

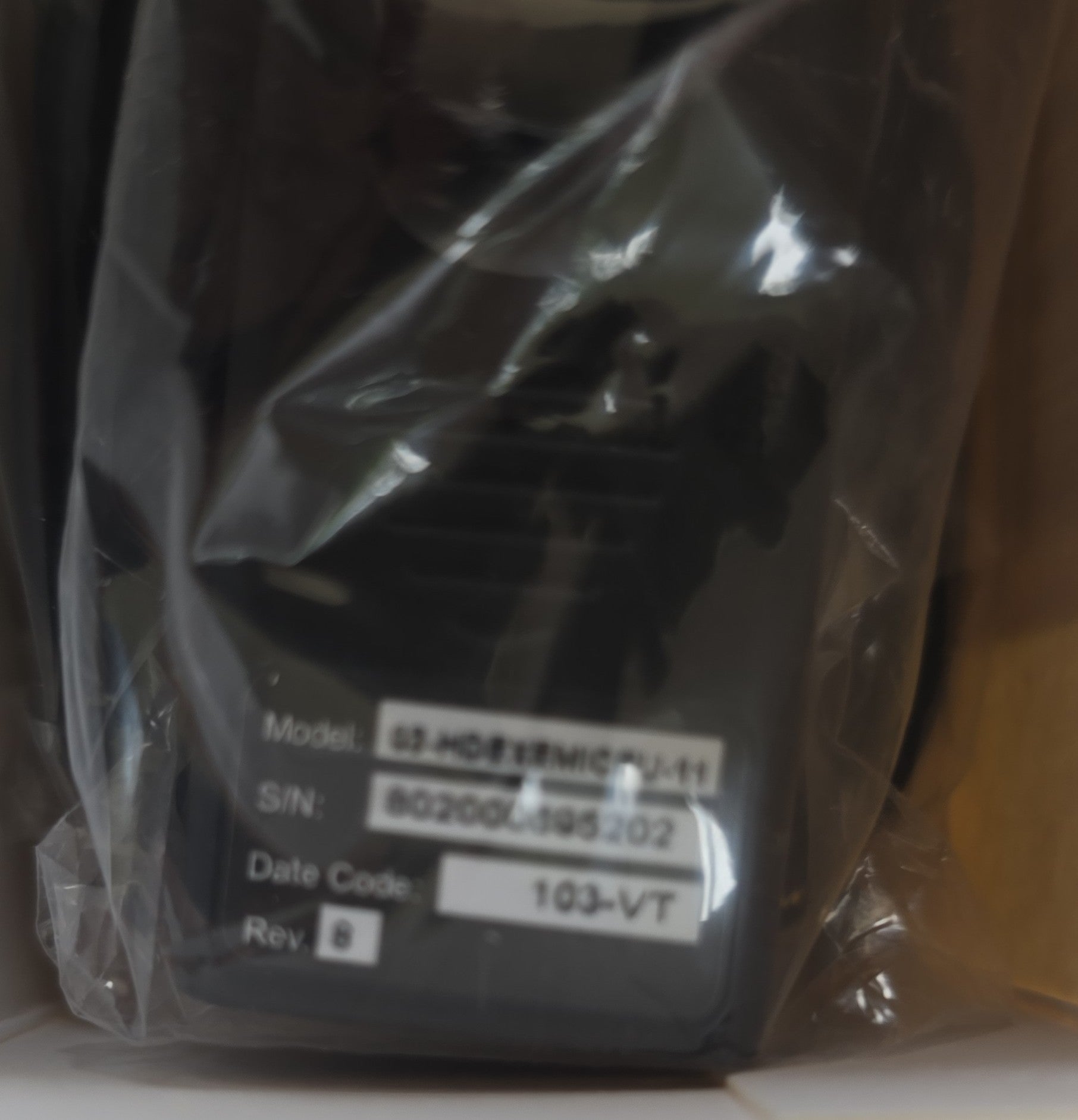

The item is new in the manufacturer's original packaging. The box has been opened to photograph and verify the contents.

Shipping from Sydney, Australia.
