Renesas YRPBRL78L12 Evaluation Board – RL78/L12 MCU Promotional Kit
Brand: Renesas Electronics
Model: YRPBRL78L12
Series: RL78/L12 Family
Type: Evaluation / Development Board
Part Number: RPB-RL78-L12
Microcontroller: RL78/L12 (R5F10xx Series)
Features: On-board LCD, LEDs, switches, USB interface
Power Supply: USB powered
Condition: New (sealed package)
Country of Origin: Japan
HS Code: 854239
Description
The Renesas YRPBRL78L12 Promotional Board is designed for rapid evaluation of the RL78/L12 microcontroller series, enabling developers to explore the device’s low-power performance and rich peripheral set.

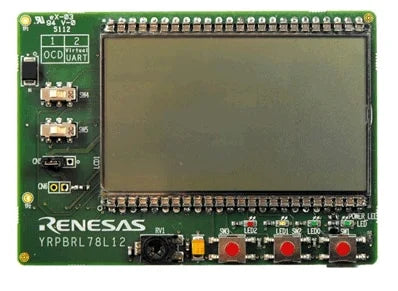

This compact board includes an on-board LCD display, user switches, LEDs, and a USB interface for quick connection to a PC. It’s ideal for learning, prototyping, or demonstrating Renesas RL78 features.
Specifications
| Parameter | Description |
|---|---|
| MCU Family | RL78/L12 |
| Core | RL78 (16-bit) |
| Clock Speed | Up to 32 MHz |
| Memory | Flash, RAM, and data EEPROM (on-chip) |
| Interfaces | USB, UART, I²C, SPI |
| Power Supply | 5 V via USB |
| User Controls | 5 push buttons, 4 LEDs |
| Display | Segment LCD (built-in) |
| Connectivity | On-board E1/E2 programming connector |
| Software Tools | e² studio, CS+ IDE, compiler support |
| Included | Evaluation board, CD with documentation and software, packaging |
Applications
• MCU evaluation and training
• Embedded system prototyping
• Educational and lab projects
• Firmware development for RL78/L12 devices
Dimensions & Weight

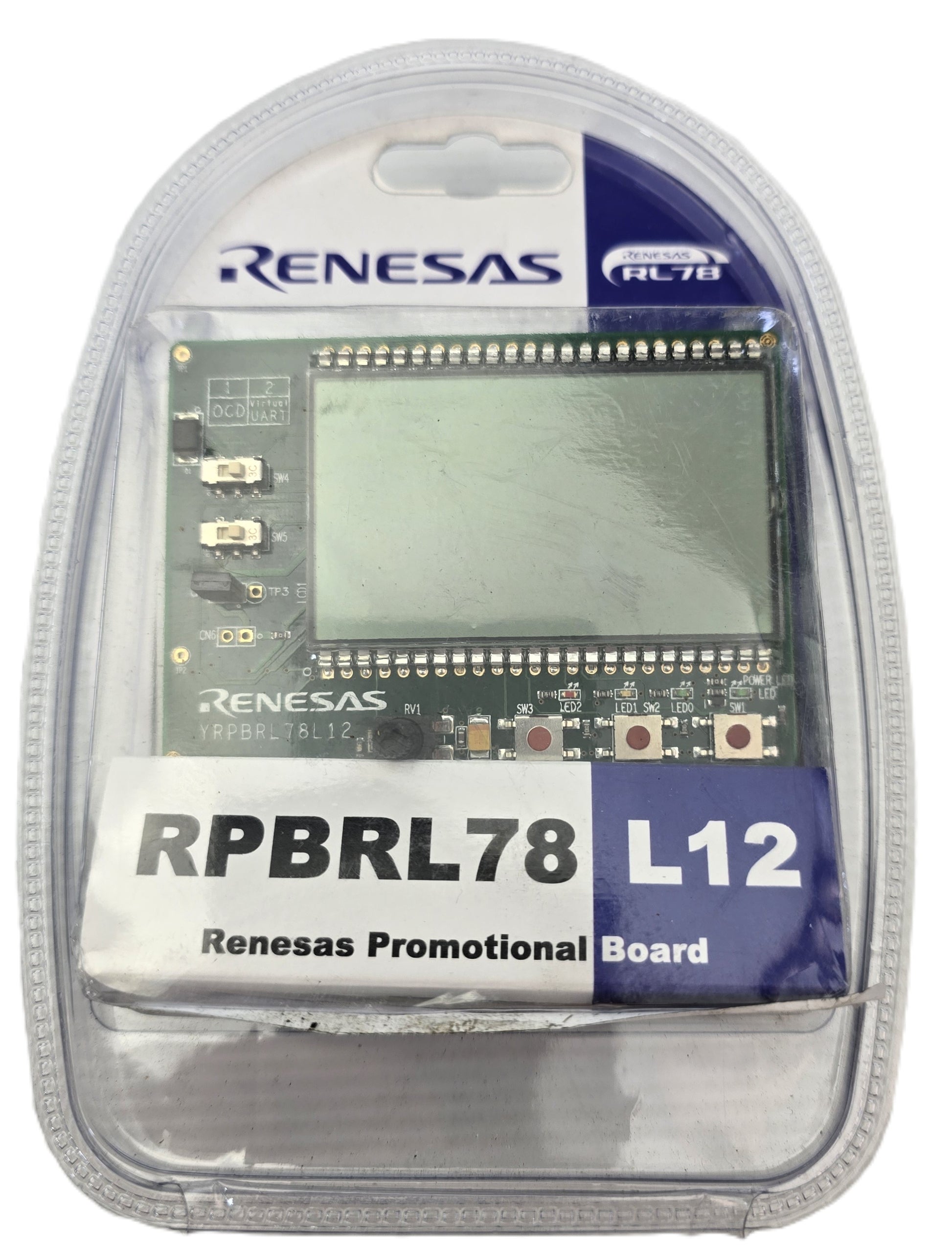

Approximate Size: 130 × 90 × 25 mm (in clamshell packaging)
Weight: 110 g
Shipping
Ships from Australia – packed safely in anti-static and bubble-wrapped packaging.
