Piston Ring

Crucial components in internal combustion engines, piston rings serve several important functions.

Material

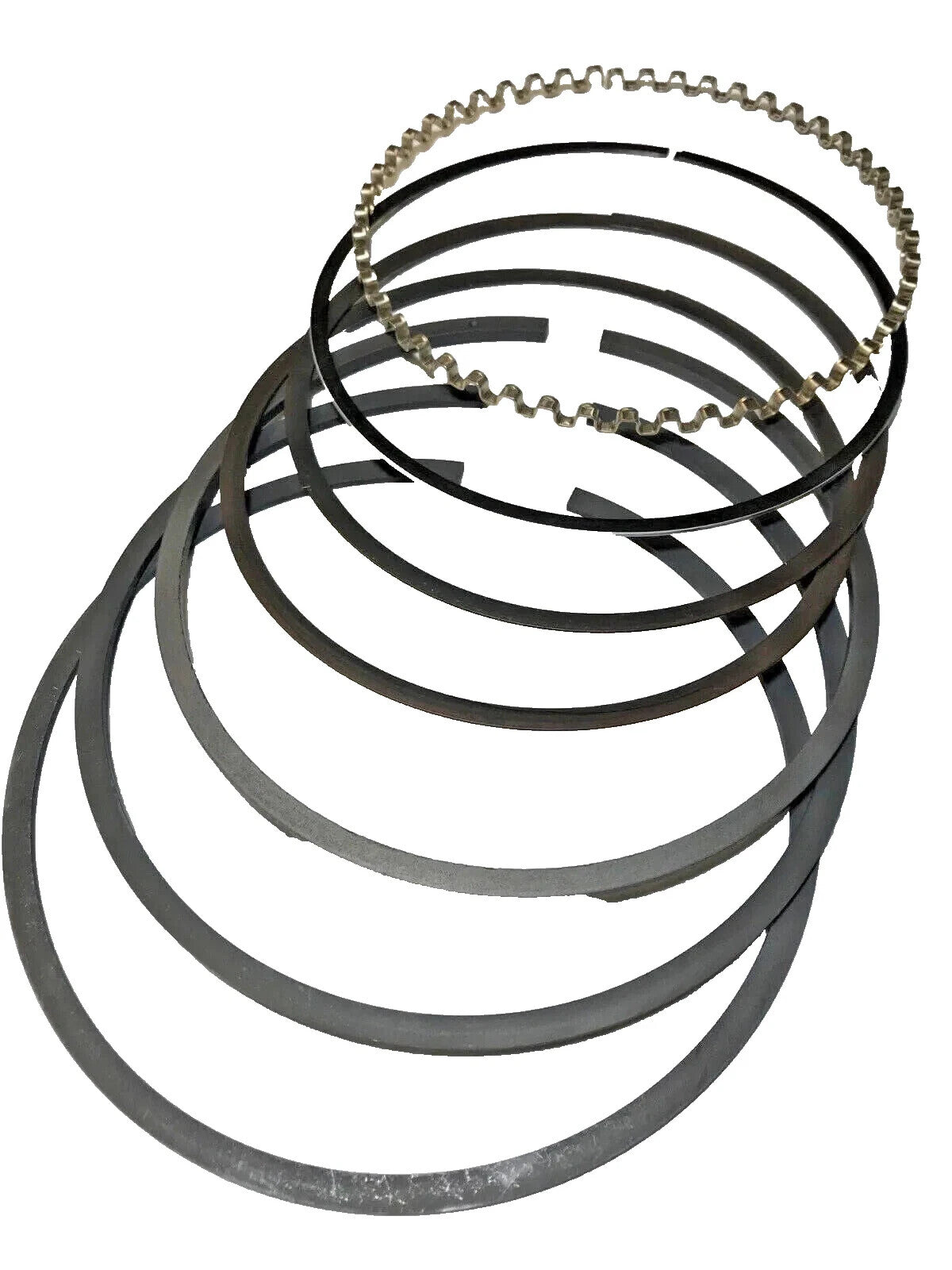

Piston rings are typically made of cast iron or steel and are shaped as circular bands that fit into grooves around the piston.

Benefits

Sealing – The primary function of piston rings is to seal the combustion chamber. They prevent the escape of combustion gases, ensuring the engine maintains power and efficiency.

Oil Control – Oil control rings regulate the amount of oil that reaches the combustion chamber. They scrape excess oil off the cylinder walls, preventing it from burning and causing smoke.

Heat Transfer – Piston rings help transfer heat from the piston to the cylinder wall, which is essential for cooling the piston and maintaining optimal operating temperatures.

Operation

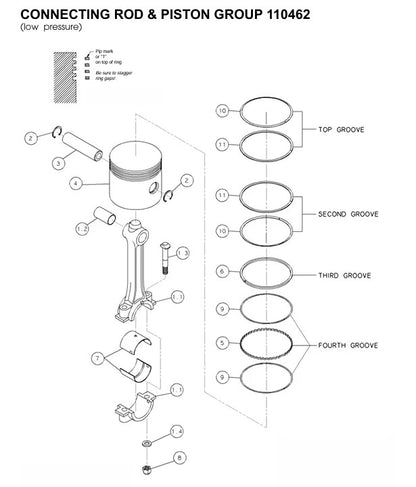

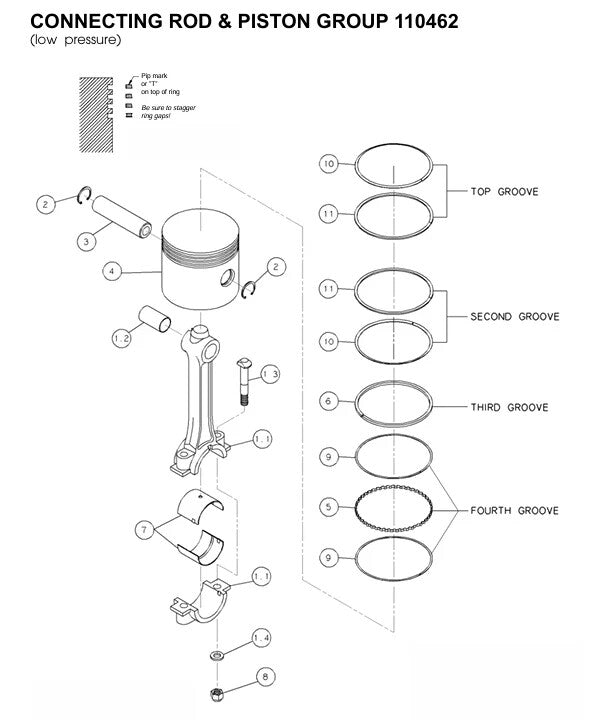

Compression Rings – Located at the top of the piston, these withstand high pressure from combustion gases. As the engine operates, the rings expand against the cylinder walls to seal the combustion chamber.

Oil Control Rings – Positioned below the compression rings, these manage the oil film on the cylinder walls and prevent excessive oil from entering the combustion chamber. This helps reduce emissions and prevents spark plug fouling.

Functioning Under Pressure – As the piston moves, the rings maintain contact with the cylinder wall through combustion pressure and ring tension. This tight seal is critical for engine efficiency.

Summary

Piston rings are vital for the performance and longevity of an engine. They ensure efficient sealing, control oil consumption, and aid in heat dissipation—contributing to overall engine efficiency and reliability.
