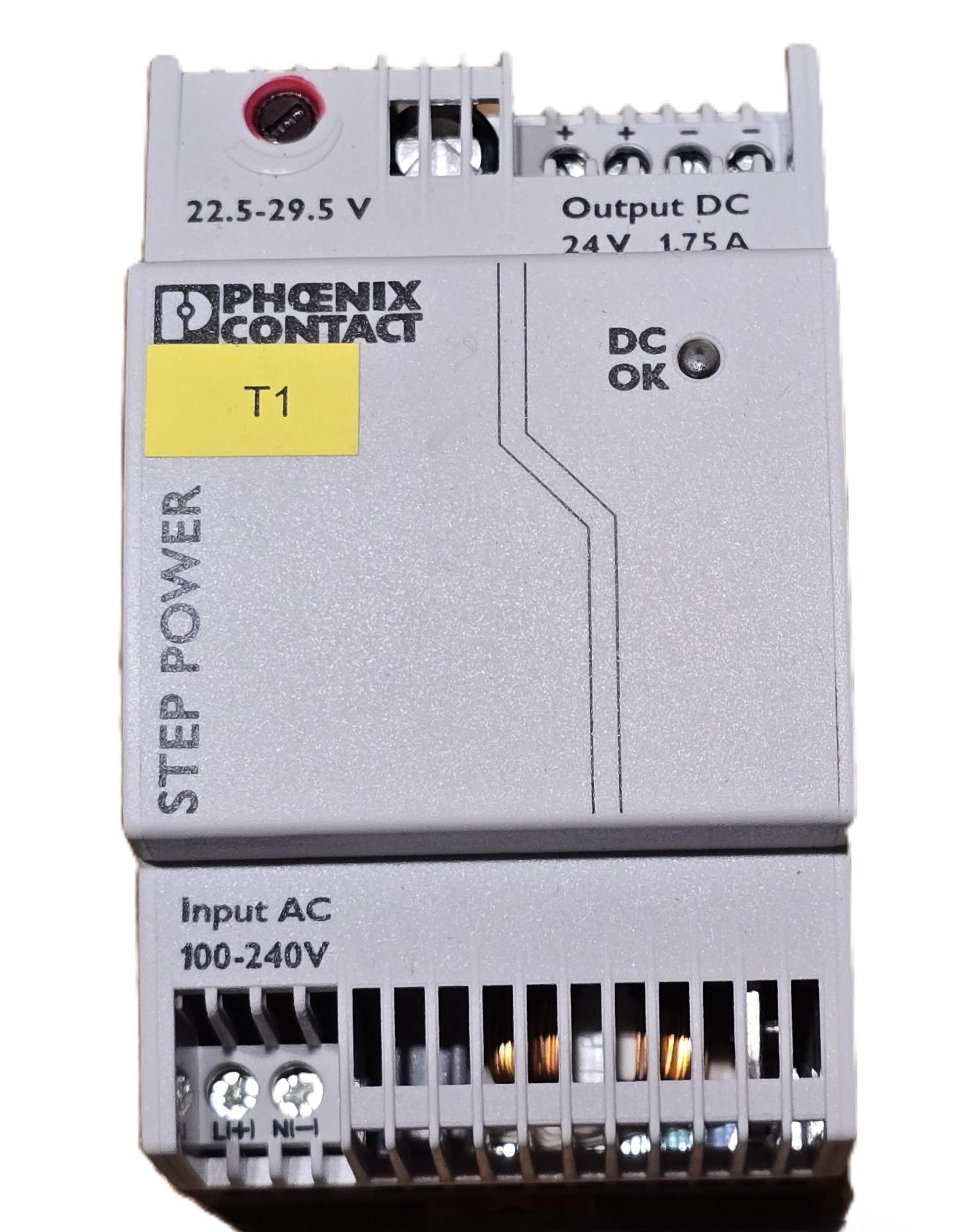

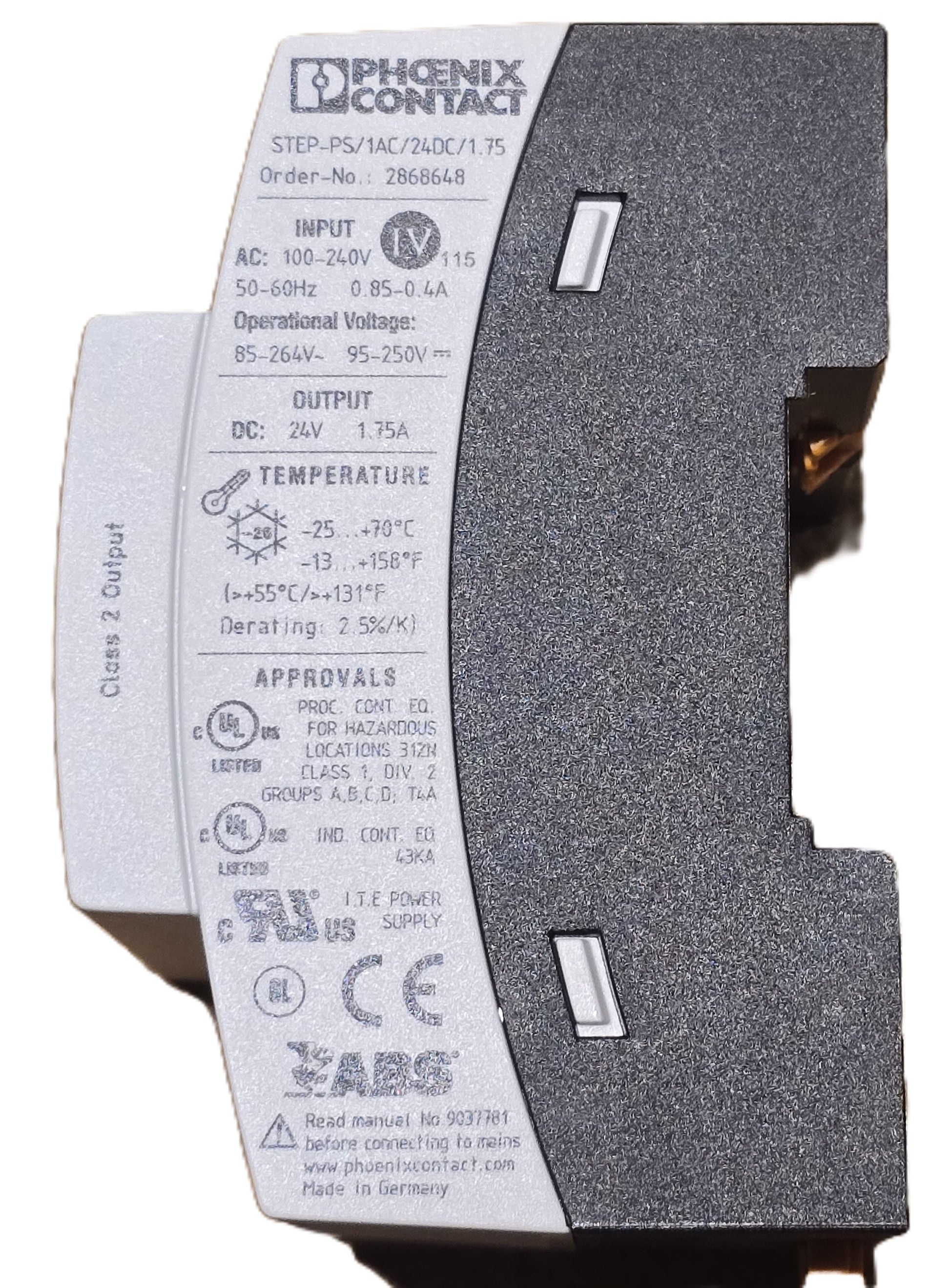

Phoenix Contact 2868648 DIN Power Supply 100–240VAC, 24VDC 1.75A (Pre-owned)

Phoenix-Contact STEP-PS/1AC/24DC/1.75 Power Supply 24V 1.75A 100-240V AC

Description:

Brand: Phoenix Contact
Model: STEP-PS/1AC/24DC/1.75
Type: Industrial DIN Rail Power Supply
Input Voltage: 100–240V AC, 50/60Hz (0.85–0.4A)
Output Voltage: 24V DC
Output Current: 1.75A
Output Power: 42W
Efficiency: Approx. 85%
Temperature Range: -25°C to +70°C (Derating above +55°C at 2.5%/K)

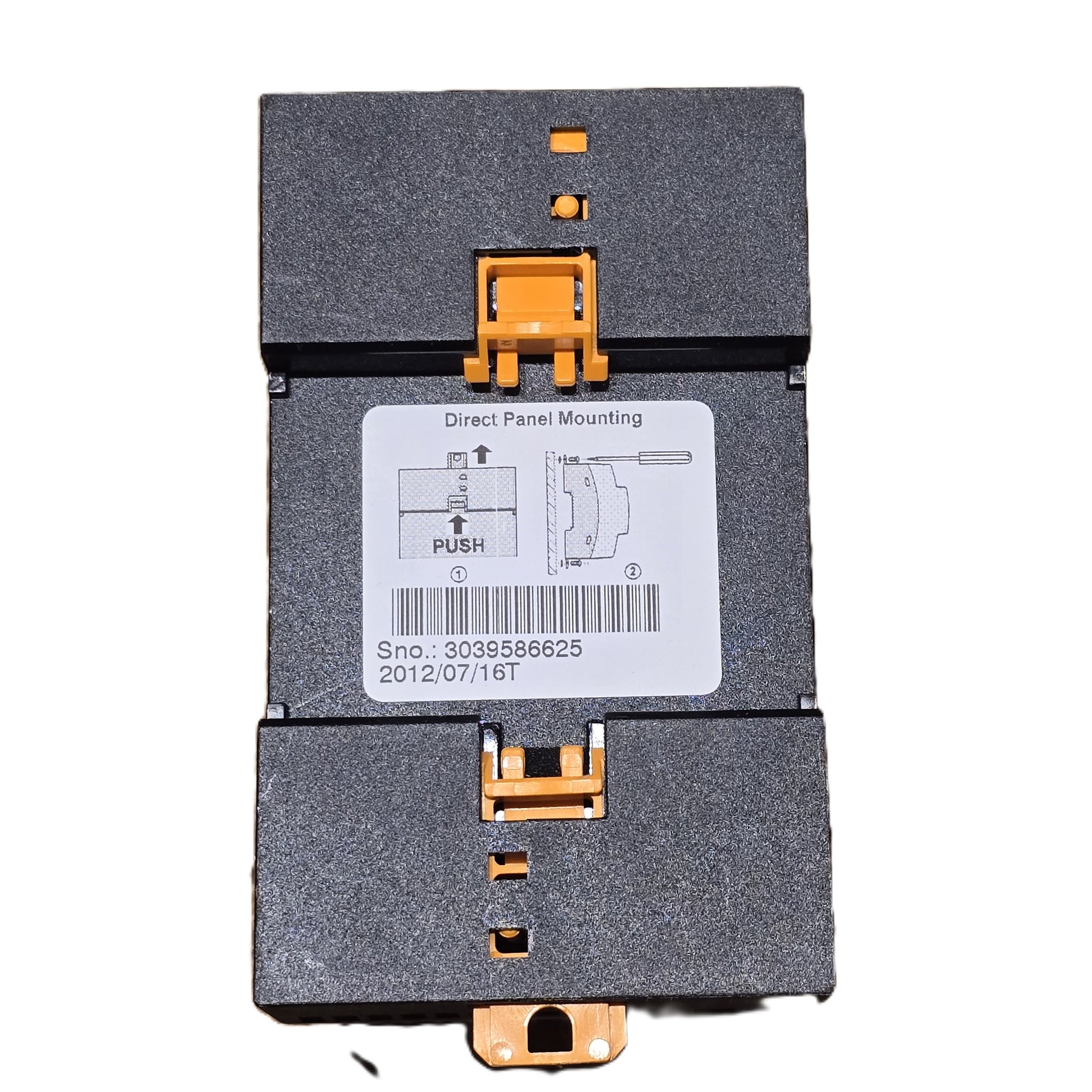

Mounting Type: DIN Rail (Direct Panel Mounting)
Certifications: UL, CE, CULUS, Class I Div 2 Hazardous Locations
Protection: Class 2 Output, DC OK Indicator
Dimensions: 90mm x 55mm x 75mm
Weight: 0.25kg
Condition: Used (Tested and Working)
Country of Origin: Germany
HS Code: 850440

The Phoenix Contact STEP-PS/1AC/24DC/1.75 is a compact DIN-rail-mounted power supply ideal for industrial automation, control panels, and building systems. It provides reliable 24V DC output with high efficiency and built-in protection features.
