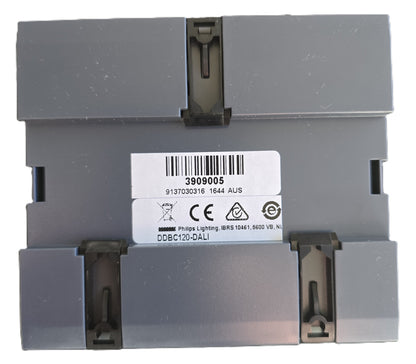

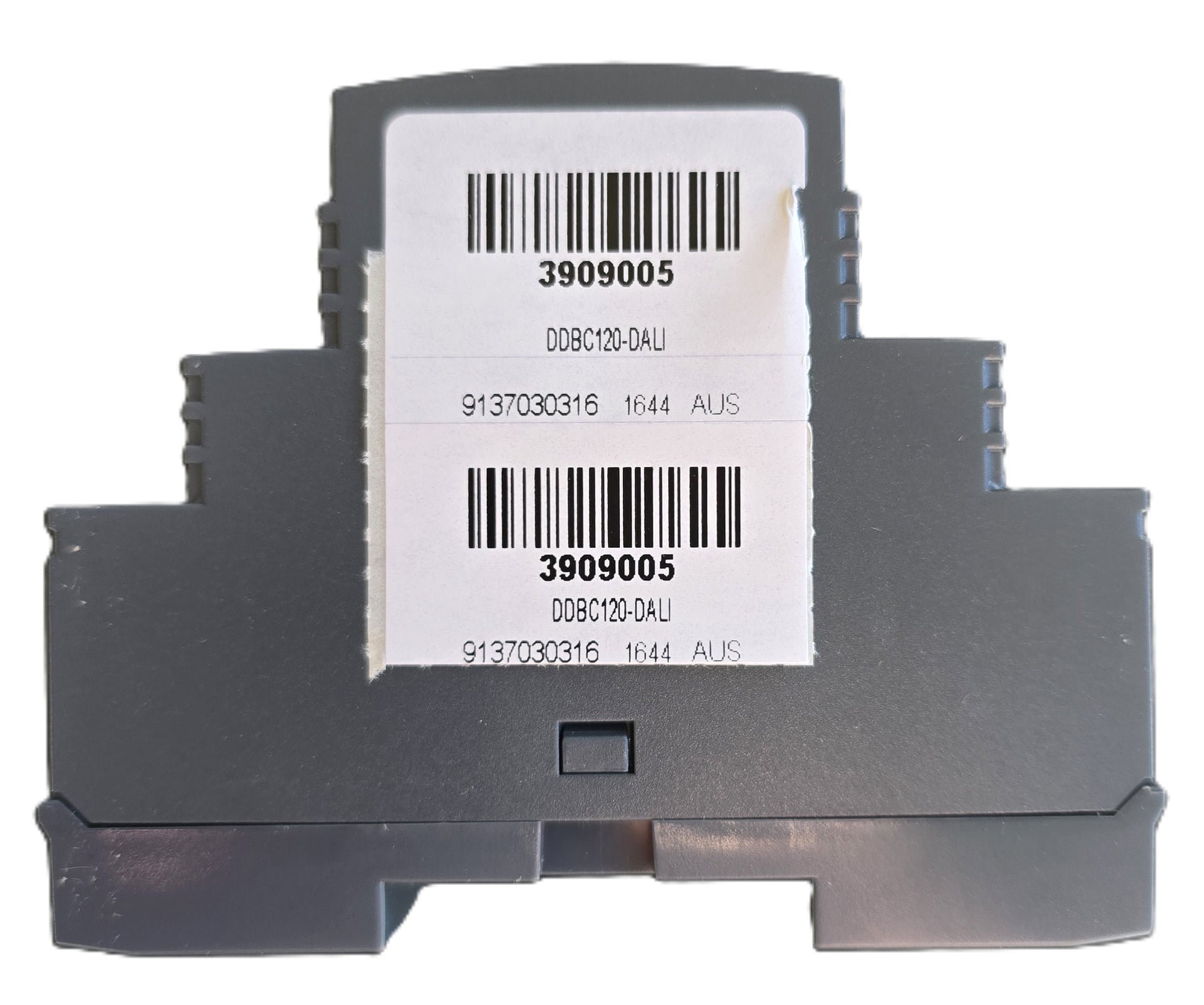

Philips-Dynalite DDBC120-DALI DALI Controller 20A DIN-Rail DyNet (NEW In Box)

The Philips Dynalite DDBC120-DALI is a DIN-rail mounted DALI controller for the Dynalite DyNet building automation and lighting control system. It provides a single DALI universe together with a 20A switched relay output, allowing DALI drivers and ballasts to be addressed, dimmed and switched under DyNet control.

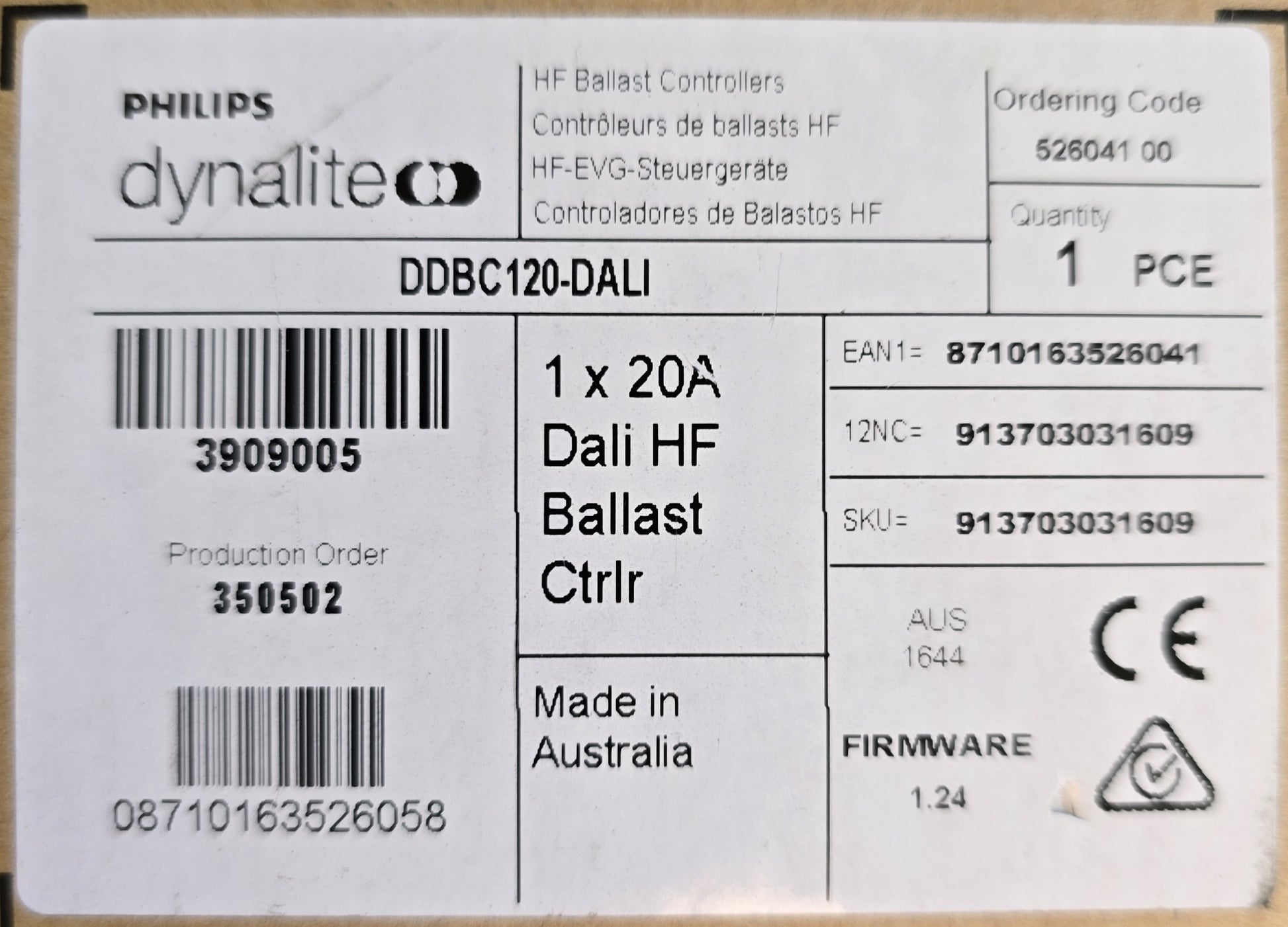

This unit is supplied new in the manufacturer's original packaging. It carries the ordering code 526041 00 and 12NC 913703031609, is manufactured in Australia, and connects to a DyNet network over an RS485 interface for integration with Dynalite controllers, user interfaces and sensors.

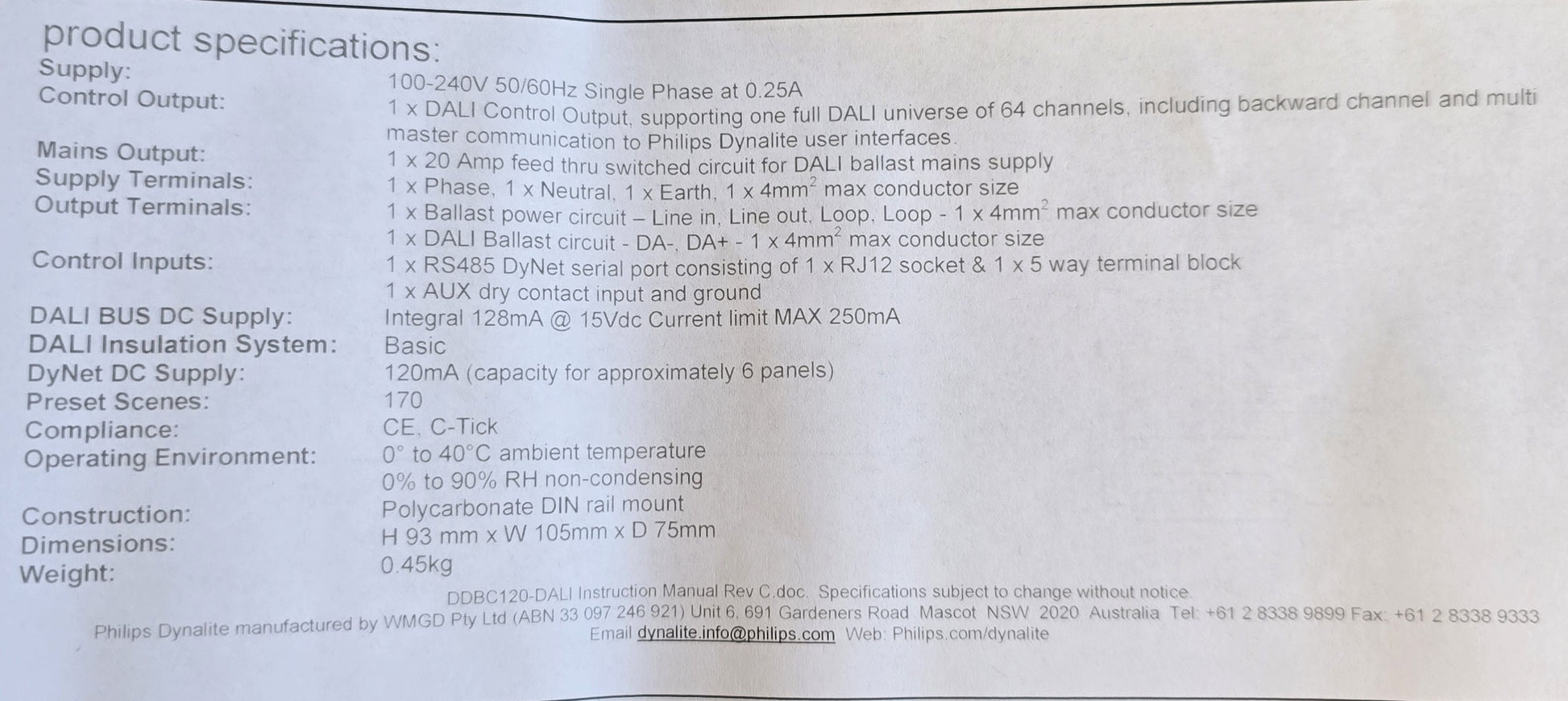

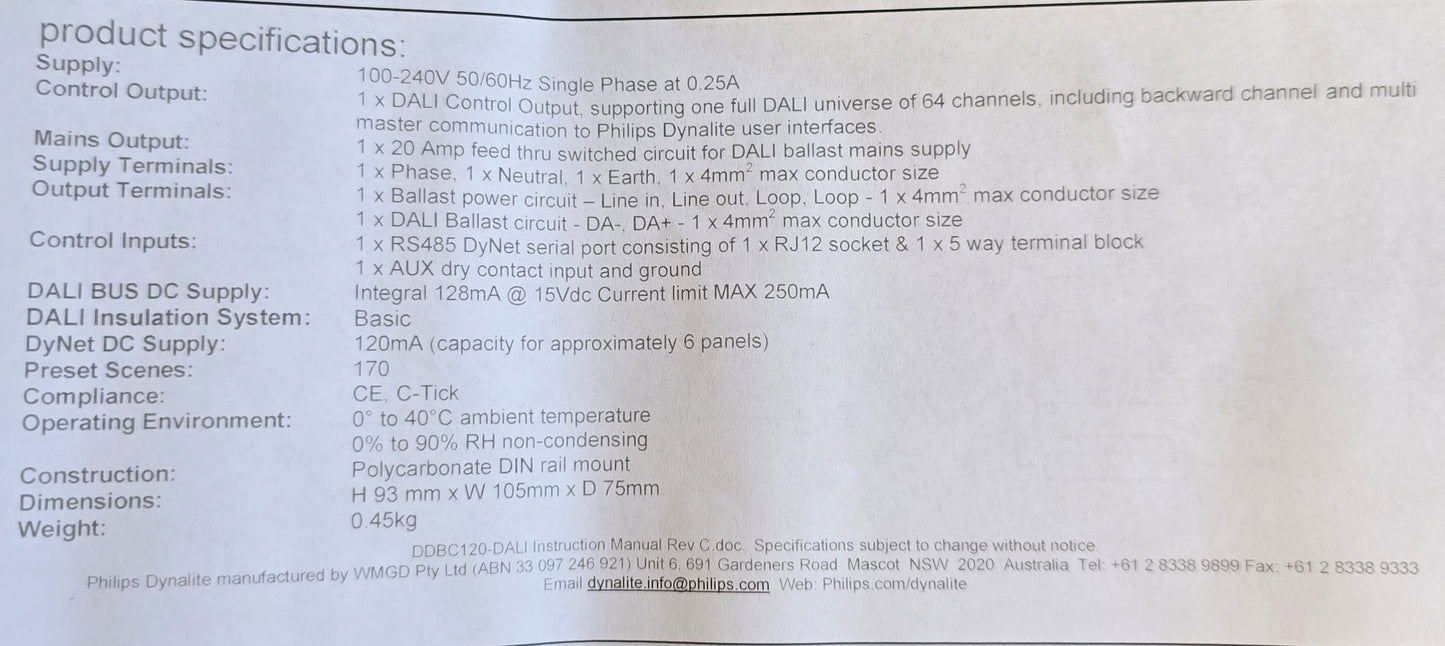

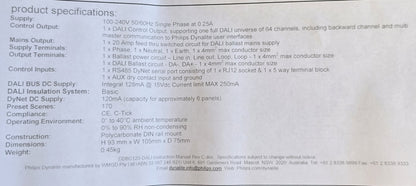

Specifications

• Brand: Philips Dynalite
• Model: DDBC120-DALI
• Type: DALI controller (HF ballast controller)
• Supply: 100-240V AC, 50/60Hz, 0.25A
• Output: 1 x 20A switched relay output
• DALI output: 1 x DALI universe (up to 64 DALI drivers/ballasts per datasheet)
• DALI insulation system: Basic

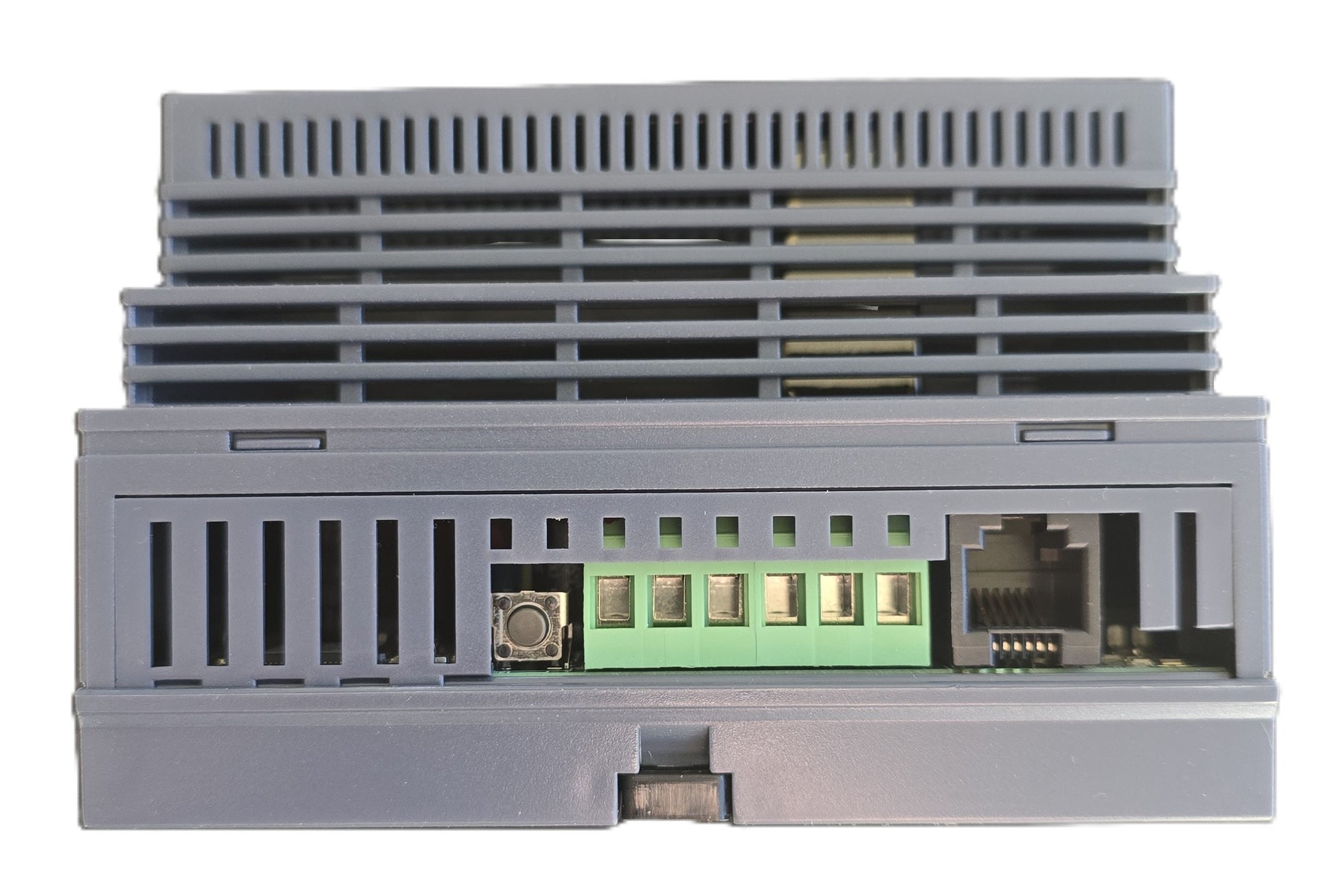

• Network interface: RS485 DyNet, plus RJ12 port
• Firmware: 1.24
• Ordering code: 526041 00

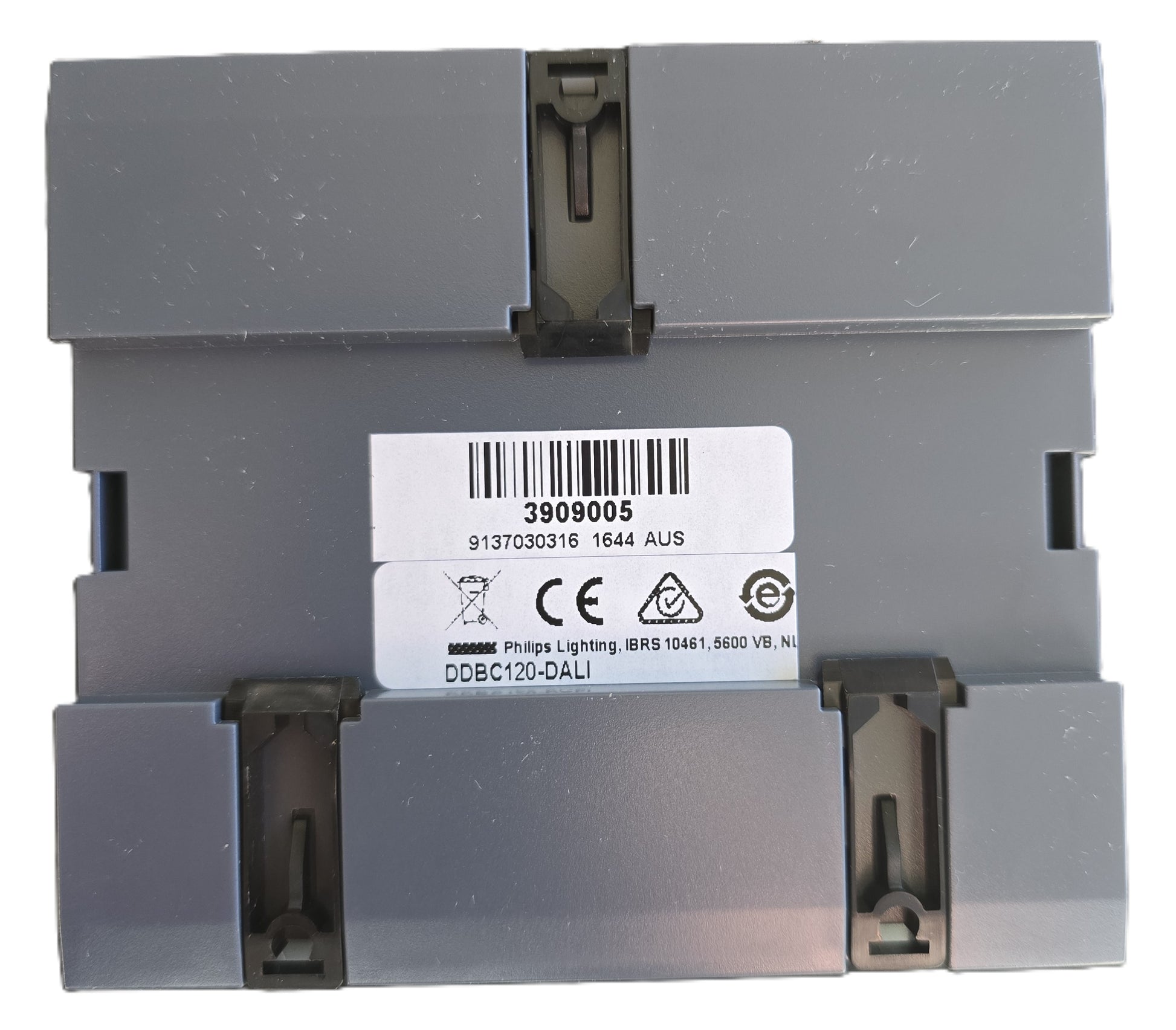

• 12NC / SKU: 913703031609
• EAN: 8710163526041
• Mounting: 6-module DIN-rail enclosure
• Dimensions: approximately 105 x 95 x 75 mm (W x H x D)
• Country of manufacture: Australia

Key Features

• Single DALI universe output for addressable driver and ballast control
• Integrated 20A switched relay output for load switching
• Native DyNet integration over an RS485 network

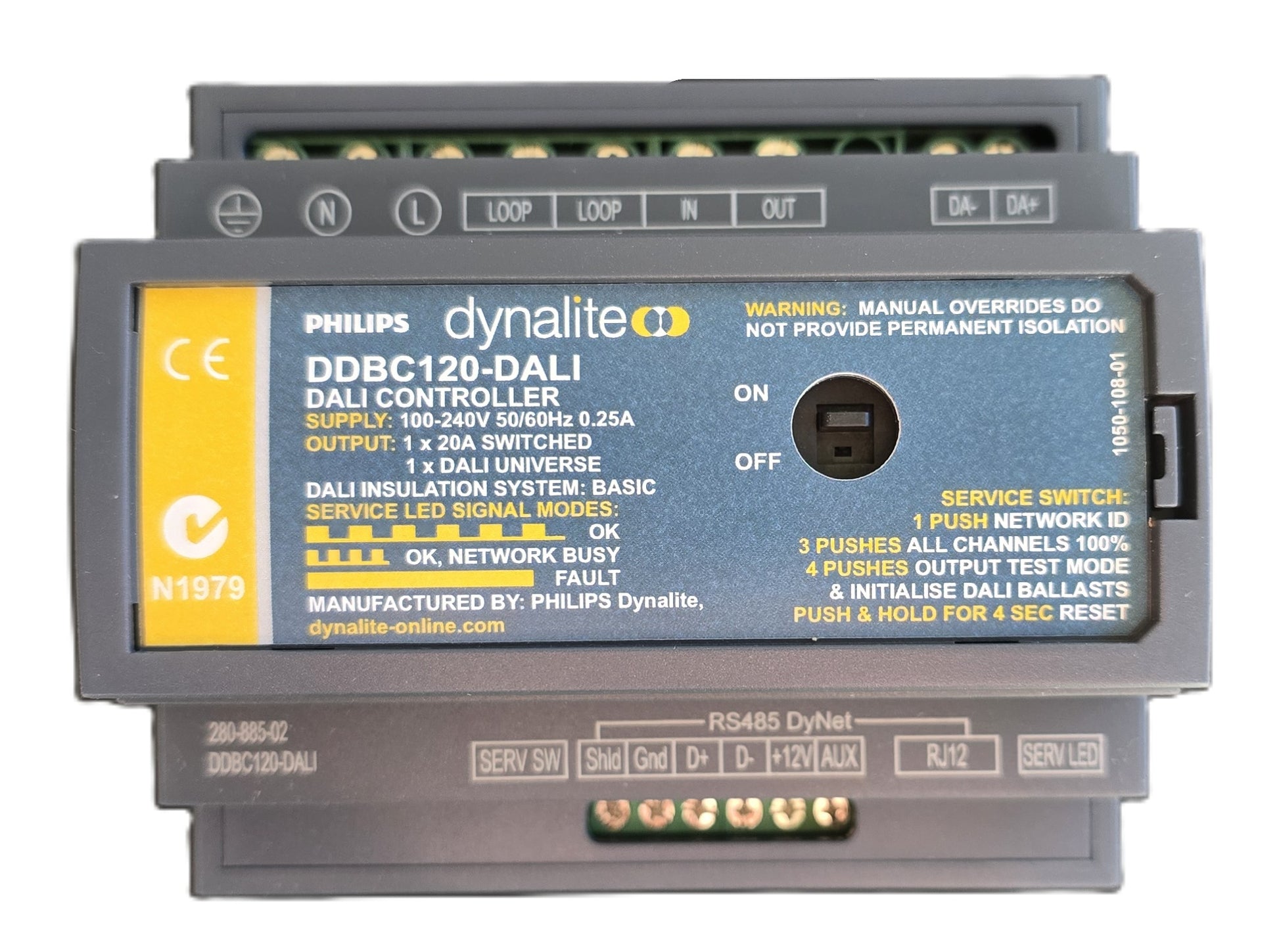

• Manual override with ON/OFF switch and service switch functions
• Service LED signal modes indicating OK, network busy and fault states

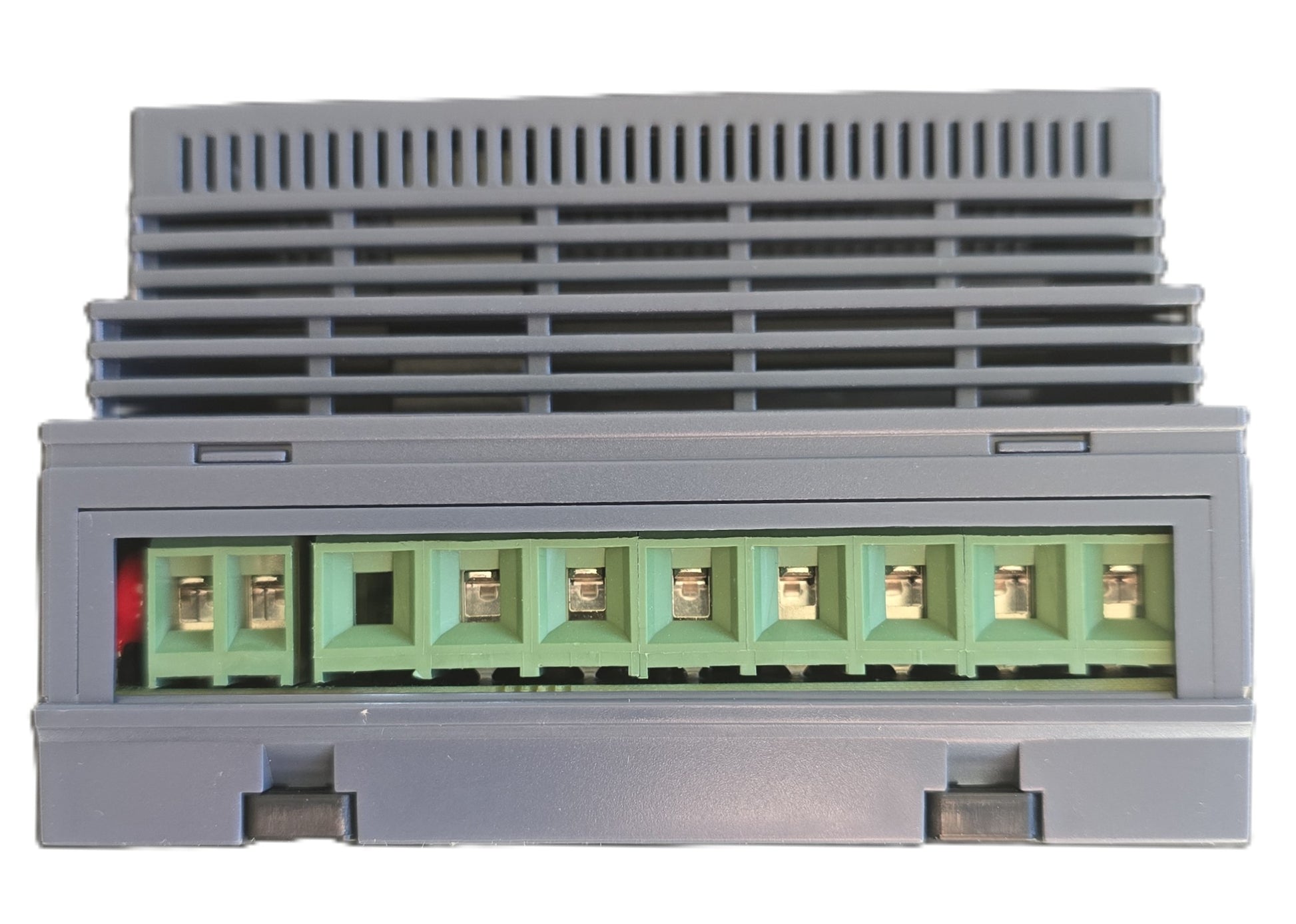

• Compact DIN-rail format for distribution board installation

Typical Applications

• Commercial and architectural lighting control
• DALI lighting installations within Dynalite DyNet systems
• Building automation and energy management projects
• Retrofit and expansion of existing Dynalite networks

Package Includes

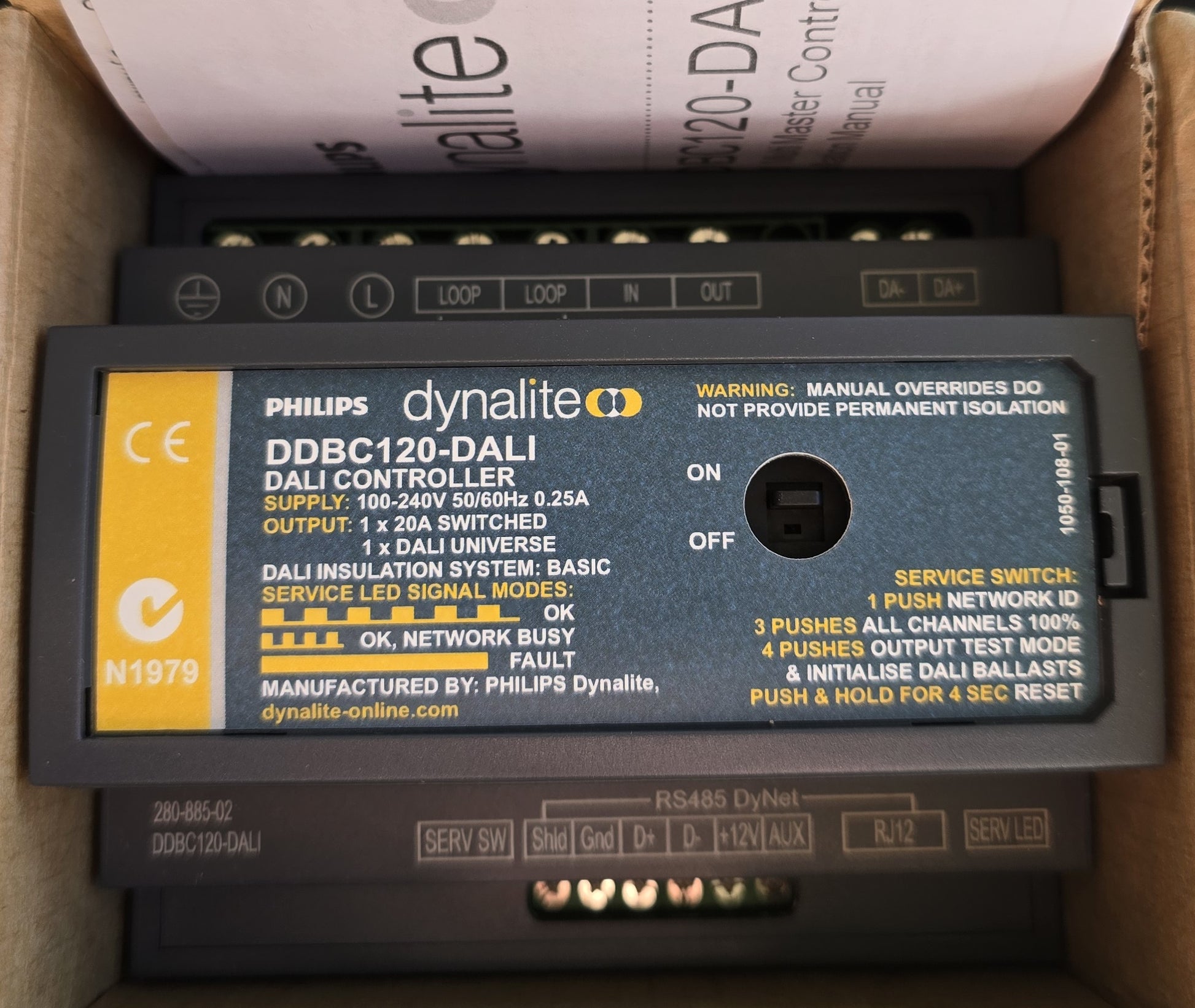

• 1 x Philips Dynalite DDBC120-DALI DALI Controller
• Manufacturer's original packaging
• Up to 16 units available; multiple quantities can be supplied

Additional Information

The item is new in the manufacturer's original packaging.

Shipping from Sydney, Australia.
