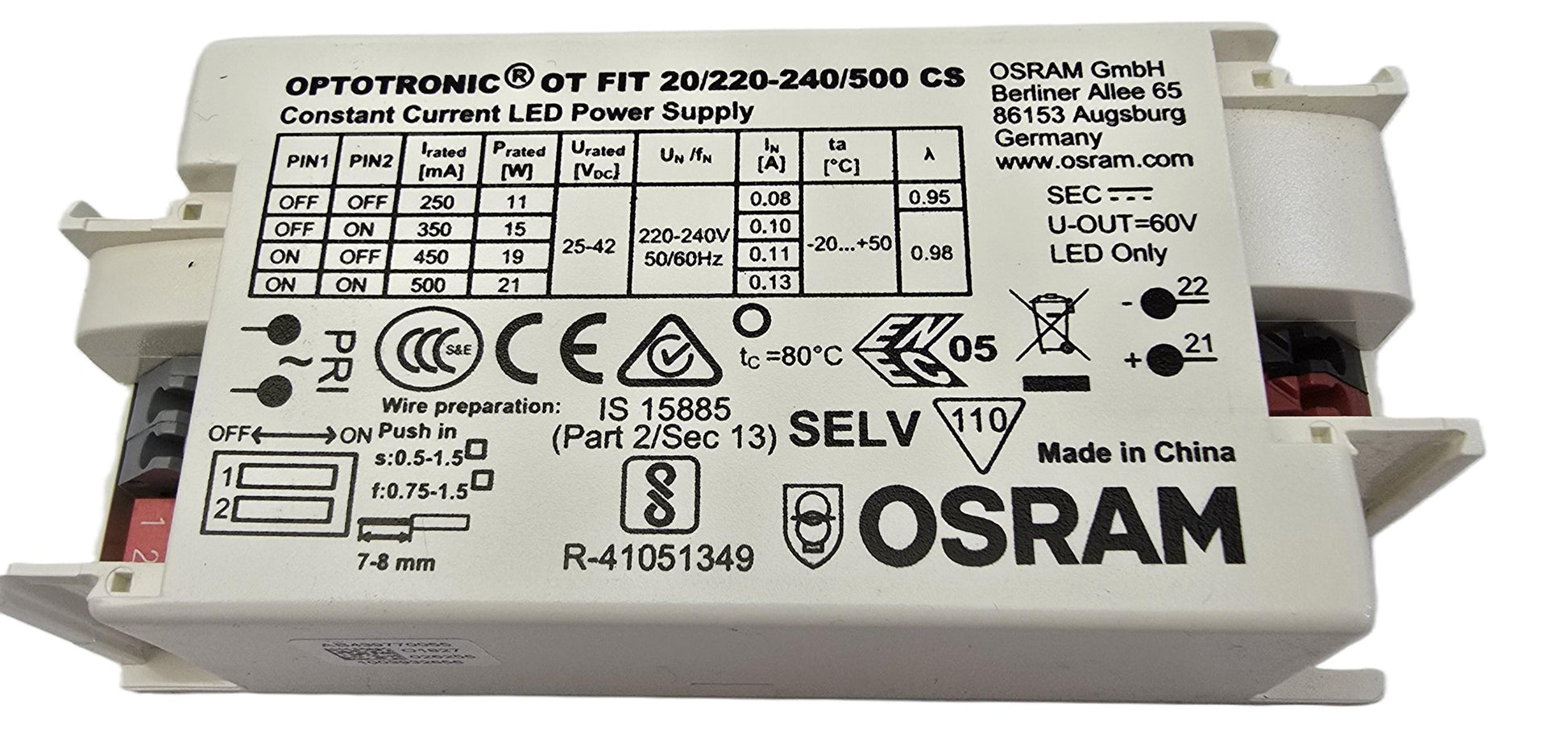

Osram Optotronic OT FIT 20/220-240/500 CS LED Driver

Description:
Constant current LED power supply.

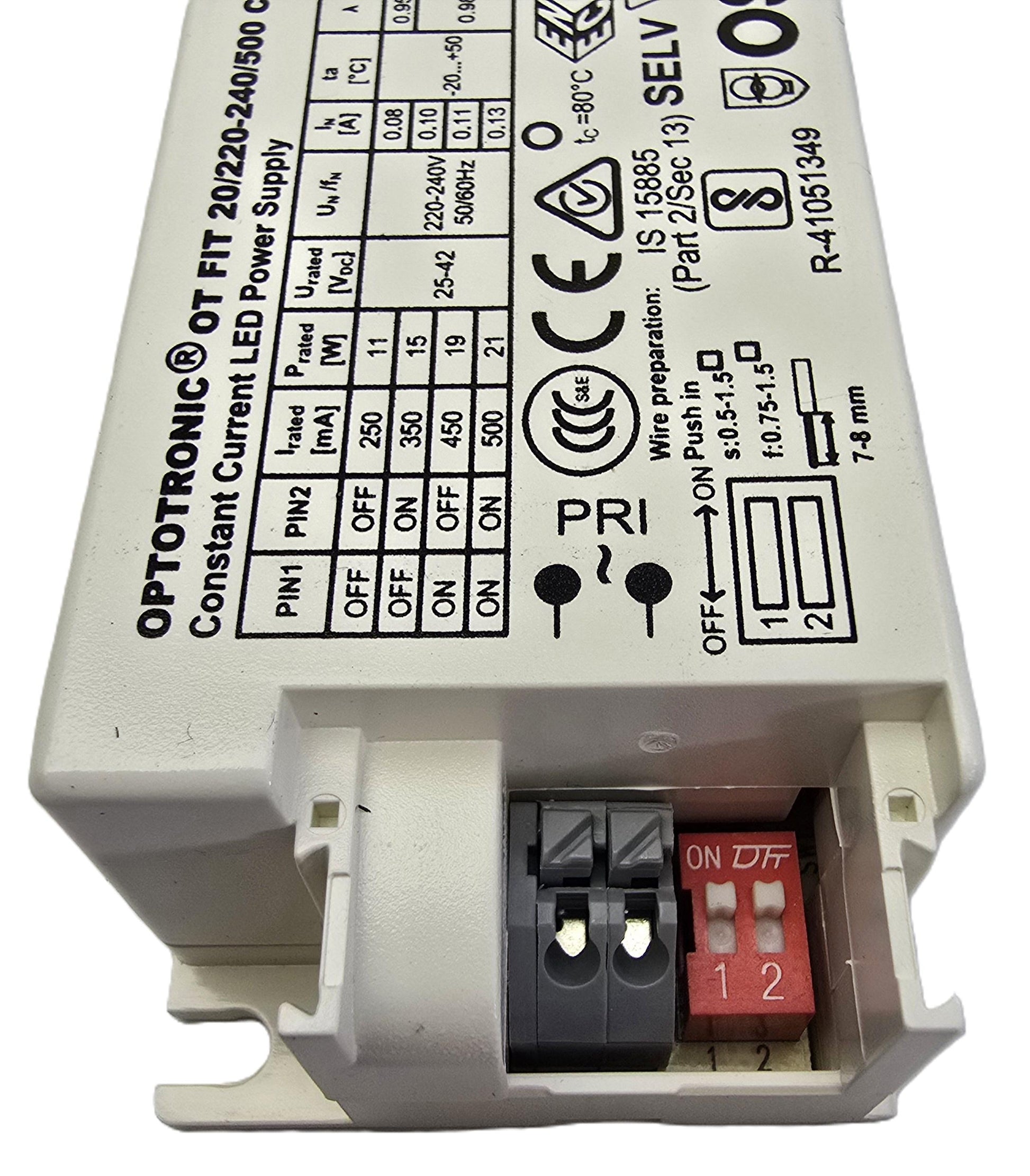

Selectable output current: 250 / 350 / 450 / 500 mA (via DIP switch).
Rated power up to 21 W.
Input voltage 220–240 V AC, 50/60 Hz.
Output voltage range 25–42 V.
Designed for professional LED lighting applications with high efficiency and reliability.

Product Family:
Osram Optotronic OT FIT CS Series

Status:
Active Product

Specifications:
Rated output current: 250 / 350 / 450 / 500 mA
Rated power: 11 W / 15 W / 19 W / 21 W
Output voltage (U_rated): 25–42 V DC
Input voltage (U_N): 220–240 V AC (50/60 Hz)
Power factor: up to 0.98
Efficiency: up to 95%
Operating temperature (ta): −20 °C … +50 °C
Max. case temperature (tc): 80 °C
Output type: Constant current (CC)
Output: SELV < 60 V (safe for LED modules)

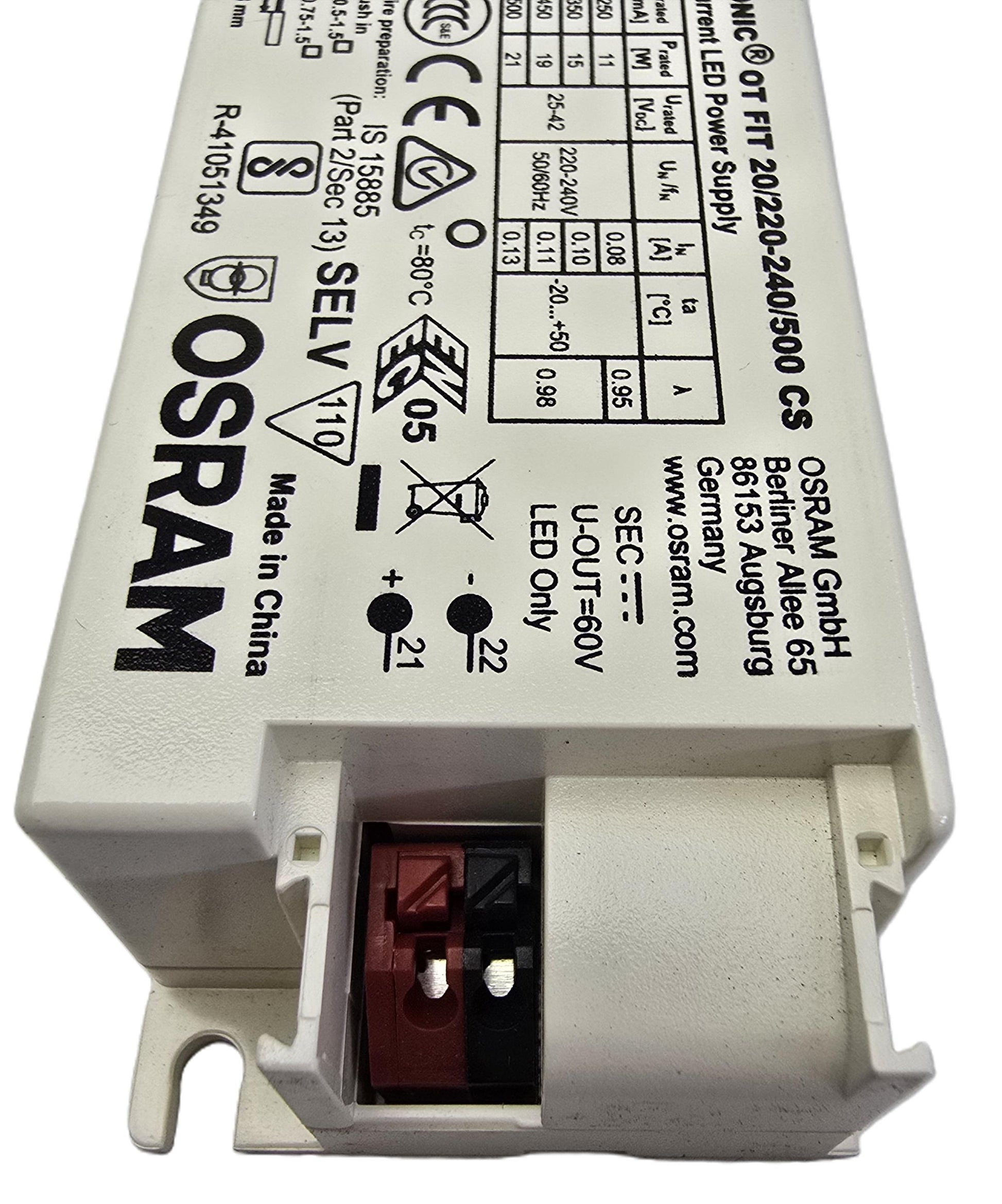

Connections: Push-in terminals

Identifiers:
Model: OT FIT 20/220-240/500 CS
EAN: 4052899324135
Manufacturer: Osram GmbH, Germany
Country of Origin: China

Compliance & Regulations:
Conforms to IS 15885 (Part 2/Sec 13)
SELV, CE, ENEC certified
RoHS compliant
WEEE (2012/19/EU) take-back obligation: Yes

Packaging:
Quantity unit: 1 piece
Package dimensions: approx. 97 × 43 × 30 mm
Net weight: ~90 g

HS Code (Customs Tariff):
8504.40.90 — Static converters, others (covers LED drivers/power supplies)

Condition:
Brand New
