Optex FLX-S-ST-BKT FlipX Standard Indoor PIR Detector 12m Bracket (NEW In Box)

The Optex FLX-S-ST-BKT is the FlipX Standard indoor passive infrared detector supplied with its wall and ceiling bracket. Its defining feature is a rotatable lens: turning the lens changes the coverage between a wide 12 metre pattern at 85 degrees and a narrow 18 metre pattern at 5 degrees, so one part number covers both a room and a corridor. It supersedes the older Optex 8683 and RX-40QZ.

Detection uses a quad type pet tolerant pyroelectric element with Optex SMDA logic and a spherical lens for consistent sensitivity across the pattern. The detector is EN Grade 2 and provides separate normally closed alarm, trouble and tamper outputs, each rated 24 V DC at 0.1 A. Warm up takes about 60 seconds with the green LED blinking. It works with Hills XR and XRPro, Ness and most conventional alarm panels.

Specifications

Brand: Optex

Model: FlipX Standard

Part Number: FLX-S-ST-BKT

Product Type: Indoor PIR intrusion detector with bracket

Detection Method: Passive infrared, quad type pyroelectric element

Coverage Wide: 12 m at 85 degrees

Coverage Narrow: 18 m at 5 degrees

Coverage Selection: By rotating the lens

Pet Immunity: Yes, pet tolerant element, up to 18 kg per the Australian distributor

Signal Processing: SMDA logic, spherical lens

Grade: EN Grade 2

Power Input: 9.5 to 16 V DC

Current Draw: 8 mA normal, 11 to 12 mA maximum at 12 V DC

Alarm Output: Normally closed dry contact, 24 V DC 0.1 A maximum, resistive

Trouble Output: Normally closed, 24 V DC 0.1 A maximum

Tamper Output: Normally closed, 24 V DC 0.1 A maximum, opens on cover removal

Alarm Period: 2.0 plus or minus 0.5 s

Warm Up: Approximately 60 s, LED blinks

LED: Green, warm up and alarm indication

Mounting Height: 2.0 to 3.0 m

Operating Temperature: -20 to +50 degrees C, humidity up to 95 percent RH

Environment: Indoor only

Dimensions: 130 high x 62 wide x 56 deep mm

Weight: 120 g, detector only

Compliance: CE, RCM, UKCA

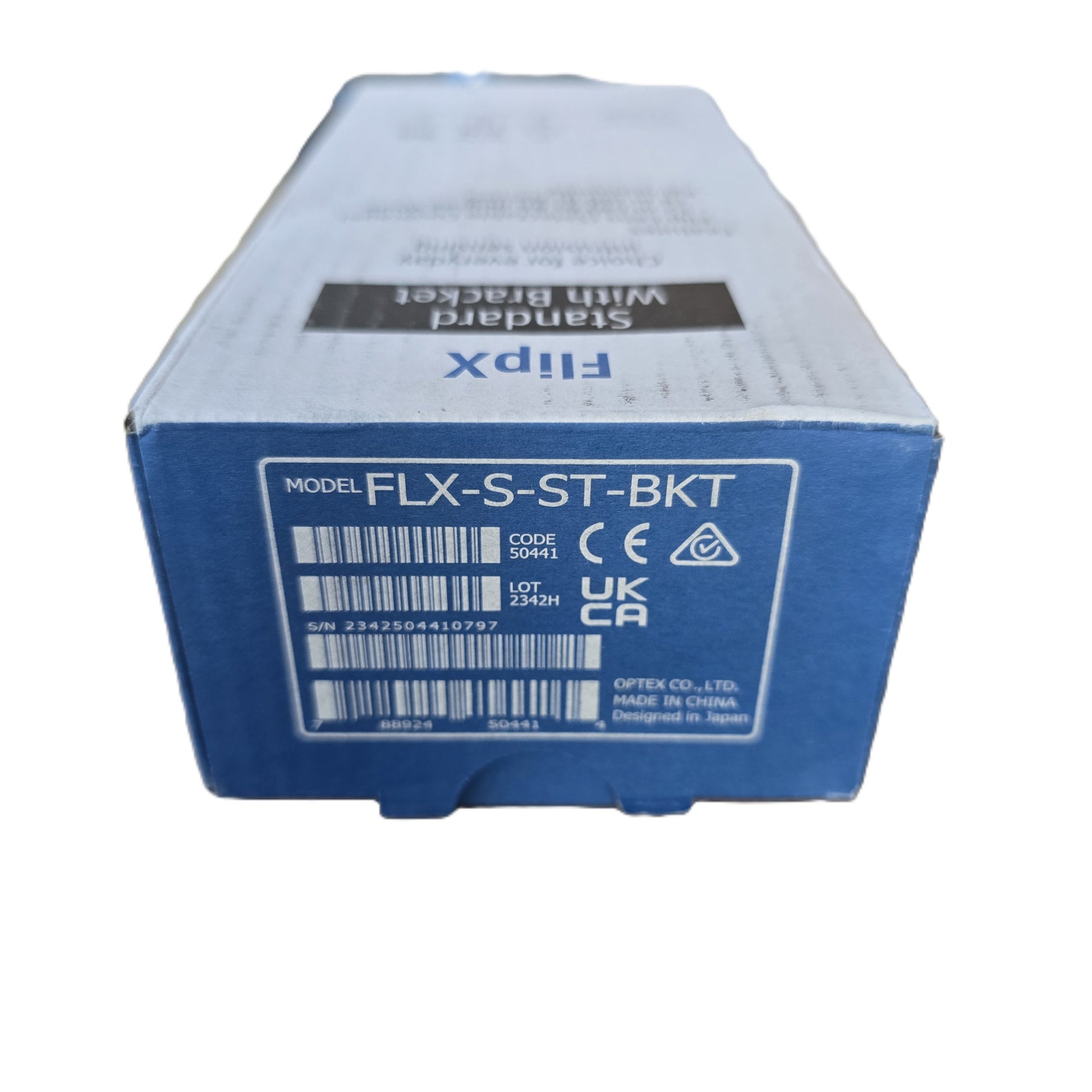

UPC: 788924504414

Lot: 2342H

Country of Manufacture: China, designed in Japan

Condition: New in box, factory sealed

Key Features

• Rotatable lens switches between 12 m wide and 18 m narrow coverage
• Pet tolerant quad element
• Separate alarm, trouble and tamper outputs
• EN Grade 2 rated
• Wall and ceiling bracket supplied
• Carries the Australian RCM mark
• Compatible with Hills XR and XRPro, Ness and most conventional panels

Typical Applications

• Residential and small commercial rooms in wide mode
• Corridors, hallways and long narrow spaces in narrow mode
• Homes with pets up to 18 kg
• Replacement for an Optex 8683 or RX-40QZ

Package Includes

• One Optex FlipX Standard PIR detector
• Wall and ceiling swivel bracket
• Mounting screws and instruction sheet as packed by the manufacturer

Additional Information

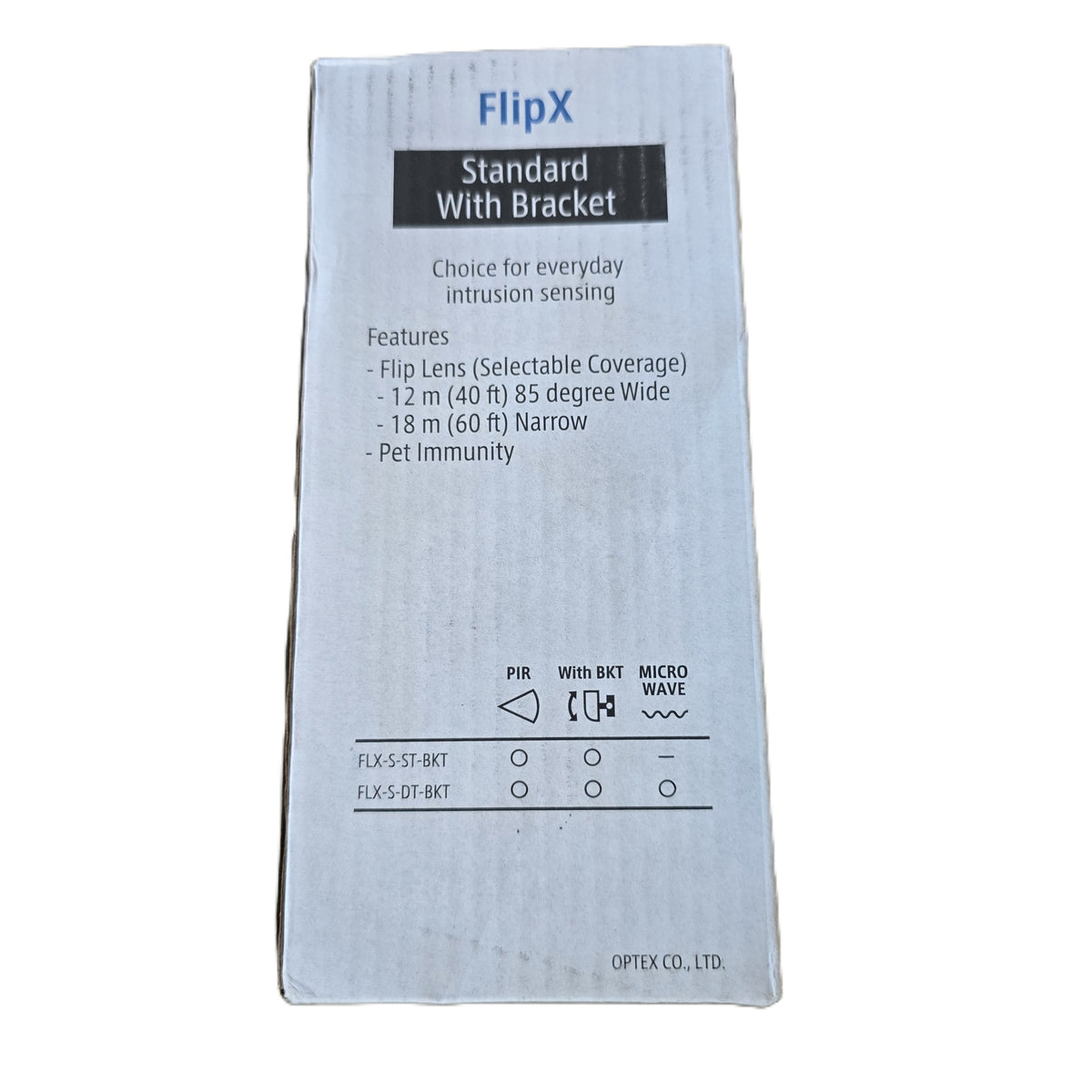

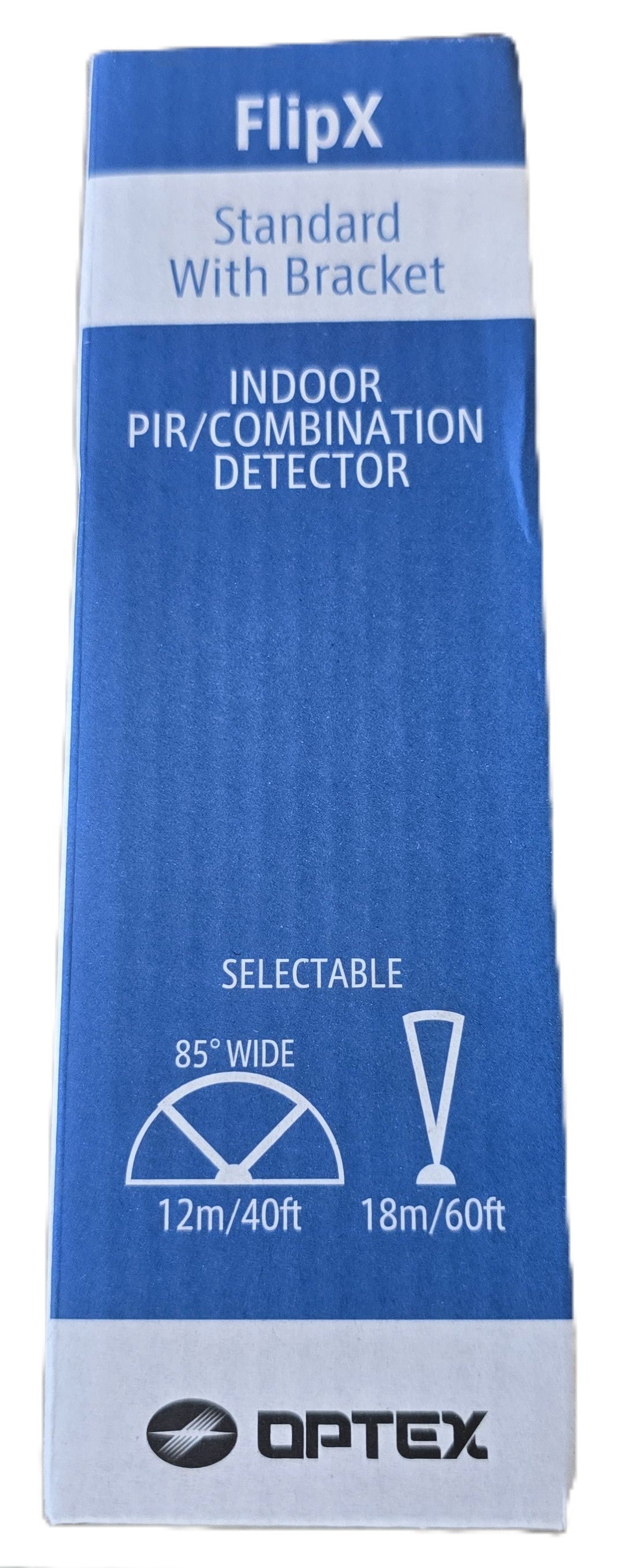

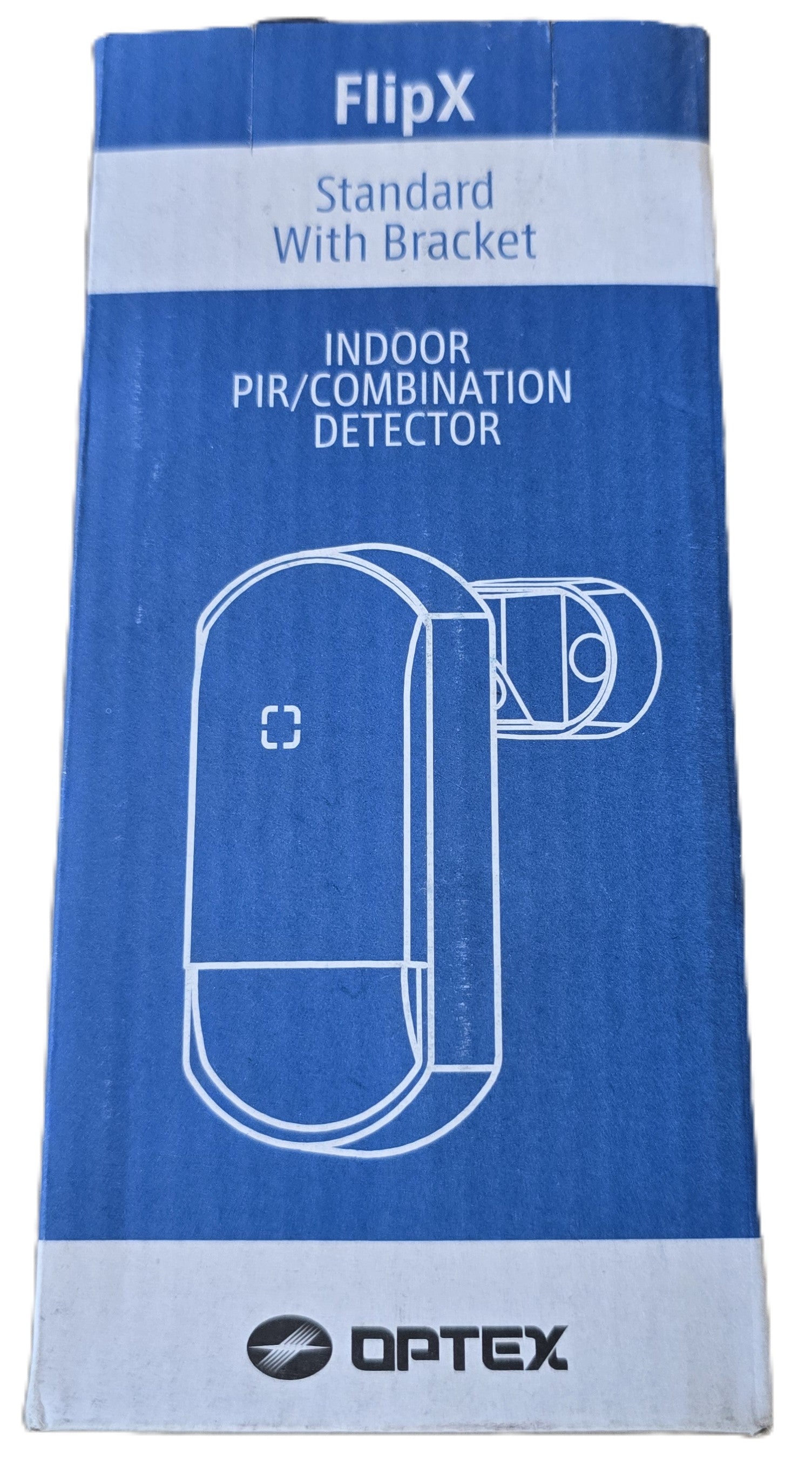

Please read this before ordering. This variant is passive infrared only. It does not have microwave and it is not a dual technology detector. The carton heading reads PIR/Combination Detector because the artwork is shared across the FlipX range, and the tick table on the back of the carton confirms this part is PIR plus bracket. The dual technology sibling is the FLX-S-DT-BKT.

This is an indoor detector with no published ingress protection rating. It is not suitable for outdoor mounting.

The carton is factory sealed and has not been opened, so the contents listed above are per the manufacturer's specification rather than from inspection.

Installation should be carried out by a licensed security technician.

The item is new and supplied in the manufacturer's sealed box. The packaging may show minor shelf wear from storage.

Shipping from Sydney, Australia.
