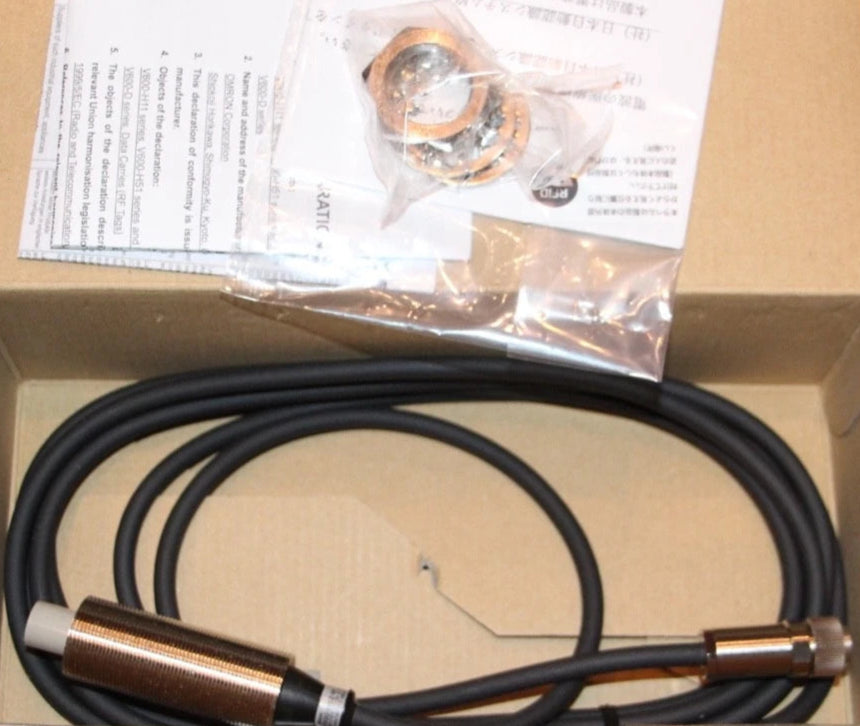

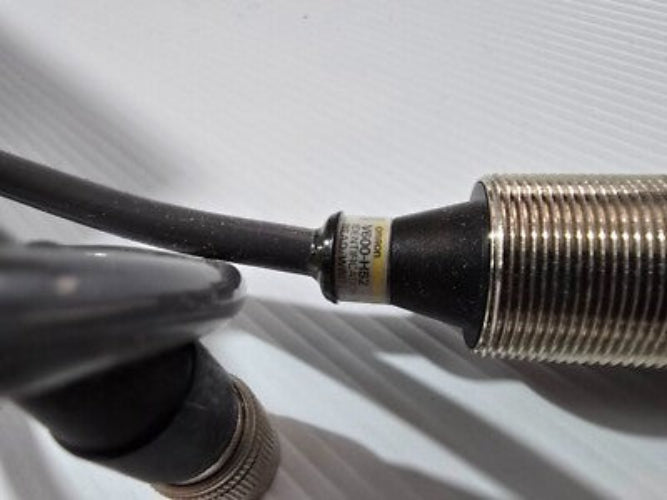

Omron V600-H52 RFID Read/Write Head — M22 Cylindrical, IP67, 530 kHz

Boost reliability in harsh industrial environments with the Omron V600-H52 RFID read/write head. Its stainless-steel M22 cylindrical body and IP67 sealing deliver durable performance on the line.

Key features

• Model: V600-H52

• Type: RFID read/write head

• Transmission frequency: 530 kHz

• Housing: M22 cylindrical, stainless steel

• Protection rating: IP67 (washdown/industrial environments)

• Operating temperature: −10 °C to +60 °C

• Storage temperature: −25 °C to +75 °C

• Ambient humidity: 35% to 95% RH

• Insulation resistance: ≥ 50 MΩ (500 VDC) between cable terminals and case

• Dielectric strength: 1,000 VAC, 50/60 Hz for 1 min (≤ 1 mA leakage)

• Vibration resistance: 10–500 Hz, 1.0 mm p-p, 150 m/s² (3 × 11-min sweeps in X/Y/Z)

• Shock resistance: 500 m/s², 3 times each in X/Y/Z (18 total)

• Cable lengths: 0.5 m, 2 m, 5 m, 10 m options

• Indicators: Power (green), Transmission (orange)

• Weight: Approx. 650 g (with 10 m cable)

Brand: Omron
Country of manufacture: Japan
