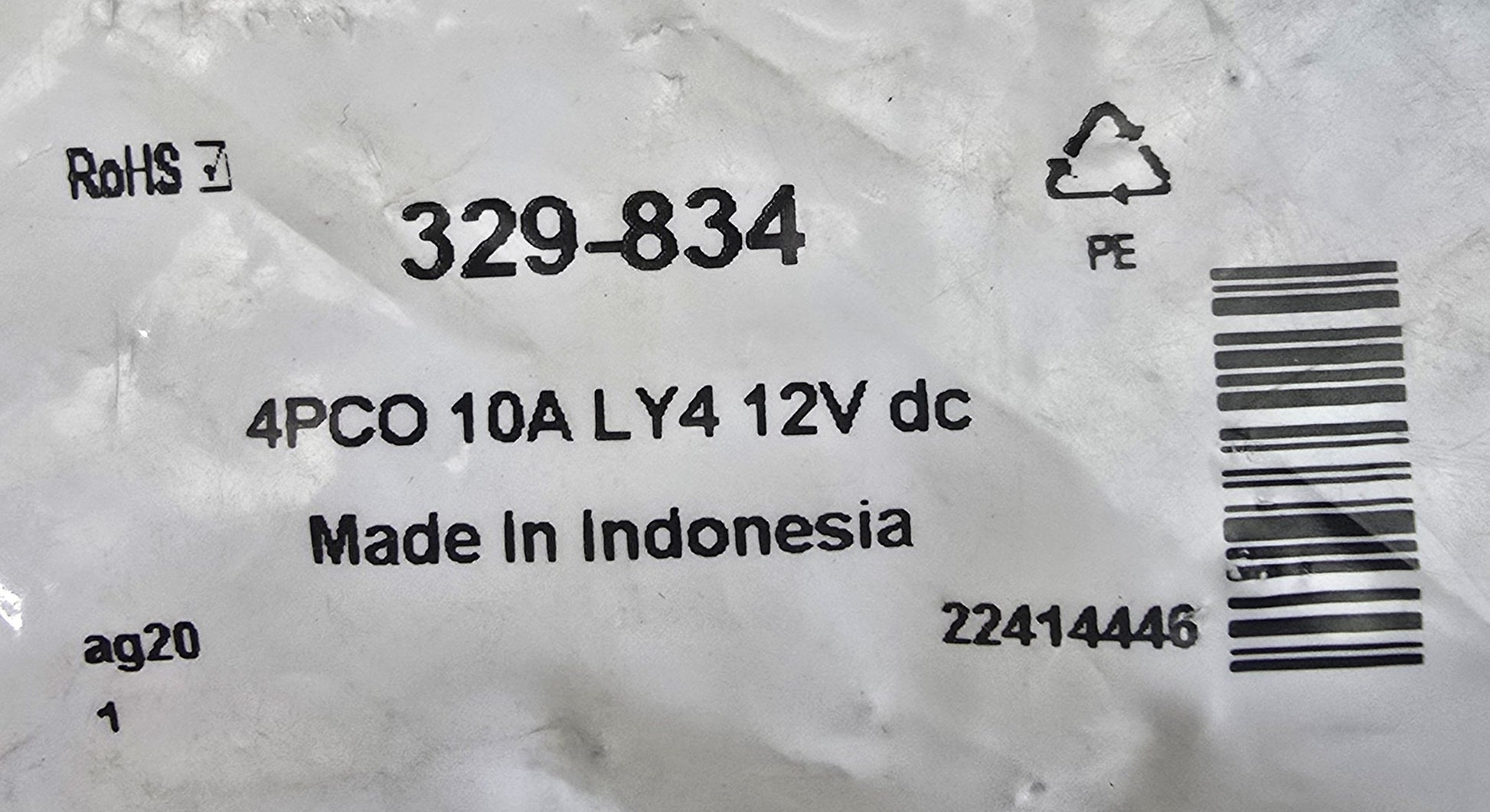

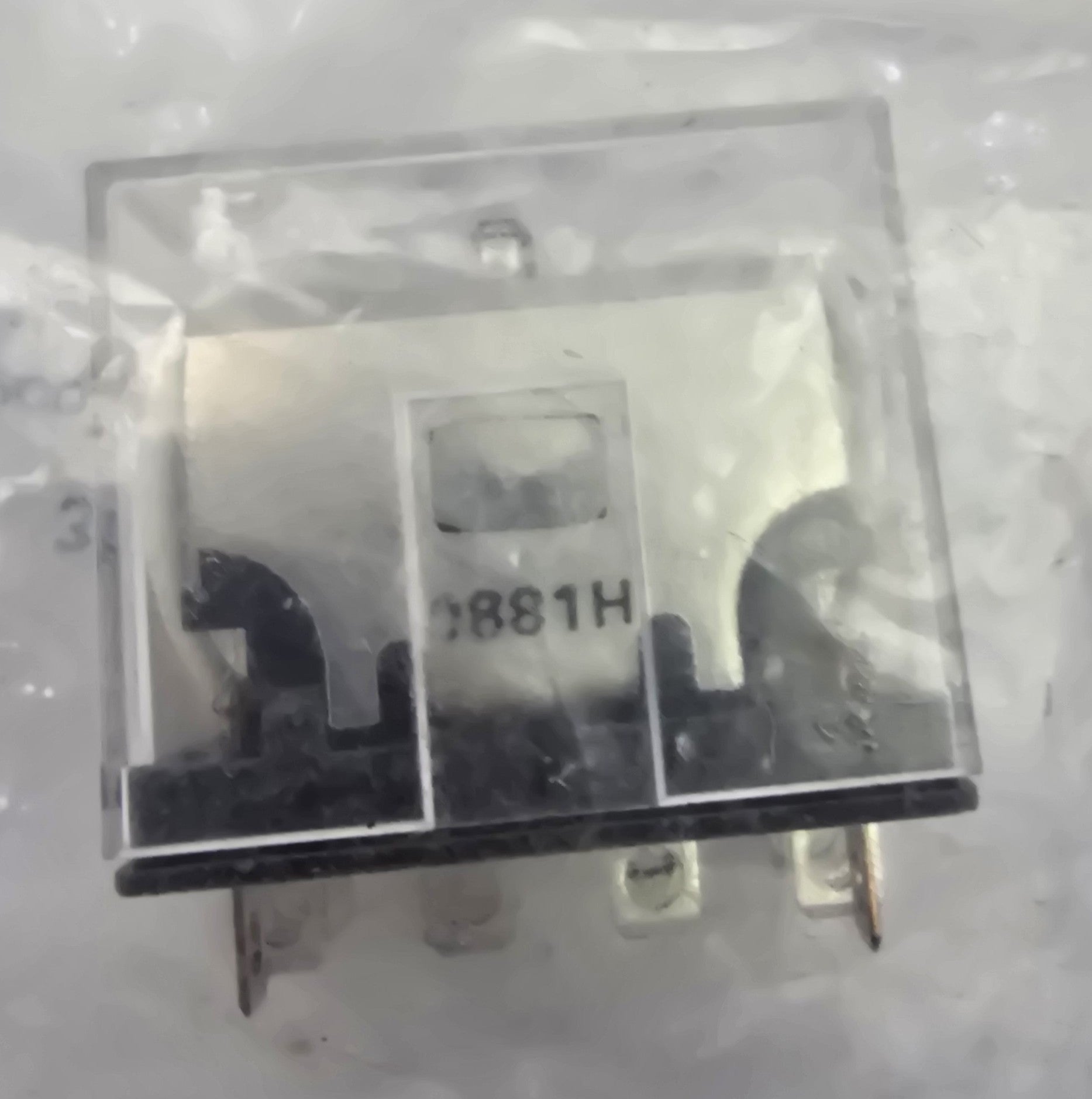

Brand:Omron RS Stock Number: 329-834 Series: LY Model: LY4 Manufacturer Part Number: LY4 12VDC Type: Plug-In Power Relay Coil Voltage: 12 V DC Coil Resistance: 90 Ω Coil Power Consumption: 1.6 W Contact Configuration: 4PCO (4 Form C / 4PDT) Number of Contacts: 4 Contact Material: Silver Alloy Contact Rating (Resistive): 10 A Maximum Switching Voltage: 250 V AC / 125 V DC Maximum Switching Power: 2500 VA Mounting Type: Plug-In Terminal Type: Plug-In / Quick-Connect Relay Base Compatibility: PYF-series sockets (not included unless shown) Mechanical Life: 20,000,000 operations Electrical Life: 100,000 operations at rated load Operate Time: 20 ms max Release Time: 20 ms max Insulation Resistance: 100 MΩ minimum Dielectric Strength: 2000 V AC (coil to contacts) Operating Temperature Range: −25 °C to +55 °C Standards Compliance: CE Condition: New Packaging: Factory sealed Country of Origin: Japan HS Code: 853641 Shipping: Shipping from Sydney, Australia.
