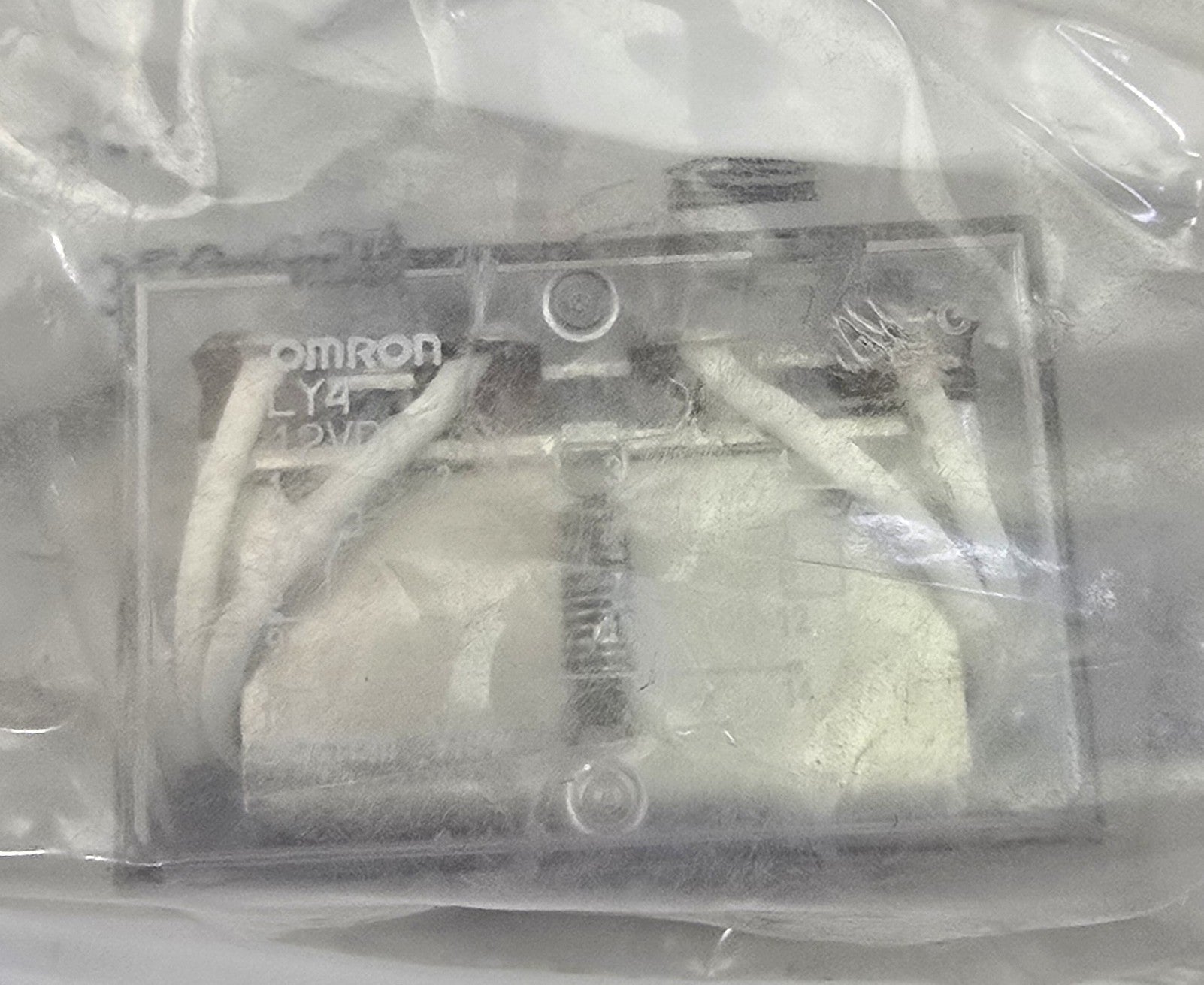

OMRON LY4 24VDC 4PCO Plug In Power Relay 24V DC Coil 10A 329-840 (NEW Sealed)

Omron Plug in Power Relay 24V DC Coil 10A Switching Current 4PDT

Brand: OMRON
Series: LY
Model: LY4
Manufacturer Part Number: LY4 24VDC
Type: Plug-In Power Relay
Coil Voltage: 24 V DC
Coil Resistance: 350 Ω
Coil Power Consumption: 1.5 W
Contact Configuration: 4PCO (4 Form C / 4PDT)
Number of Contacts: 4
Contact Material: Silver Alloy
Contact Rating (Resistive): 10 A
Maximum Switching Voltage: 250 V AC / 125 V DC
Maximum Switching Power: 2500 VA
Mounting Type: Plug-In
Terminal Type: Quick-Connect / Plug-In Base
Relay Base Compatibility: PYF series sockets (not included unless shown)
Mechanical Life: 20,000,000 operations
Electrical Life: 100,000 operations (at rated load)
Operate Time: 20 ms max
Release Time: 20 ms max
Insulation Resistance: 100 MΩ minimum
Dielectric Strength: 2000 V AC (coil to contacts)
Operating Temperature Range: −25 °C to +55 °C
Certifications: CE
Condition: New
Packaging: Factory sealed
Country of Origin: Japan
HS Code: 853641
Shipping: Shipping from Sydney, Australia.Ind
