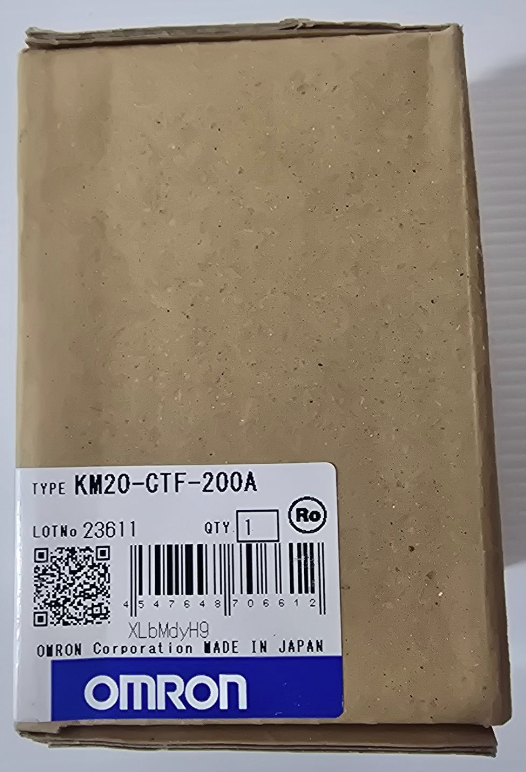

OMRON KM20-GTF-200A Straight Through Current Transformer, 200A

Omron KM20-CTF-200A Current Transformer – 200 A Primary Current, Clip-On Design, for KM Series Power Monitors

Enhance your energy monitoring setup with the Omron KM20-CTF-200A current transformer. Engineered for durability and precision, this transformer is ideal for demanding environments where reliability is paramount.

🔧 Key Features

• Model: KM20-CTF-200A

• Type: Current Transformer

• Rated Primary Current: 200 A

• Inner Diameter: 24 mm (maximum cable diameter)

• Installation: Clip-on design for easy field installation

• Compatibility: Designed for use with Omron KM series smart power monitors

• Protection: Overvoltage clamp element for enhanced safety

• Insulation Resistance: 50 MΩ min. (at 500 VDC)

• Dielectric Strength: 2,000 VAC for 1 minute

• Operating Temperature Range: -20 °C to +60 °C

• Storage Temperature Range: -30 °C to +65 °C

• Humidity Range: 25% to 85% (non-condensing)

• Allowable Number of Connections/Disconnections: 100 times

• Weight: Approximately 200 g

📦 Condition & Details

• Brand: Omron

• Country of Manufacture: Japan

• HS Code: 8504.31 (Current transformers, measuring transformers)
