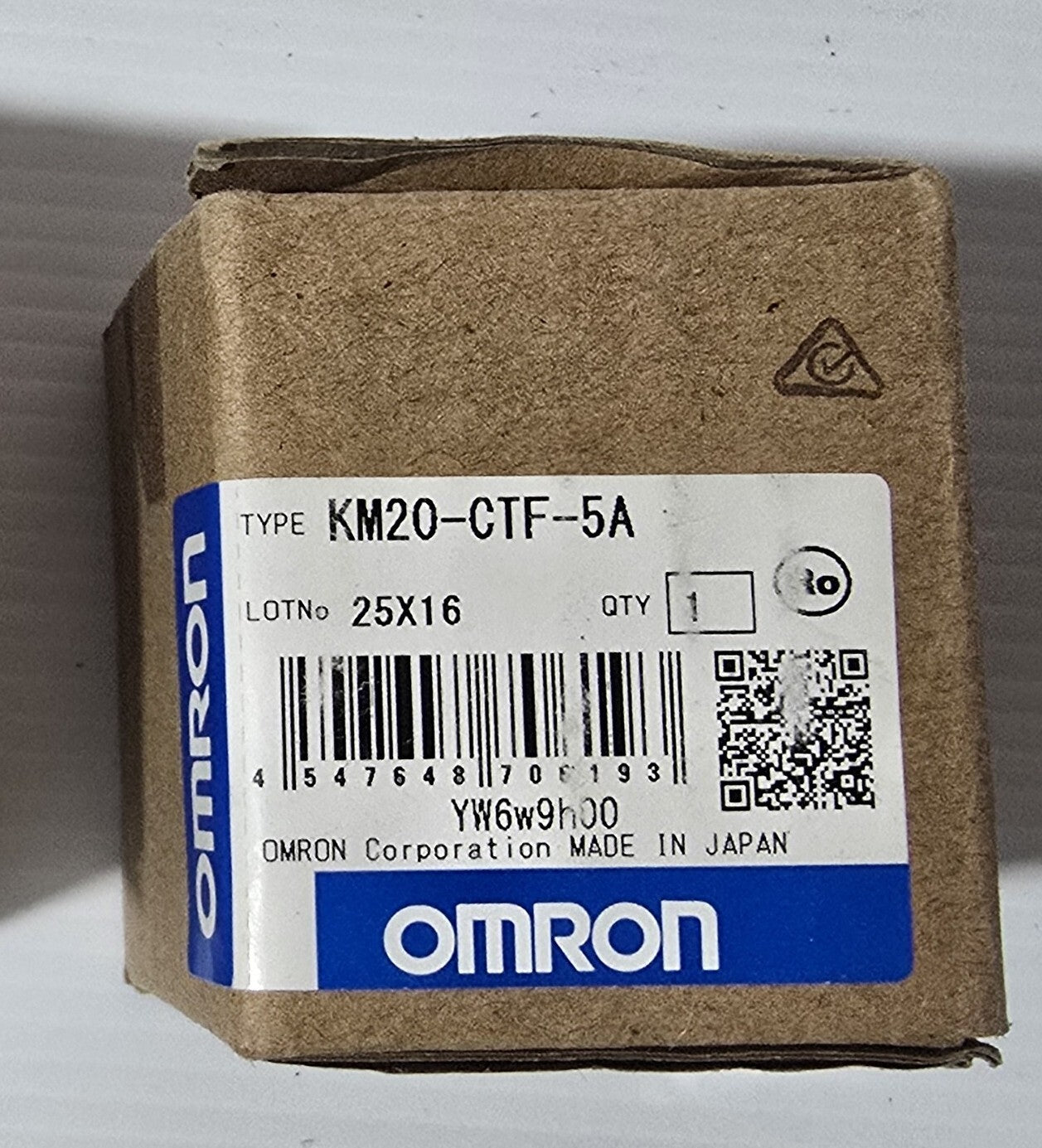

OMRON KM20-CTF-5A Straight Through Current Transformer, 5A

Omron KM20-CTF-5A Current Transformer – 5 A Primary Current, Clip-On Design, for KM50 Series Smart Power Monitors

Enhance your energy monitoring setup with the Omron KM20-CTF-5A current transformer. Engineered for durability and precision, this transformer is ideal for demanding environments where reliability is paramount.

🔧 Key Features

• Model: KM20-CTF-5A

• Type: Current Transformer

• Rated Primary Current: 5 A

• Secondary Winding: 3,000 turns

• Application Frequency: 10 Hz to 5 kHz

• Inner Diameter: 10 mm

• Installation: Clip-on design for easy field installation

• Compatibility: Designed for use with Omron KM50 series smart power monitors

• Protection: 7.5 V clamp element for overvoltage protection

• Insulation Resistance: 50 MΩ min. (at 500 VDC)

• Dielectric Strength: 2,000 VAC for 1 minute

• Operating Temperature Range: -20 °C to +60 °C

• Storage Temperature Range: -30 °C to +65 °C

• Humidity Range: 25% to 85% (non-condensing)

• Allowable Number of Connections/Disconnections: 100 times

• Weight: Approximately 150 g

📦 Condition & Details

• Brand: Omron

• Country of Manufacture: Japan

• HS Code: 8504.31 (Current transformers, measuring transformers)
