OMRON E4E-TS30C1 Small ultrasonic switch Transmissive type

Omron E4E-TS30C1 Ultrasonic Sensor – Through-Beam, 300 mm Sensing Distance, NPN Output

Enhance your industrial automation setup with the Omron E4E-TS30C1 ultrasonic sensor. Engineered for durability and precision, this sensor is ideal for demanding environments where reliability is paramount.

🔧 Key Features

• Sensing Method: Through-beam ultrasonic

• Sensing Distance: 300 mm

• Output Configuration: NPN open collector

• Operating Voltage: 24 VDC (21.6 to 26.4 VDC)

• Current Consumption: Emitter: 25 mA max.; Receiver: 15 mA max.

• Response Frequency: 20 Hz max.

• Indicators:

  • Emitter: Power indicator (red)

  • Receiver: Operation indicator (red), Stability indicator (green)

• Protection Rating: IP64 – suitable for harsh environments

• Connection Type: Pre-wired with 2-meter cable

• Operating Temperature Range: 0 °C to +50 °C

• Housing Material: ABS resin; Oscillator surface: Epoxy resin

• Mounting Style: Compact cylindrical design

• Weight: Approx. 160 g (Emitter and Receiver combined)

📦 Condition & Details

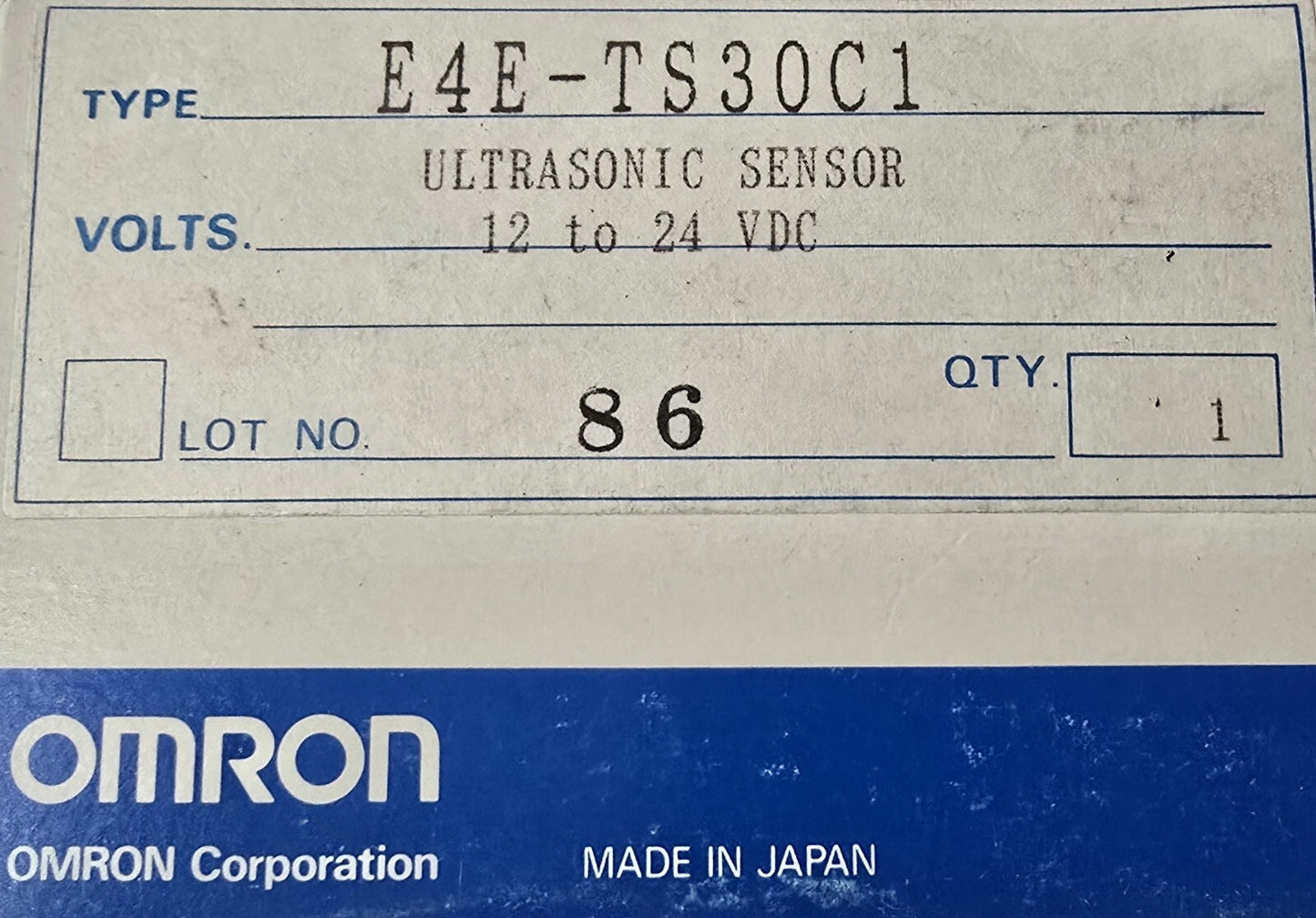

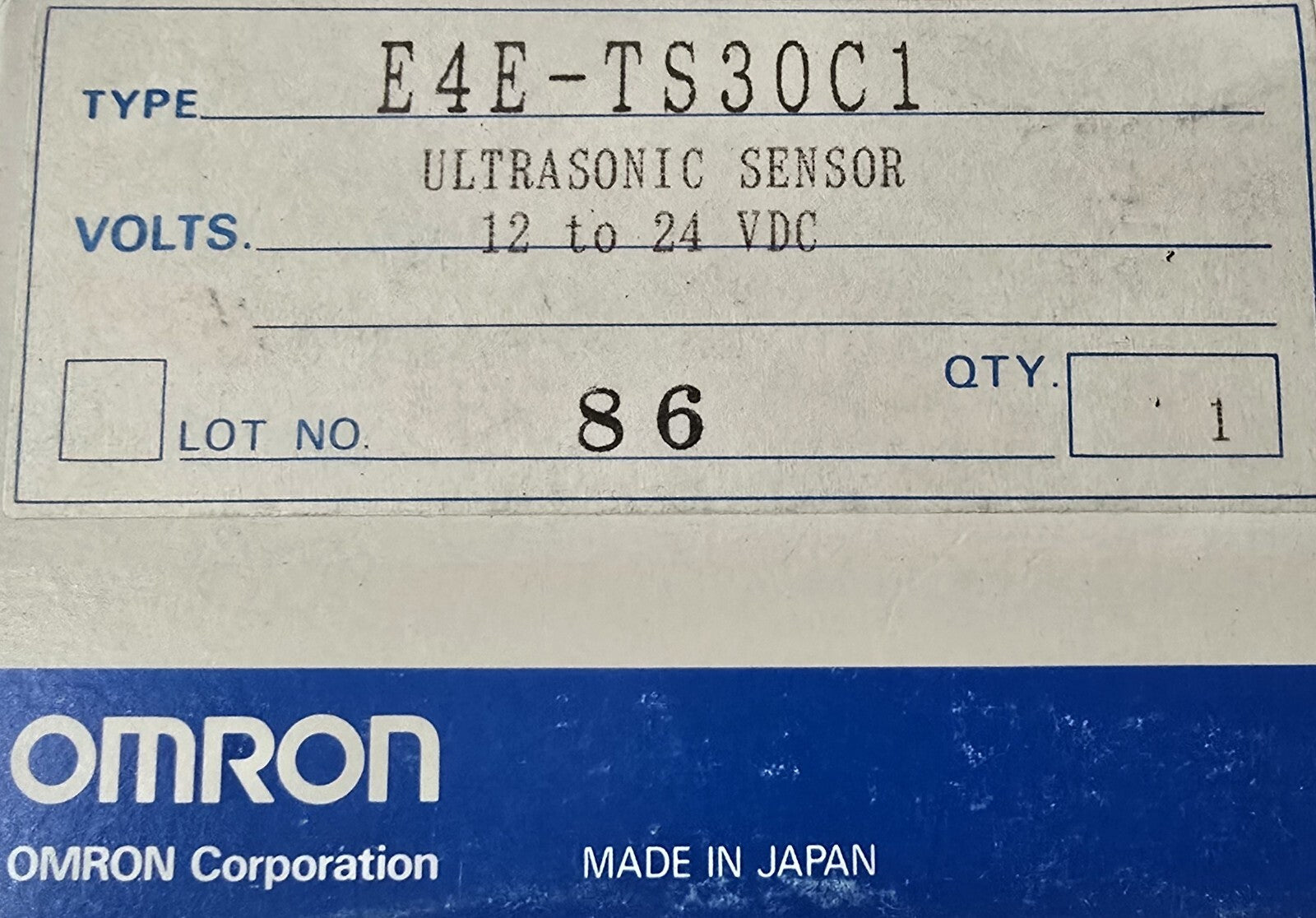

• Model: E4E-TS30C1

• Brand: Omron

• Country of Manufacture: Japan

• HS Code: 8536.50 (Electrical switches/sensors for voltage ≤ 1000 V)
