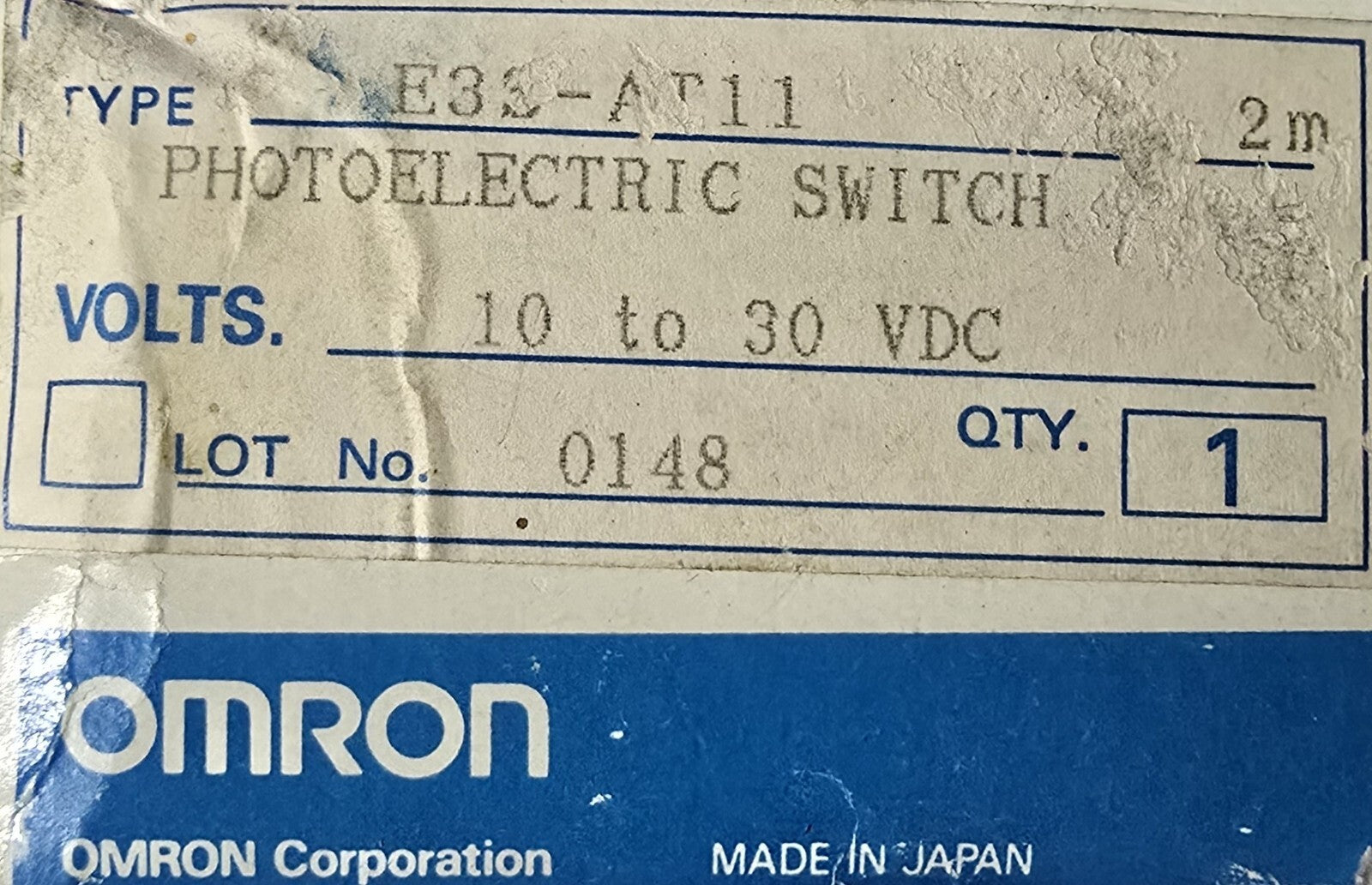

OMRON E3S-AT11 Photoelectric sensor, through-beam, 7m, DC, 3-wire, NPN, 2m

Omron E3S-AT11 Photoelectric Sensor – Through-Beam, 7 m Sensing Distance, NPN Output, IP67, Pre-wired 2 m Cable

Enhance your industrial automation setup with the Omron E3S-AT11 photoelectric sensor. Engineered for durability and precision, this sensor is ideal for demanding environments where reliability is paramount.

🔧 Key Features

• Model: E3S-AT11

• Sensing Method: Through-beam

• Sensing Distance: 7 meters

• Light Source: Red LED (660 nm)

• Output Configuration: NPN open collector

• Operation Modes: Light-ON / Dark-ON (selectable via switch)

• Operating Voltage: 10 to 30 VDC (including 10% ripple)

• Current Consumption: Emitter: 20 mA max.; Receiver: 20 mA max.

• Response Time: 0.5 ms max.

• Housing Material: Case: Polybutylene terephthalate (PBT); Lens: Denatured Polyarylate

• Protection Rating: IP67 / NEMA 4X (indoors only)

• Connection Type: Pre-wired with 2-meter cable

• Operating Temperature Range: –25 °C to +55 °C (no freezing or condensation)

• Indicators: Red LED (operation), Green LED (stability)

• Mounting Style: Side or bottom surface with included mounting bracket

• Weight: Approx. 150 g

📦 Condition & Details

• Condition: Brand New in original packaging

• Brand: Omron

• Country of Manufacture: Japan

• HS Code: 8541.40 (Photosensitive semiconductor devices – photoelectric sensors)
